Model Maytag ADB1400AWD3 DISHWASHER – Common Parts & Diagrams

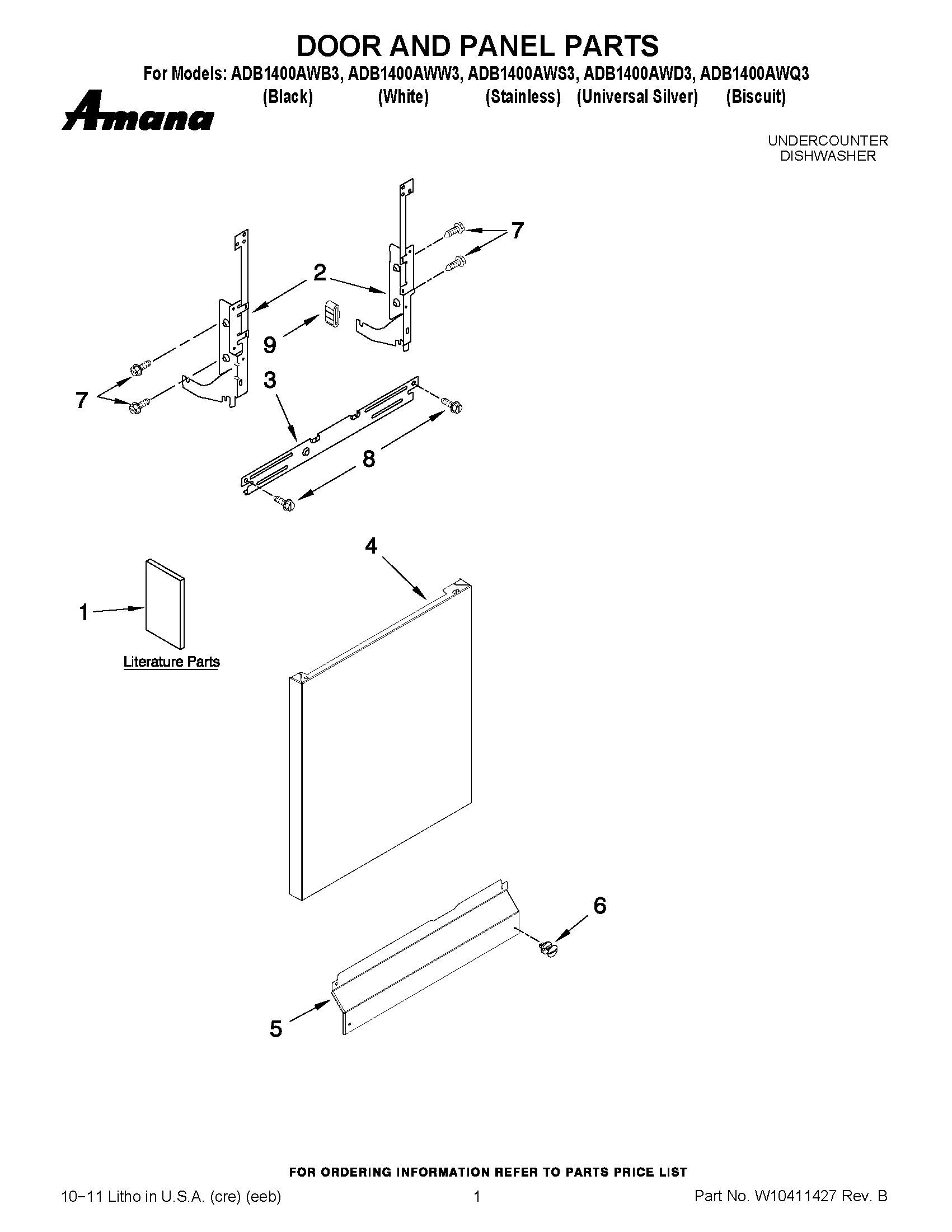

01 - DOOR AND PANEL PARTS

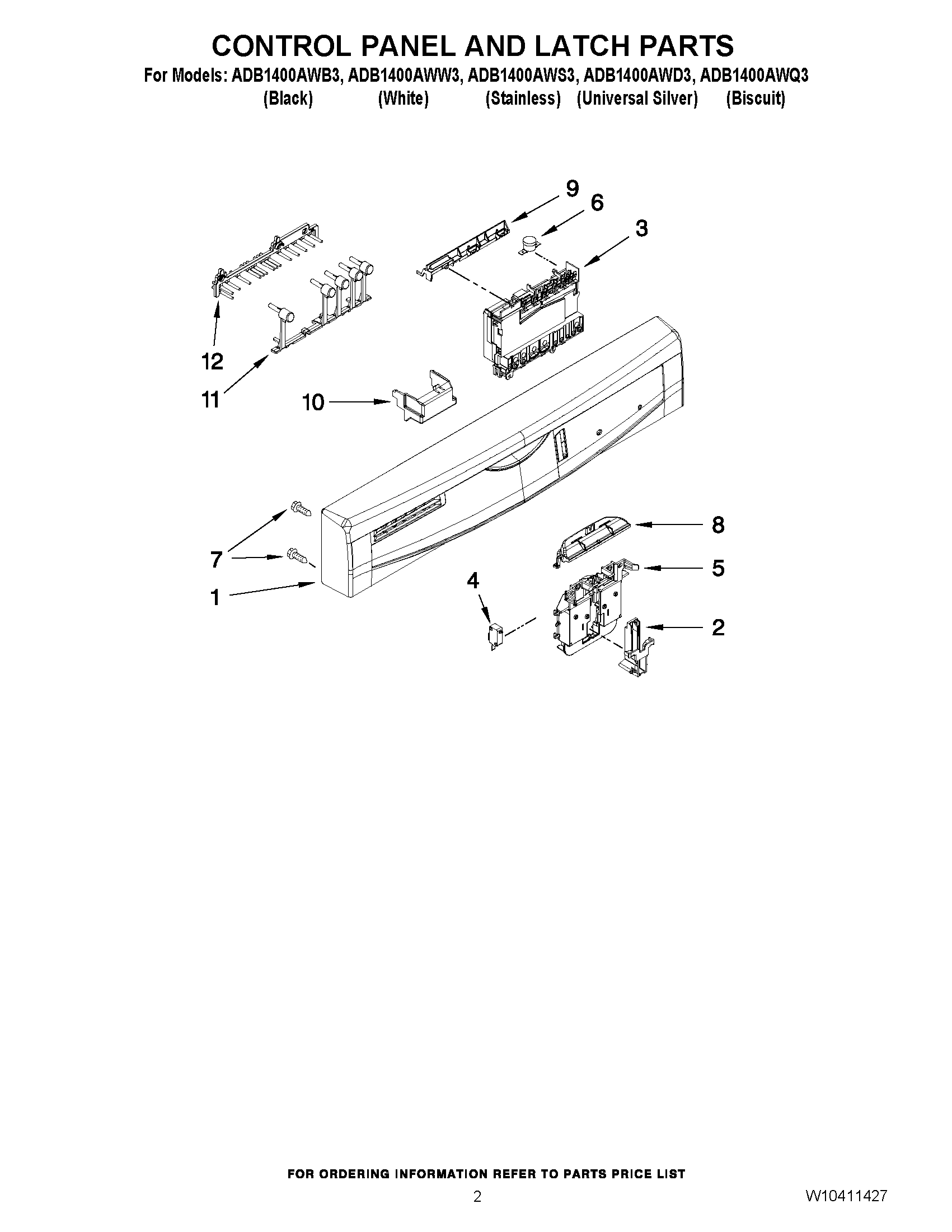

02 - CONTROL PANEL AND LATCH PARTS
03 - INNER DOOR PARTS
04 - FILL, DRAIN AND OVERFILL PARTS
05 - TUB AND FRAME PARTS
06 - PUMP AND MOTOR PARTS
07 - UPPER WASH AND RINSE PARTS
08 - HEATER PARTS
09 - UPPER RACK AND TRACK PARTS
10 - LOWER RACK PARTS
11 - LOWER WASHARM PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag ADB1400AWD3 DISHWASHER
1
TECH SHEET (ENGLISH) MAY W10292953 Contact Us For Availability
1
MAY W10292970 MAY W10292970 Contact Us For Availability
1
MAY W10310515 MAY W10310515 Contact Us For Availability
1
MAY W10310516 MAY W10310516 Contact Us For Availability
1
MAY W10349750 MAY W10349750 Contact Us For Availability
1
MAY W10398594 MAY W10398594 Contact Us For Availability
1
MAY W10310508 MAY W10310508 Contact Us For Availability
1
MAY W10310509 MAY W10310509 Contact Us For Availability
1
MAY W10310510 MAY W10310510 Contact Us For Availability
1
SCREW, DOOR MAY W10177098 Contact Us For Availability
1
LEVER, OVERFLOW SWITCH MAY 8268892 Contact Us For Availability
1
TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY) MAY W10350148 Contact Us For Availability
1
MAY 8534952 MAY 8534952 Contact Us For Availability
1
FEED TUBE SILVERWARE ZONE MAY W10254531 Contact Us For Availability
1
MAY W10134009 MAY W10134009 Contact Us For Availability
1
MAY W10164198 MAY W10164198 Contact Us For Availability
1
LOWER RACK ASSEMBLY MAY 8539225 Contact Us For Availability
1
MAY 8268333 MAY 8268333 Contact Us For Availability
2
MAY W10143373 MAY W10143373 Contact Us For Availability
2
MAY W10143374 MAY W10143374 Contact Us For Availability
2
MAY 8524471 MAY 8524471 Contact Us For Availability
2
INNER DOOR MASTIC ASSEMBLY MAY W10254547 Contact Us For Availability
2
MAY 8531412 MAY 8531412 Contact Us For Availability
2
MAY 8573061 MAY 8573061 Contact Us For Availability
2
MAY 8283527 MAY 8283527 Contact Us For Availability
2
MAY 8533889 MAY 8533889 Contact Us For Availability
2
WASHER, HEATER ELEMENT MAY 717273 Contact Us For Availability
2
STOP, TRACK (NON-REMOVABLE) MAY 8565920 Contact Us For Availability
2
WHEEL & TRANSPORT ASSEMBLY MAY 8268645 Contact Us For Availability
2
CAP, INTERNAL REAR FEED MAY 8268317 Contact Us For Availability
3
MAY 8268983 MAY 8268983 Contact Us For Availability
3
CONTROL ELECTRONIC MAY W10395153 Contact Us For Availability
3
SHIELD, DISPENSER MAY 8531865 Contact Us For Availability
3
MAY W10195536 MAY W10195536 Contact Us For Availability
3
MAY 8269145 MAY 8269145 Contact Us For Availability
3
MAY W10348405 MAY W10348405 Contact Us For Availability
3
RETAINER, PUSH LEVEL WASH MAY 3400919 Contact Us For Availability
3
NUT, HEATER ELEMENT MAY 8268548 Contact Us For Availability
3
WHEEL MAY 8575281 Contact Us For Availability
3
MAY W10321589 MAY W10321589 Contact Us For Availability
3
MAY 8268340 MAY 8268340 Contact Us For Availability
4
MAY W10274895 MAY W10274895 Contact Us For Availability
4
MAY W10274896 MAY W10274896 Contact Us For Availability
4
MAY W10274897 MAY W10274897 Contact Us For Availability
4
MAY W10274898 MAY W10274898 Contact Us For Availability
4
PANEL FRONT (S. STEEL) MAY W10274902 Contact Us For Availability
4
MAY W10274880 MAY W10274880 Contact Us For Availability
4
MAY W10254545 MAY W10254545 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
MAY 8268990 MAY 8268990 Contact Us For Availability
4
MAY 8572618 MAY 8572618 Contact Us For Availability
4
MAY W10258149 MAY W10258149 Contact Us For Availability
4
BRACKET, HEATER MAY 8269262 Contact Us For Availability
4
TRACK, RACK MAY 3385089 Contact Us For Availability
4
MAY W10321591 MAY W10321591 Contact Us For Availability
4
SUPPORT, LOWER SPRAYARM MAY 8268342 Contact Us For Availability
5
MAY W10237241 MAY W10237241 Contact Us For Availability
5
MAY W10237242 MAY W10237242 Contact Us For Availability
5
MAY W10237243 MAY W10237243 Contact Us For Availability
5
LATCH ASSEMBLY MAY W10274884 Contact Us For Availability
5
MAY W10254548 MAY W10254548 Contact Us For Availability
5
MAY 8531326 MAY 8531326 Contact Us For Availability
5
BRACKET, T-STAT MAY 3378595 Contact Us For Availability
5
MAY 8268375 MAY 8268375 Contact Us For Availability
5
HANGER MAY 3385160 Contact Us For Availability
5
SHIELD, HEATER NUT MAY W10343251 Contact Us For Availability
5
MAY W10286810 MAY W10286810 Contact Us For Availability
5
MAY W10321592 MAY W10321592 Contact Us For Availability
6
FASTENER,1/4 TURN MAY W10331789 Contact Us For Availability
6
MAY W10195528 MAY W10195528 Contact Us For Availability
6
MAY W10195411 MAY W10195411 Contact Us For Availability
6
MAY 371505 MAY 371505 Contact Us For Availability
6
SEAL, CABINET MAY W10284090 Contact Us For Availability
6
MAY W10083957 MAY W10083957 Contact Us For Availability
6
MAY 8268433 MAY 8268433 Contact Us For Availability
6
SPACER, RACK MAY W10306228 Contact Us For Availability
7
MAY 489470 MAY 489470 Contact Us For Availability
7
MAY 3400412 MAY 3400412 Contact Us For Availability
7
MAY 8533380 MAY 8533380 Contact Us For Availability
7
MAY W10195047 MAY W10195047 Contact Us For Availability
7
MAY W10341745 MAY W10341745 Contact Us For Availability
7
MAY 9741232 MAY 9741232 Contact Us For Availability
7
NOZZLE-FEED MAY 8562095 Contact Us For Availability
7
CLIP, CUPSHELF MAY 8268826 Contact Us For Availability
8
Screw MAY 304392 Contact Us For Availability
8
MAY 8269323 MAY 8269323 Contact Us For Availability
8
MAY 8269324 MAY 8269324 Contact Us For Availability
8
MAY 8269326 MAY 8269326 Contact Us For Availability
8
MAY W10348443 MAY W10348443 Contact Us For Availability
8
MAY 8269831 MAY 8269831 Contact Us For Availability
8
MAY 8531857 MAY 8531857 Contact Us For Availability
8
SPRAY ARM MAY 8269024 Contact Us For Availability
8
CUPSHELF, SMALL MOUNTING MAY 8268828 Contact Us For Availability
9
SLEEVE, FRICTION MAY 8268961 Contact Us For Availability
9
BRACE, CONTROL MAY W10195284 Contact Us For Availability
9
MAY 8269296 MAY 8269296 Contact Us For Availability
9
SHIELD, THERMOSTAT MAY W10339699 Contact Us For Availability
9
MAY W10231538 MAY W10231538 Contact Us For Availability
9
MAY 3385159 MAY 3385159 Contact Us For Availability
10
MAY W10325295 MAY W10325295 Contact Us For Availability
10
BRACKET, DISPENSER MAY W10341423 Contact Us For Availability
10
MAY W10137608 MAY W10137608 Contact Us For Availability
10
MAY 3400014 MAY 3400014 Contact Us For Availability
10
MAY 3400217 MAY 3400217 Contact Us For Availability
11
MAY W10274843 MAY W10274843 Contact Us For Availability
11
SWITCH, OVERFILL MAY W10102495 Contact Us For Availability
11
MAY 8524584 MAY 8524584 Contact Us For Availability
11
MAY W10084567 MAY W10084567 Contact Us For Availability
12
MAY W10274837 MAY W10274837 Contact Us For Availability
12
MAY W10175383 MAY W10175383 Contact Us For Availability
12
WASHER, PRONGED MAY 3378128 Contact Us For Availability
12
MAY W10237168 MAY W10237168 Contact Us For Availability
13
MAY 8268913 MAY 8268913 Contact Us For Availability
13
MAY 8524473 MAY 8524473 Contact Us For Availability
13
MAY W10300599 MAY W10300599 Contact Us For Availability
14
MISCELLANEOUS PARTS BAG (INCL. 2 SCREWS, 2 HO MAY W10292152 Contact Us For Availability
14
MAY 8270016 MAY 8270016 Contact Us For Availability
14
MAY 8533949 MAY 8533949 Contact Us For Availability
15
MAY 3400892 MAY 3400892 Contact Us For Availability
15
MAY 8558995 MAY 8558995 Contact Us For Availability
16
MAY 8268991 MAY 8268991 Contact Us For Availability
16
VOLUTE, BACK (ALSO ORDER ITEMS 21 & 25) MAY W10142656 Contact Us For Availability
17
STRIKE, LATCH MAY 8580309 Contact Us For Availability
17
MAY 8269144 MAY 8269144 Contact Us For Availability
18
MAY 661566 MAY 661566 Contact Us For Availability
18
MAY W10226459 MAY W10226459 Contact Us For Availability
19
MAY 8268401 MAY 8268401 Contact Us For Availability
20
IMPELLER KIT (ALSO ORDER ITEM 25) MAY 8531017 Contact Us For Availability
21
FACE SEAL ASSEMBLY (ALSO ORDER ITEM 25) MAY 8268403 Contact Us For Availability
22
MAY 356138 MAY 356138 Contact Us For Availability
23
THERMISTOR MAY 8578828 Contact Us For Availability
24
MAY W10334457 MAY W10334457 Contact Us For Availability
25
MAY 8531018 MAY 8531018 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 3385556 MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4317824 MAY 4317824 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Biscuit) MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
MAY 4396603 MAY 4396603 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
MAY 6-919539 MAY 6-919539 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
MAY 8171555 MAY 8171555 Contact Us For Availability
NI
MAY 8171556 MAY 8171556 Contact Us For Availability
NI
MAY 8171557 MAY 8171557 Contact Us For Availability
NI
MAY 8171558 MAY 8171558 Contact Us For Availability
NI
MAY 8171656 MAY 8171656 Contact Us For Availability
NI
MAY 8171657 MAY 8171657 Contact Us For Availability
NI
MAY 8171658 MAY 8171658 Contact Us For Availability
NI
MAY 8171659 MAY 8171659 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
× ![]()
