Model Maytag ADB1400AGS1 DISHWASHER, UNDERCOUNTER – Common Parts & Diagrams

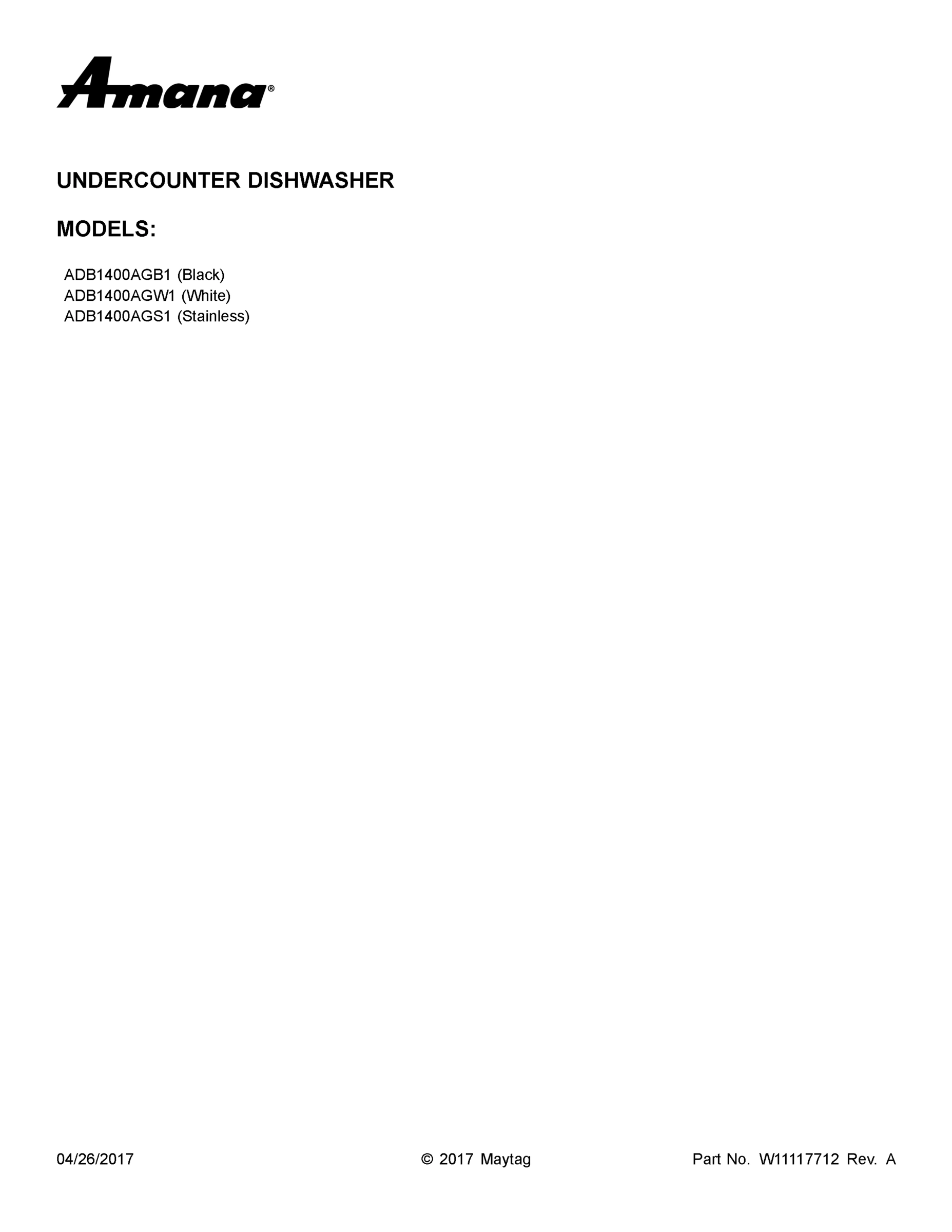

01 - COVER SHEET

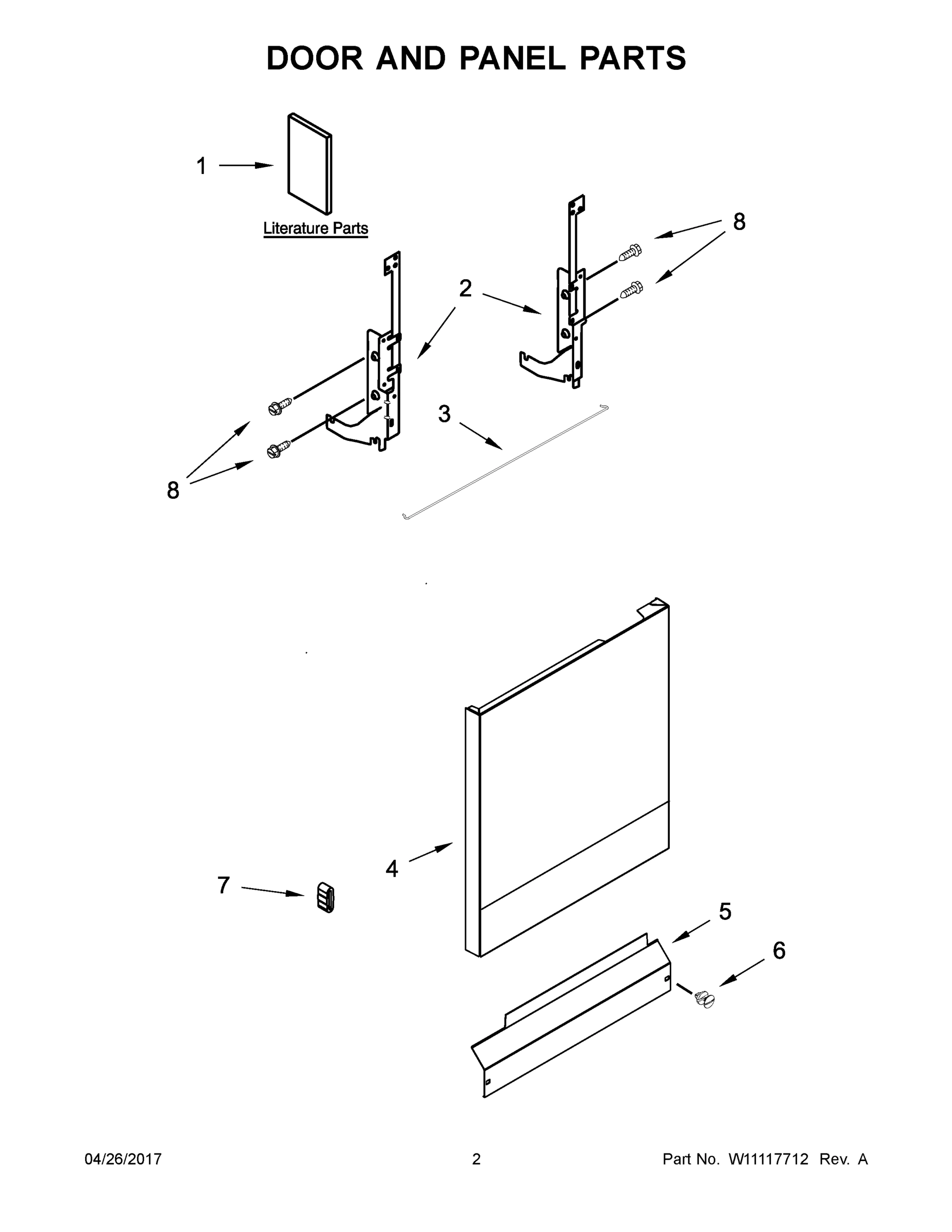

02 - DOOR AND PANEL PARTS
03 - CONTROL PANEL AND LATCH PARTS
04 - INNER DOOR PARTS
05 - FILL, DRAIN AND OVERFILL PARTS
06 - TUB AND FRAME PARTS
07 - PUMP, WASHARM AND MOTOR PARTS
08 - UPPER WASH AND RINSE PARTS
09 - UPPER RACK AND TRACK PARTS
10 - LOWER RACK PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag ADB1400AGS1 DISHWASHER, UNDERCOUNTER
1
INSTALLATION INSTRUCTIONS MAY W10435040 Contact Us For Availability
1
CONSOLE ASSEMBLY (INCLUDES INSERT AND VENT GA MAY W10840114 Contact Us For Availability
1
SCREW MAY W10348413 Contact Us For Availability
1
TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY) MAY W10349289 Contact Us For Availability
1
COVER, OUTLET MAY W10455271 Contact Us For Availability
1
FEED TUBE ASSEMBLY MAY W10671930 Contact Us For Availability
1
DISHRACK, UPPER MAY W10826745 Contact Us For Availability
1
DISHRACK, LOWER MAY W10525643 Contact Us For Availability
1A
MAY W10921050 MAY W10921050 Contact Us For Availability
1A
CONSOLE ASSEMBLY (INCLUDES INSERT AND VENT GA MAY W10840125 Contact Us For Availability
1B
USE & CARE GUIDE MAY W10843144 Contact Us For Availability
1C
TECH SHEET, ENGLISH MAY W10849767 Contact Us For Availability
1D
TECH SHEET, FRENCH MAY W10849768 Contact Us For Availability
2
ARM, HINGE (LEFT HAND) MAY W10274922 Contact Us For Availability
2
BOX, CONNECTOR MAY W10825638 Contact Us For Availability
2
MAY W10274908 MAY W10274908 Contact Us For Availability
2
HOSE MAY W10769066 Contact Us For Availability
2
SHIELD, THERMOSTAT MAY W10321574 Contact Us For Availability
2
SUMP ASSEMBLY (ALSO ORDER ITEMS 13 & 16) MAY W10482461 Contact Us For Availability
2
SCREW MAY W10165274 Contact Us For Availability
2
MOUNT, WHEEL ASSEMBLY MAY W10845760 Contact Us For Availability
2
WHEEL & TRANSPORT ASSEMBLY MAY 8268645 Contact Us For Availability
2A
ARM, HINGE (RIGHT HAND) MAY W10274921 Contact Us For Availability
3
STIFFENER, DOOR MAY W10803537 Contact Us For Availability
3
HANDLE, LATCH (BLACK) MAY W10716685 Contact Us For Availability
3
COVER, DISPENSER MAY W10482094 Contact Us For Availability
3
INLET, WATER (ALSO ORDER ITEM 4) MAY W10195536 Contact Us For Availability
3
SEAL, TUB MAY W10524469 Contact Us For Availability
3
SCREEN MAY W10463906 Contact Us For Availability
3
MAY W10448616 MAY W10448616 Contact Us For Availability
3
TRACK, DISHRACK MAY 3385089 Contact Us For Availability
3
BASKET, SILVERWARE (ASSEMBLY) MAY 8562045 Contact Us For Availability
3A
HANDLE, LATCH (WHITE) MAY W10716686 Contact Us For Availability
4
PANEL FRONT (BLACK) MAY W10274895 Contact Us For Availability
4
BOLT, LATCH MAY W10274884 Contact Us For Availability
4
GASKET, VENT MAY W10254545 Contact Us For Availability
4
GASKET MAY 8531323 Contact Us For Availability
4
SCREW MAY W10341745 Contact Us For Availability
4
MOTOR (ALSO ORDER ITEMS 13 & 16) MAY W10805386 Contact Us For Availability
4
MANIFOLD MAY W10340683 Contact Us For Availability
4
STOP, TRACK (NON-REMOVABLE) MAY 8565925 Contact Us For Availability
4A
PANEL FRONT (WHITE) MAY W10274896 Contact Us For Availability
4B
PANEL FRONT (STAINLESS) MAY W10274902 Contact Us For Availability
5
ACCESS PANEL (BLACK) MAY W10441006 Contact Us For Availability
5
MAY W10919772 MAY W10919772 Contact Us For Availability
5
NUT, INLET (ALSO ORDER ITEM 4) MAY W10508676 Contact Us For Availability
5
SCREW MAY 3367670 Contact Us For Availability
5
SUMP & MOTOR ASSEMBLY MAY W10837402 Contact Us For Availability
5
TRACK, SPACER MAY W10306228 Contact Us For Availability
5A
ACCESS PANEL (WHITE) MAY W10441007 Contact Us For Availability
6
FASTENER (BLACK) MAY W10503548 Contact Us For Availability
6
ACTUATOR, LATCH MAY 8524471 Contact Us For Availability
6
DISPENSER, ASSEMBLY MAY W10428217 Contact Us For Availability
6
CLAMP, HOSE MAY 371505 Contact Us For Availability
6
BRACKET, UNDERCOUNTER MAY 8269145 Contact Us For Availability
6
TAB, SUMP MAY W10372113 Contact Us For Availability
6A
FASTENER (WHITE) MAY W10503549 Contact Us For Availability
7
SLEEVE, FRICTION MAY 8268961 Contact Us For Availability
7
CONTROL, ELECTRONIC MAY W10834731 Contact Us For Availability
7
WIRING HARNESS MAY W10832778 Contact Us For Availability
7
FILL VALVE ASSEMBLY MAY W10327250 Contact Us For Availability
7
SUPPORT, BOTTOM MAY W10304231 Contact Us For Availability
7
FILTER CUP ASSEMBLY MAY W10789806 Contact Us For Availability
8
SCREW MAY 489470 Contact Us For Availability
8
BRACE, CONNECTOR MAY W10825369 Contact Us For Availability
8
SCREW MAY W10177098 Contact Us For Availability
8
MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 MAY W10292152 Contact Us For Availability
8
LEVELER, LEG MAY W10619352 Contact Us For Availability
8
PUMP, DRAIN MAY W10724439 Contact Us For Availability
9
SWITCH, DOOR MAY W10274880 Contact Us For Availability
9
SEAL, DOOR/CONSOLE MAY 8269296 Contact Us For Availability
9
DRAIN LOOP WITH CHECK VALVE ASEMBLY MAY W10545278 Contact Us For Availability
9
SPRING, DOOR BALANCE MAY W10337934 Contact Us For Availability
9
HOSE, DRAIN MAY 8269144 Contact Us For Availability
10
BUTTON TREE MAY W10350294 Contact Us For Availability
10
BRACKET, DISPENSER MAY W10462232 Contact Us For Availability
10
SCREW MAY 304231 Contact Us For Availability
10
WHEEL ASSEMBLY MAY 8575897 Contact Us For Availability
10
SCREW MAY W10348407 Contact Us For Availability
11
LIGHT PIPE MAY W10350295 Contact Us For Availability
11
CAP, RINSE AID MAY W10524922 Contact Us For Availability
11
CLAMP, HOSE MAY 370445 Contact Us For Availability
11
SWITCH, OVERFILL CONTROL MAY W10195039 Contact Us For Availability
11
SCREW MAY 3400892 Contact Us For Availability
12
SPRING, LATCH MAY W10678341 Contact Us For Availability
12
STANDPIPE, OVERFILL MAY W10316267 Contact Us For Availability
12
COVER, TERMINAL BOX MAY 8268991 Contact Us For Availability
12
LOWER SPRAYARM MAY W10319027 Contact Us For Availability
13
FLOAT & RETAINER ASSEMBLY MAY W10346525 Contact Us For Availability
13
BRACKET, HEATER SUPPORT MAY W10732961 Contact Us For Availability
13
GROMMET MAY W10538166 Contact Us For Availability
14
LEVER, OVERFILL SWITCH MAY W10195037 Contact Us For Availability
14
CLIP, THERMOSTAT MAY W10539489 Contact Us For Availability
14
CLAMP, HOSE MAY W10169167 Contact Us For Availability
15
THERMOSTAT MAY 3371618 Contact Us For Availability
15
MOTOR, ISOLATOR MAY W10195086 Contact Us For Availability
16
STRIKE, LATCH MAY 8580309 Contact Us For Availability
16
HOSE ASSEMBLY (INCLUDES 2 CLAMPS) MAY W10445975 Contact Us For Availability
17
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
18
SCREW, GROUNDING MAY 3400014 Contact Us For Availability
19
BUSHING, DOOR SPRING MAY 8268990 Contact Us For Availability
20
HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASH MAY W10441445 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, DRAIN HOSE 12 FT. MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
POWER CORD KIT (INCLUDED CORD & MISC. HARDWAR MAY 4317824 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ SILVER A MAY 4396853 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396854 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (WHITE) MAY 8171656 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BLACK) MAY 8171657 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BISCUIT/BISQUE) MAY 8171658 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL MAY 8171659 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
NI
ACCE MAY W10702080 Contact Us For Availability
NI
MAY W10702081 MAY W10702081 Contact Us For Availability
× ![]()
