Model Maytag ADB1300AFB1 DISHWASHER, UNDERCOUNTER – Common Parts & Diagrams

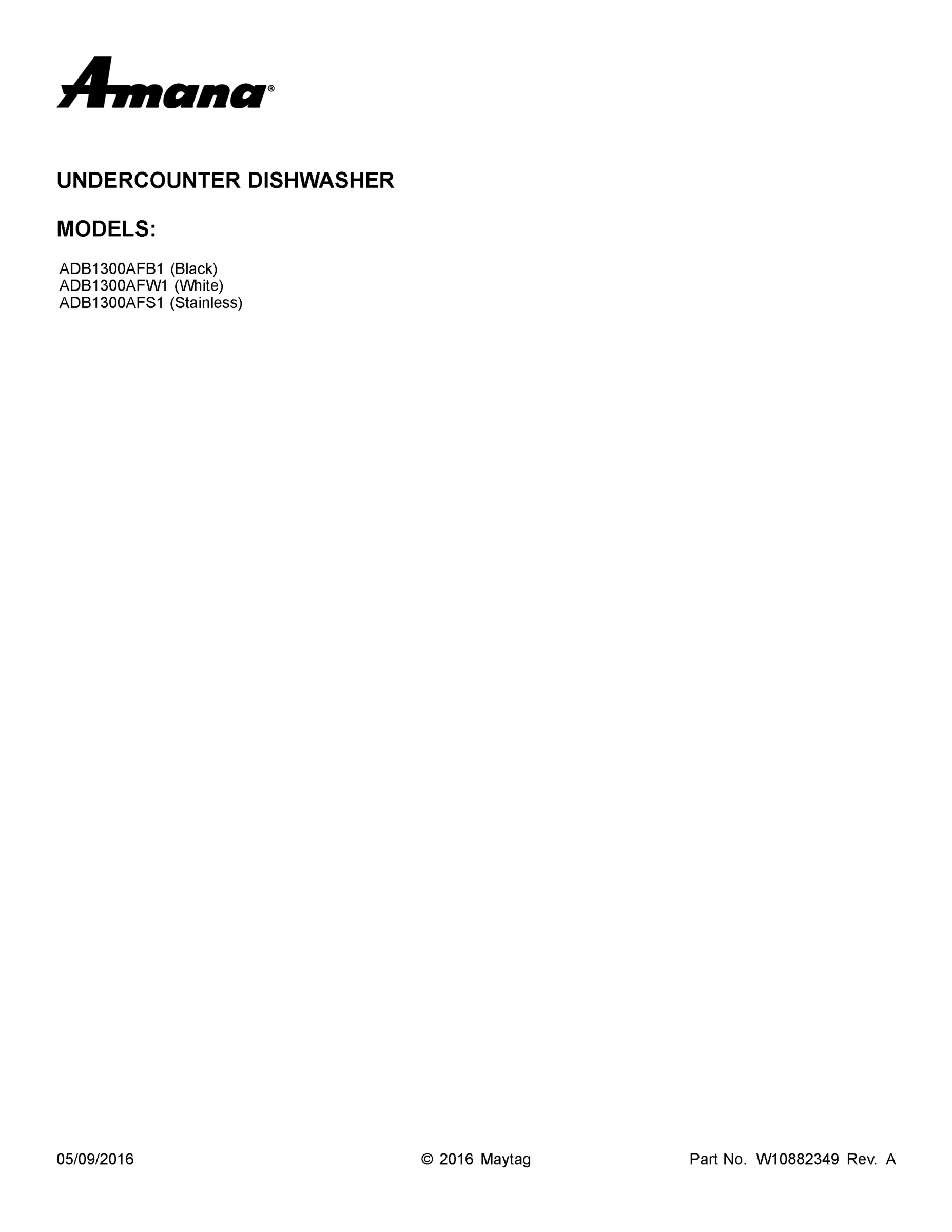

01 - COVER SHEET

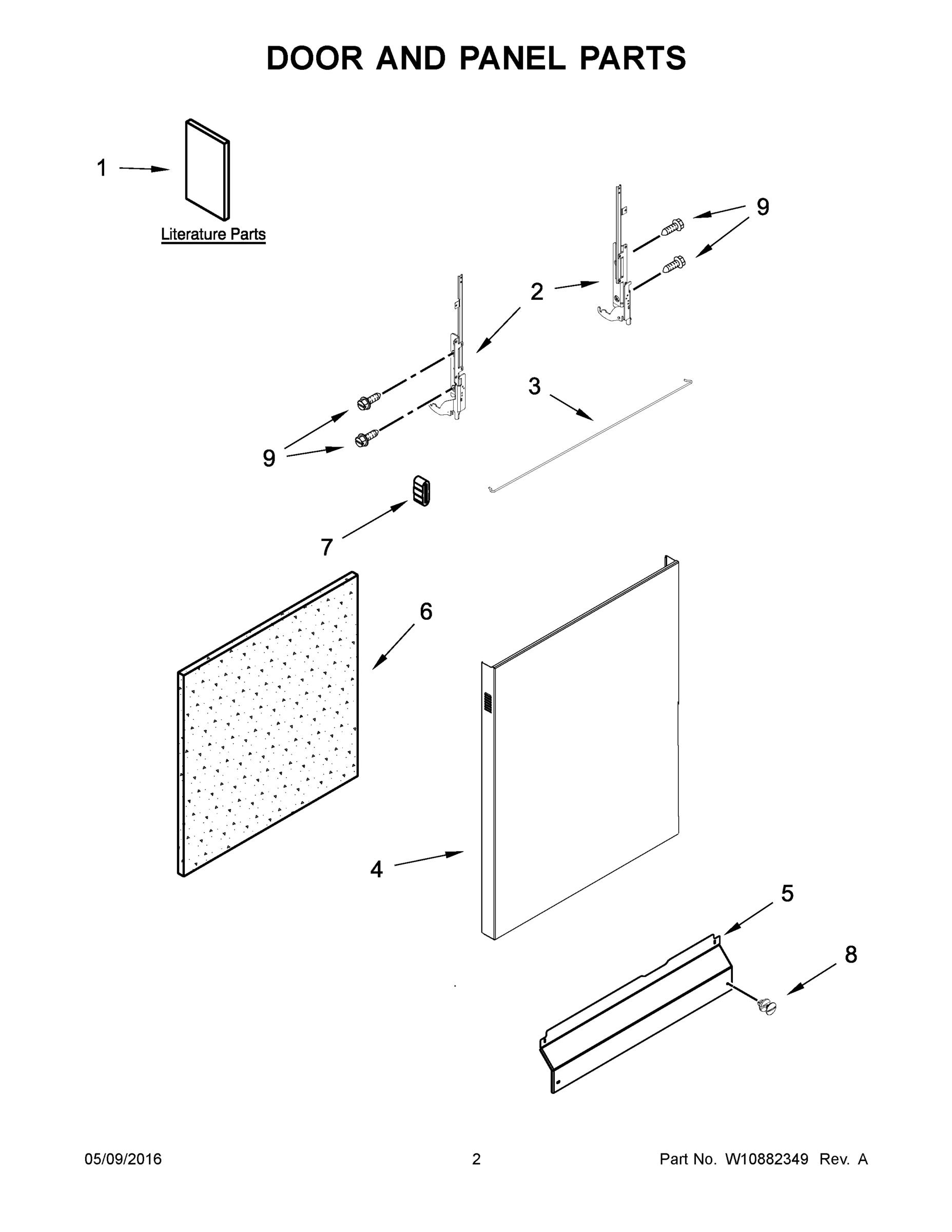

02 - DOOR AND PANEL PARTS

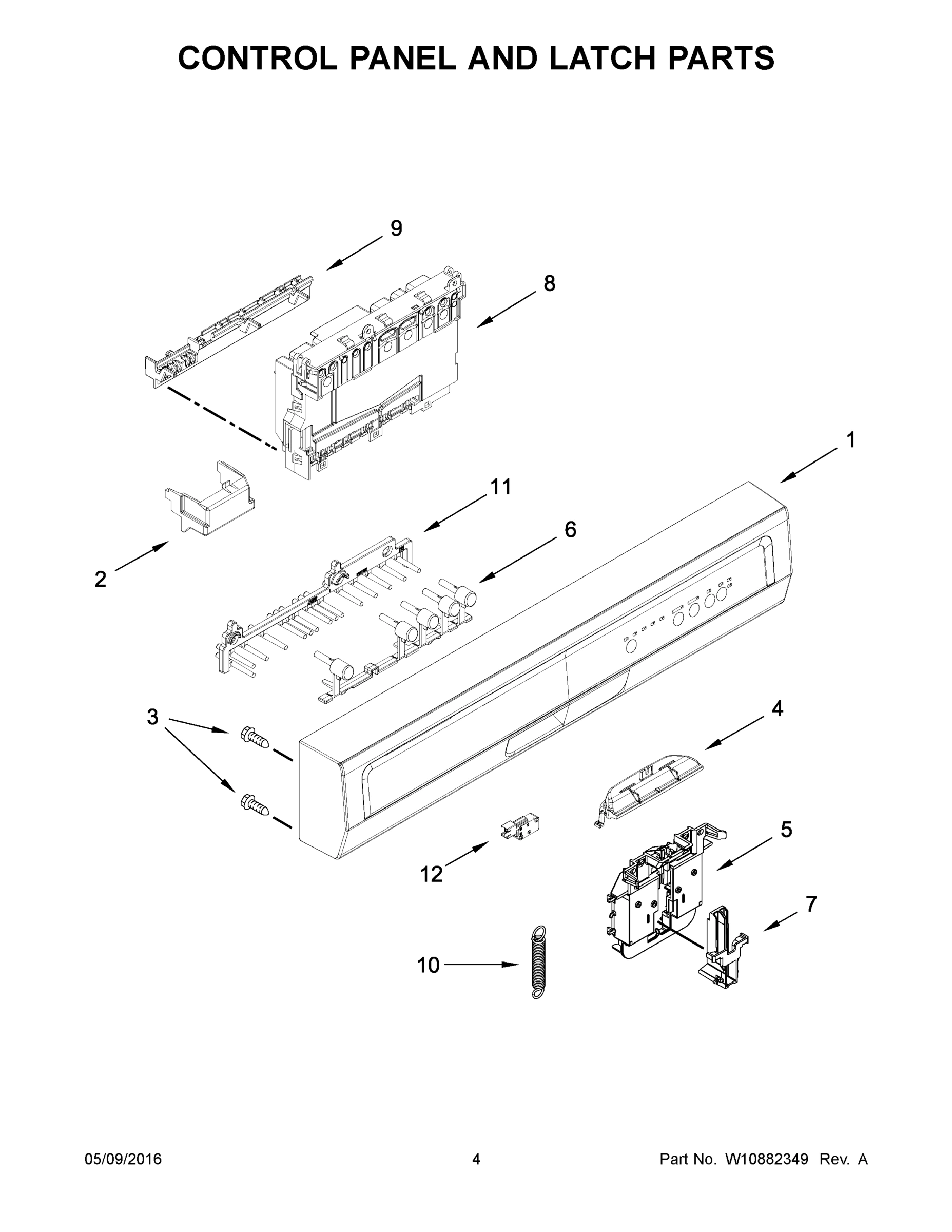

03 - CONTROL PANEL AND LATCH PARTS

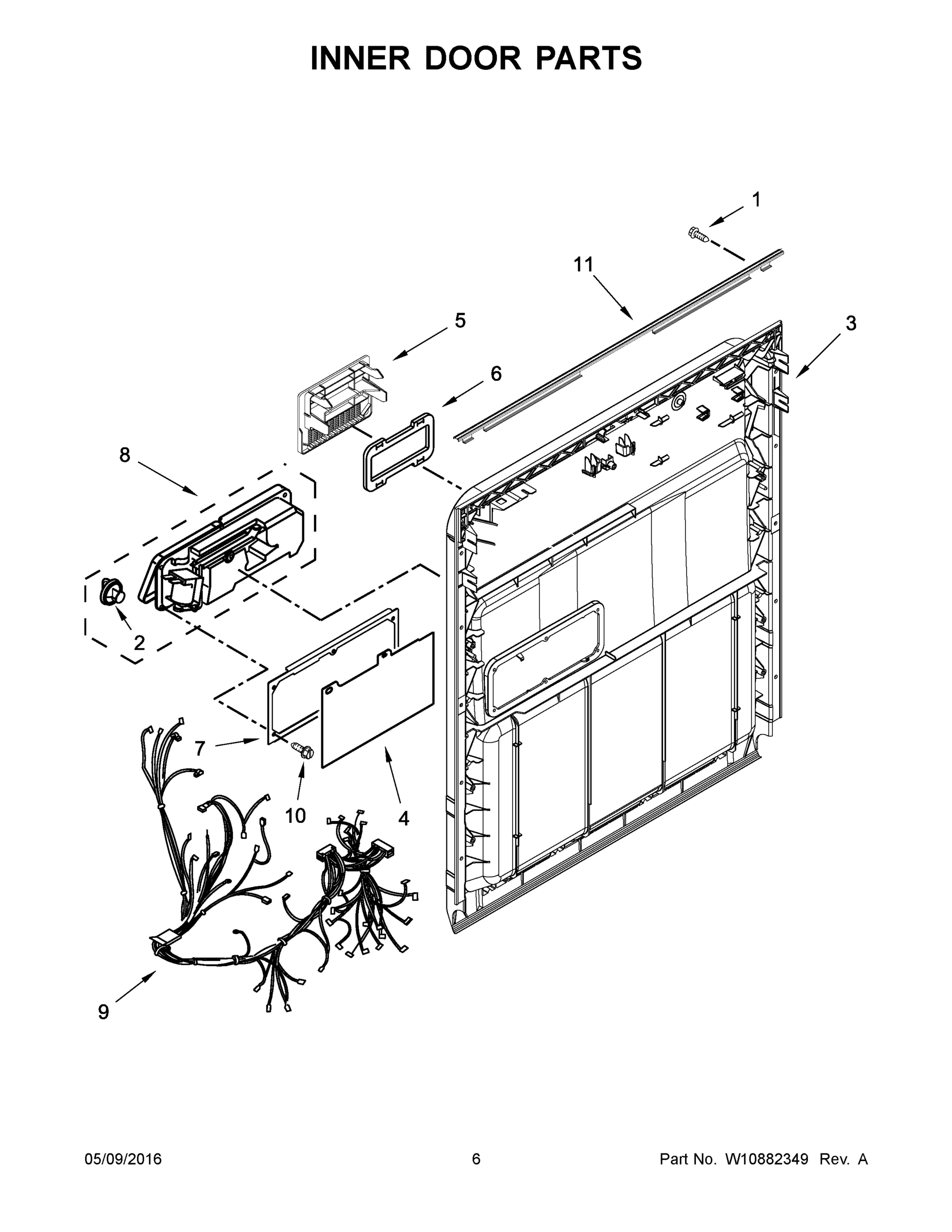

04 - INNER DOOR PARTS

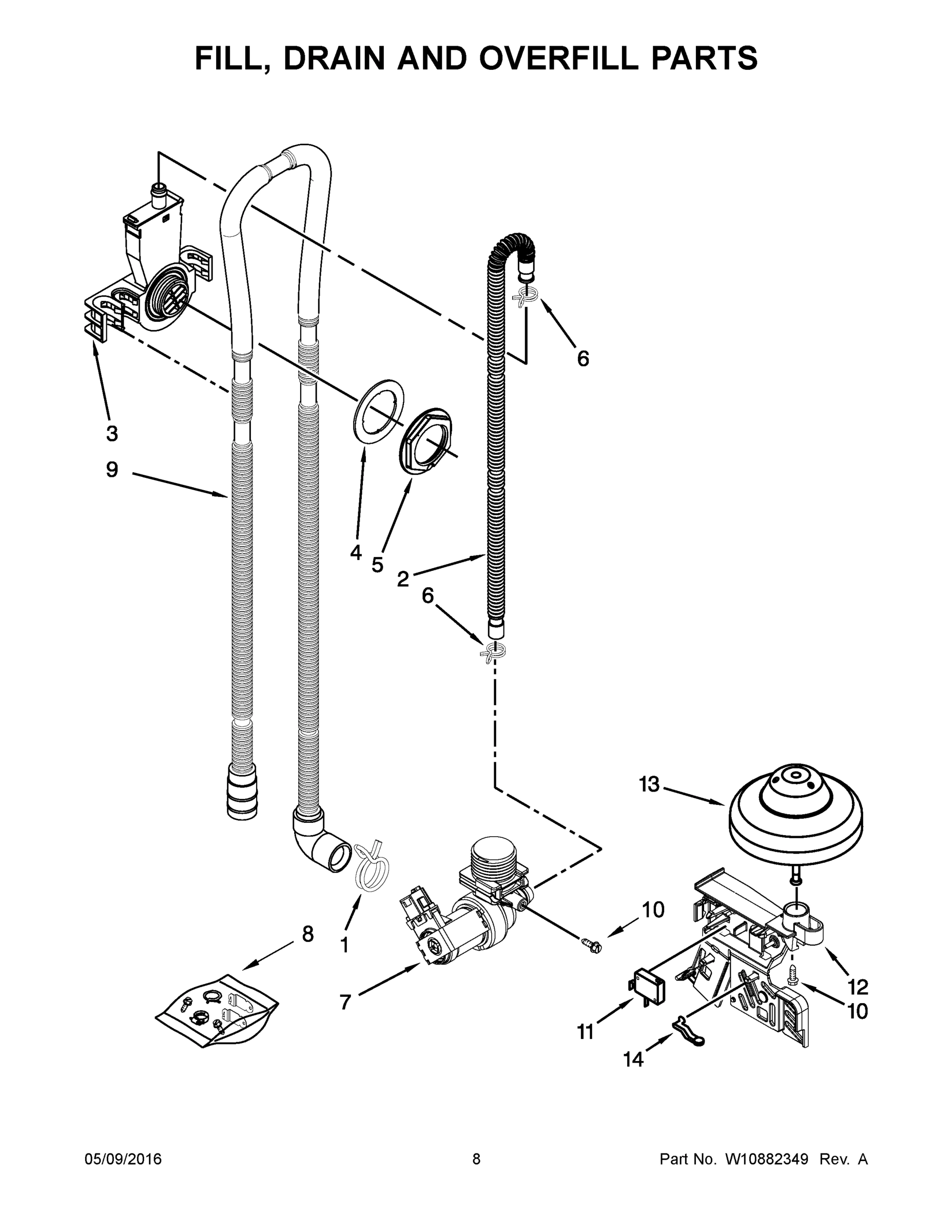

05 - FILL, DRAIN AND OVERFILL PARTS

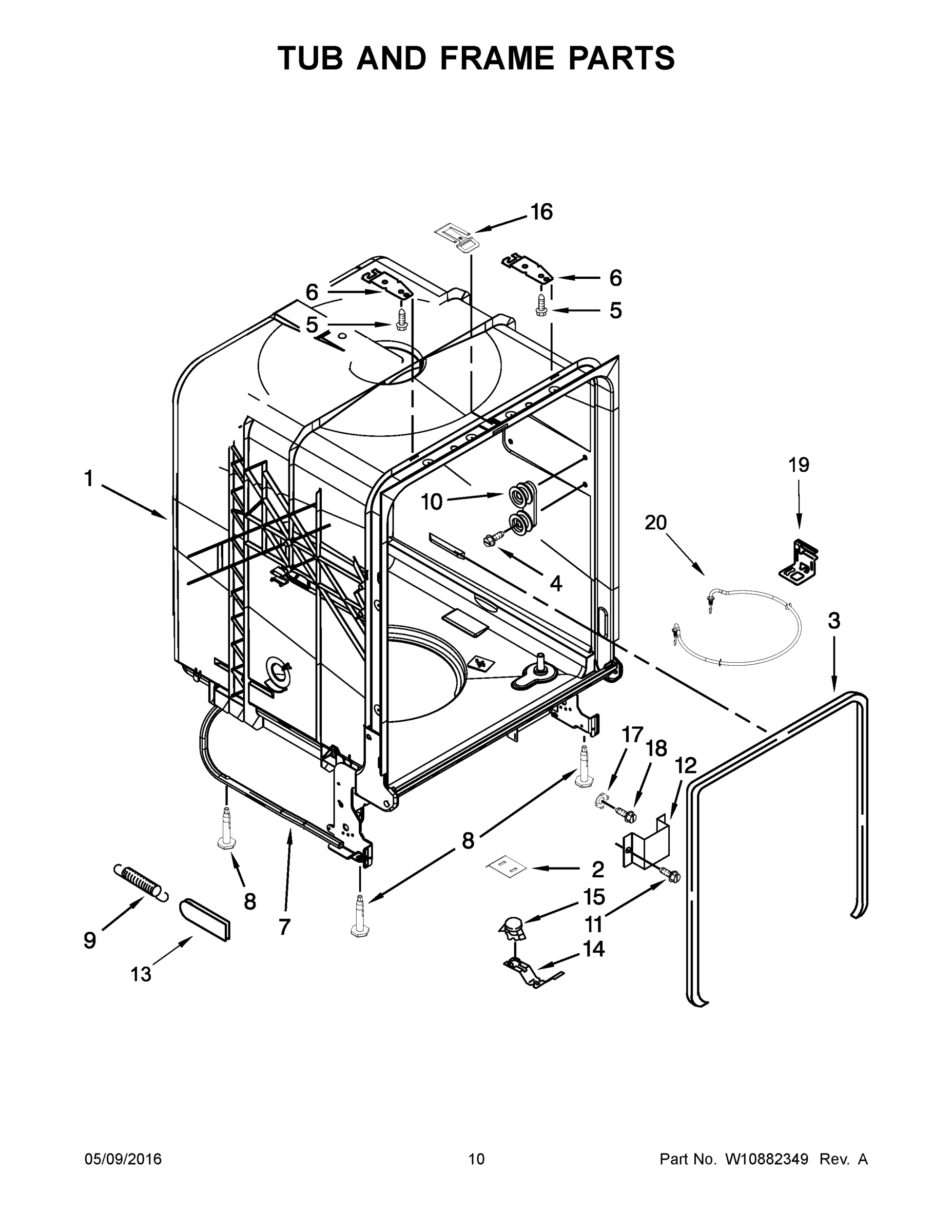

06 - TUB AND FRAME PARTS

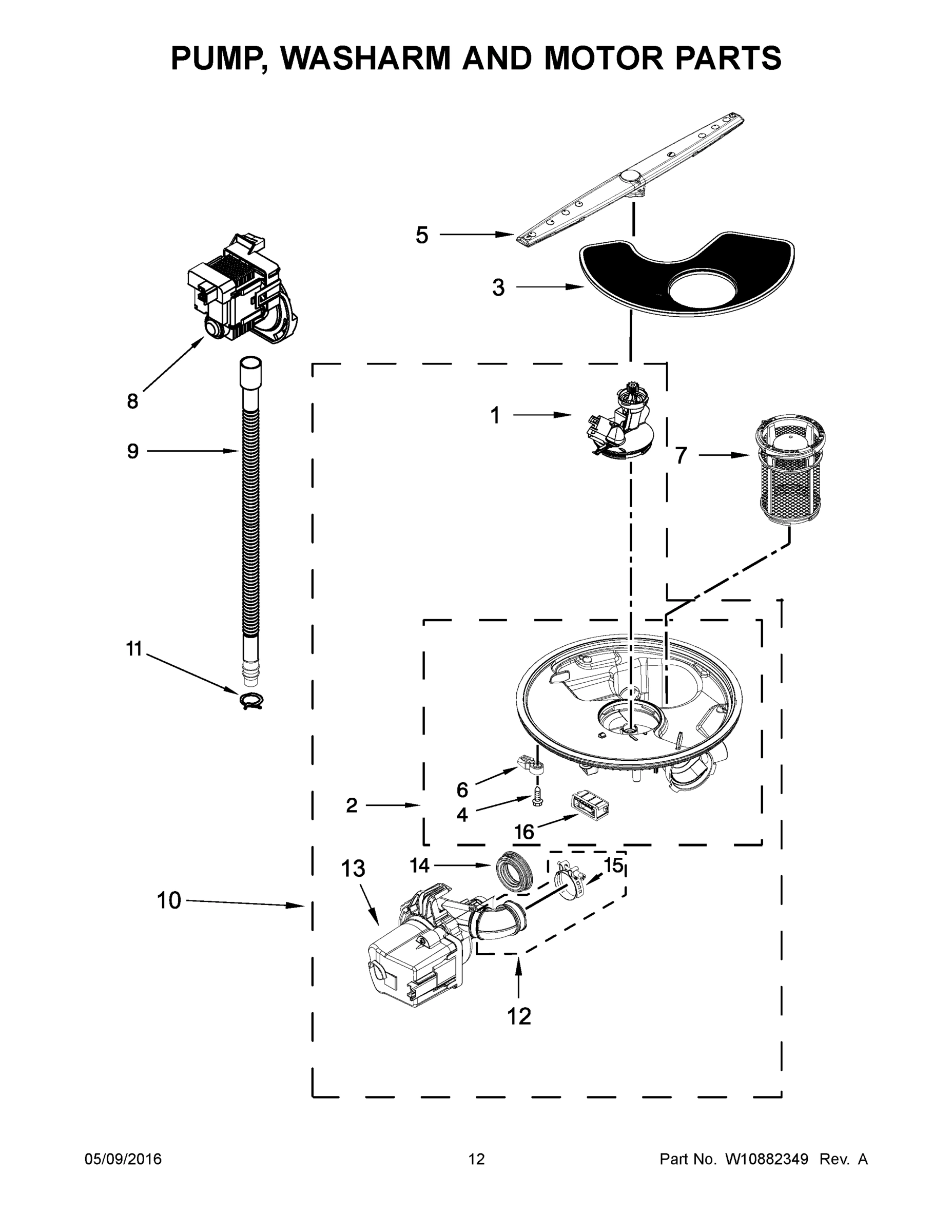

07 - PUMP, WASHARM AND MOTOR PARTS

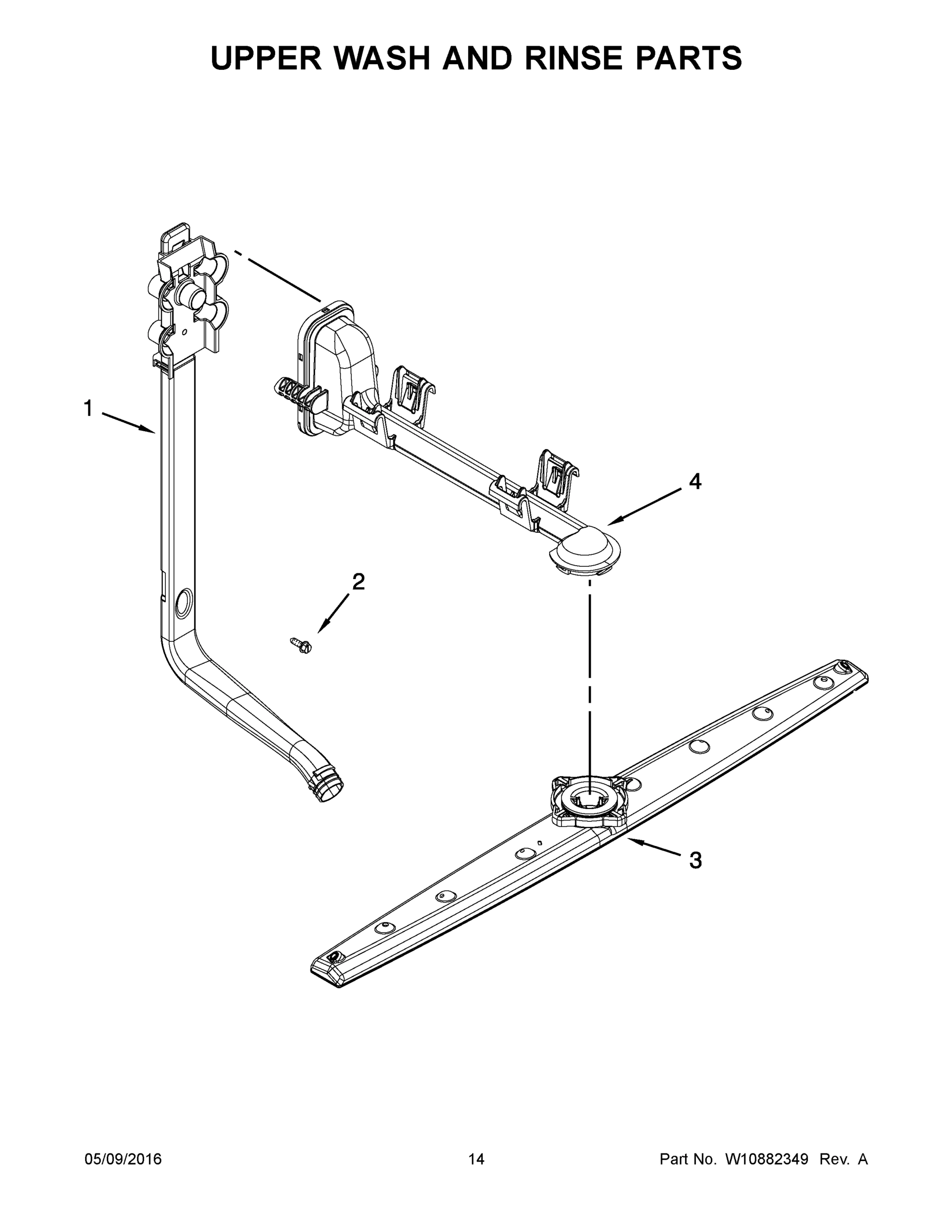

08 - UPPER WASH AND RINSE PARTS

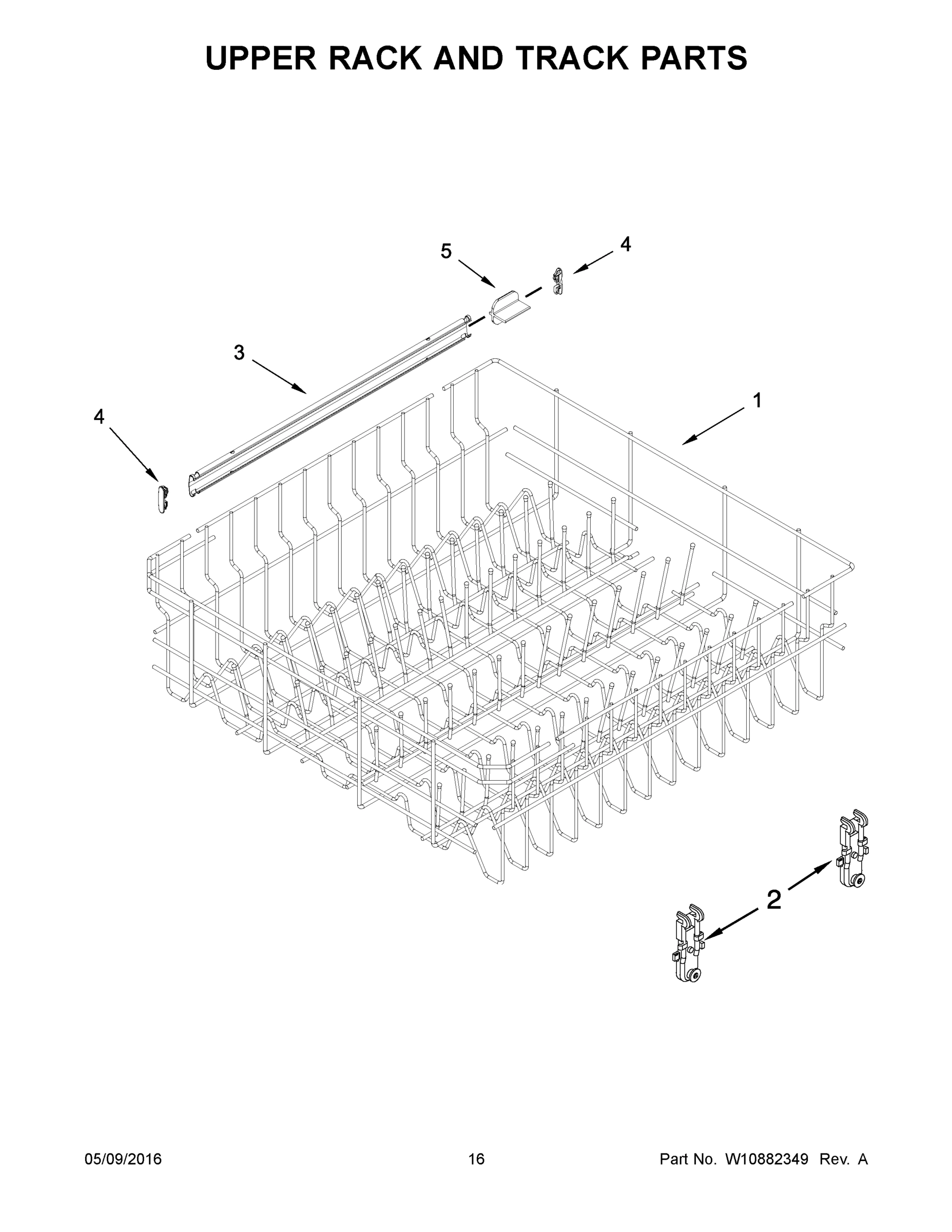

09 - UPPER RACK AND TRACK PARTS

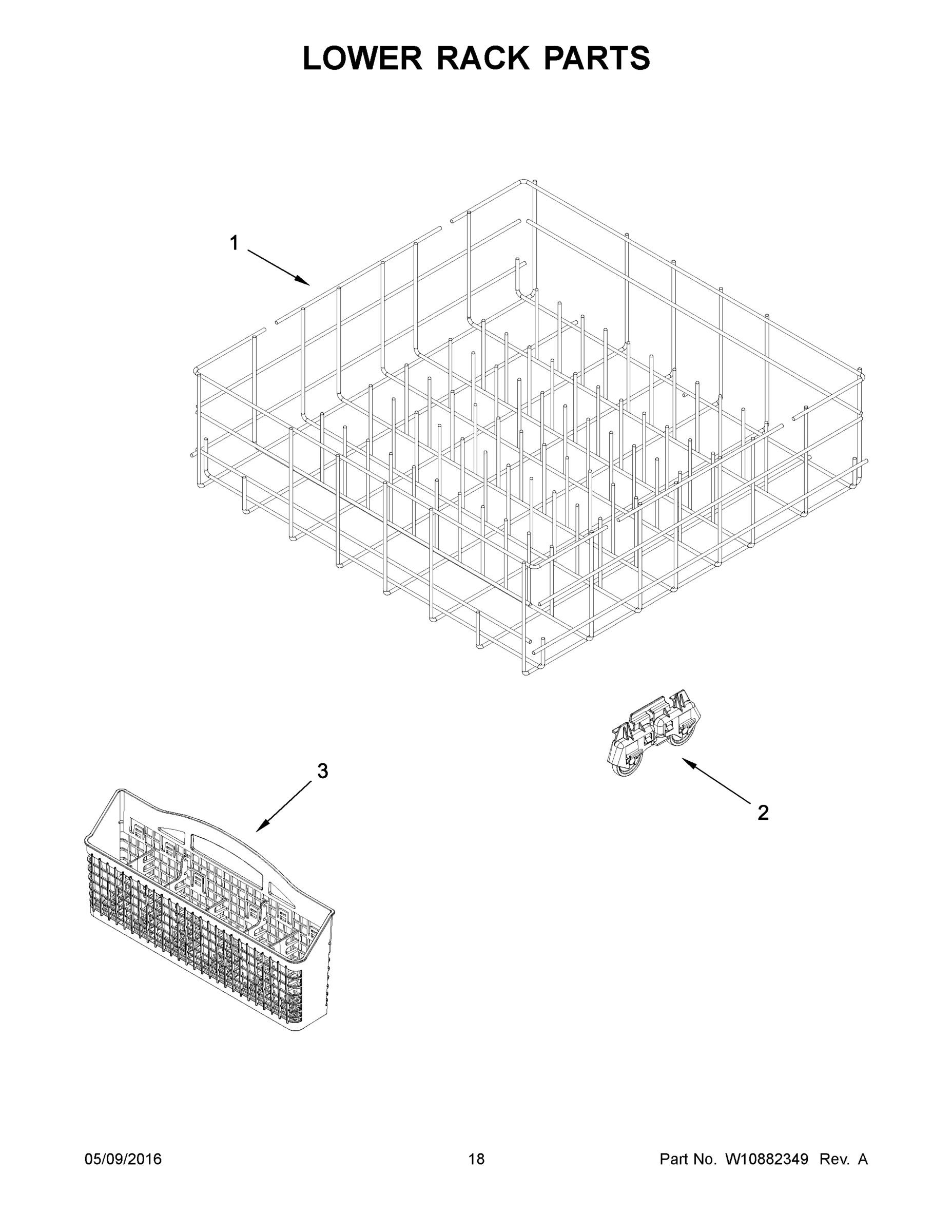

10 - LOWER RACK PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag ADB1300AFB1 DISHWASHER, UNDERCOUNTER
1
INSTALLATION INSTRUCTIONS MAY W10435040 Contact Us For Availability
1
MAY W10840114 MAY W10840114 Contact Us For Availability
1
MAY W10348413 MAY W10348413 Contact Us For Availability
1
TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY) MAY W10349288 Contact Us For Availability
1
MAY W10455271 MAY W10455271 Contact Us For Availability
1
MAY W10340747 MAY W10340747 Contact Us For Availability
1
MAY W10826745 MAY W10826745 Contact Us For Availability
1
MAY W10525643 MAY W10525643 Contact Us For Availability
1A
MAY W10837797 MAY W10837797 Contact Us For Availability
1A
MAY W10840125 MAY W10840125 Contact Us For Availability
1B
MAY W10843144 MAY W10843144 Contact Us For Availability
1C
MAY W10849768 MAY W10849768 Contact Us For Availability
1D
MAY W10849767 MAY W10849767 Contact Us For Availability
2
ARM, HINGE (LEFT HAND) MAY W10274922 Contact Us For Availability
2
MAY W10825638 MAY W10825638 Contact Us For Availability
2
MAY W10524922 MAY W10524922 Contact Us For Availability
2
MAY W10769066 MAY W10769066 Contact Us For Availability
2
MAY W10321574 MAY W10321574 Contact Us For Availability
2
SUMP ASSEMBLY (ALSO ORDER ITEMS 12 & 14) MAY W10482461 Contact Us For Availability
2
MAY W10165274 MAY W10165274 Contact Us For Availability
2
MAY W10845760 MAY W10845760 Contact Us For Availability
2
WHEEL & TRANSPORT ASSEMBLY MAY 8268645 Contact Us For Availability
2A
ARM, HINGE (RIGHT HAND) MAY W10274921 Contact Us For Availability
3
MAY W10803537 MAY W10803537 Contact Us For Availability
3
INNER DOOR ASSEMBLY (ALSO ORDER ITEM 6) MAY W10254547 Contact Us For Availability
3
INLET, WATER (ALSO ORDER ITEM 4) MAY W10195536 Contact Us For Availability
3
MAY W10524469 MAY W10524469 Contact Us For Availability
3
MAY W10463906 MAY W10463906 Contact Us For Availability
3
MAY W10317197 MAY W10317197 Contact Us For Availability
3
TRACK, DISHRACK MAY 3385089 Contact Us For Availability
3
MAY 8562045 MAY 8562045 Contact Us For Availability
4
FRONT PANEL (BLACK) MAY W10274895 Contact Us For Availability
4
HANDLE POCKET (BLACK) MAY W10716685 Contact Us For Availability
4
MAY W10482094 MAY W10482094 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
MAY W10341745 MAY W10341745 Contact Us For Availability
4
MAY W10348407 MAY W10348407 Contact Us For Availability
4
MAY W10340683 MAY W10340683 Contact Us For Availability
4
STOP, TRACK (NON-REMOVABLE) MAY 8565925 Contact Us For Availability
4A
FRONT PANEL (WHITE) MAY W10274896 Contact Us For Availability
4B
FRONT PANEL (STAINLESS) MAY W10274902 Contact Us For Availability
5
MAY W10441006 MAY W10441006 Contact Us For Availability
5
MAY W10274884 MAY W10274884 Contact Us For Availability
5
DEFLECTOR, VENT (ALSO ORDER ITEM 6) MAY W10254548 Contact Us For Availability
5
MAY W10508676 MAY W10508676 Contact Us For Availability
5
MAY 3367670 MAY 3367670 Contact Us For Availability
5
MAY W10319027 MAY W10319027 Contact Us For Availability
5
MAY W10306228 MAY W10306228 Contact Us For Availability
5A
MAY W10441007 MAY W10441007 Contact Us For Availability
6
MAY W10254613 MAY W10254613 Contact Us For Availability
6
MAY W10350294 MAY W10350294 Contact Us For Availability
6
MAY W10254545 MAY W10254545 Contact Us For Availability
6
MAY 371505 MAY 371505 Contact Us For Availability
6
MAY 8269145 MAY 8269145 Contact Us For Availability
6
MAY W10372113 MAY W10372113 Contact Us For Availability
7
SLEEVE, FRICTION MAY 8268961 Contact Us For Availability
7
MAY 8524471 MAY 8524471 Contact Us For Availability
7
MAY W10462232 MAY W10462232 Contact Us For Availability
7
MAY W10327250 MAY W10327250 Contact Us For Availability
7
SUPPORT, BOTTOM MAY W10304231 Contact Us For Availability
7
MAY W10789806 MAY W10789806 Contact Us For Availability
8
MAY W10503548 MAY W10503548 Contact Us For Availability
8
MAY W10834731 MAY W10834731 Contact Us For Availability
8
MAY W10428214 MAY W10428214 Contact Us For Availability
8
MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 MAY W10292152 Contact Us For Availability
8
MAY W10619352 MAY W10619352 Contact Us For Availability
8
MAY W10724439 MAY W10724439 Contact Us For Availability
8A
MAY W10503549 MAY W10503549 Contact Us For Availability
9
MAY 489470 MAY 489470 Contact Us For Availability
9
MAY W10825369 MAY W10825369 Contact Us For Availability
9
MAY W10832778 MAY W10832778 Contact Us For Availability
9
MAY W10545278 MAY W10545278 Contact Us For Availability
9
MAY W10337934 MAY W10337934 Contact Us For Availability
9
MAY 8269144 MAY 8269144 Contact Us For Availability
10
MAY W10177098 MAY W10177098 Contact Us For Availability
10
MAY W10678341 MAY W10678341 Contact Us For Availability
10
SCREW MAY 304231 Contact Us For Availability
10
WHEEL AND MOUNT ASSEMBLY MAY 8270016 Contact Us For Availability
10
MAY W10837402 MAY W10837402 Contact Us For Availability
11
MAY W10350295 MAY W10350295 Contact Us For Availability
11
SEAL, DOOR/CONSOLE MAY 8269296 Contact Us For Availability
11
MAY 370445 MAY 370445 Contact Us For Availability
11
MAY W10195039 MAY W10195039 Contact Us For Availability
11
MAY 3400892 MAY 3400892 Contact Us For Availability
12
MAY W10274880 MAY W10274880 Contact Us For Availability
12
MAY W10316267 MAY W10316267 Contact Us For Availability
12
MAY 8268991 MAY 8268991 Contact Us For Availability
12
MAY W10445975 MAY W10445975 Contact Us For Availability
13
MAY W10345285 MAY W10345285 Contact Us For Availability
13
MAY 8268990 MAY 8268990 Contact Us For Availability
13
MOTOR (ALSO ORDER ITEMS 12 & 14) MAY W10805386 Contact Us For Availability
14
LEVER, OVERFILL SWITCH MAY W10195037 Contact Us For Availability
14
MAY W10539489 MAY W10539489 Contact Us For Availability
14
MAY W10538166 MAY W10538166 Contact Us For Availability
15
MAY 3371618 MAY 3371618 Contact Us For Availability
15
CLAMP, HOSE MAY W10169167 Contact Us For Availability
16
STRIKE, LATCH MAY 8580309 Contact Us For Availability
16
MAY W10195086 MAY W10195086 Contact Us For Availability
17
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
18
SCREW, GROUNDING MAY 3400014 Contact Us For Availability
19
MAY W10732961 MAY W10732961 Contact Us For Availability
20
HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASH MAY W10441445 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, DRAIN HOSE 12 FT. MAY 3385556 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
POWER CORD KIT (INCLUDED CORD & MISC. HARDWAR MAY 4317824 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ SILVER A MAY 4396853 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396854 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (WHITE) MAY 8171656 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BLACK) MAY 8171657 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BISCUIT/BISQUE) MAY 8171658 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL MAY 8171659 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
NI
MAY W10702080 MAY W10702080 Contact Us For Availability
NI
MAY W10702081 MAY W10702081 Contact Us For Availability
× ![]()
