Model ADB1100AWS1 – Common Parts & Diagrams
01 - DOOR AND PANEL PARTS
02 - CONTROL PANEL AND LATCH PARTS

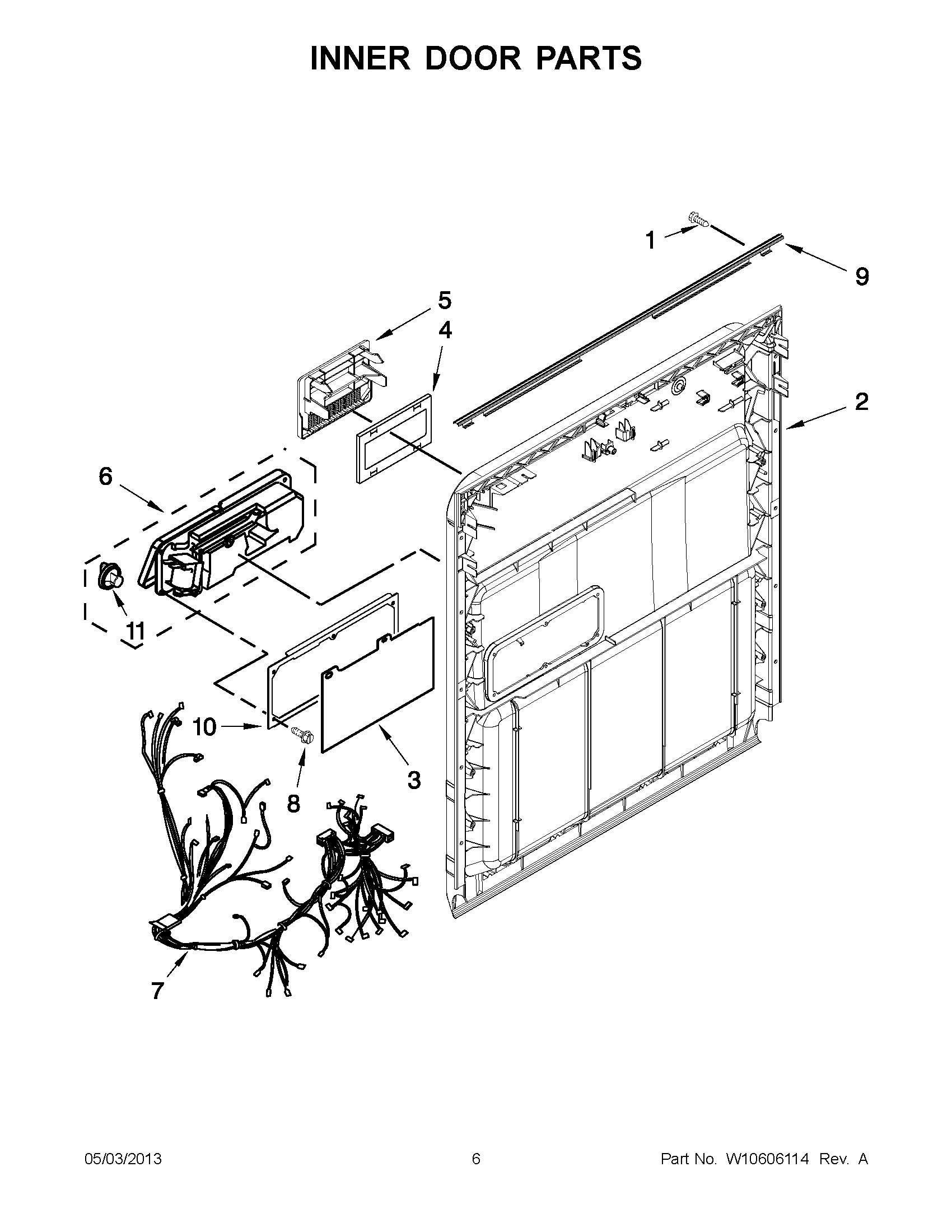

03 - INNER DOOR PARTS
04 - FILL, DRAIN AND OVERFILL PARTS

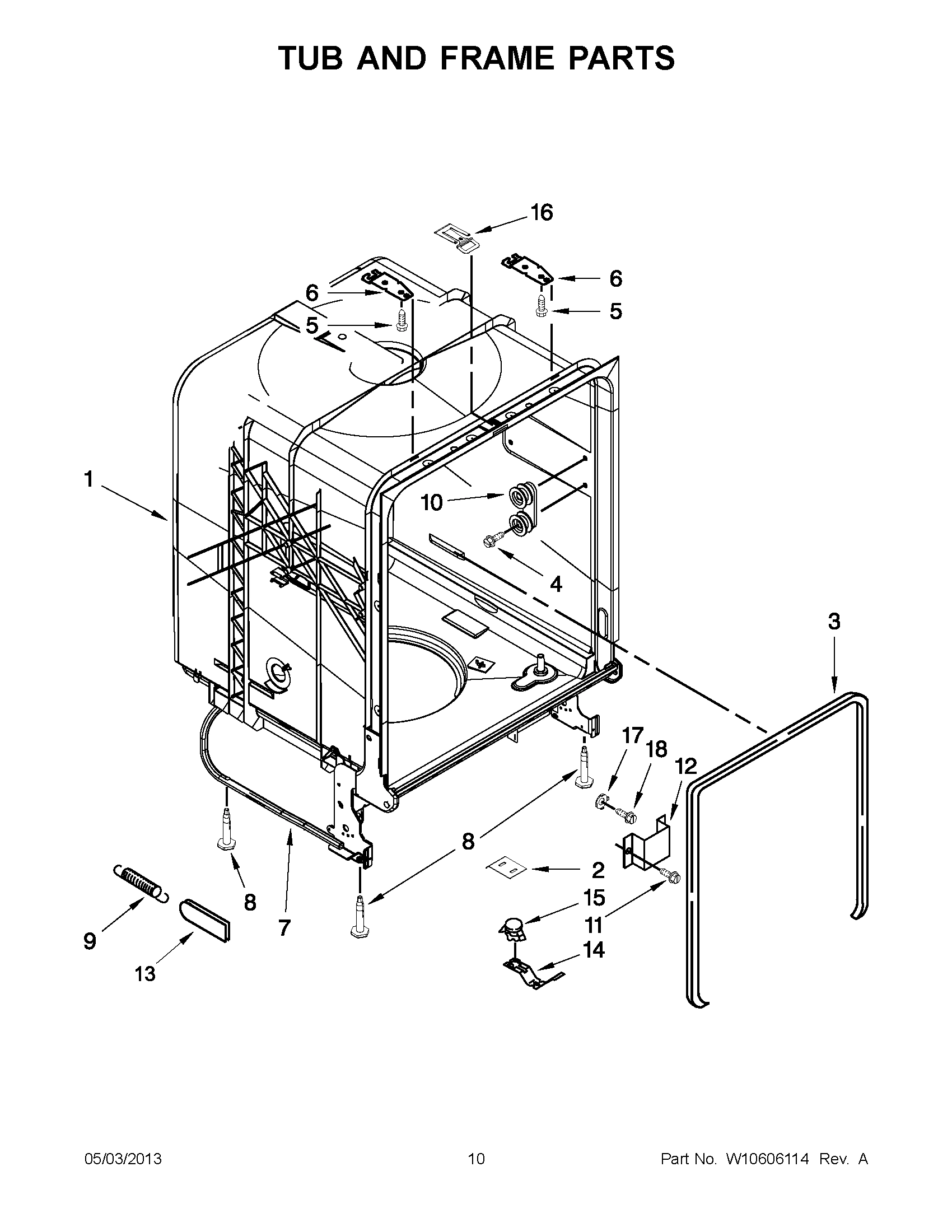

05 - TUB AND FRAME PARTS

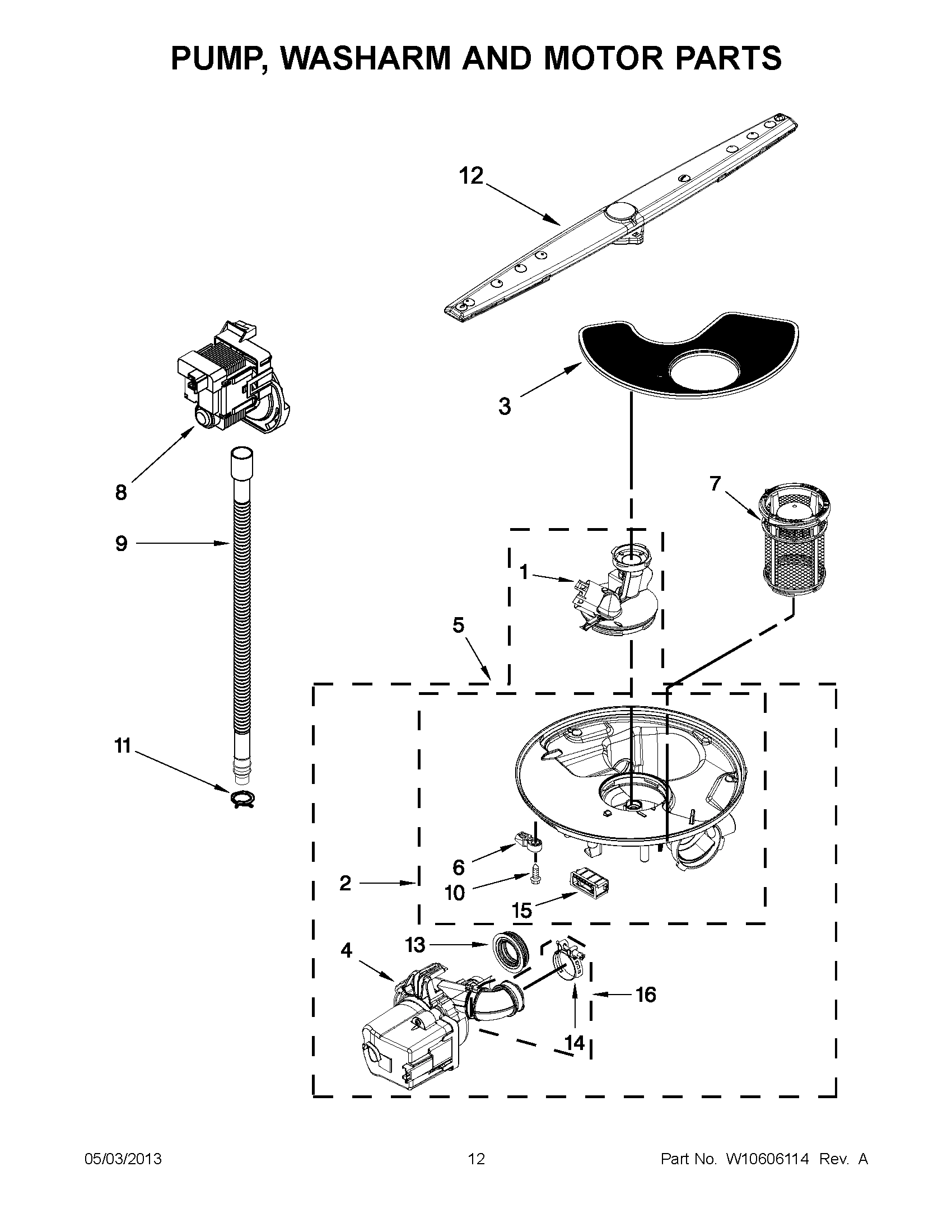

06 - PUMP, WASHARM AND MOTOR PARTS

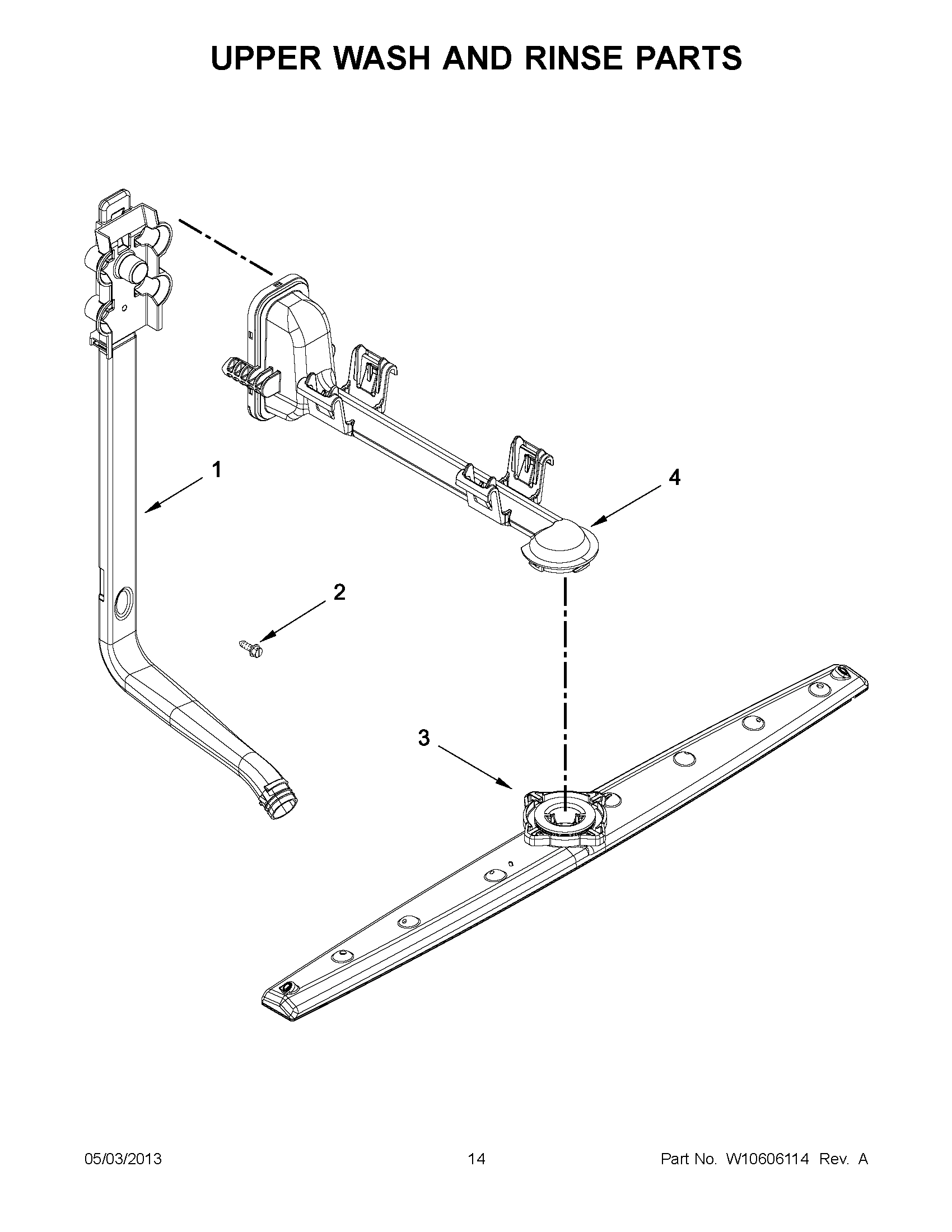

07 - UPPER WASH AND RINSE PARTS

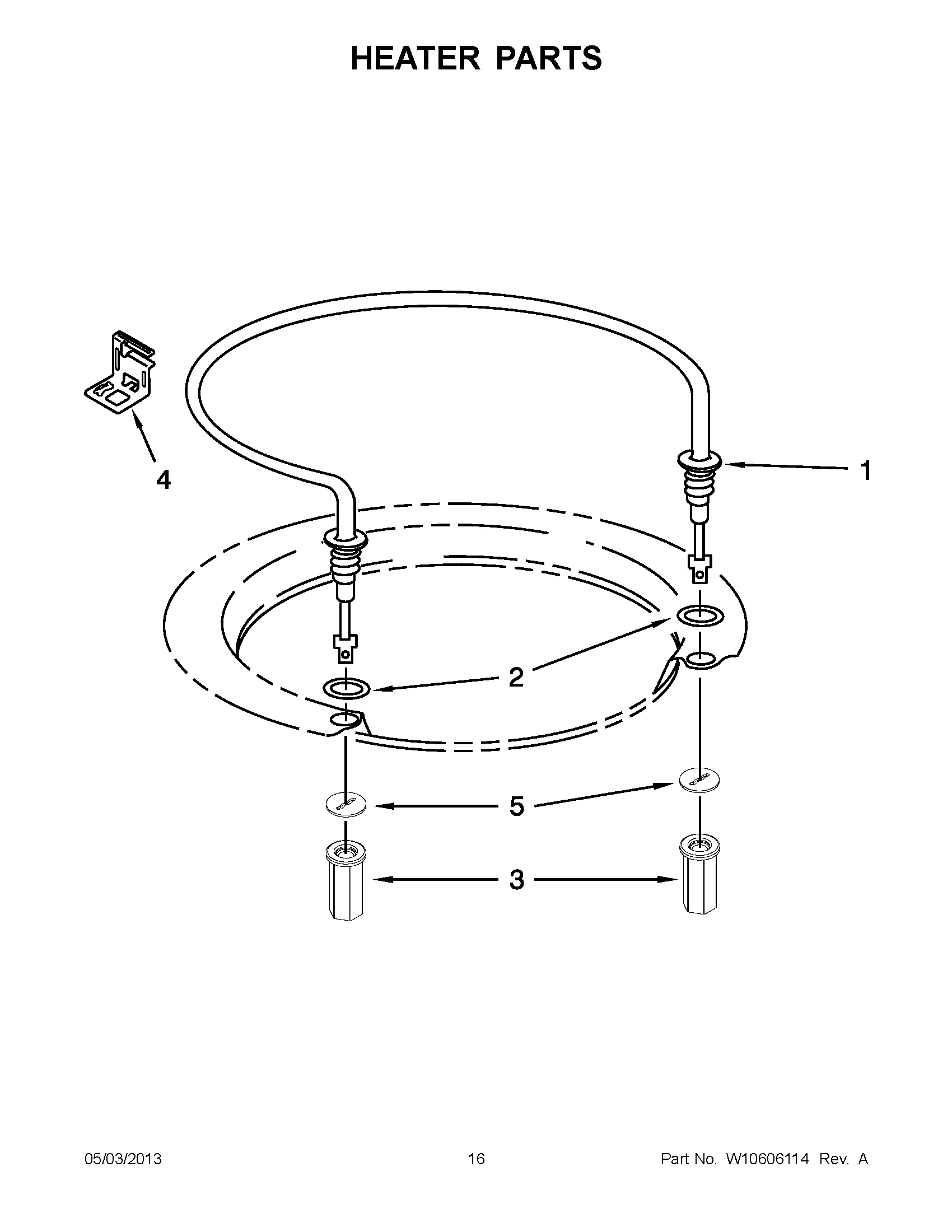

08 - HEATER PARTS

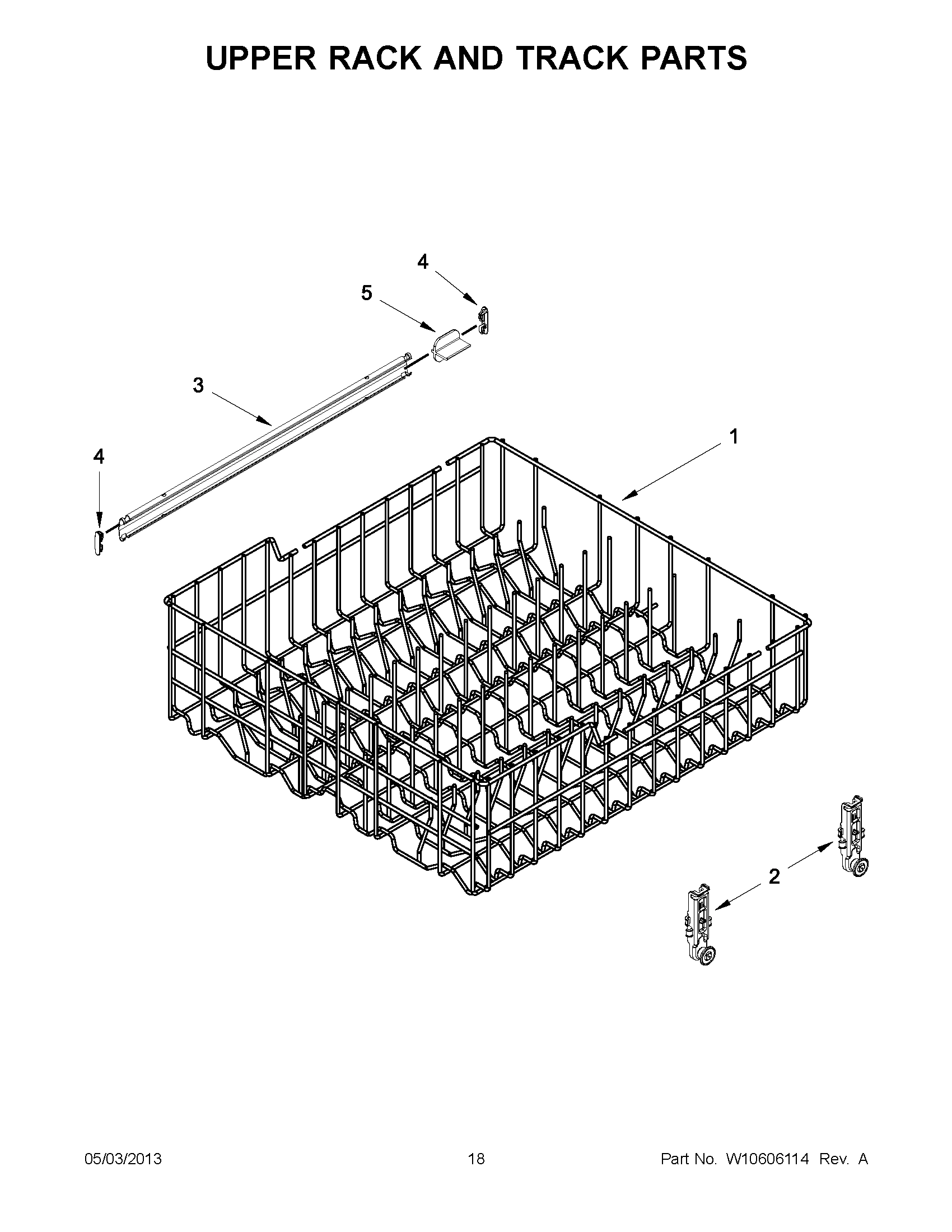

09 - UPPER RACK AND TRACK PARTS

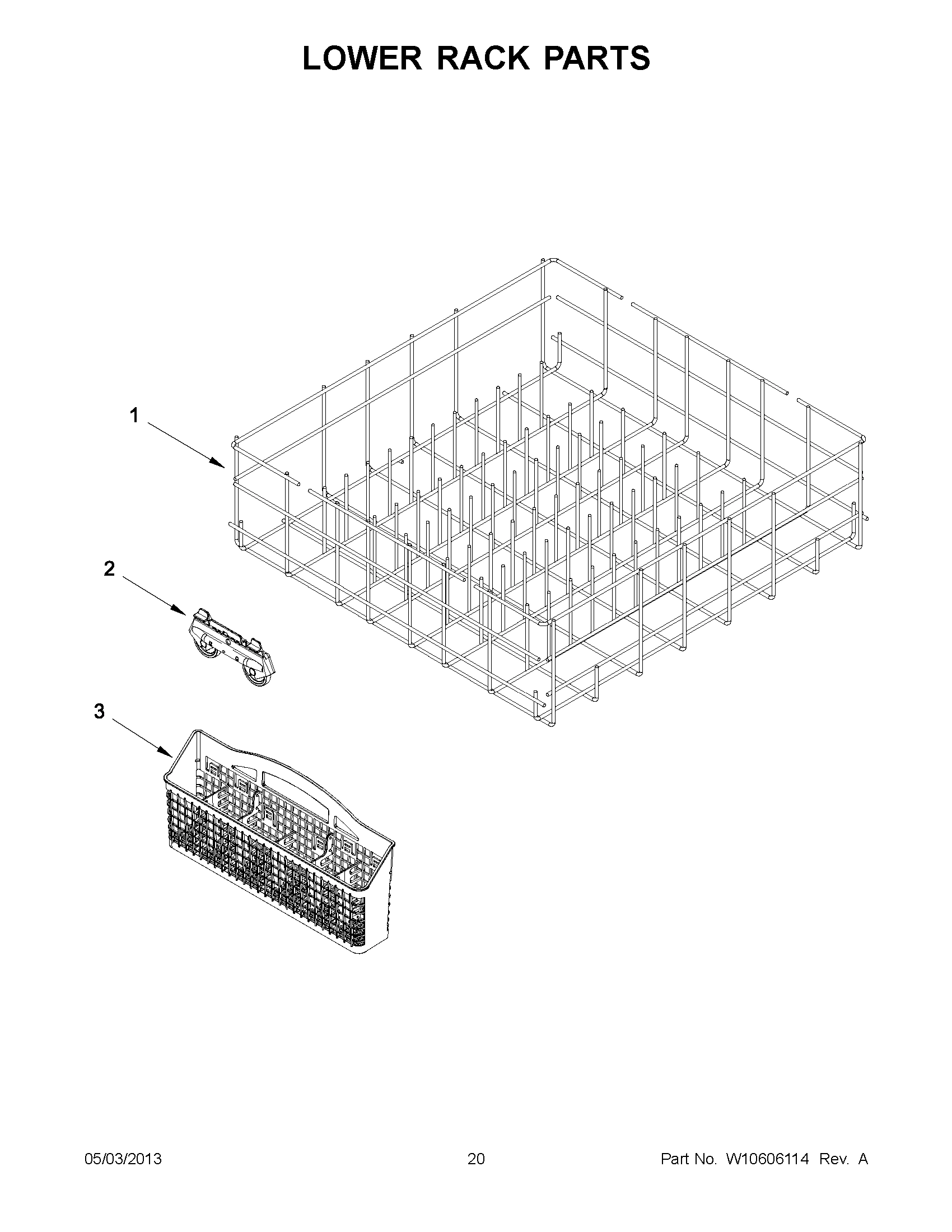

10 - LOWER RACK PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
