Model Maytag ADB1100AWB0 DISHWASHER – Common Parts & Diagrams

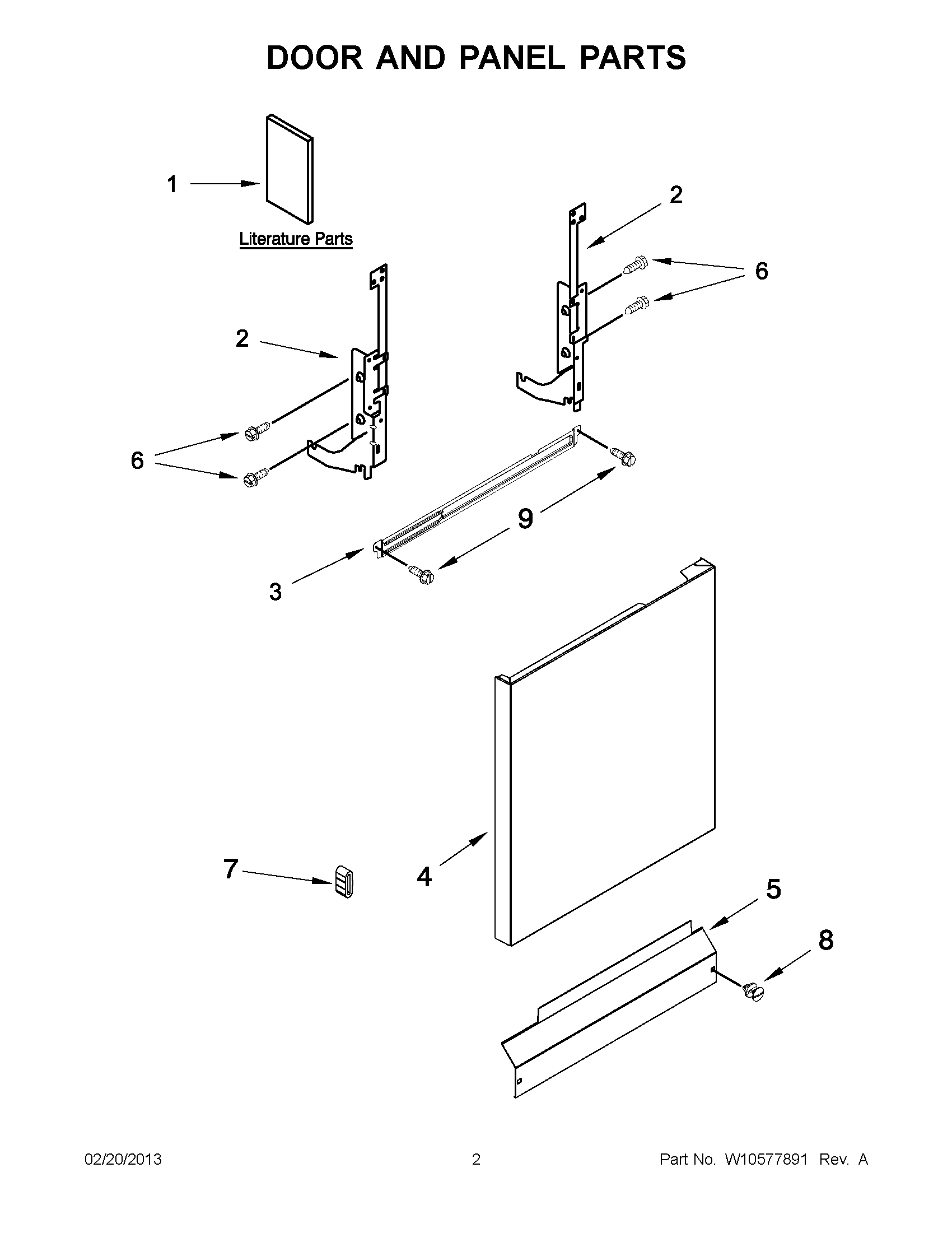

01 - DOOR AND PANEL PARTS

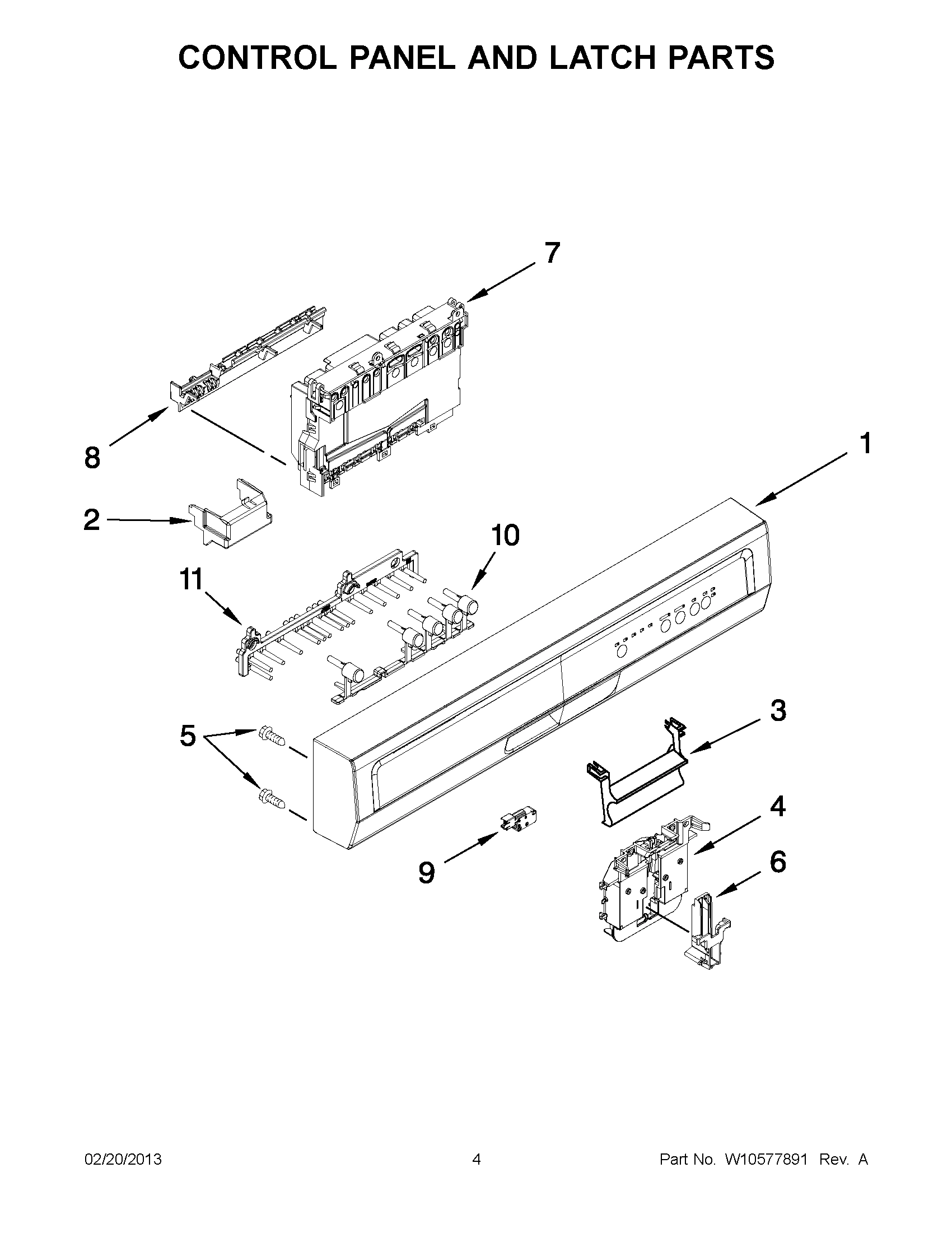

02 - CONTROL PANEL AND LATCH PARTS
03 - INNER DOOR PARTS
04 - FILL, DRAIN AND OVERFILL PARTS
05 - TUB AND FRAME PARTS
06 - PUMP AND MOTOR PARTS
07 - UPPER WASH AND RINSE PARTS
08 - HEATER PARTS
09 - UPPER RACK AND TRACK PARTS
10 - LOWER RACK PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag ADB1100AWB0 DISHWASHER
1
USE & CARE GUIDE, SPANISH MAY W10350360 Contact Us For Availability
1
MAY W10380253 MAY W10380253 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS MAY W10435040 Contact Us For Availability
1
MAY W10531677 MAY W10531677 Contact Us For Availability
1
MAY W10531678 MAY W10531678 Contact Us For Availability
1
MAY W10531939 MAY W10531939 Contact Us For Availability
1
MAY W10531884 MAY W10531884 Contact Us For Availability
1
MAY W10531885 MAY W10531885 Contact Us For Availability
1
MAY W10348413 MAY W10348413 Contact Us For Availability
1
MAY W10349288 MAY W10349288 Contact Us For Availability
1
MAY W10455271 MAY W10455271 Contact Us For Availability
1
MAY W10340747 MAY W10340747 Contact Us For Availability
1
HEATER ELEMENT ASSEMBLY (INCLUDES ITEM 2) MAY W10134009 Contact Us For Availability
1
MAY W10164198 MAY W10164198 Contact Us For Availability
1
MAY 8561705 MAY 8561705 Contact Us For Availability
2
ARM, HINGE (RIGHT HAND) MAY W10274921 Contact Us For Availability
2
ARM, HINGE (LEFT HAND) MAY W10274922 Contact Us For Availability
2
MAY W10401190 MAY W10401190 Contact Us For Availability
2
INNER DOOR ASSEMLBY (ALSO ORDER ITEM 4) MAY W10254547 Contact Us For Availability
2
HOSE MAY 8531412 Contact Us For Availability
2
SHIELD, THERMOSTAT MAY W10339699 Contact Us For Availability
2
MAY W10482461 MAY W10482461 Contact Us For Availability
2
MAY W10165274 MAY W10165274 Contact Us For Availability
2
WASHER, RUBBER MAY 717273 Contact Us For Availability
2
MAY 8575281 MAY 8575281 Contact Us For Availability
2
WHEEL & TRANSPORT ASSEMBLY MAY 8268645 Contact Us For Availability
3
STIFFENER, DOOR MAY W10195120 Contact Us For Availability
3
MAY 8534984 MAY 8534984 Contact Us For Availability
3
MAY 8534985 MAY 8534985 Contact Us For Availability
3
MAY W10482094 MAY W10482094 Contact Us For Availability
3
INLET, WATER (ALSO ORDER ITEM 4) MAY W10195536 Contact Us For Availability
3
MAY W10524469 MAY W10524469 Contact Us For Availability
3
MAY W10463906 MAY W10463906 Contact Us For Availability
3
MAY W10317197 MAY W10317197 Contact Us For Availability
3
NUT, HEATER ELEMENT MAY 8268548 Contact Us For Availability
3
TRACK, DISHRACK MAY 3385089 Contact Us For Availability
3
MAY 8268866 MAY 8268866 Contact Us For Availability
4
MAY W10274890 MAY W10274890 Contact Us For Availability
4
MAY W10274891 MAY W10274891 Contact Us For Availability
4
MAY W10274900 MAY W10274900 Contact Us For Availability
4
MAY W10274884 MAY W10274884 Contact Us For Availability
4
MAY W10475829 MAY W10475829 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
MAY W10341745 MAY W10341745 Contact Us For Availability
4
MOTOR (ALSO ORDER ITEMS 13 & 16) MAY W10510666 Contact Us For Availability
4
MAY W10340683 MAY W10340683 Contact Us For Availability
4
MAY 8269262 MAY 8269262 Contact Us For Availability
4
STOP, TRACK (NON-REMOVABLE) MAY 8565920 Contact Us For Availability
5
MAY W10441006 MAY W10441006 Contact Us For Availability
5
MAY W10441007 MAY W10441007 Contact Us For Availability
5
MAY W10254548 MAY W10254548 Contact Us For Availability
5
MAY 8531327 MAY 8531327 Contact Us For Availability
5
MAY 3367670 MAY 3367670 Contact Us For Availability
5
MAY W10531928 MAY W10531928 Contact Us For Availability
5
SHIELD, HEATER PROBE MAY W10343251 Contact Us For Availability
5
MAY W10306228 MAY W10306228 Contact Us For Availability
6
MAY 489470 MAY 489470 Contact Us For Availability
6
MAY 8524472 MAY 8524472 Contact Us For Availability
6
MAY W10195411 MAY W10195411 Contact Us For Availability
6
MAY 371505 MAY 371505 Contact Us For Availability
6
MAY 8269145 MAY 8269145 Contact Us For Availability
6
MAY W10372113 MAY W10372113 Contact Us For Availability
6
STOP, TRACK (NON-REMOVABLE) FRONT MAY 8565925 Contact Us For Availability
7
SLEEVE, FRICTION MAY 8268961 Contact Us For Availability
7
MAY W10568522 MAY W10568522 Contact Us For Availability
7
MAY W10496103 MAY W10496103 Contact Us For Availability
7
MAY W10195047 MAY W10195047 Contact Us For Availability
7
SUPPORT, BOTTOM MAY W10304231 Contact Us For Availability
7
FILTER CUP ASSEMBLY MAY W10393352 Contact Us For Availability
8
MAY W10503548 MAY W10503548 Contact Us For Availability
8
MAY W10503549 MAY W10503549 Contact Us For Availability
8
Screw MAY 304392 Contact Us For Availability
8
MAY W10372484 MAY W10372484 Contact Us For Availability
8
MAY W10177098 MAY W10177098 Contact Us For Availability
8
MAY W10304228 MAY W10304228 Contact Us For Availability
8
MAY 8558995 MAY 8558995 Contact Us For Availability
9
MAY W10274880 MAY W10274880 Contact Us For Availability
9
SEAL, DOOR/CONSOLE MAY 8269296 Contact Us For Availability
9
MAY W10418848 MAY W10418848 Contact Us For Availability
9
MAY W10337934 MAY W10337934 Contact Us For Availability
9
MAY 8269144 MAY 8269144 Contact Us For Availability
10
MAY W10274840 MAY W10274840 Contact Us For Availability
10
MAY W10462232 MAY W10462232 Contact Us For Availability
10
SCREW MAY 304231 Contact Us For Availability
10
WHEEL AND MOUNT ASSEMBLY MAY 8270016 Contact Us For Availability
10
MAY W10348407 MAY W10348407 Contact Us For Availability
11
MAY W10274836 MAY W10274836 Contact Us For Availability
11
MAY 8533380 MAY 8533380 Contact Us For Availability
11
MAY 370445 MAY 370445 Contact Us For Availability
11
MAY W10195039 MAY W10195039 Contact Us For Availability
11
MAY 3400892 MAY 3400892 Contact Us For Availability
12
MAY W10316267 MAY W10316267 Contact Us For Availability
12
MAY 8268991 MAY 8268991 Contact Us For Availability
12
MAY W10319027 MAY W10319027 Contact Us For Availability
13
MAY W10345285 MAY W10345285 Contact Us For Availability
13
MAY 8268990 MAY 8268990 Contact Us For Availability
13
MAY W10195068 MAY W10195068 Contact Us For Availability
14
LEVER, OVERFILL SWITCH MAY W10195037 Contact Us For Availability
14
CLIP, THERMOSTAT MAY 3378595 Contact Us For Availability
14
CLAMP, HOSE MAY W10169167 Contact Us For Availability
15
MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 MAY W10292152 Contact Us For Availability
15
MAY W10339474 MAY W10339474 Contact Us For Availability
15
MAY W10195086 MAY W10195086 Contact Us For Availability
16
MAY 8580309 MAY 8580309 Contact Us For Availability
16
HOSE ASEMBLY (INCLUDES 2 CLAMPS) MAY W10445975 Contact Us For Availability
17
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
18
SCREW, GROUNDING MAY 3400014 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, DRAIN HOSE 12 FT. MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
POWER CORD KIT (INCLUDED CORD & MISC. HARWARE MAY 4317824 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ SILVER A MAY 4396853 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396854 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (WHITE) MAY 8171656 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BLACK) MAY 8171657 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BISCUIT/BISQUE) MAY 8171658 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL MAY 8171659 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
× ![]()
