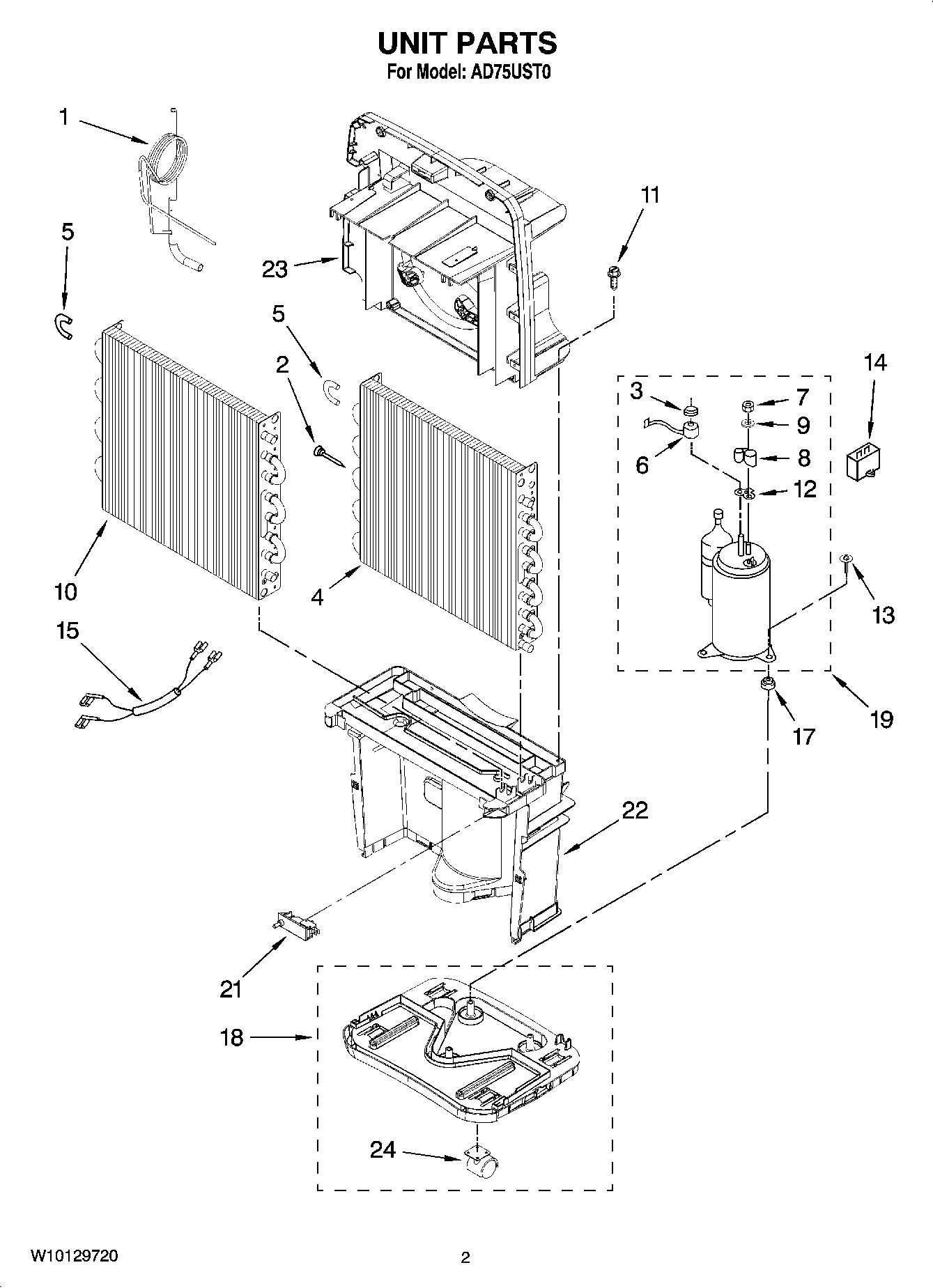

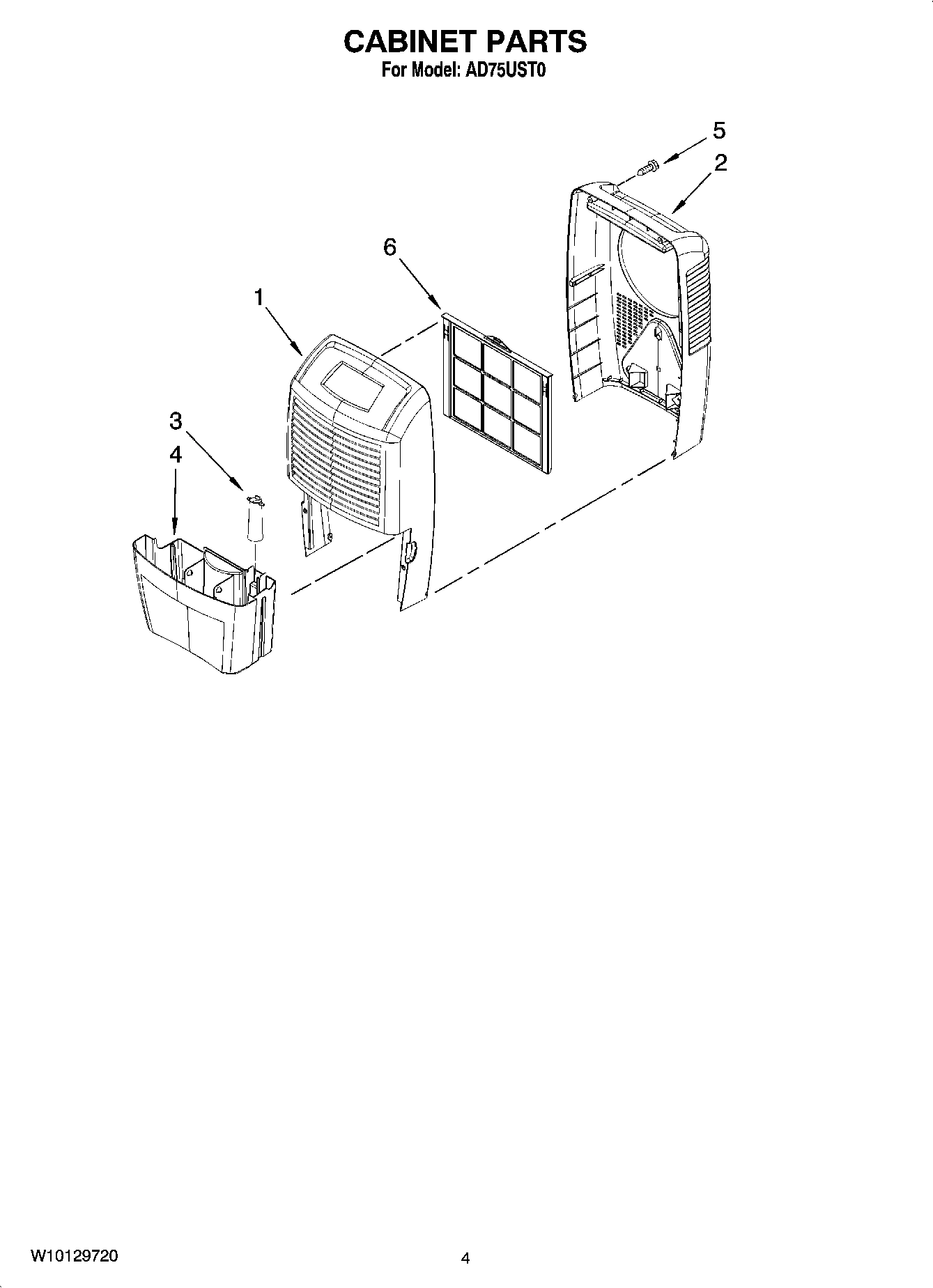

Model Whirlpool AD75UST0 DEHUMIDIFIER – Common Parts & Diagrams

Valve, Access (5/8`` Tube O.D.)
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
View on Model
1
Tube, Restrictor
Tube, Restrictor WPL 1188525 Contact Us For Availability
View on Model
1
Wiring Diagram
Wiring Diagram WPL 1188575 Contact Us For Availability
View on Model
1
Use & Care Guide
Use & Care Guide WPL 1188927 Contact Us For Availability
View on Model
3
Spring, Overload
Spring, Overload WPL 1185795 Contact Us For Availability
View on Model
3
Assembly, Control Panel
Assembly, Control Panel WPL 1188929 Contact Us For Availability
View on Model
4
CONDENSER
CONDENSER WPL 1188917 Contact Us For Availability
View on Model
5
SCREW
SCREW WPL 9742177 Contact Us For Availability
View on Model
5
Bend, Return
Bend, Return WPL 4388784 Contact Us For Availability
View on Model
6
Overload, Protector
Overload, Protector WPL 1188572 Contact Us For Availability
View on Model
6
Motor, Fan
Motor, Fan WPL 1188922 Contact Us For Availability
View on Model
7
Wheel, Blower
Wheel, Blower WPL 1188416 Contact Us For Availability
View on Model
8
Cover, Terminal
Cover, Terminal WPL 1188822 Contact Us For Availability
View on Model
8
Cord, Appliance
Cord, Appliance WPL 1188469 Contact Us For Availability
View on Model
9
Washer, Nut
Washer, Nut WPL 1185794 Contact Us For Availability
View on Model
9
Overlay
Overlay WPL 1188928 Contact Us For Availability
View on Model
10
EVAPORATOR
EVAPORATOR WPL 1188921 Contact Us For Availability
View on Model
12
Gasket, Terminal Cover
Gasket, Terminal Cover WPL 1185793 Contact Us For Availability
View on Model
13
Screw, Compressor
Screw, Compressor WPL W10001320 Contact Us For Availability
View on Model
14
Capacitor
Capacitor WPL 1188477 Contact Us For Availability
View on Model
15
Wire Harness, Compressor (2 Wire)
Wire Harness, Compressor (2 Wire) WPL 1188467 Contact Us For Availability
View on Model
17
Grommet, Compressor
Grommet, Compressor WPL 1188564 Contact Us For Availability
View on Model
18
Base
Base WPL 1188558 Contact Us For Availability
View on Model
19
Compressor, (Complete Assembly)
Compressor, (Complete Assembly) WPL 1188478 Contact Us For Availability
View on Model
21
Switch, Bucket Fill/Check
Switch, Bucket Fill/Check WPL 1188815 Contact Us For Availability
View on Model
22
Support, Lower
Support, Lower WPL 1188577 Contact Us For Availability
View on Model
23
Support, Upper
Support, Upper WPL 1188578 Contact Us For Availability
View on Model
24
Caster
Caster WPL 1188415 Contact Us For Availability
View on Model
24
REFRIGERANT CHARGE 11.7 OZ. R-22
REFRIGERANT CHARGE 11.7 OZ. R-22 WPL ARI20316A8 Contact Us For Availability
View on Model
