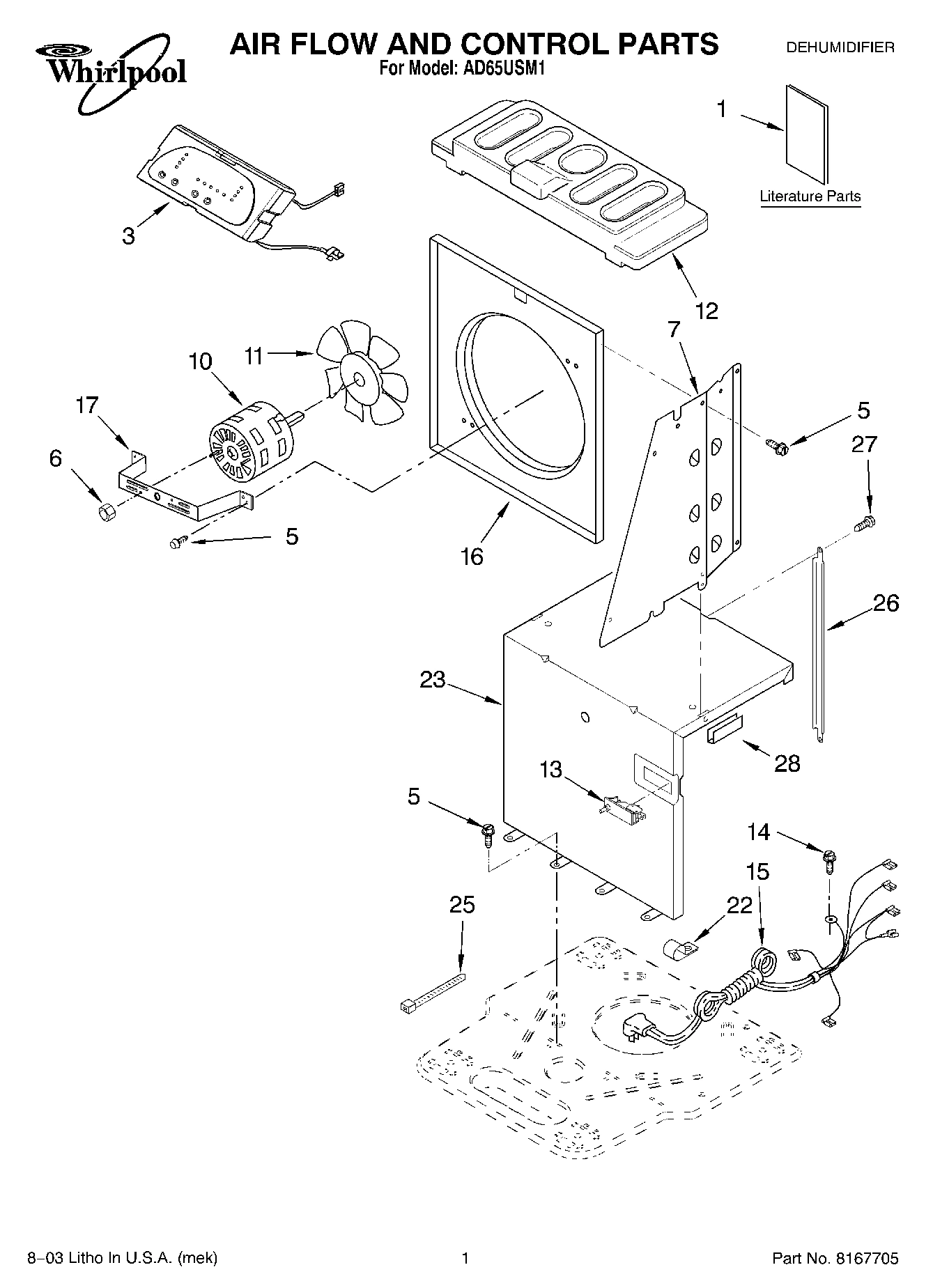

Model Whirlpool AD65USM1 DEHUMIDIFIER – Common Parts & Diagrams

1
Cabinet
Cabinet WPL 1186822 Contact Us For Availability
View on Model
1
LITERATURE PARTS (Use & Care Guide)
LITERATURE PARTS (Use & Care Guide) WPL LIT1185020 Contact Us For Availability
View on Model
1
Literature Parts (Wiring Diagram)
Literature Parts (Wiring Diagram) WPL LIT1186973 Contact Us For Availability
View on Model
2
Cover, Hose Connection
Cover, Hose Connection WPL 1172098 Contact Us For Availability
View on Model
3
Clip, Float
Clip, Float WPL 1186430 Contact Us For Availability
View on Model
3
Assembly, Electronic Control Panel
Assembly, Electronic Control Panel WPL 1184916 Contact Us For Availability
View on Model
4
Cover, Top
Cover, Top WPL 1168652 Contact Us For Availability
View on Model
5
Cover, Front
Cover, Front WPL 1182600 Contact Us For Availability
View on Model
6
Float
Float WPL 1172075 Contact Us For Availability
View on Model
6
Bracket, Motor
Bracket, Motor WPL 1183427 Contact Us For Availability
View on Model
7
Panel, Air System (Left Side)
Panel, Air System (Left Side) WPL 1168758 Contact Us For Availability
View on Model
7
Panel, Air System (Right Side)
Panel, Air System (Right Side) WPL 1168759 Contact Us For Availability
View on Model
8
Bucket, Condensate
Bucket, Condensate WPL 1182588 Contact Us For Availability
View on Model
10
5/8`` Tube O.D.
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
View on Model
10
Tape, No Drip Valve, Access
Tape, No Drip Valve, Access WPL 505168 Contact Us For Availability
View on Model
10
epoxy, tube (aluminum repair)
epoxy, tube (aluminum repair) WPL 484310 Contact Us For Availability
View on Model
10
1/2`` Tube O.D.
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
View on Model
10
Seal, Ring (Access Valve) (20 - Pack)
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
View on Model
10
OPTIONAL PARTS
OPTIONAL PARTS WPL ARI20301A2 Contact Us For Availability
View on Model
10
Following Parts Not Illustrated and Optional
Following Parts Not Illustrated and Optional WPL ARI20302A3 Contact Us For Availability
View on Model
11
Blade, Fan
Blade, Fan WPL 1168661 Contact Us For Availability
View on Model
12
Cover, Terminal
Cover, Terminal WPL 1184748 Contact Us For Availability
View on Model
12
Cover, Air System
Cover, Air System WPL 1168681 Contact Us For Availability
View on Model
13
Capacitor
Capacitor WPL 1186739 Contact Us For Availability
View on Model
13
Switch, Bucket Fill/Check
Switch, Bucket Fill/Check WPL 1186481 Contact Us For Availability
View on Model
14
Evaporator
Evaporator WPL 1168655 Contact Us For Availability
View on Model
14
Screw 8-18 x .295
Screw 8-18 x .295 WPL 1159222 Contact Us For Availability
View on Model
15
Cord, Appliance
Cord, Appliance WPL 1186815 Contact Us For Availability
View on Model
16
Plate, Orifice
Plate, Orifice WPL 1168666 Contact Us For Availability
View on Model
17
Clip, Compressor
Clip, Compressor WPL 8011446 Contact Us For Availability
View on Model
20
Grommet (3)
Grommet (3) WPL 1186709 Contact Us For Availability
View on Model
21
Base
Base WPL 1186674 Contact Us For Availability
View on Model
22
Caster (4)
Caster (4) WPL 1164241 Contact Us For Availability
View on Model
22
Relief, Strain
Relief, Strain WPL 488937 Contact Us For Availability
View on Model
23
Support, Air System
Support, Air System WPL 1184946 Contact Us For Availability
View on Model
25
Compressor, (Complete Assembly)
Compressor, (Complete Assembly) WPL 1186708 Contact Us For Availability
View on Model
26
Pan, Drain
Pan, Drain WPL 1168761 Contact Us For Availability
View on Model
26
Brace, Support
Brace, Support WPL 1168752 Contact Us For Availability
View on Model
28
Edge Guard
Edge Guard WPL 1180634 Contact Us For Availability
View on Model
29
Seal, Anti Rub (Restrictor Tube)
Seal, Anti Rub (Restrictor Tube) WPL 1184625 Contact Us For Availability
View on Model
29
REFRIGERANT CHARGE 12.00 oz.
REFRIGERANT CHARGE 12.00 oz. WPL ARI20300A9 Contact Us For Availability
View on Model
