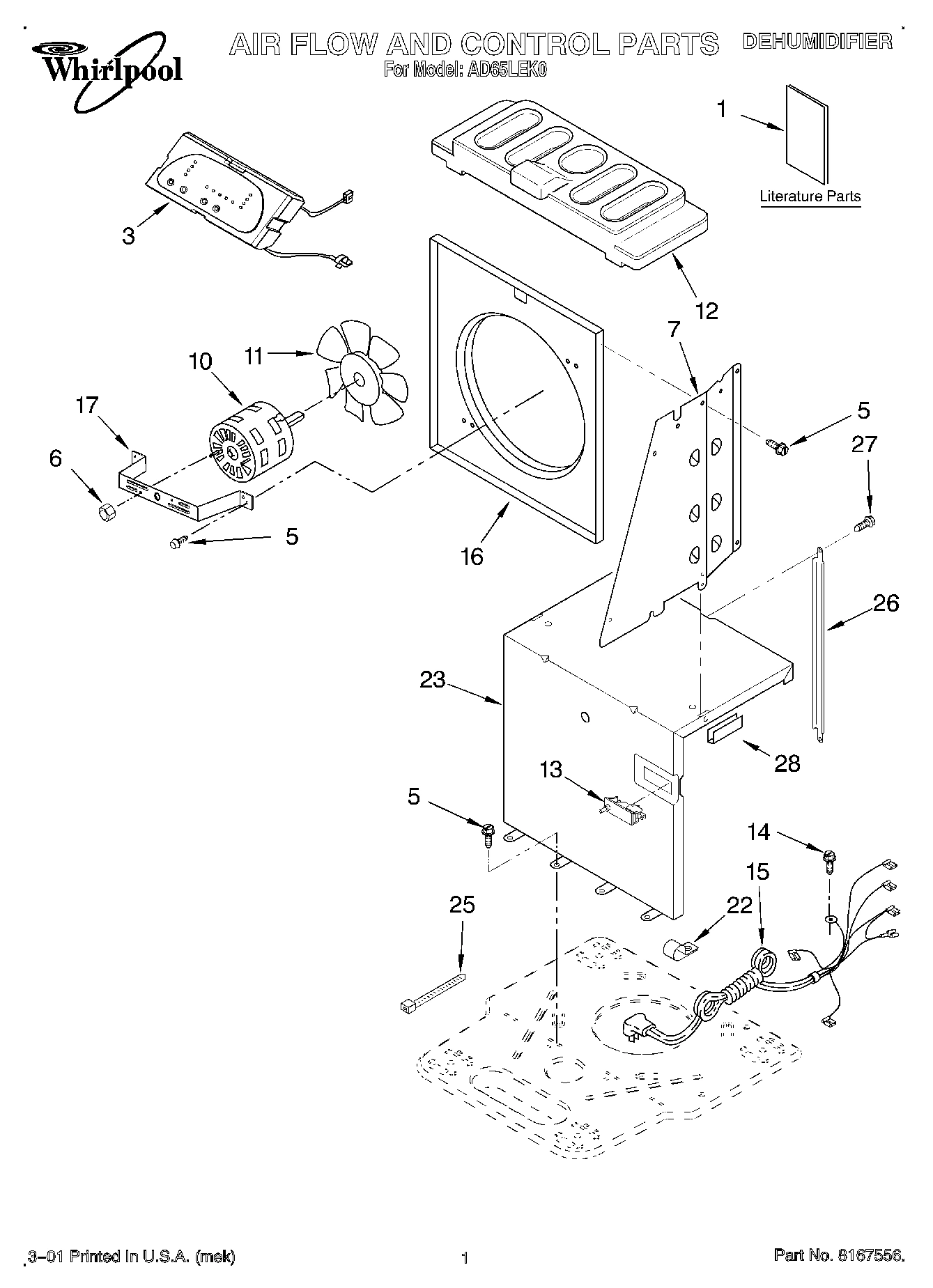

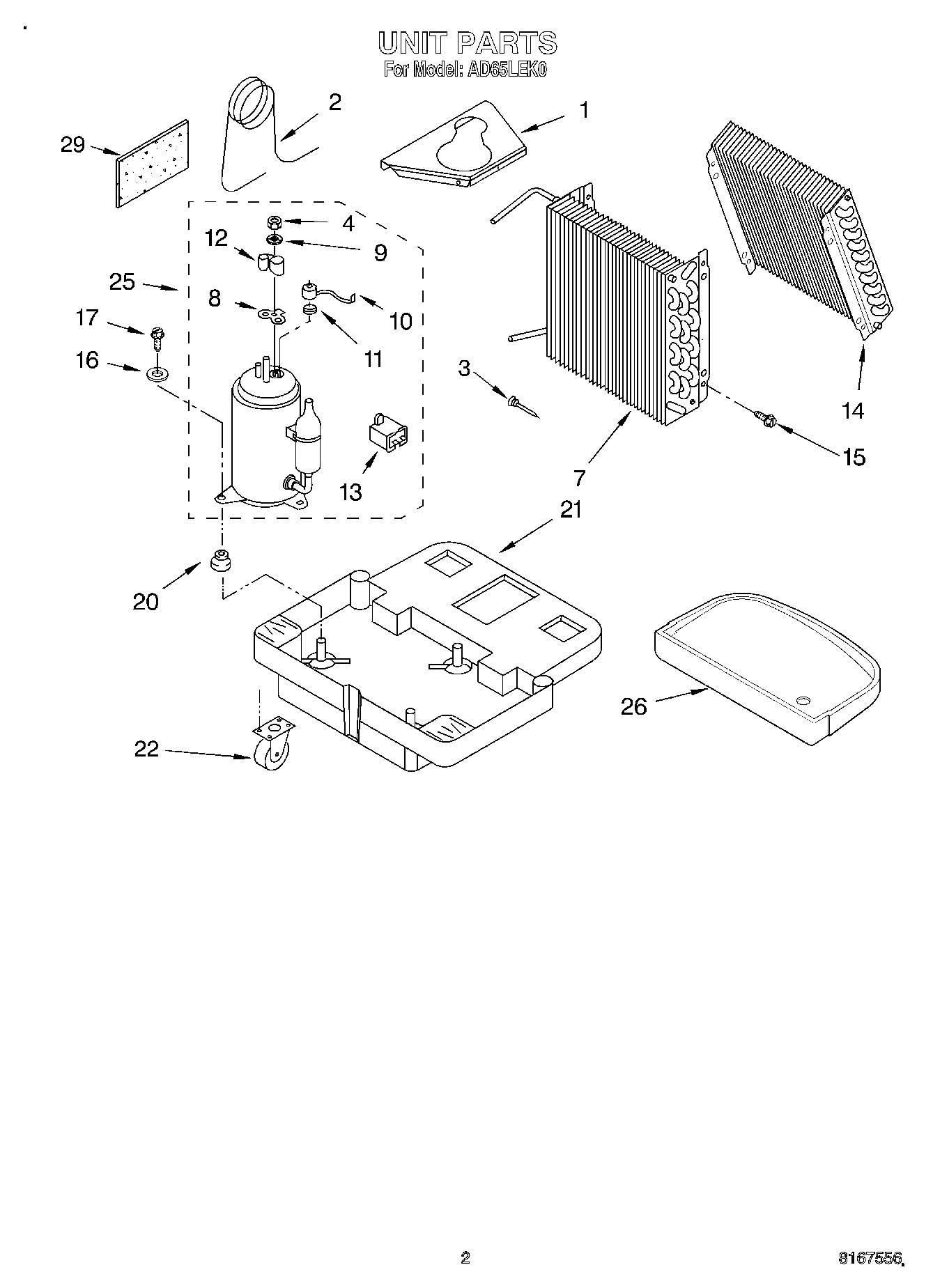

Model Whirlpool AD65LEK0 DEHUMIDIFIER – Common Parts & Diagrams

1
Brace, Compressor Support
Brace, Compressor Support WPL 1185282 Contact Us For Availability
View on Model
1
Cabinet
Cabinet WPL 1168667 Contact Us For Availability
View on Model
2
Tube, Restrictor (Length 30.00``)
Tube, Restrictor (Length 30.00``) WPL 1168677 Contact Us For Availability
View on Model
2
Cover, Hose Connection
Cover, Hose Connection WPL 1172098 Contact Us For Availability
View on Model
3
Clip, Float
Clip, Float WPL 1168762 Contact Us For Availability
View on Model
4
Cover, Top
Cover, Top WPL 1168652 Contact Us For Availability
View on Model
5
Cover, Front
Cover, Front WPL 1182600 Contact Us For Availability
View on Model
6
Float
Float WPL 1172075 Contact Us For Availability
View on Model
7
Condenser
Condenser WPL 1185432 Contact Us For Availability
View on Model
8
Bucket, Condensate
Bucket, Condensate WPL 1182080 Contact Us For Availability
View on Model
9
Gasket, Nut
Gasket, Nut WPL 950037 Contact Us For Availability
View on Model
10
5/8`` Tube O.D.
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
View on Model
10
Tape, No Drip Valve, Access
Tape, No Drip Valve, Access WPL 505168 Contact Us For Availability
View on Model
10
Overload, Protector
Overload, Protector WPL 1162536 Contact Us For Availability
View on Model
10
epoxy, tube (aluminum repair)
epoxy, tube (aluminum repair) WPL 484310 Contact Us For Availability
View on Model
10
1/2`` Tube O.D.
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
View on Model
10
Seal, Ring (Access Valve) (20 - Pack)
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
View on Model
11
Spring, Overload
Spring, Overload WPL 950032 Contact Us For Availability
View on Model
12
Cover, Air System
Cover, Air System WPL 1168681 Contact Us For Availability
View on Model
13
Switch, Bucket Fill/Check
Switch, Bucket Fill/Check WPL 1185227 Contact Us For Availability
View on Model
13
Capacitor
Capacitor WPL 1185333 Contact Us For Availability
View on Model
14
Screw 8-18 x .295
Screw 8-18 x .295 WPL 1159222 Contact Us For Availability
View on Model
14
Evaporator
Evaporator WPL 1168655 Contact Us For Availability
View on Model
15
Cord, Appliance
Cord, Appliance WPL 1184998 Contact Us For Availability
View on Model
16
Plate, Orifice
Plate, Orifice WPL 1168666 Contact Us For Availability
View on Model
17
Screw
Screw WPL 3400804 Contact Us For Availability
View on Model
20
Grommet (4)
Grommet (4) WPL 950212 Contact Us For Availability
View on Model
21
Base
Base WPL 1184730 Contact Us For Availability
View on Model
22
Relief, Strain
Relief, Strain WPL 1180504 Contact Us For Availability
View on Model
22
Caster (4)
Caster (4) WPL 1164241 Contact Us For Availability
View on Model
23
Support, Air System
Support, Air System WPL 1184946 Contact Us For Availability
View on Model
25
Compressor, (Complete Assembly)
Compressor, (Complete Assembly) WPL 1185010 Contact Us For Availability
View on Model
26
Brace, Support
Brace, Support WPL 1168752 Contact Us For Availability
View on Model
26
Pan, Drain
Pan, Drain WPL 1168761 Contact Us For Availability
View on Model
28
Guard, Edge
Guard, Edge WPL 1180634 Contact Us For Availability
View on Model
29
Seal, Anti Rub (Restrictor Tube)
Seal, Anti Rub (Restrictor Tube) WPL 1184625 Contact Us For Availability
View on Model
