Model Whirlpool AD50DSL3 DEHUMIDIFIER – Common Parts & Diagrams
01 - AIR FLOW AND CONTROL PARTS

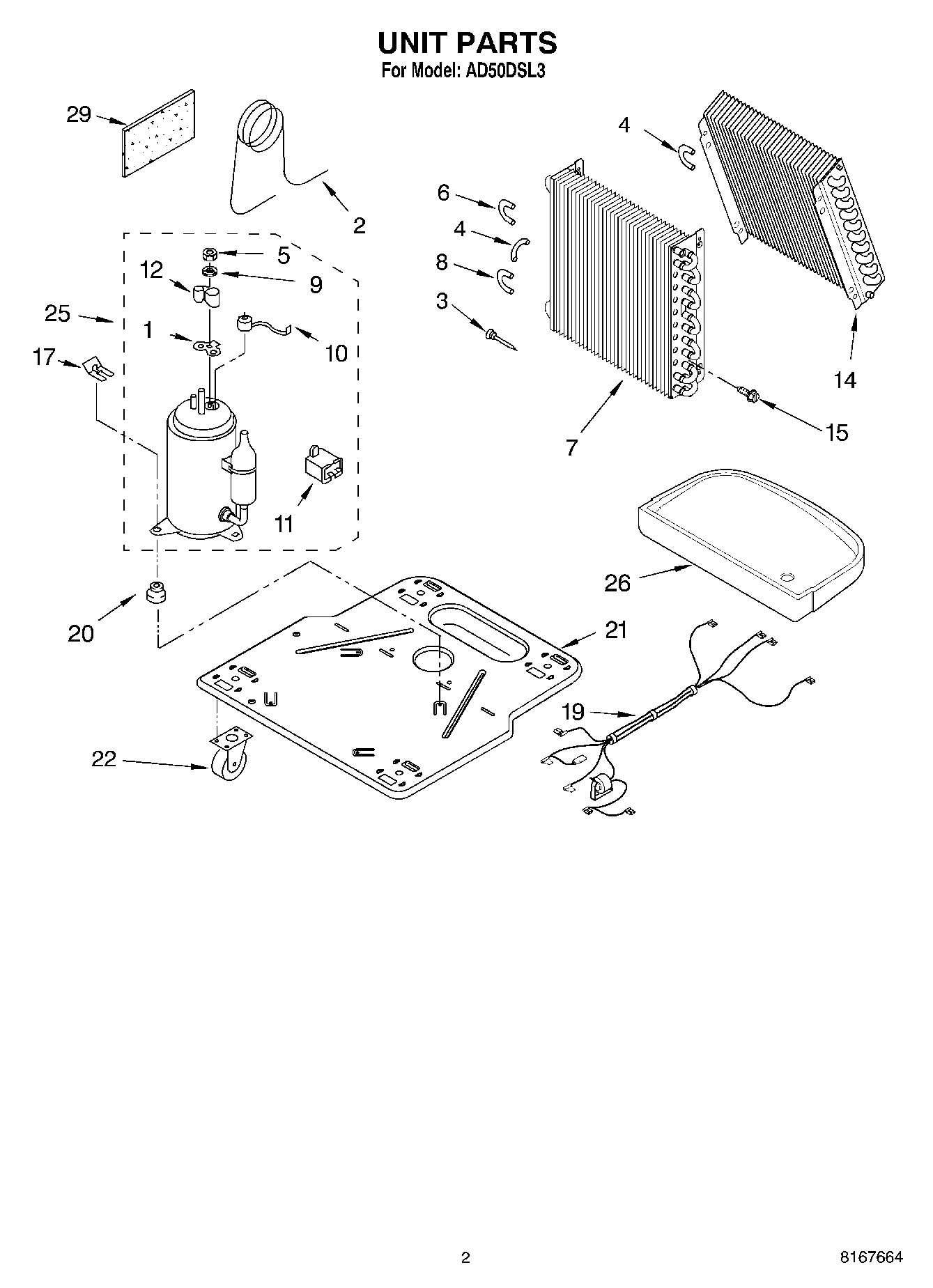

02 - UNIT PARTS
03 - CABINET PARTS
Common parts from model Whirlpool AD50DSL3 DEHUMIDIFIER
1
Gasket, Terminal Cover WPL 1182118 Contact Us For Availability
1
Cabinet WPL 1186822 Contact Us For Availability
2
Tube, Restrictor (Length 30.00``) WPL 1168734 Contact Us For Availability
3
Clip, Float WPL 1186430 Contact Us For Availability
4
Bend, Return Evaporator WPL 708532 Contact Us For Availability
4
Cover, Top WPL 1168652 Contact Us For Availability
5
Cover, Front WPL 1182600 Contact Us For Availability
6
Float WPL 1172075 Contact Us For Availability
6
Bend, Return Condenser WPL 8031223 Contact Us For Availability
7
Condenser WPL 1186756 Contact Us For Availability
8
Escutcheon WPL 1168843 Contact Us For Availability
8
Bend, Return WPL 8031222 Contact Us For Availability
8
Bucket, Condensate WPL 1182080 Contact Us For Availability
9
Barrier, Bucket Fill Switch WPL 1168781 Contact Us For Availability
9
Gasket, Nut WPL 1182120 Contact Us For Availability
10
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
10
Tape, No Drip Valve, Access WPL 505168 Contact Us For Availability
10
Overload, Protector WPL 1186712 Contact Us For Availability
10
epoxy, tube (aluminum repair) WPL 484310 Contact Us For Availability
10
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
10
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
10
Following Parts Not Illustrated and Optional WPL ARI20267A1 Contact Us For Availability
11
Blade, Fan WPL 1168661 Contact Us For Availability
11
Capacitor WPL 1186186 Contact Us For Availability
12
Cover, Air System WPL 1168681 Contact Us For Availability
12
Cover, Terminal WPL 1184748 Contact Us For Availability
13
Switch, Bucket Fill/Check WPL 1186480 Contact Us For Availability
14
Screw 8-18 x .295 WPL 1159222 Contact Us For Availability
14
Evaporator WPL 1185204 Contact Us For Availability
15
Cord, Appliance WPL 1186735 Contact Us For Availability
16
Plate, Orifice WPL 1168666 Contact Us For Availability
17
Clip, Compressor WPL 8011446 Contact Us For Availability
19
Harness, Wire WPL 1186727 Contact Us For Availability
20
Grommet (3) WPL 1186709 Contact Us For Availability
21
Base WPL 1186674 Contact Us For Availability
22
Relief, Strain WPL 488937 Contact Us For Availability
22
Caster (4) WPL 1164241 Contact Us For Availability
23
Support, Air System WPL 1184946 Contact Us For Availability
25
Compressor, (Complete Assembly) WPL 1186706 Contact Us For Availability
26
Brace, Support WPL 1168752 Contact Us For Availability
26
Pan, Drain WPL 1168761 Contact Us For Availability
28
Edge Guard WPL 1180634 Contact Us For Availability
29
Insulation (Restrictor Tube) WPL 1184625 Contact Us For Availability
29
REFRIGERANT CHARGE 9.5 oz. WPL ARI20266A9 Contact Us For Availability
× ![]()
