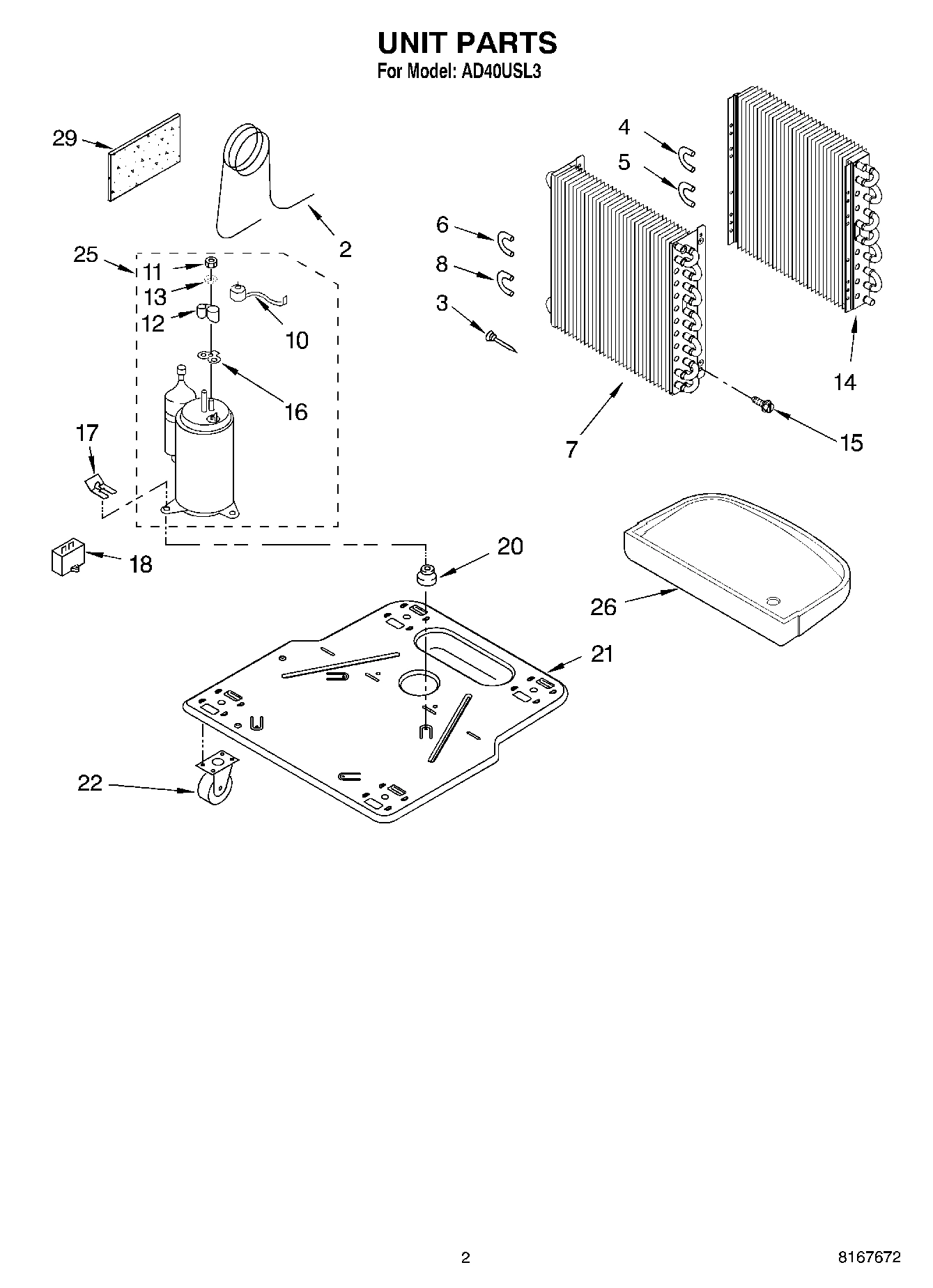

Model Whirlpool AD40USL3 DEHUMIDIFIER – Common Parts & Diagrams

1
Cabinet
Cabinet WPL 1186822 Contact Us For Availability
View on Model
2
Cover, Hose Connection
Cover, Hose Connection WPL 1172098 Contact Us For Availability
View on Model
2
Tube, Restrictor (Length 36.00``)
Tube, Restrictor (Length 36.00``) WPL 1186761 Contact Us For Availability
View on Model
3
Clip, Float
Clip, Float WPL 1186430 Contact Us For Availability
View on Model
4
Cover, Top
Cover, Top WPL 1168652 Contact Us For Availability
View on Model
4
Bend, Return (7)
Bend, Return (7) WPL 708532 Contact Us For Availability
View on Model
5
Cover, Front
Cover, Front WPL 1182061 Contact Us For Availability
View on Model
5
Bend, Return (1)
Bend, Return (1) WPL 708531 Contact Us For Availability
View on Model
6
Float
Float WPL 1172075 Contact Us For Availability
View on Model
6
Bend, Return (9)
Bend, Return (9) WPL 8031223 Contact Us For Availability
View on Model
7
Condenser
Condenser WPL 1186752 Contact Us For Availability
View on Model
8
Bucket, Condensate
Bucket, Condensate WPL 1182588 Contact Us For Availability
View on Model
8
Bend, Return (1)
Bend, Return (1) WPL 8031222 Contact Us For Availability
View on Model
10
5/8`` Tube O.D.
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
View on Model
10
Tape, No Drip Valve, Access
Tape, No Drip Valve, Access WPL 505168 Contact Us For Availability
View on Model
10
epoxy, tube (aluminum repair)
epoxy, tube (aluminum repair) WPL 484310 Contact Us For Availability
View on Model
10
1/2`` Tube O.D.
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
View on Model
10
Seal, Ring (Access Valve) (20 - Pack)
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
View on Model
10
Following Parts Not Illustrated and Optional
Following Parts Not Illustrated and Optional WPL ARI20256A8 Contact Us For Availability
View on Model
10
Overload, Protector
Overload, Protector WPL 1186980 Contact Us For Availability
View on Model
12
Cover, Air System
Cover, Air System WPL 1168681 Contact Us For Availability
View on Model
12
Cover, Terminal
Cover, Terminal WPL 1184748 Contact Us For Availability
View on Model
13
Switch, Bucket Fill/Check
Switch, Bucket Fill/Check WPL 1186481 Contact Us For Availability
View on Model
13
Gasket, Nut
Gasket, Nut WPL 1182120 Contact Us For Availability
View on Model
14
Screw 8-18 x .295
Screw 8-18 x .295 WPL 1159222 Contact Us For Availability
View on Model
14
Evaporator
Evaporator WPL 1186754 Contact Us For Availability
View on Model
15
Appliance Cord and Wiring Harness
Appliance Cord and Wiring Harness WPL 1186815 Contact Us For Availability
View on Model
16
Plate, Orifice
Plate, Orifice WPL 1168666 Contact Us For Availability
View on Model
16
Gasket, Terminal Cover
Gasket, Terminal Cover WPL 1182118 Contact Us For Availability
View on Model
17
Clip, Compressor
Clip, Compressor WPL 8011446 Contact Us For Availability
View on Model
18
Capacitor
Capacitor WPL 1186186 Contact Us For Availability
View on Model
20
Grommet (3)
Grommet (3) WPL 1186709 Contact Us For Availability
View on Model
21
Base
Base WPL 1186674 Contact Us For Availability
View on Model
22
Relief, Strain
Relief, Strain WPL 488937 Contact Us For Availability
View on Model
22
Caster (4)
Caster (4) WPL 1164241 Contact Us For Availability
View on Model
23
Support, Air System
Support, Air System WPL 1184946 Contact Us For Availability
View on Model
25
Compressor, (Complete Assembly)
Compressor, (Complete Assembly) WPL 1186705 Contact Us For Availability
View on Model
26
Brace, Support
Brace, Support WPL 1168752 Contact Us For Availability
View on Model
26
Pan, Drain
Pan, Drain WPL 1168761 Contact Us For Availability
View on Model
28
Edge Guard
Edge Guard WPL 1180634 Contact Us For Availability
View on Model
29
Insulation (Restrictor Tube)
Insulation (Restrictor Tube) WPL 1184625 Contact Us For Availability
View on Model
29
REFRIGERANT CHARGE 7.50 oz.
REFRIGERANT CHARGE 7.50 oz. WPL ARI20255A4 Contact Us For Availability
View on Model
