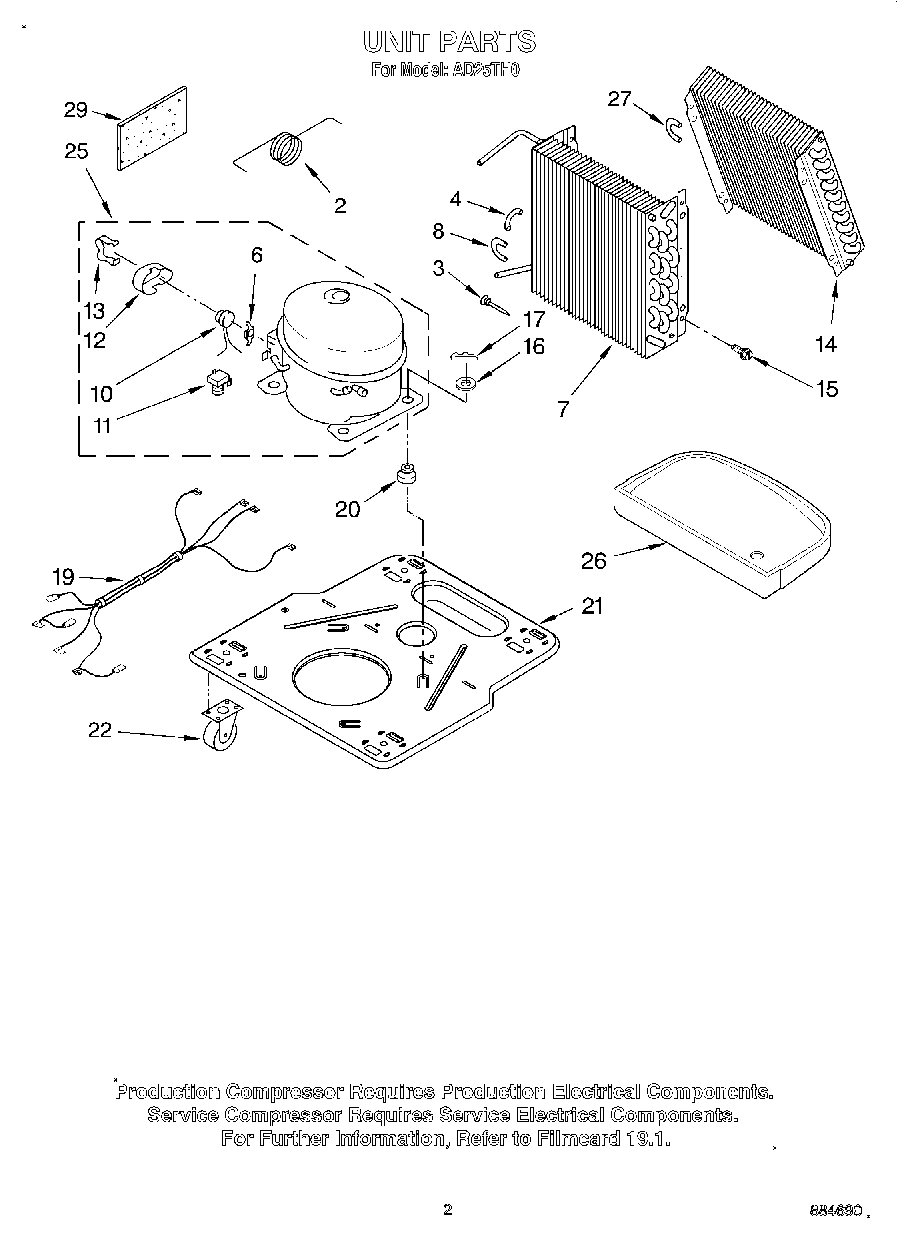

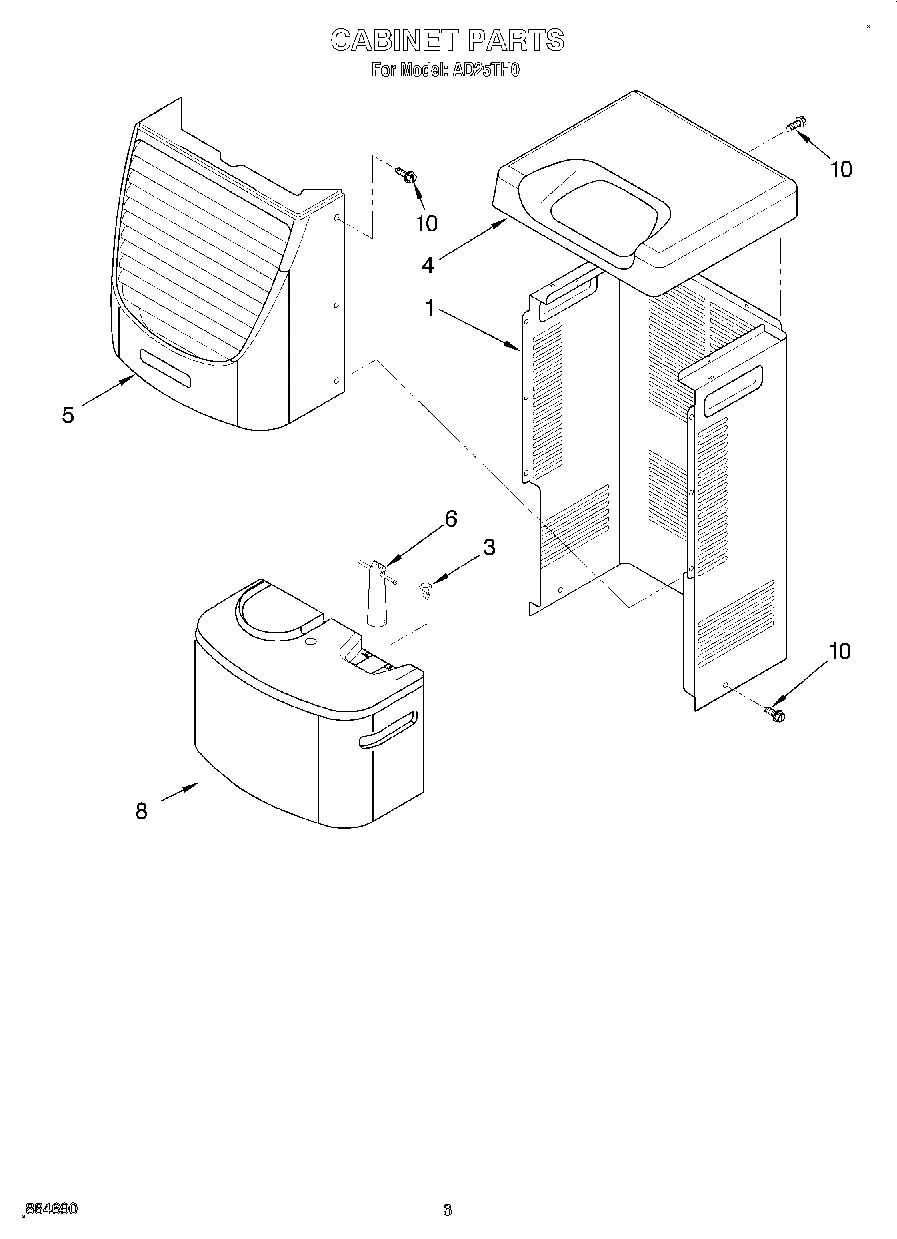

Model Whirlpool AD25TH0 DEHUMIDIFIER – Common Parts & Diagrams

1
Use & Care Guide
Use & Care Guide WPL LIT1182182 Contact Us For Availability
View on Model
1
Wiring Diagram
Wiring Diagram WPL LIT1182586 Contact Us For Availability
View on Model
2
Tube, Restrictor (Length 36.00``)
Tube, Restrictor (Length 36.00``) WPL 1172076 Contact Us For Availability
View on Model
3
Assembly, Control Panel
Assembly, Control Panel WPL 1168814 Contact Us For Availability
View on Model
4
Bend, Return (2)
Bend, Return (2) WPL 708532 Contact Us For Availability
View on Model
4
Knob
Knob WPL 1168687 Contact Us For Availability
View on Model
6
Float
Float WPL 1172075 Contact Us For Availability
View on Model
6
Spring, Overload
Spring, Overload WPL 950061 Contact Us For Availability
View on Model
7
Condenser
Condenser WPL 1181854 Contact Us For Availability
View on Model
7
Panel, Air System (Left Side)
Panel, Air System (Left Side) WPL 1168758 Contact Us For Availability
View on Model
7
Panel, Air System (Right Side)
Panel, Air System (Right Side) WPL 1168759 Contact Us For Availability
View on Model
8
Bend, Return (12)
Bend, Return (12) WPL 708531 Contact Us For Availability
View on Model
8
Escutcheon
Escutcheon WPL 1168842 Contact Us For Availability
View on Model
9
Barrier, Bucket Fill Switch
Barrier, Bucket Fill Switch WPL 1168781 Contact Us For Availability
View on Model
10
5/8`` Tube O.D.
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
View on Model
10
Tape, No Drip Valve, Access
Tape, No Drip Valve, Access WPL 505168 Contact Us For Availability
View on Model
10
1/2`` Tube O.D.
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
View on Model
10
Seal, Ring (Access Valve) (20 - Pack)
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
View on Model
10
Overload, Protector
Overload, Protector WPL 1172077 Contact Us For Availability
View on Model
10
Motor, Fan
Motor, Fan WPL 1168811 Contact Us For Availability
View on Model
11
Relay, Start
Relay, Start WPL 950058 Contact Us For Availability
View on Model
11
Blade, Fan
Blade, Fan WPL 1168731 Contact Us For Availability
View on Model
12
Cover, Terminal
Cover, Terminal WPL 950055 Contact Us For Availability
View on Model
12
Cover, Air System
Cover, Air System WPL 1168681 Contact Us For Availability
View on Model
13
Retainer, Cover
Retainer, Cover WPL 950056 Contact Us For Availability
View on Model
13
Switch, Bucket Fill/Check
Switch, Bucket Fill/Check WPL 1168699 Contact Us For Availability
View on Model
14
Evaporator
Evaporator WPL 1168726 Contact Us For Availability
View on Model
15
Cord, Appliance
Cord, Appliance WPL 1168703 Contact Us For Availability
View on Model
16
Washer
Washer WPL 680975 Contact Us For Availability
View on Model
16
Plate, Orifice
Plate, Orifice WPL 1168666 Contact Us For Availability
View on Model
17
Clip, Compressor
Clip, Compressor WPL 24364001 Contact Us For Availability
View on Model
19
Harness, Wire
Harness, Wire WPL 1168810 Contact Us For Availability
View on Model
20
Grommet (4)
Grommet (4) WPL 1168722 Contact Us For Availability
View on Model
21
Base
Base WPL 1168654 Contact Us For Availability
View on Model
22
Caster (4)
Caster (4) WPL 1164241 Contact Us For Availability
View on Model
22
Relief, Strain
Relief, Strain WPL 1180504 Contact Us For Availability
View on Model
23
Support, Air System
Support, Air System WPL 1168735 Contact Us For Availability
View on Model
25
Compressor (Complete Assembly)
Compressor (Complete Assembly) WPL 1164773 Contact Us For Availability
View on Model
26
Pan, Drain
Pan, Drain WPL 1168761 Contact Us For Availability
View on Model
26
Brace, Support
Brace, Support WPL 1168752 Contact Us For Availability
View on Model
27
Bend, Return (9)
Bend, Return (9) WPL 854624 Contact Us For Availability
View on Model
28
Guard, Edge
Guard, Edge WPL 1180634 Contact Us For Availability
View on Model
29
Insulation, Restrictor Tube
Insulation, Restrictor Tube WPL 1162650 Contact Us For Availability
View on Model
