  • Whirlpool AD25BSS0

Model Whirlpool AD25BSS0 DEHUMIDIFIER – Common Parts & Diagrams

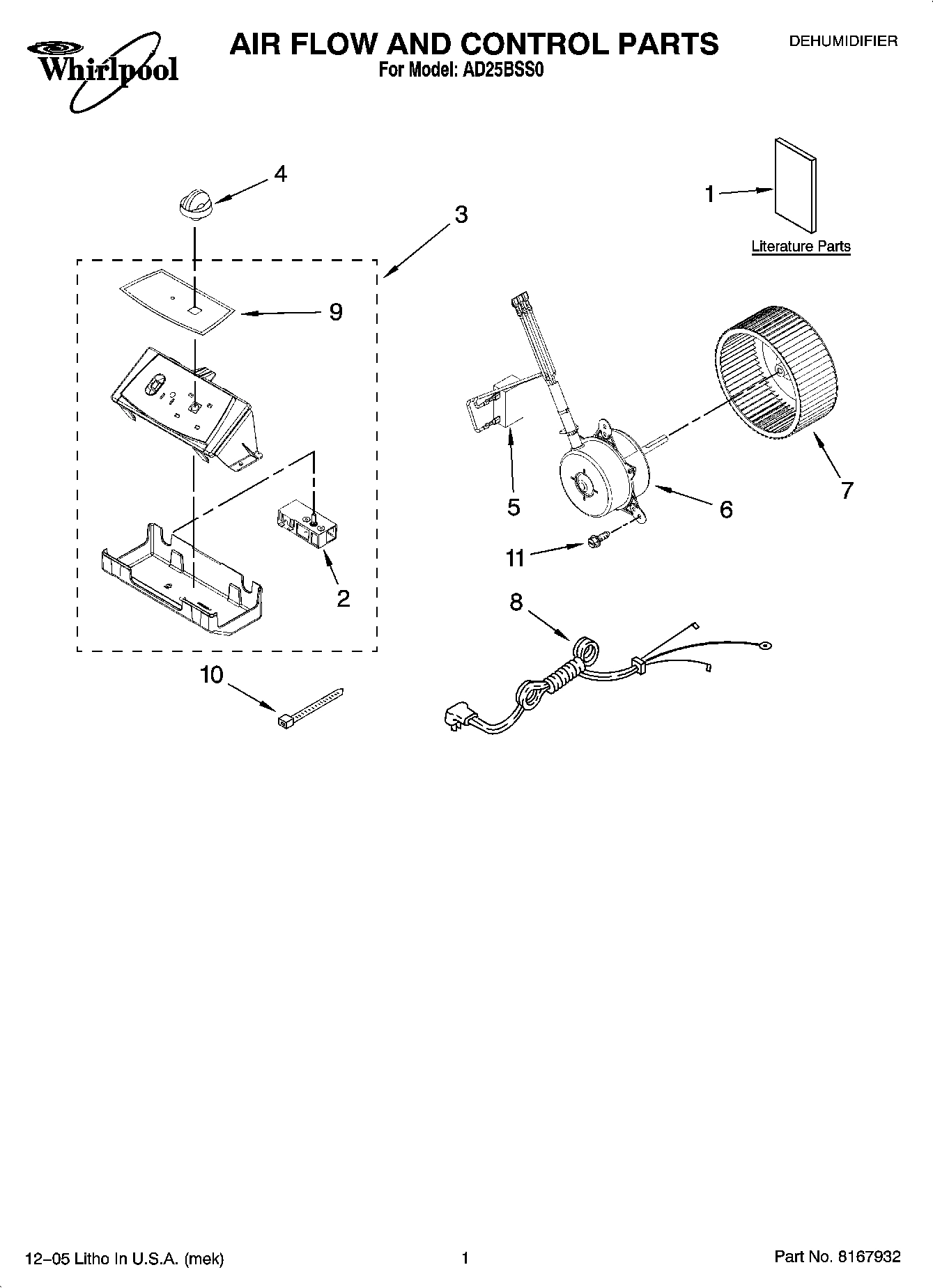

1
Use & Care Guide
Use & Care Guide WPL 1188421 Contact Us For Availability
View on Model
1
Wiring Diagram
Wiring Diagram WPL 1188573 Contact Us For Availability
View on Model
1

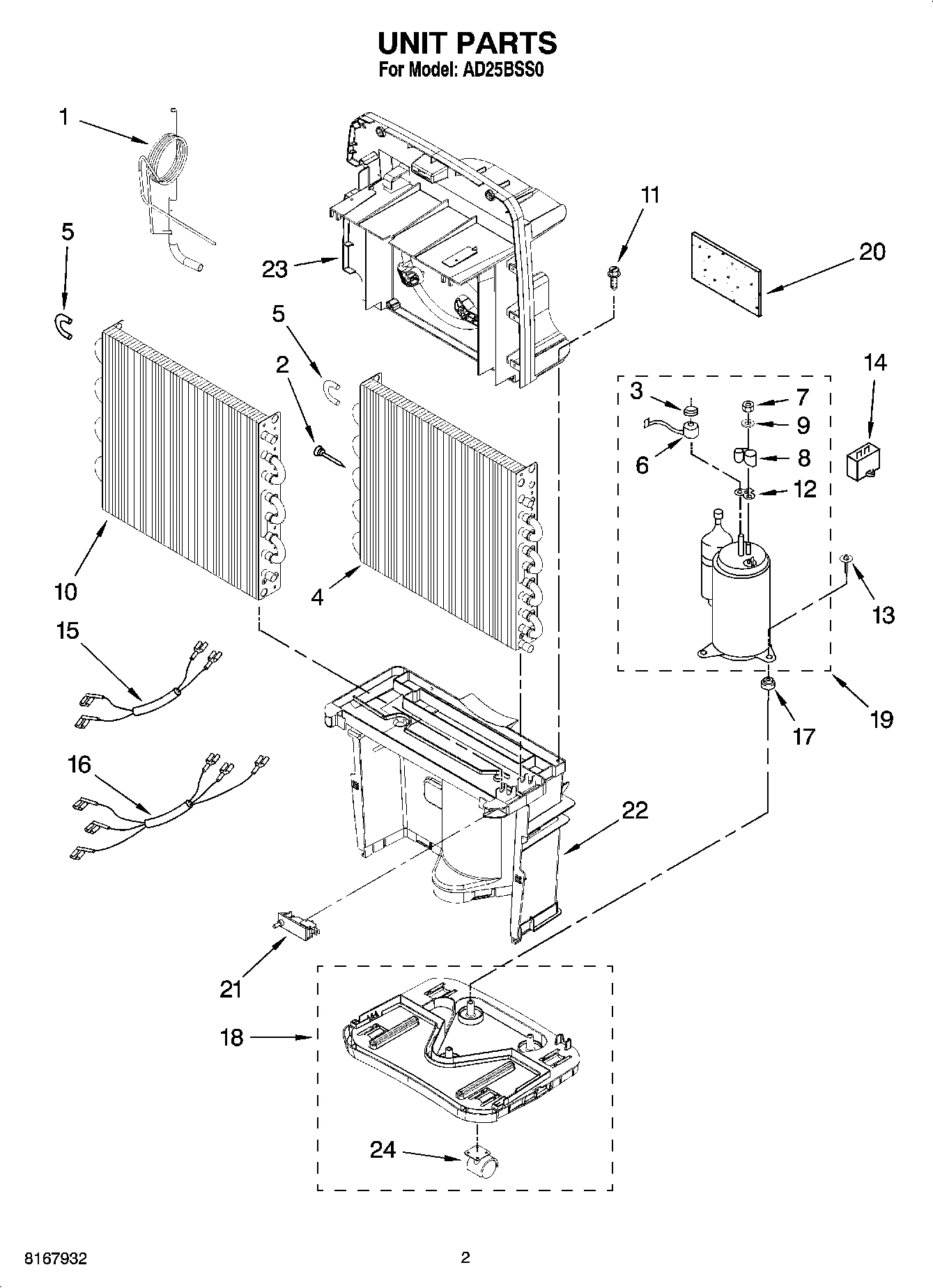

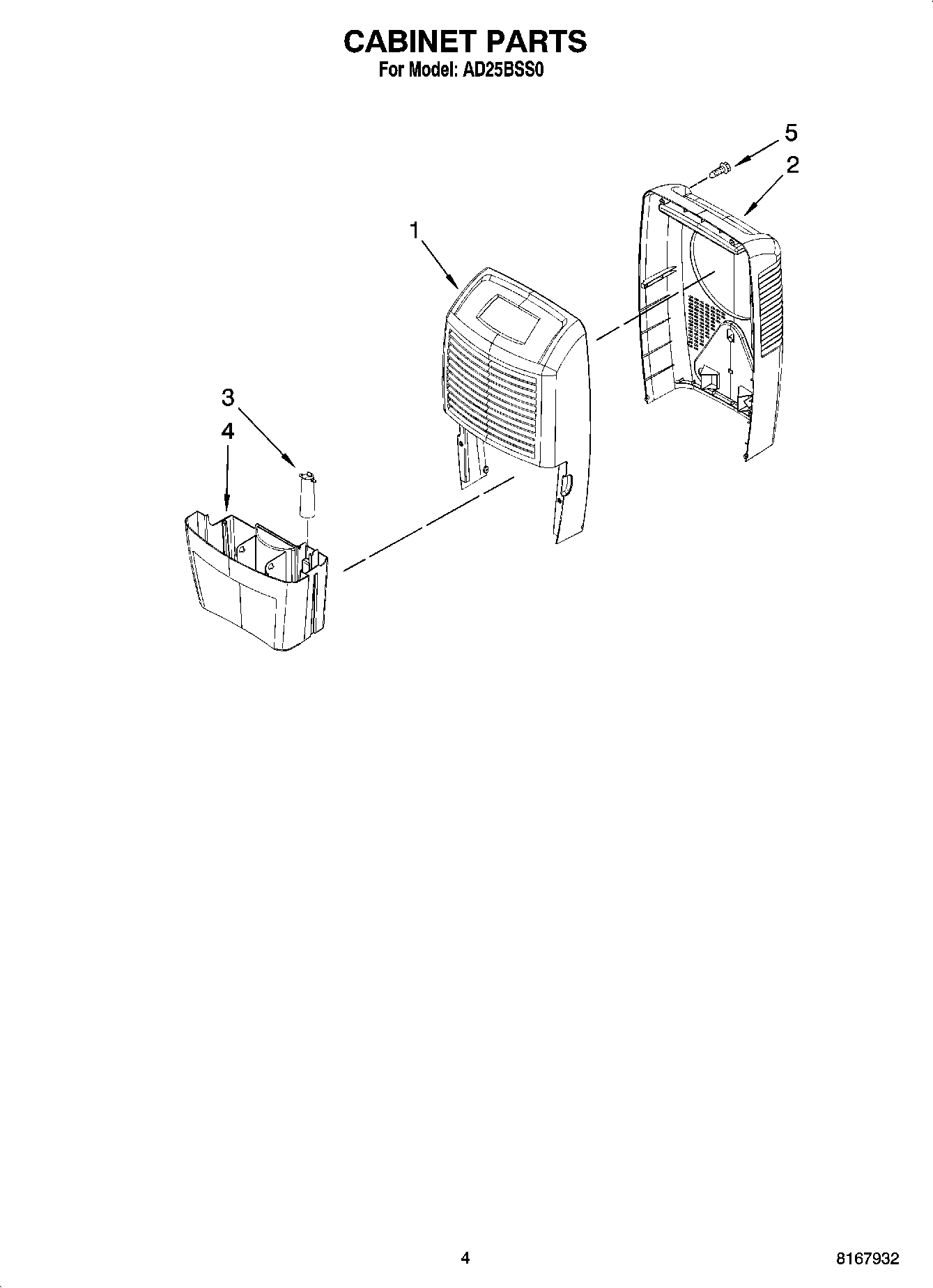

Cabinet, Front
Cabinet, Front WPL 1188395 Contact Us For Availability
View on Model
2
Cabinet, Rear
Cabinet, Rear WPL 1188396 Contact Us For Availability
View on Model
3
Assembly, Control Panel
Assembly, Control Panel WPL 1188454 Contact Us For Availability
View on Model
3
FLOAT
FLOAT WPL 1188341 Contact Us For Availability
View on Model
4
Knob
Knob WPL 1187163 Contact Us For Availability
View on Model
4
Bucket Assembly (Includes Item 6)
Bucket Assembly (Includes Item 6) WPL 1188527 Contact Us For Availability
View on Model
5
SCREW
SCREW WPL 9742177 Contact Us For Availability
View on Model
5
5/8`` Tube O.D.
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
View on Model
5
Tape, No Drip Valve, Access
Tape, No Drip Valve, Access WPL 505168 Contact Us For Availability
View on Model
5
Capacitor, Fan
Capacitor, Fan WPL 1188475 Contact Us For Availability
View on Model
5
epoxy, tube (aluminum repair)
epoxy, tube (aluminum repair) WPL 484310 Contact Us For Availability
View on Model
5
1/2`` Tube O.D.
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
View on Model
5
Seal, Ring (Access Valve) (20 - Pack)
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
View on Model
5
Following Parts Not Illustrated and Optional
Following Parts Not Illustrated and Optional WPL ARI20232A1 Contact Us For Availability
View on Model
6
Overload, Protector
Overload, Protector WPL 1188185 Contact Us For Availability
View on Model
6
Motor, Fan
Motor, Fan WPL 1188409 Contact Us For Availability
View on Model
7
Wheel, Blower
Wheel, Blower WPL 1188416 Contact Us For Availability
View on Model
8
Cord, Appliance
Cord, Appliance WPL 1188470 Contact Us For Availability
View on Model
9
Overlay
Overlay WPL 1188455 Contact Us For Availability
View on Model
15
Wire Harness, Compressor (2 Wire)
Wire Harness, Compressor (2 Wire) WPL 1188467 Contact Us For Availability
View on Model
16
Wire Harness, Compressor (3 Wire)
Wire Harness, Compressor (3 Wire) WPL 1188468 Contact Us For Availability
View on Model
17
Grommet, Compressor
Grommet, Compressor WPL 1188564 Contact Us For Availability
View on Model
18
Base
Base WPL 1188558 Contact Us For Availability
View on Model
19
Compressor, (Complete Assembly)
Compressor, (Complete Assembly) WPL 1188554 Contact Us For Availability
View on Model
20
Putty, Sound Damping
Putty, Sound Damping WPL 1182480 Contact Us For Availability
View on Model
21
Switch, Bucket Fill/Check
Switch, Bucket Fill/Check WPL 1188814 Contact Us For Availability
View on Model
22
Support, Lower
Support, Lower WPL 1188559 Contact Us For Availability
View on Model
23
Support, Upper
Support, Upper WPL 1188561 Contact Us For Availability
View on Model
24
Caster
Caster WPL 1188415 Contact Us For Availability
View on Model
24
REFRIGERANT CHARGE 4.70 oz. R-22
REFRIGERANT CHARGE 4.70 oz. R-22 WPL ARI20231A4 Contact Us For Availability
View on Model
