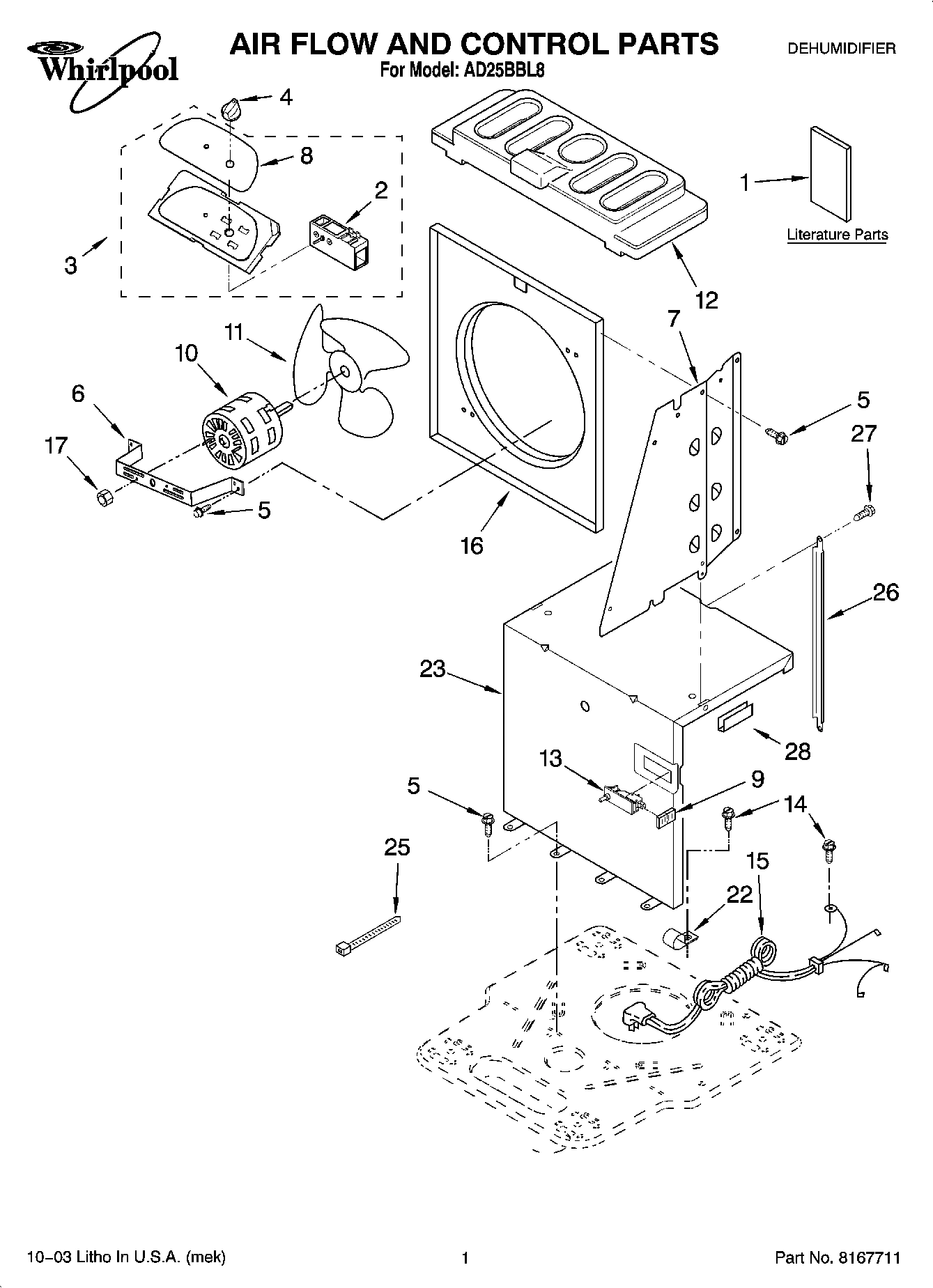

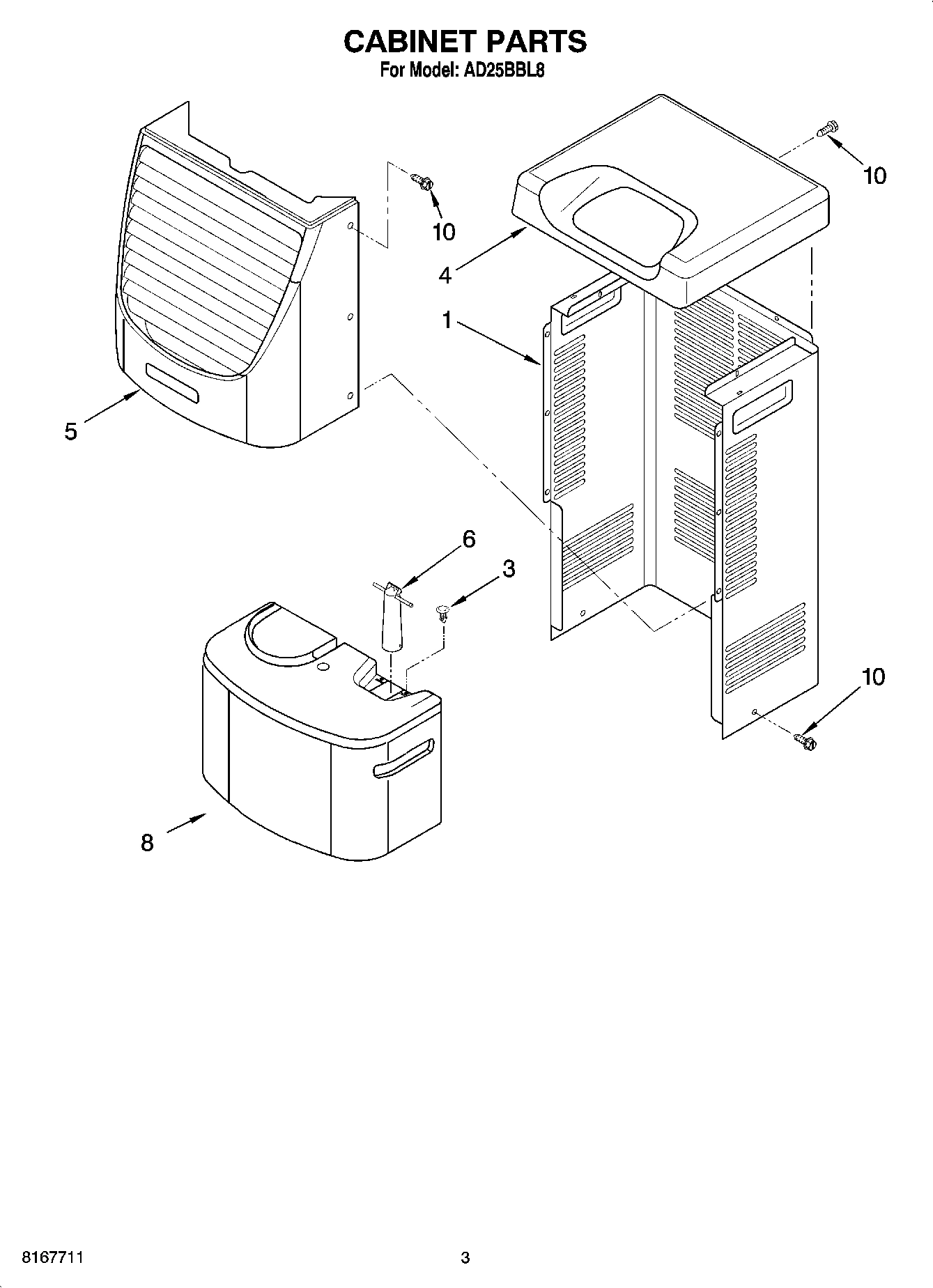

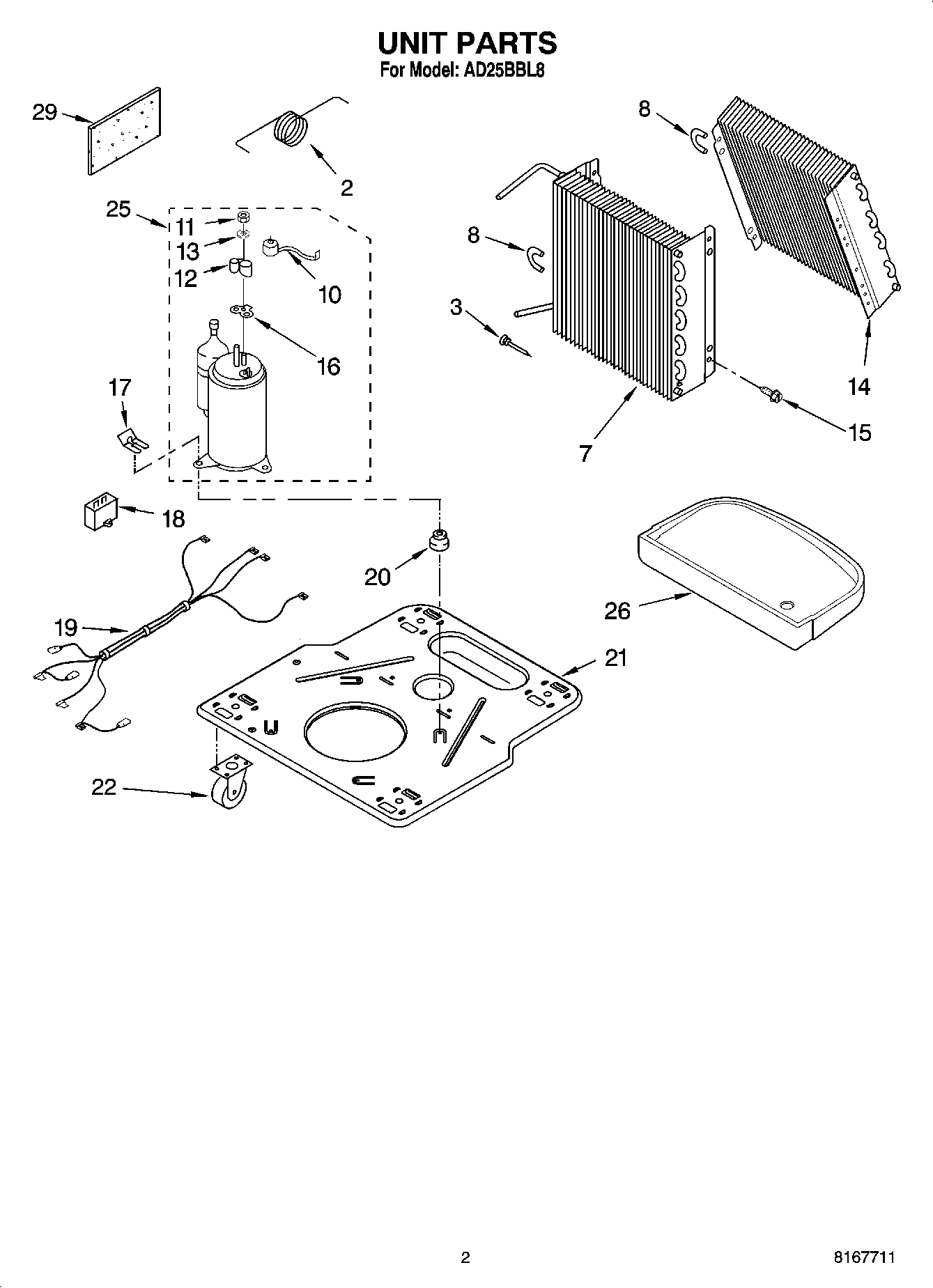

Model Whirlpool AD25BBL8 DEHUMIDIFIER – Common Parts & Diagrams

1
Use & Care Guide
Use & Care Guide WPL LIT1182965 Contact Us For Availability
View on Model
1
Literature Parts (Wiring Diagram)
Literature Parts (Wiring Diagram) WPL LIT1186971 Contact Us For Availability
View on Model
2
Tube, Restrictor
Tube, Restrictor WPL 1186725 Contact Us For Availability
View on Model
3
Assembly, Control Panel
Assembly, Control Panel WPL 1186201 Contact Us For Availability
View on Model
4
Knob
Knob WPL 1168687 Contact Us For Availability
View on Model
6
Float
Float WPL 1172075 Contact Us For Availability
View on Model
6
Bracket, Motor
Bracket, Motor WPL 1183427 Contact Us For Availability
View on Model
7
Condenser
Condenser WPL 1187540 Contact Us For Availability
View on Model
7
Panel, Air System (Left Side)
Panel, Air System (Left Side) WPL 1168758 Contact Us For Availability
View on Model
7
Panel, Air System (Right Side)
Panel, Air System (Right Side) WPL 1168759 Contact Us For Availability
View on Model
8
Bend, Return (2)
Bend, Return (2) WPL 708531 Contact Us For Availability
View on Model
8
Escutcheon
Escutcheon WPL 1168842 Contact Us For Availability
View on Model
9
Barrier, Bucket Fill Switch
Barrier, Bucket Fill Switch WPL 1168781 Contact Us For Availability
View on Model
10
5/8`` Tube O.D.
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
View on Model
10
Tape, No Drip Valve, Access
Tape, No Drip Valve, Access WPL 505168 Contact Us For Availability
View on Model
10
Seal, Ring (Access Valve) (20 - Pack)
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
View on Model
10
Following Parts Not Illustrated and Optional
Following Parts Not Illustrated and Optional WPL ARI20223A3 Contact Us For Availability
View on Model
10
Overload, Protector
Overload, Protector WPL 1186958 Contact Us For Availability
View on Model
11
Blade, Fan
Blade, Fan WPL 1168731 Contact Us For Availability
View on Model
12
Cover, Terminal
Cover, Terminal WPL 1184748 Contact Us For Availability
View on Model
12
Cover, Air System
Cover, Air System WPL 1168681 Contact Us For Availability
View on Model
13
Gasket, Nut
Gasket, Nut WPL 1182120 Contact Us For Availability
View on Model
13
Switch, Bucket Fill/Check
Switch, Bucket Fill/Check WPL 1186480 Contact Us For Availability
View on Model
14
Evaporator
Evaporator WPL 1186718 Contact Us For Availability
View on Model
14
Screw 8-18 x .295
Screw 8-18 x .295 WPL 1159222 Contact Us For Availability
View on Model
15
Cord, Appliance
Cord, Appliance WPL 1186735 Contact Us For Availability
View on Model
16
Gasket, Terminal Cover
Gasket, Terminal Cover WPL 1182118 Contact Us For Availability
View on Model
16
Plate, Orifice
Plate, Orifice WPL 1168666 Contact Us For Availability
View on Model
17
Clip, Compressor
Clip, Compressor WPL 8011446 Contact Us For Availability
View on Model
18
Capacitor
Capacitor WPL 1186186 Contact Us For Availability
View on Model
19
Harness, Wire
Harness, Wire WPL 1186726 Contact Us For Availability
View on Model
20
Grommet (3)
Grommet (3) WPL 950212 Contact Us For Availability
View on Model
21
Base
Base WPL 1186674 Contact Us For Availability
View on Model
22
Caster (4)
Caster (4) WPL 1164241 Contact Us For Availability
View on Model
22
Relief, Strain
Relief, Strain WPL 488937 Contact Us For Availability
View on Model
23
Support, Air System
Support, Air System WPL 1184946 Contact Us For Availability
View on Model
25
Compressor, (Complete Assembly)
Compressor, (Complete Assembly) WPL 1187681 Contact Us For Availability
View on Model
26
Pan, Drain
Pan, Drain WPL 1168761 Contact Us For Availability
View on Model
26
Brace, Support
Brace, Support WPL 1168752 Contact Us For Availability
View on Model
28
Edge Guard
Edge Guard WPL 1180634 Contact Us For Availability
View on Model
29
Insulation (Restrictor Tube)
Insulation (Restrictor Tube) WPL 1184625 Contact Us For Availability
View on Model
29
REFRIGERANT CHARGE 4.50 oz. R-22
REFRIGERANT CHARGE 4.50 oz. R-22 WPL ARI20222A5 Contact Us For Availability
