Model Whirlpool AD0502XA0 DEHUMIDIFIER – Common Parts & Diagrams

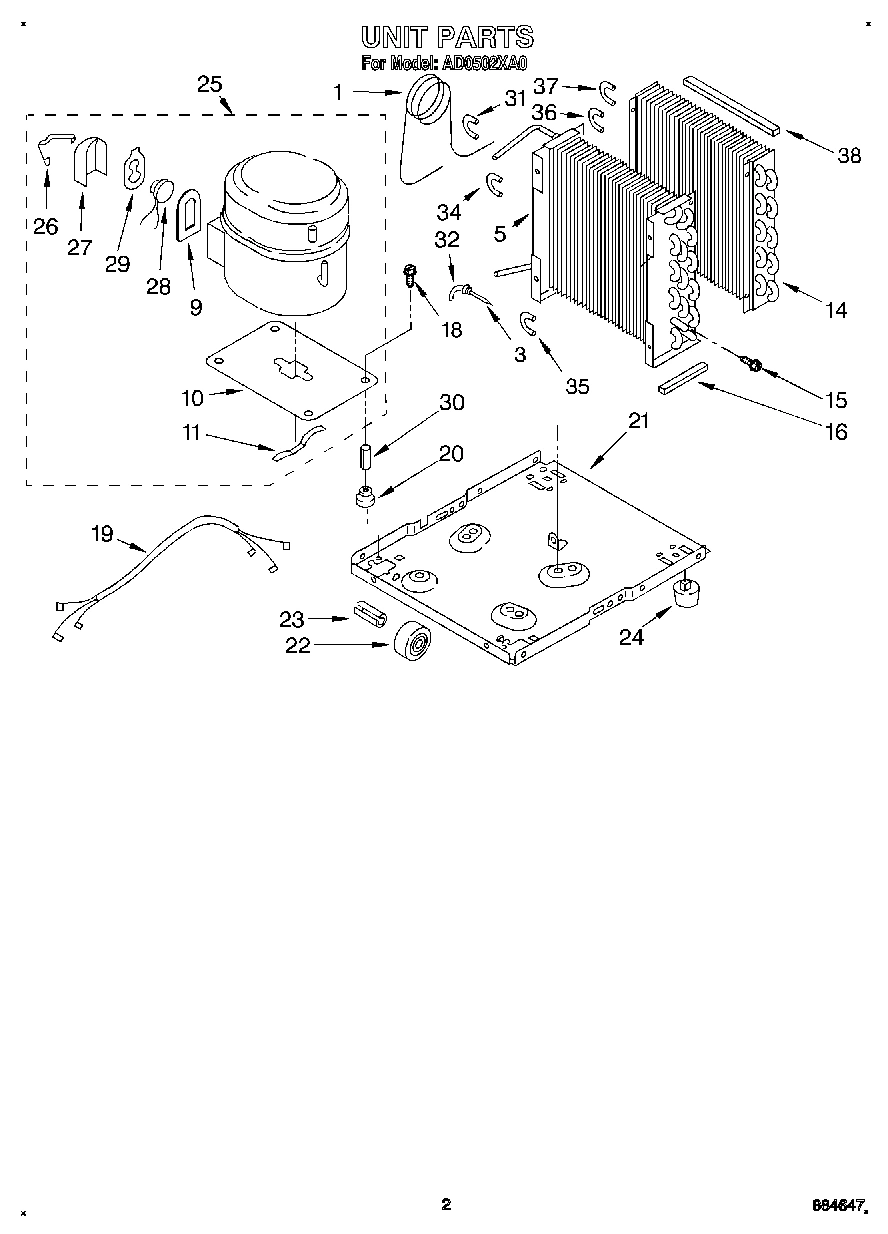

01 - SECTION

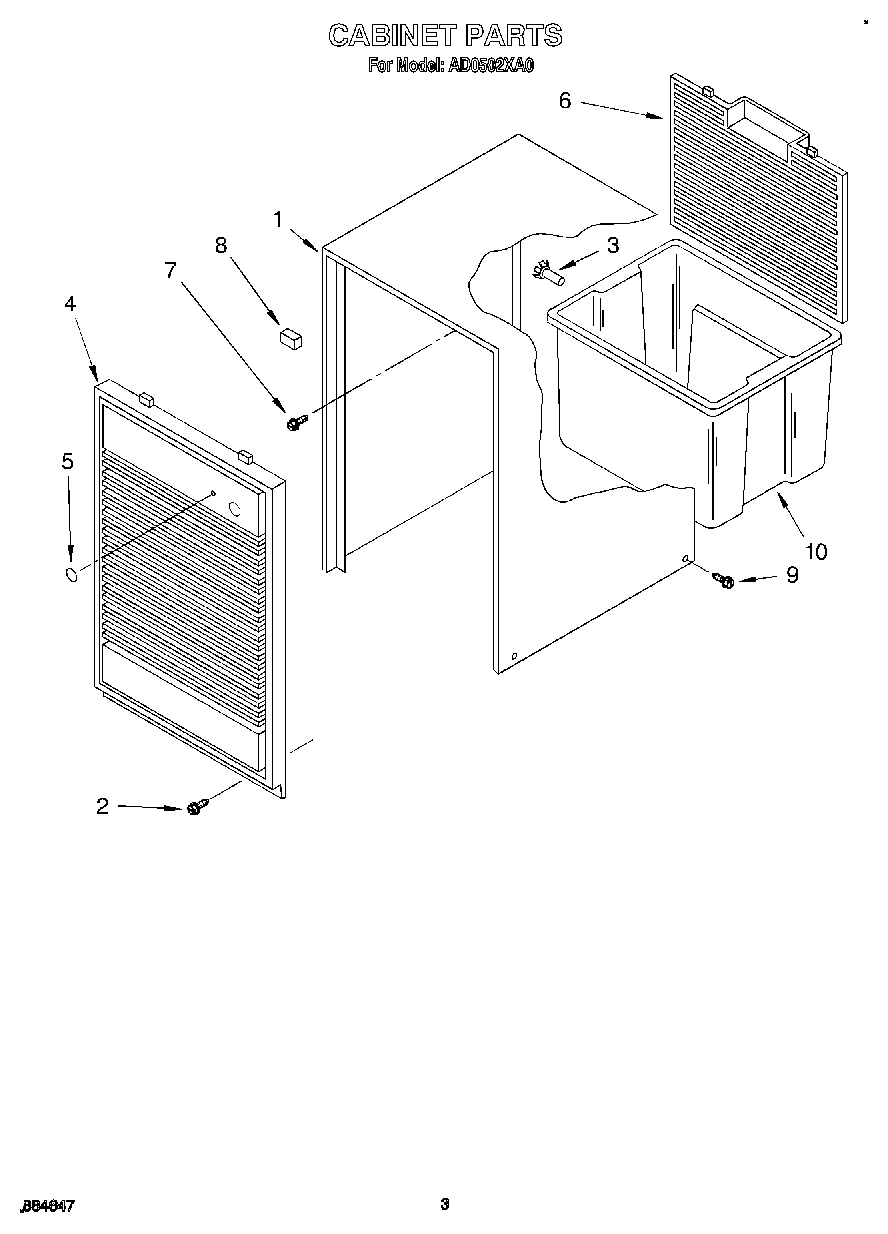

03 - SECTION

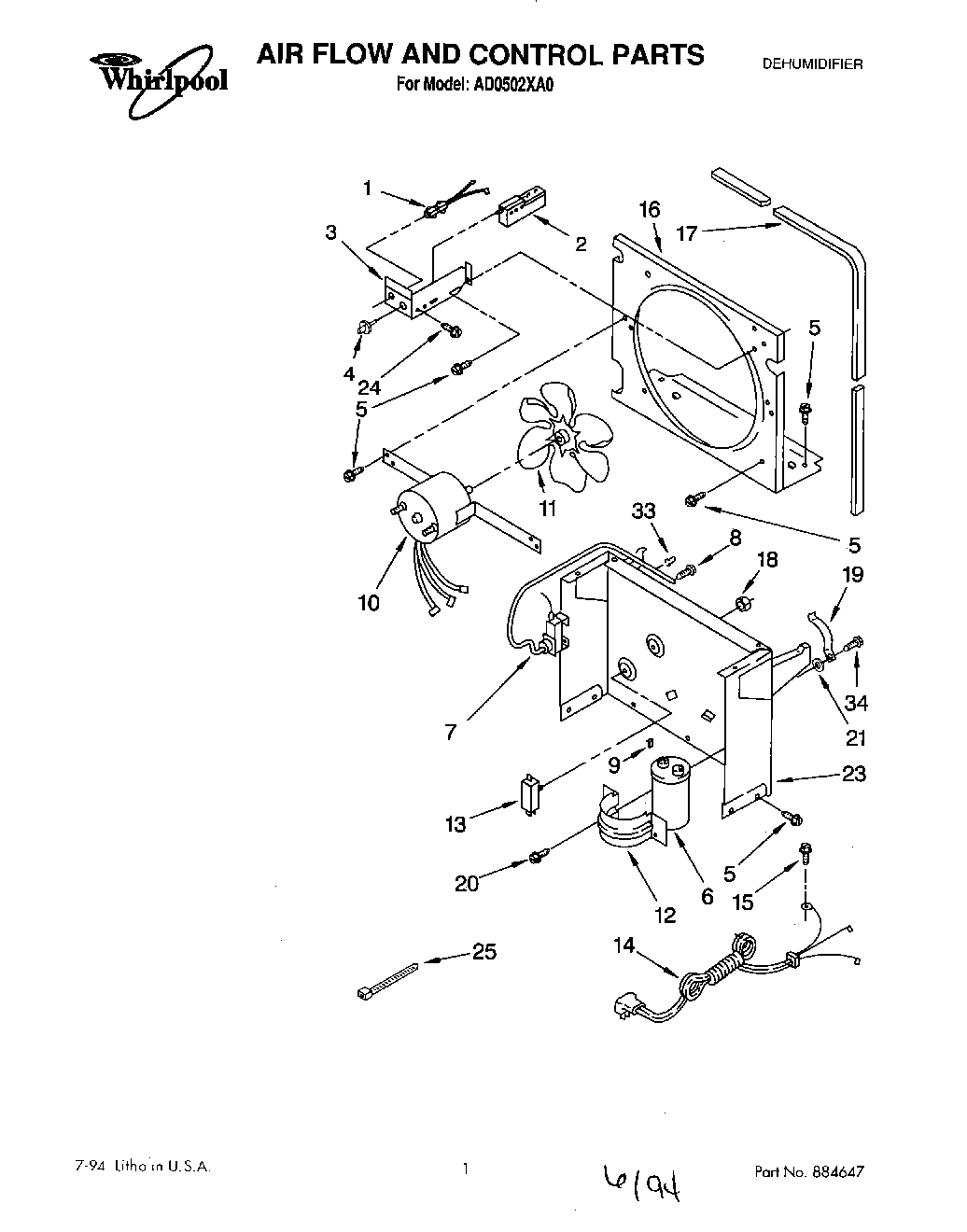

02 - SECTION
Common parts from model Whirlpool AD0502XA0 DEHUMIDIFIER
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
Tape, No Drip (30`) Valve, Access WPL 505168 Contact Us For Availability
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
Cap, Condensate Pan WPL 646753 Contact Us For Availability
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
Wiring Diagram WPL LIT1155645 Contact Us For Availability
Tech Sheet WPL LIT1162687 Contact Us For Availability
Guide, Use And Care WPL LIT1164267 Contact Us For Availability
1
Cabinet WPL 1164265 Contact Us For Availability
1
Tube, Restrictor (36.0`` Length) WPL 1162154 Contact Us For Availability
3
Retainer, Pin (2) (Rear Grille) WPL 998813 Contact Us For Availability
4
Grille, Front (Includes, Illus. No.11.) WPL 1164263 Contact Us For Availability
5
Lens, Light WPL 998846 Contact Us For Availability
5
Condenser WPL 1162646 Contact Us For Availability
6
Grille, Rear WPL 1164264 Contact Us For Availability
8
Spacer, Grille WPL 948584 Contact Us For Availability
9
Screw WPL 1158781 Contact Us For Availability
9
Gasket, Cover (Service Only) WPL 798471 Contact Us For Availability
10
Motor, Fan WPL 1162312 Contact Us For Availability
10
Pan, Condensate WPL 1164771 Contact Us For Availability
10
Plate, Compressor Mounting (Service Only) WPL 876944 Contact Us For Availability
11
Blade, Fan WPL 949645 Contact Us For Availability
11
Spring, Mounting (ServiceOnly) WPL 643179 Contact Us For Availability
12
Bracket, Cap Mtg WPL 1163801 Contact Us For Availability
13
Switch, Water Level Control WPL 999747 Contact Us For Availability
14
Cord, Appliance WPL 1155669 Contact Us For Availability
14
Evaporator WPL 1161199 Contact Us For Availability
15
Screw, 8 x 3/8 (4) WPL 488624 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
16
Seal WPL 1162372 Contact Us For Availability
17
Seal WPL 1162704 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
18
Screw, 1/4-28 x 1 WPL 1163835 Contact Us For Availability
19
Spring, Water Level WPL 1161718 Contact Us For Availability
19
Harness, Wire WPL 484136 Contact Us For Availability
20
Grommet (4) WPL 646499 Contact Us For Availability
21
Washer (Repair) (.062 Thickness) WPL 489029 Contact Us For Availability
21
Washer, Repair (.030 Thickness) WPL 489083 Contact Us For Availability
21
Washer (Repair) (.091 Thickness) WPL 489091 Contact Us For Availability
21
Base WPL 1157584 Contact Us For Availability
22
Roller (2) WPL 998726 Contact Us For Availability
23
Support WPL 1163800 Contact Us For Availability
23
Roll Pin (2) WPL 489015 Contact Us For Availability
24
Glide (2) WPL 951886 Contact Us For Availability
25
Compressor, (Complete Assembly) WPL 1162658 Contact Us For Availability
26
Retainer, Cover (Service) WPL 832008 Contact Us For Availability
26
Retainer, Cover (Production) WPL 950056 Contact Us For Availability
27
Cover, Terminal (Service) WPL 798470 Contact Us For Availability
27
Cover, Terminal (Production) WPL 950055 Contact Us For Availability
28
Overload (Service) WPL 798479 Contact Us For Availability
28
Overload (Production) WPL 951312 Contact Us For Availability
29
Spring, Overload (Service) WPL 798469 Contact Us For Availability
29
Spring, Overload (Production) WPL 950061 Contact Us For Availability
30
Sleeve (4) WPL 646498 Contact Us For Availability
31
Bend Return WPL 1158407 Contact Us For Availability
32
Bend, Return WPL 708532 Contact Us For Availability
33
Clamp, Tube To Evaporator Mtg (2) WPL 471363 Contact Us For Availability
34
Bend, Return WPL 708531 Contact Us For Availability
35
Bend Return WPL 1156533 Contact Us For Availability
36
Bend, Return WPL 855199 Contact Us For Availability
37
Bend, Return WPL 854624 Contact Us For Availability
38
Seal, Evap. Top WPL 1162348 Contact Us For Availability
× ![]()
