Model Whirlpool AD0402XM0 DEHUMIDIFIER – Common Parts & Diagrams
01 - SECTION
03 - SECTION

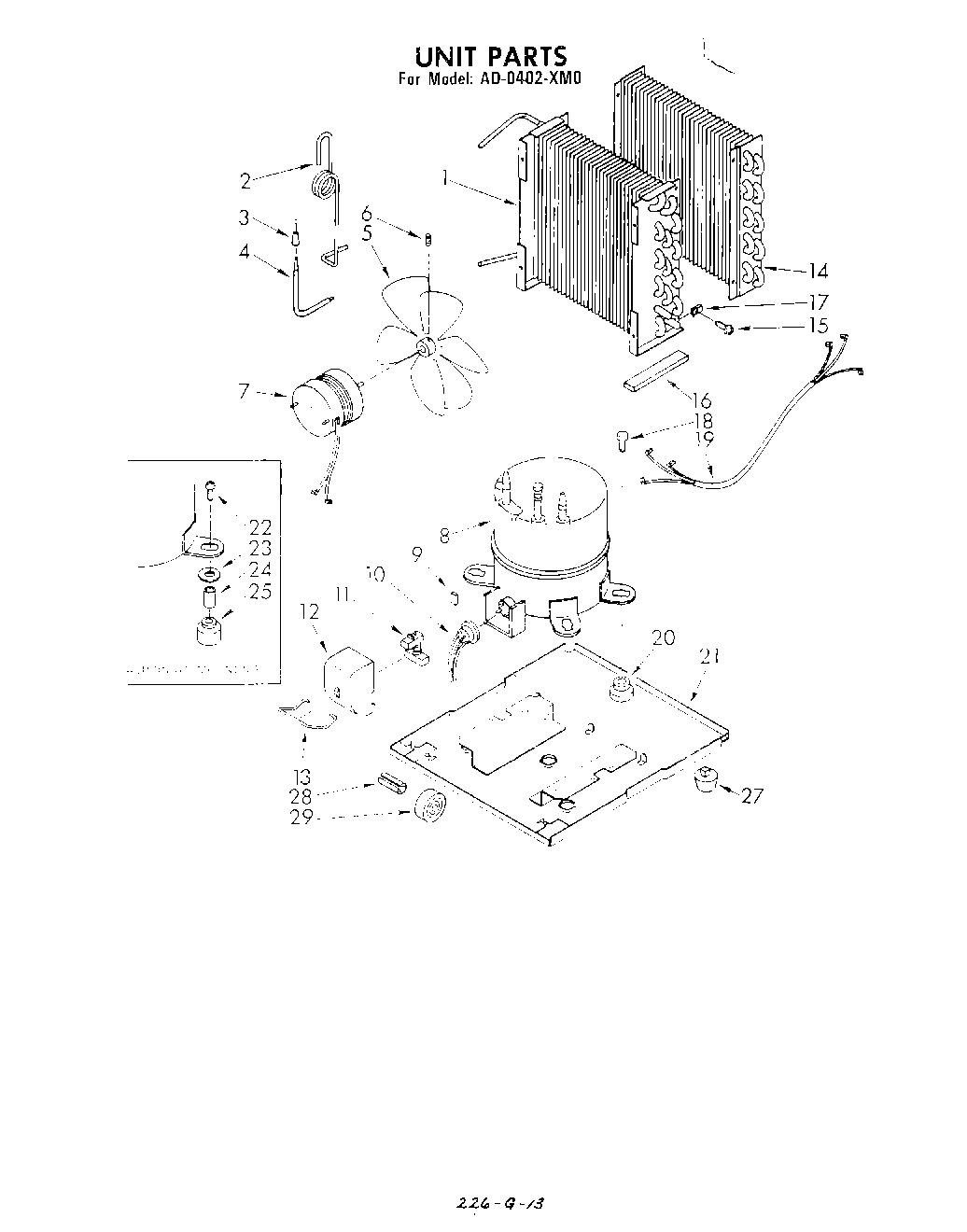

02 - SECTION
Common parts from model Whirlpool AD0402XM0 DEHUMIDIFIER
1
Cabinet WPL 998821 Contact Us For Availability
1
Condenser (Length 26.0``) WPL 949916 Contact Us For Availability
2
Tube, Restrictor WPL 948796 Contact Us For Availability
3
Retainer Pin (Rear Grille) WPL 998813 Contact Us For Availability
3
Strainer, Outlet Tube WPL 474013 Contact Us For Availability
4
Cap, Thread Cover (2) WPL 998869 Contact Us For Availability
4
Tube, Outlet (Includes Strainer, Part No. 495 WPL 949896 Contact Us For Availability
5
Grille, Front WPL 950269 Contact Us For Availability
5
Blade, Fan (Includes Setscrew, Part No. 48803 WPL 948756 Contact Us For Availability
6
Lens, Light WPL 998846 Contact Us For Availability
6
Setscrew, 1/4 x 5/16 WPL 488035 Contact Us For Availability
7
Grille, Rear WPL 998832 Contact Us For Availability
7
Motor, Fan WPL 949635 Contact Us For Availability
8
Compressor WPL 484301 Contact Us For Availability
9
Spacer, Grille WPL 948584 Contact Us For Availability
9
Bumper, Relay WPL 547272 Contact Us For Availability
10
Board, Terminal WPL 950431 Contact Us For Availability
10
Overload WPL 998788 Contact Us For Availability
11
Screw, S.M.No.6 x 3/8 WPL 488966 Contact Us For Availability
11
Screw, TC 8-32 x 3/8 (4) WPL 489016 Contact Us For Availability
12
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
12
Tape, No Drip WPL 505168 Contact Us For Availability
12
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
12
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
12
Cap, Condensate Pan WPL 646753 Contact Us For Availability
12
Thinner (1 Gal.) WPL 799351 Contact Us For Availability
12
List, Repair Parts WPL 877499 Contact Us For Availability
12
Guide, Consumer Buy WPL 950391 Contact Us For Availability
12
Sheet, Service Tech WPL 951038 Contact Us For Availability
12
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
12
Pan, Condensate WPL 998801 Contact Us For Availability
12
Guide, Use & Care WPL 998866 Contact Us For Availability
12
Case, Relay WPL 549945 Contact Us For Availability
13
Switch, Water Level Control WPL 998783 Contact Us For Availability
13
Spring, Relay Case WPL 531318 Contact Us For Availability
14
evaporator WPL 998746 Contact Us For Availability
15
Cord, Appliance WPL 950743 Contact Us For Availability
15
Screw, 8 x 3/8 (4) WPL 488624 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
16
Seal WPL 998867 Contact Us For Availability
17
Seal WPL 998802 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
18
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
19
Spring, Water Level WPL 998730 Contact Us For Availability
19
Harness, Wire WPL 484136 Contact Us For Availability
20
Grommet (4) WPL 531082 Contact Us For Availability
21
Washer, Repair (.060 Thickness) WPL 489029 Contact Us For Availability
21
Washer, Repair (.030 Thickness) WPL 489083 Contact Us For Availability
21
Washer, Repair (.045 Thickness) WPL 489091 Contact Us For Availability
21
Base WPL 998720 Contact Us For Availability
22
xScrew, 1/4-28 x 1-1/4 WPL 489027 Contact Us For Availability
23
Support WPL 998729 Contact Us For Availability
23
xWasher, Cup WPL 489030 Contact Us For Availability
24
xSleeve WPL 858424 Contact Us For Availability
25
xGrommet WPL 469581 Contact Us For Availability
26
Cover, Terminal WPL 951281 Contact Us For Availability
27
Glide (2) WPL 998725 Contact Us For Availability
28
Roll Pin (2) WPL 489015 Contact Us For Availability
29
Roller (2) WPL 998726 Contact Us For Availability
× ![]()
