Model Whirlpool AD0302XA1 DEHUMIDIFIER – Common Parts & Diagrams
02 - SECTION
03 - SECTION
01 - SECTION
Common parts from model Whirlpool AD0302XA1 DEHUMIDIFIER
Guide, Use And Care WPL LIT1164267 Contact Us For Availability
Diagram, Wiring WPL LIT1165310 Contact Us For Availability
Sheet, Tech WPL LIT1165327 Contact Us For Availability
1

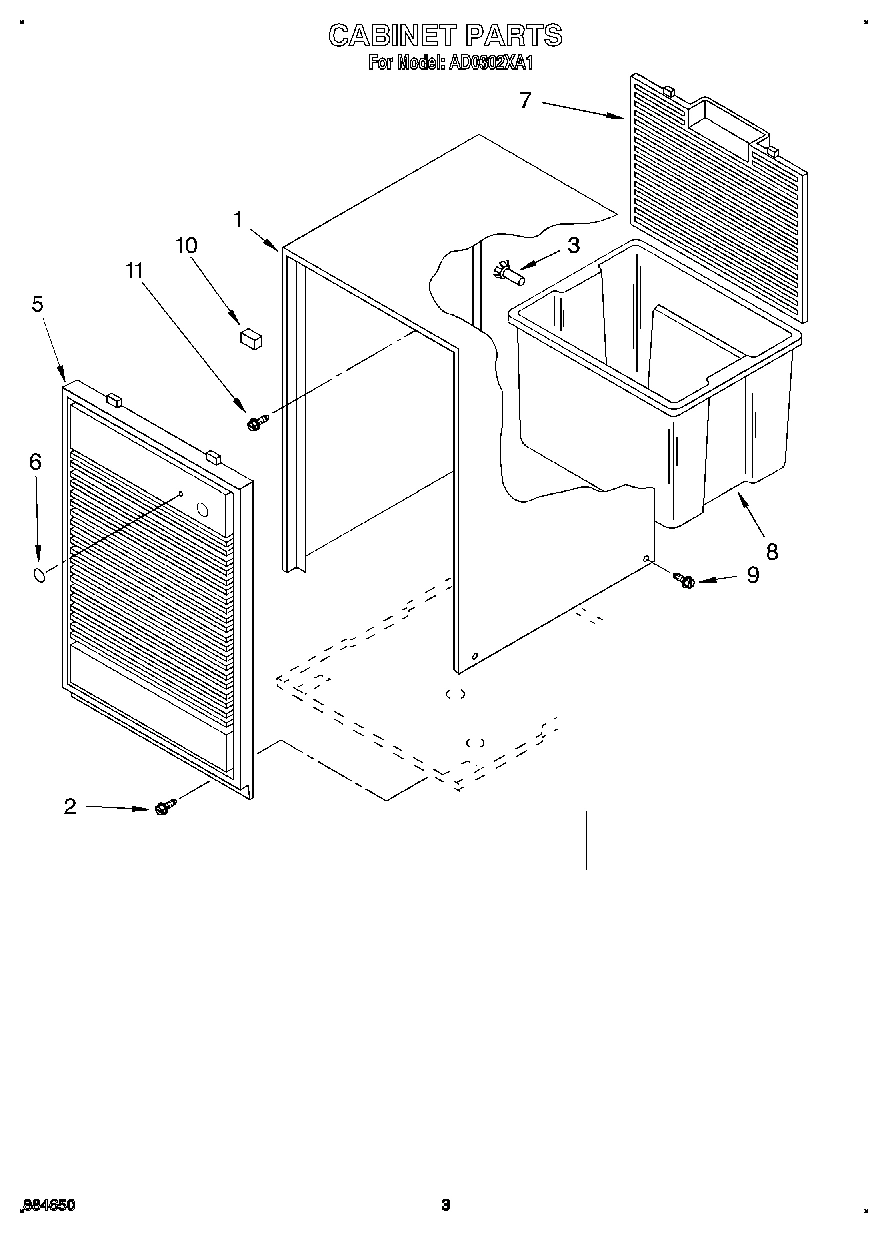

Cabinet WPL 1164265 Contact Us For Availability
1
Light, Indicator WPL 1164804 Contact Us For Availability
2
Humidistat, Control WPL 1162578 Contact Us For Availability
3
Retainer Pin (Rear Grille) WPL 998813 Contact Us For Availability
3
Bracket, Humidistat WPL 951284 Contact Us For Availability
4
Knob, Humidistat Control WPL 1162670 Contact Us For Availability
5
Grille, Front WPL 1164263 Contact Us For Availability
6
Lens, Light WPL 998846 Contact Us For Availability
7
Grille, Rear WPL 1164264 Contact Us For Availability
8
Pan, Condensate WPL 1164771 Contact Us For Availability
9
Screw (4) WPL 1166017 Contact Us For Availability
10
Spacer, Grille WPL 948584 Contact Us For Availability
10
Motor, Fan WPL 1164813 Contact Us For Availability
11
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
11
Tape, No Drip Valve, Access WPL 505168 Contact Us For Availability
11
epoxy, tube (aluminum repair) WPL 484310 Contact Us For Availability
11
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
11
Cap, Condensate Pan WPL 646753 Contact Us For Availability
11
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
11
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
11
Blade, Fan WPL 949645 Contact Us For Availability
12
Cover, Terminal WPL 950055 Contact Us For Availability
13
Retainer, Cover WPL 950056 Contact Us For Availability
13
Switch, Water Level Control WPL 999747 Contact Us For Availability
14
Evaporator WPL 1162933 Contact Us For Availability
15
Cord, Appliance WPL 1166038 Contact Us For Availability
16
Seal WPL 1162372 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
17
Seal WPL 1162704 Contact Us For Availability
18
Bolt, 1/4-28 x 1`` (4) WPL 1166034 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
19
Harness, Wire WPL 1164816 Contact Us For Availability
19
Spring, Water Level WPL 1161718 Contact Us For Availability
20
Grommet (4) WPL 646499 Contact Us For Availability
21
Base WPL 1157584 Contact Us For Availability
21
Washer (Repair) (.062 Thickness) WPL 489029 Contact Us For Availability
21
Washer, Repair (.045 Thickness) WPL 489083 Contact Us For Availability
22
Roller (2) WPL 998726 Contact Us For Availability
23
Sleeve (4) WPL 646498 Contact Us For Availability
23
Support WPL 1163800 Contact Us For Availability
24
Pin, Roller (2) WPL 489015 Contact Us For Availability
25
Compressor (Complete Assembly) WPL 1164773 Contact Us For Availability
26
Bend, Return (1) WPL 1158407 Contact Us For Availability
26
Thermostat, De-icer WPL 1164779 Contact Us For Availability
27
Bend, Return (8) WPL 708531 Contact Us For Availability
28
Bend, Return (4) WPL 708532 Contact Us For Availability
28
Clamp, Tube (2) WPL 471363 Contact Us For Availability
29
Bend, Return (1) WPL 1156533 Contact Us For Availability
30
Bend, Return (1) WPL 854624 Contact Us For Availability
31
Glide (2) WPL 951886 Contact Us For Availability
32
Bend, Return (8) WPL 855199 Contact Us For Availability
× ![]()
