Model Whirlpool AD0302XA0 DEHUMIDIFIER – Common Parts & Diagrams
03 - SECTION
01 - SECTION
02 - SECTION

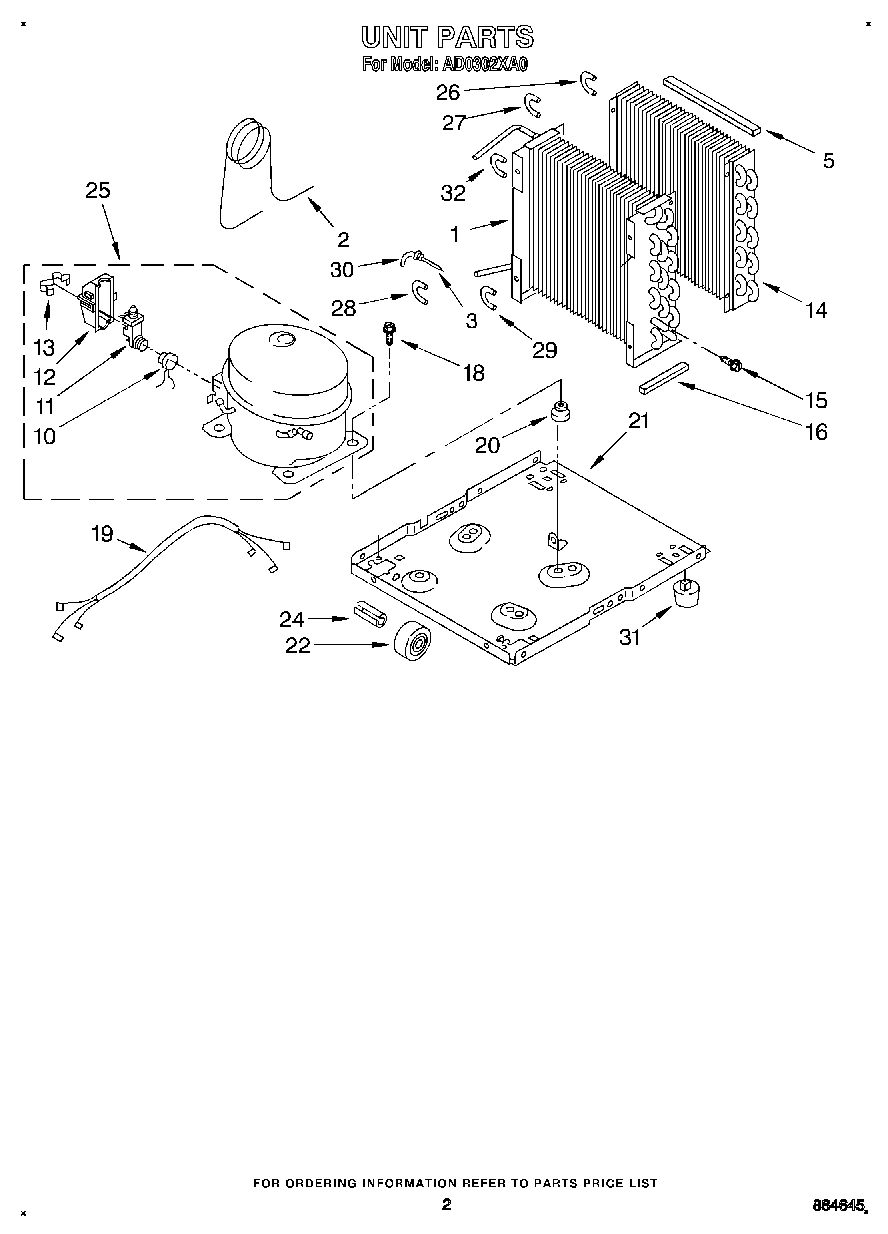

Common parts from model Whirlpool AD0302XA0 DEHUMIDIFIER
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
Tape, No Drip Valve, Access WPL 505168 Contact Us For Availability
Tech Sheet WPL LIT1163818 Contact Us For Availability
Guide, Use And Care WPL LIT1164267 Contact Us For Availability
Light, Indicator WPL 1158419 Contact Us For Availability
1
Cabinet WPL 1164265 Contact Us For Availability
1
Condenser WPL 1163097 Contact Us For Availability
2
Humidistat, Control WPL 1162578 Contact Us For Availability
2
Tube, Restrictor (Length 24.00``) WPL 1162154 Contact Us For Availability
3
Retainer Pin (Rear Grille) WPL 998813 Contact Us For Availability
3
Bracket, Humidistat WPL 951284 Contact Us For Availability
4
Knob, Humidistat Control WPL 1162670 Contact Us For Availability
5
Grille, Front WPL 1164263 Contact Us For Availability
5
Screw, Sm No.8 x 3/8 WPL 488624 Contact Us For Availability
5
Seal, Evaporator Top WPL 1162348 Contact Us For Availability
6
Lens, Light WPL 998846 Contact Us For Availability
7
Grille, Rear WPL 1164264 Contact Us For Availability
8
Pan, Condensate WPL 1164771 Contact Us For Availability
9
Screw WPL 1158781 Contact Us For Availability
10
Spacer, Grille WPL 948584 Contact Us For Availability
10
Motor, Fan WPL 1162030 Contact Us For Availability
10
Overload, Protector (Production) WPL 1158790 Contact Us For Availability
10
Overload, Protector (Service) WPL 4318051 Contact Us For Availability
11
Blade, Fan WPL 949645 Contact Us For Availability
11
Relay, Start (Production) WPL 1158608 Contact Us For Availability
11
Relay, Start (Service) WPL 4318052 Contact Us For Availability
12
Cover, Terminal (Production) WPL 1157582 Contact Us For Availability
12
Cover Terminal (Service) WPL 4318053 Contact Us For Availability
13
Switch, Water Level Control WPL 999747 Contact Us For Availability
13
Retainer, Cover (Service) WPL 549342 Contact Us For Availability
13
Retainer, Cover (Production) WPL 938384 Contact Us For Availability
14
Evaporator WPL 1162933 Contact Us For Availability
15
Cord, Appliance WPL 1155670 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
16
Seal WPL 1162372 Contact Us For Availability
17
Seal WPL 1162704 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
18
Bolt, 1/4-28 x 1`` (4) WPL 1163835 Contact Us For Availability
19
Spring, Water Level WPL 1161718 Contact Us For Availability
19
Harness, Wire WPL 484136 Contact Us For Availability
20
Grommet (4) WPL 1156748 Contact Us For Availability
21
Washer (Repair) (.062 Thickness) WPL 489029 Contact Us For Availability
21
Washer, Repair (.045 Thickness) WPL 489083 Contact Us For Availability
21
Base WPL 1157584 Contact Us For Availability
22
Roller (2) WPL 998726 Contact Us For Availability
23
Support WPL 1163800 Contact Us For Availability
24
Pin, Roller (2) WPL 489015 Contact Us For Availability
25
Compressor, (Complete Assembly) WPL 1157552 Contact Us For Availability
26
Thermostat, Deicer WPL 1163280 Contact Us For Availability
26
Bend Return WPL 1158407 Contact Us For Availability
27
Bend, Return WPL 708531 Contact Us For Availability
28
Clamp, Tube (2) WPL 471363 Contact Us For Availability
28
Bend, Return WPL 708532 Contact Us For Availability
29
Bend Return WPL 1156533 Contact Us For Availability
30
Bend, Return WPL 854624 Contact Us For Availability
31
Glide (2) WPL 951886 Contact Us For Availability
32
Bend, Return (17) WPL 855199 Contact Us For Availability
× ![]()
