Model Whirlpool AD0252XZ1 DEHUMIDIFIER – Common Parts & Diagrams
01 - AIR FLOW AND CONTROL
03 - CABINET, LIT/OPTIONAL

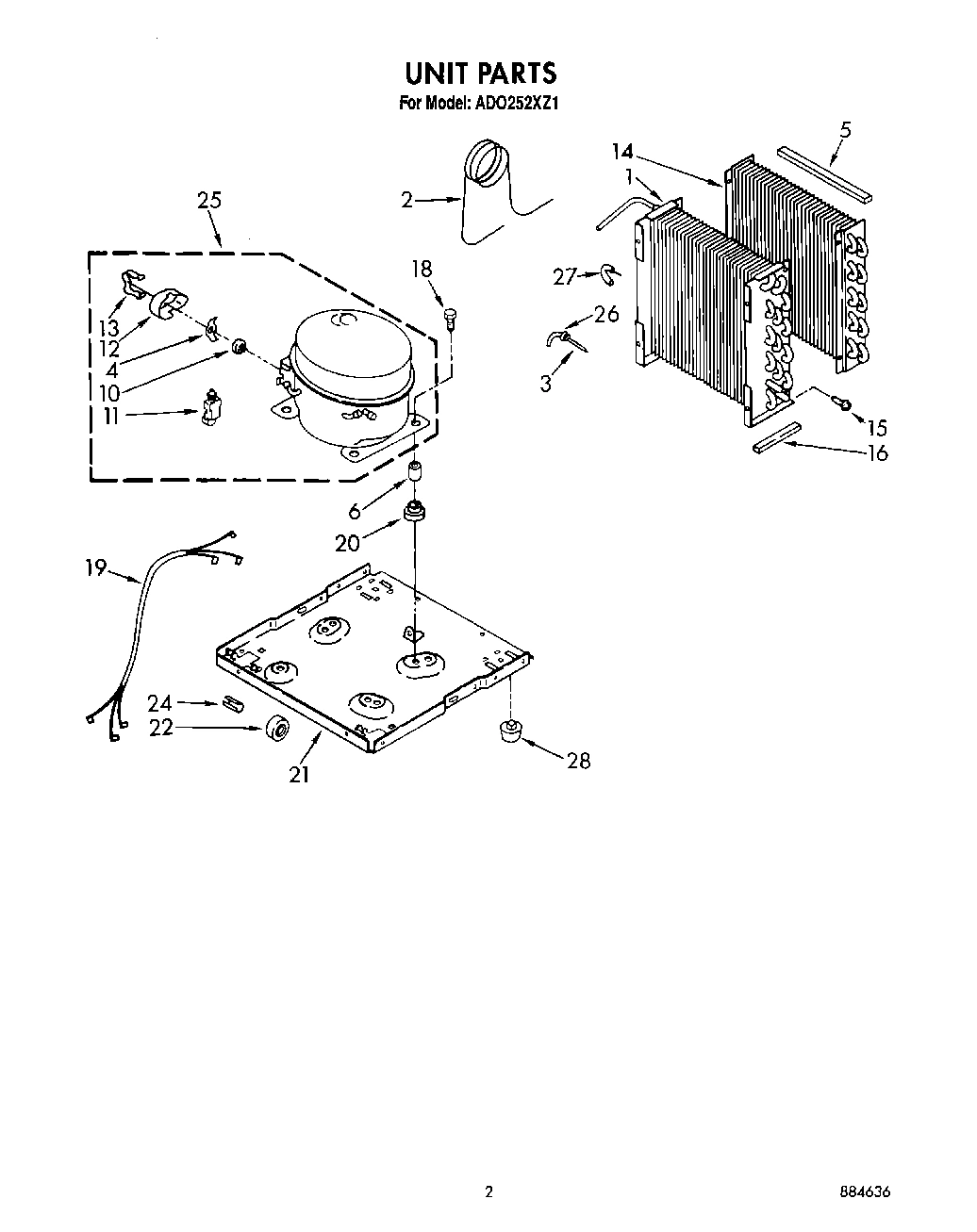

02 - UNIT PARTS
Common parts from model Whirlpool AD0252XZ1 DEHUMIDIFIER
Guide, Use And Care WPL LIT1162830 Contact Us For Availability
Sheet, Tech WPL LIT1164210 Contact Us For Availability
Wiring Diagram WPL LIT1164212 Contact Us For Availability
List, Repair Parts WPL LIT884636 Contact Us For Availability
1
Cabinet WPL 998821 Contact Us For Availability
1
Condenser WPL 1164219 Contact Us For Availability
2
Tube, Restrictor (Length 24.00``) WPL 1164204 Contact Us For Availability
3
Retainer Pin (Rear Grille) WPL 998813 Contact Us For Availability
3
Strainer WPL 1162037 Contact Us For Availability
4
Escutcheon WPL 1162674 Contact Us For Availability
4
Spring Overload (Service Overload) WPL 549086 Contact Us For Availability
4
Spring, Overload (Production) WPL 950061 Contact Us For Availability
5
Grille, Front (Includes, Illus. No. 4) WPL 1162673 Contact Us For Availability
5
Seal, Evaporator Top WPL 1162348 Contact Us For Availability
6
Lens, Light WPL 998846 Contact Us For Availability
6
Sleeve (4) WPL 646498 Contact Us For Availability
7
Grille, Rear WPL 998832 Contact Us For Availability
8
Pan, Condensate WPL 951901 Contact Us For Availability
9
Screw WPL 1158781 Contact Us For Availability
10
Spacer, Grille WPL 948584 Contact Us For Availability
10
Overload, Protector (Production) WPL 1163837 Contact Us For Availability
11
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
11
Tape, No Drip Valve, Access WPL 505168 Contact Us For Availability
11
Blade, Fan WPL 949645 Contact Us For Availability
11
epoxy, tube (aluminum repair) WPL 484310 Contact Us For Availability
11
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
11
Cap, Condensate Pan WPL 646753 Contact Us For Availability
11
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
11
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
11
Relay, Start (Production) WPL 1163838 Contact Us For Availability
12
Cover, Terminal (Service) WPL 1108115 Contact Us For Availability
12
Cover, Terminal (Production) WPL 950055 Contact Us For Availability
13
Switch, Water Level Control WPL 999747 Contact Us For Availability
13
Retainer, Cover (Service) WPL 549342 Contact Us For Availability
13
Retainer, Cover (Production) WPL 950056 Contact Us For Availability
14
Evaporator WPL 1161199 Contact Us For Availability
15
Cord, Appliance WPL 1155670 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
16
Seal WPL 1162372 Contact Us For Availability
17
Seal WPL 1162704 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
18
Bolt, 1/4-28 x 1`` (4) WPL 1163835 Contact Us For Availability
19
Spring, Water Level WPL 1161718 Contact Us For Availability
19
Harness, Wire WPL 484136 Contact Us For Availability
20
Grommet (4) WPL 646499 Contact Us For Availability
21
Washer (Repair) (.062 Thickness) WPL 489029 Contact Us For Availability
21
Washer, Repair (.045 Thickness) WPL 489083 Contact Us For Availability
21
Base WPL 1157584 Contact Us For Availability
22
Roller (2) WPL 998726 Contact Us For Availability
23
Support WPL 1163800 Contact Us For Availability
24
Pin, Roller (2) WPL 489015 Contact Us For Availability
25
Compressor, (Complete Assembly) WPL 1163836 Contact Us For Availability
26
Thermostat, Deicer WPL 1163280 Contact Us For Availability
26
Bend, Return WPL 854624 Contact Us For Availability
27
Bend, Return (17) WPL 855199 Contact Us For Availability
28
Glide (2) WPL 951886 Contact Us For Availability
× ![]()
