Model Whirlpool AD0252XW0 DEHUMIDIFIER – Common Parts & Diagrams
01 - SECTION
03 - SECTION

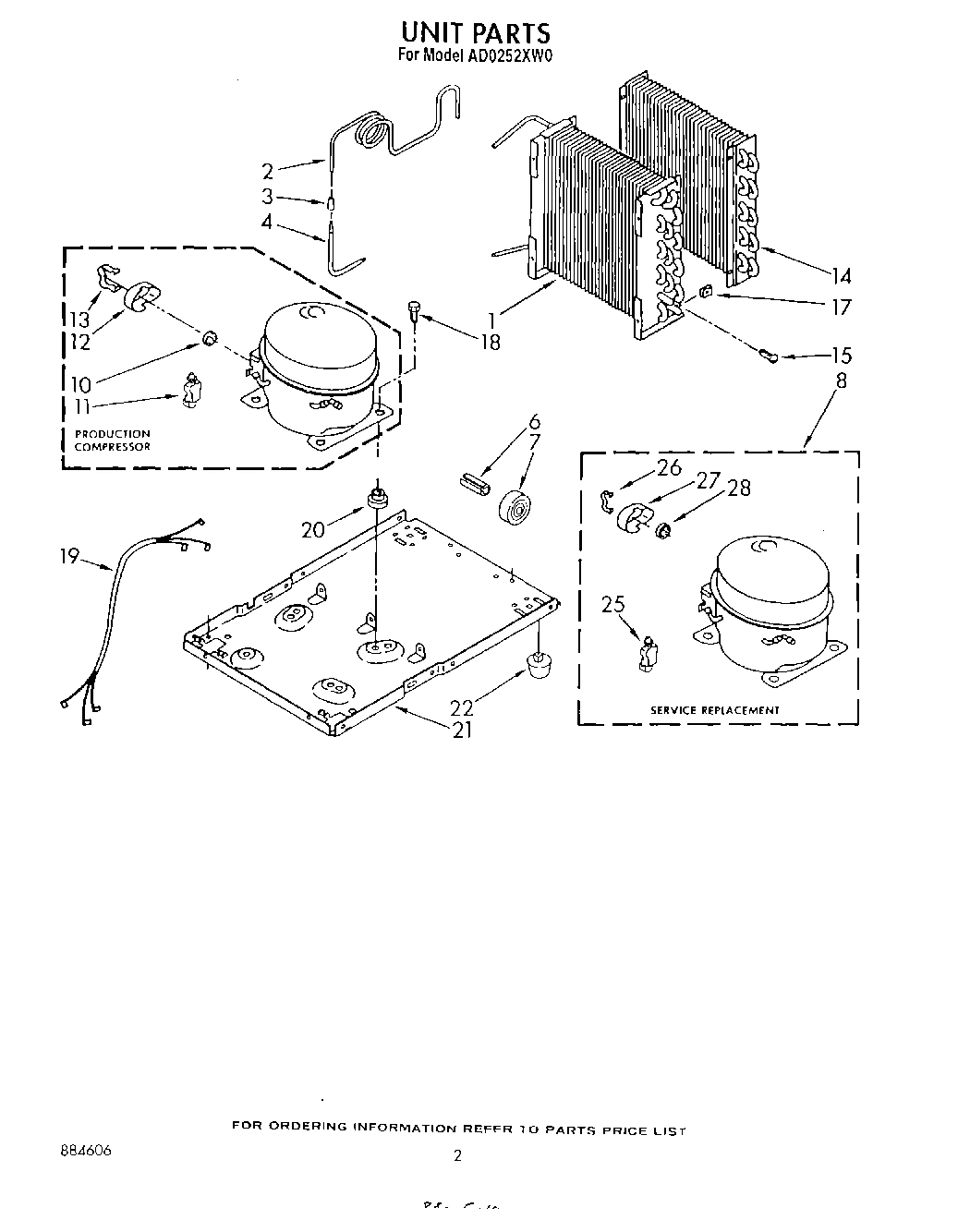

02 - SECTION
Common parts from model Whirlpool AD0252XW0 DEHUMIDIFIER
Guide, Use And Care WPL LIT1156849 Contact Us For Availability
Sheet, Tech And Wiring Diagram WPL LIT1158614 Contact Us For Availability
List, Repair Parts WPL LIT884606 Contact Us For Availability
1
Cabinet WPL 998821 Contact Us For Availability
1
Condenser WPL 949908 Contact Us For Availability
2
Tube, Restrictor (36.00`` Length) WPL 1158530 Contact Us For Availability
3
Bracket, Control WPL 951285 Contact Us For Availability
3
Grille, Rear WPL 998832 Contact Us For Availability
3
Strainer, Outlet Tube WPL 474013 Contact Us For Availability
4
Knob, Humidistat Control WPL 998859 Contact Us For Availability
4
Tube, Outlet (Includes No.3) WPL 949896 Contact Us For Availability
5
Grille, Front WPL 950269 Contact Us For Availability
6
Bracket, Fan Motor Mounting WPL 998777 Contact Us For Availability
6
Lens, Light WPL 998846 Contact Us For Availability
6
Pin, Roller (2) WPL 489015 Contact Us For Availability
7
Retainer, Pin (2) WPL 998813 Contact Us For Availability
7
Roller (2) WPL 998726 Contact Us For Availability
8
Compressor, Service (Complete Assembly) WPL 4211286 Contact Us For Availability
10
Motor, Fan WPL 1156858 Contact Us For Availability
11
Blade, Fan WPL 949645 Contact Us For Availability
11
Screw WPL 1158781 Contact Us For Availability
12
Pan, Condensate WPL 951901 Contact Us For Availability
13
Switch, Water Level Control WPL 999747 Contact Us For Availability
13
Spacer, Grille WPL 948584 Contact Us For Availability
14
evaporator WPL 998746 Contact Us For Availability
15
Screw, 8 x 3/8 (4) WPL 488624 Contact Us For Availability
15
Cord, Appliance WPL 1155670 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
17
Seal WPL 998802 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
18
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
19
Spring, Water Level WPL 998730 Contact Us For Availability
19
Harness, Wire WPL 484136 Contact Us For Availability
20
Grommet (4) WPL 1156748 Contact Us For Availability
21
Washer, Repair (.060 Thickness) WPL 489029 Contact Us For Availability
21
Washer, Repair (.030 Thickness) WPL 489083 Contact Us For Availability
21
Washer, Repair (.045 Thickness) WPL 489091 Contact Us For Availability
21
Base WPL 1157584 Contact Us For Availability
22
Glide (2) WPL 951886 Contact Us For Availability
23
Support WPL 998744 Contact Us For Availability
24
Screw, 8 x 1/4 (2) WPL 145450 Contact Us For Availability
25
Relay, Start WPL 1158608 Contact Us For Availability
26
Thermostat, De-Icer WPL 1155109 Contact Us For Availability
26
Retainer, Cover WPL 938384 Contact Us For Availability
27
Cover, Terminal WPL 1157582 Contact Us For Availability
28
Clamp, Tube (2) WPL 471363 Contact Us For Availability
28
Overload WPL 1158790 Contact Us For Availability
× ![]()
