Model Whirlpool AD0202XM1 DEHUMIDIFIER – Common Parts & Diagrams

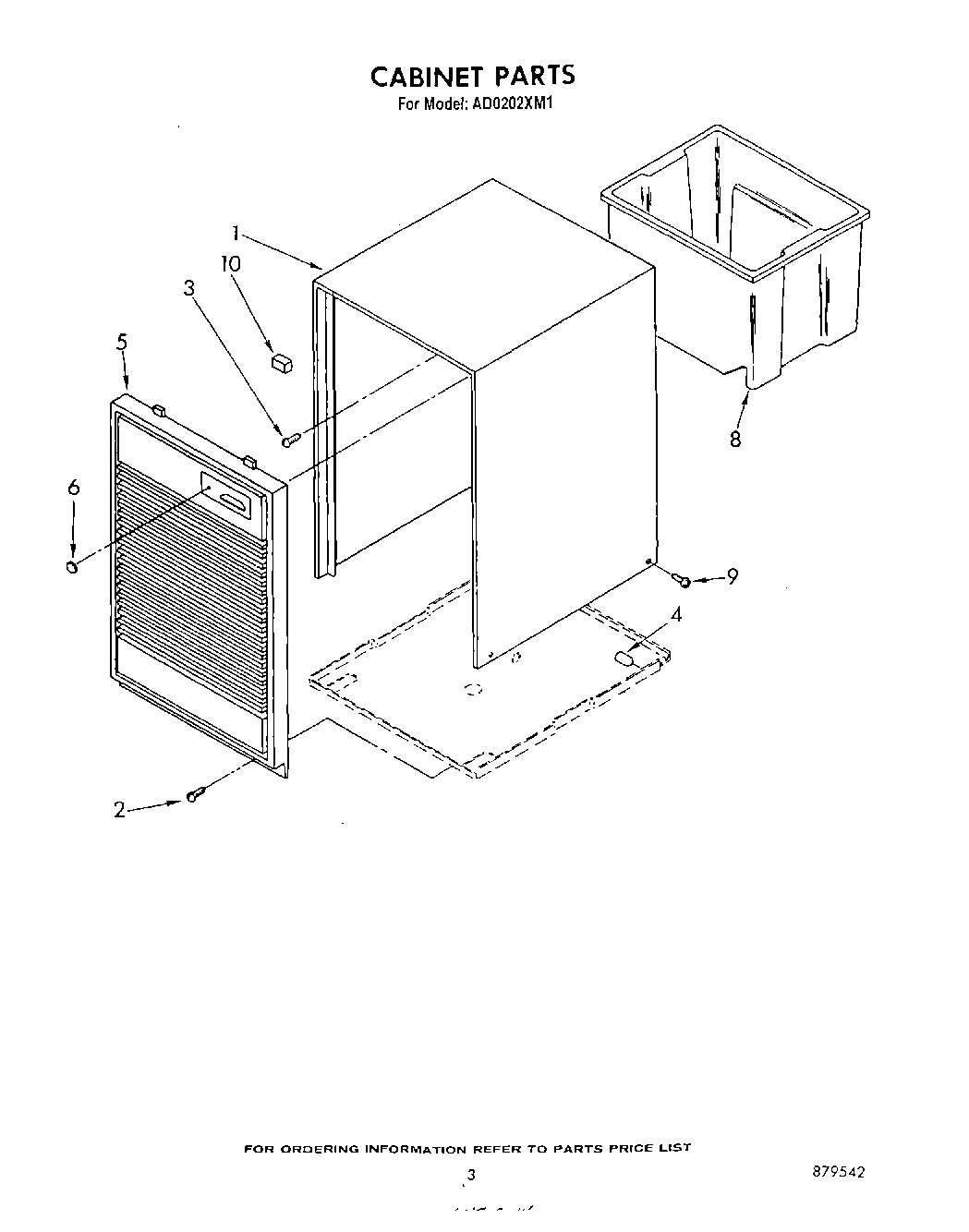

03 - SECTION

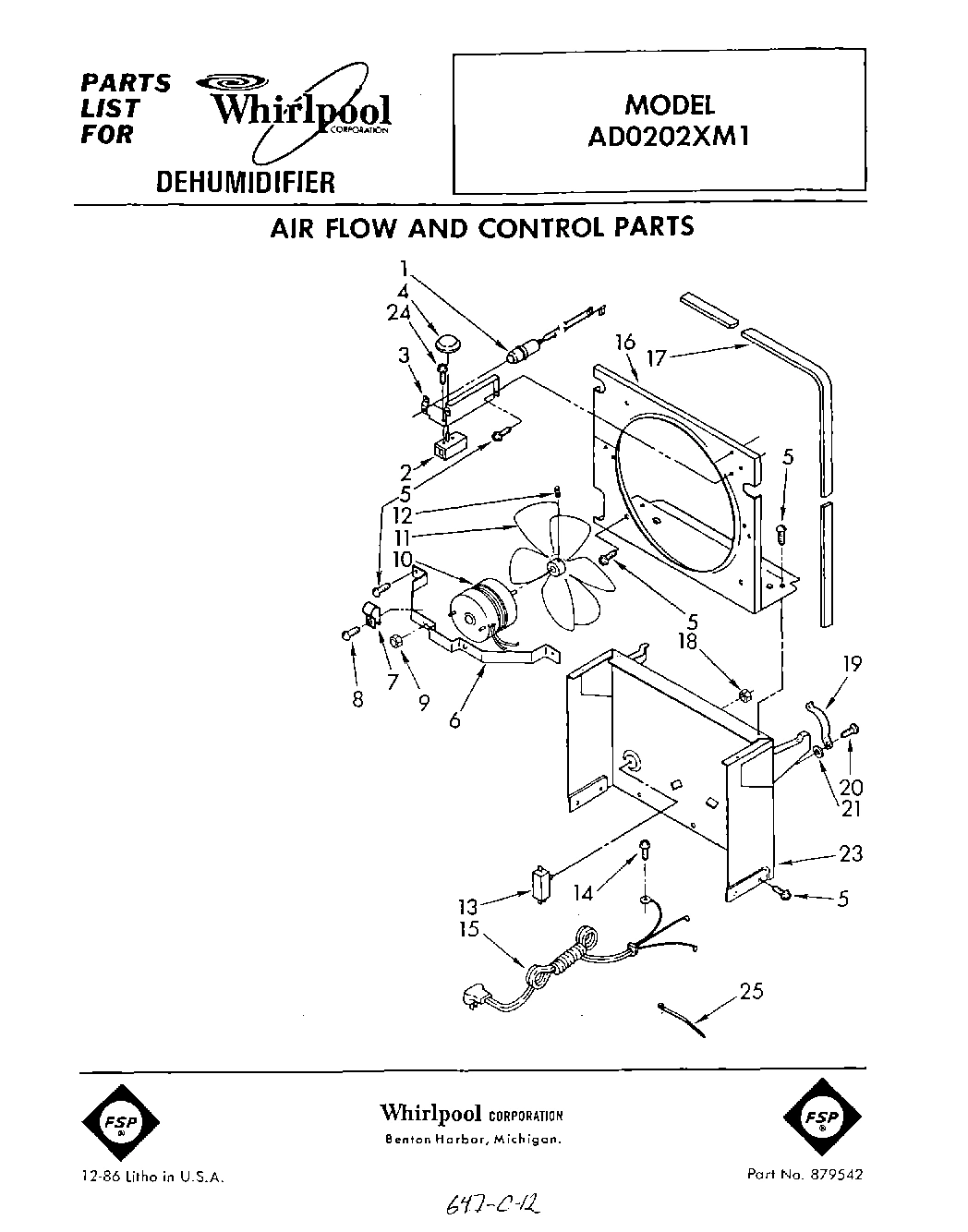

01 - SECTION
02 - SECTION
Common parts from model Whirlpool AD0202XM1 DEHUMIDIFIER
1
Light, Control WPL 1155666 Contact Us For Availability
1
Condenser WPL 949921 Contact Us For Availability
2
Humidistat, Control WPL 1155848 Contact Us For Availability
2
Tube, Restrictor (35.0`` Length) WPL 998759 Contact Us For Availability
3
Bracket, Control WPL 951285 Contact Us For Availability
3
Strainer, Outlet Tube WPL 474013 Contact Us For Availability
4
Knob, Humidistat Control WPL 998859 Contact Us For Availability
4
Tube, Outlet (Includes Item 3) WPL 949896 Contact Us For Availability
5
Grille, Front WPL 950269 Contact Us For Availability
5
Screw, S.M. No.8 x 3/8A WPL 488624 Contact Us For Availability
6
Lens, Light WPL 998846 Contact Us For Availability
6
Bracket, Fan Motor Mounting WPL 998777 Contact Us For Availability
8
Pan, Condensate WPL 951901 Contact Us For Availability
8
Sleeve (4) WPL 646498 Contact Us For Availability
9
Screw, TC 8-32 x 3/8 (4) WPL 489016 Contact Us For Availability
9
Spring, Overload WPL 950061 Contact Us For Availability
10
3/4`` Tube O.D. WPL 978029 Contact Us For Availability
10
Tape, No Drip (30`) Valve, Access WPL 505168 Contact Us For Availability
10
Paint, Touch-Up Gray Lacquer (1/2 Pint) WPL 485426 Contact Us For Availability
10
Cup, Condensate Pan WPL 646753 Contact Us For Availability
10
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
10
Spacer, Block WPL 948584 Contact Us For Availability
10
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
10
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
10
Motor, Fan WPL 1155663 Contact Us For Availability
10
Overload, Protector WPL 950234 Contact Us For Availability
11
Blade, Fan WPL 949645 Contact Us For Availability
11
Relay, Start WPL 950235 Contact Us For Availability
12
Screw, Set 1/4-28 x 5/16 WPL 488035 Contact Us For Availability
12
Cover, Terminal WPL 950055 Contact Us For Availability
13
Switch, Water Level Control WPL 998783 Contact Us For Availability
13
Retainer, Cover WPL 950056 Contact Us For Availability
14
Evaporator WPL 996604 Contact Us For Availability
15
Cord, Appliance WPL 1155670 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
17
Seal WPL 998802 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
18
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
19
Spring, Water Level WPL 998730 Contact Us For Availability
19
Harness, Wire WPL 484136 Contact Us For Availability
20
Grommet (4) WPL 646499 Contact Us For Availability
21
Washer, Repair (.060 Thickness) WPL 489029 Contact Us For Availability
21
Washer, Repair (.030 Thickness) WPL 489083 Contact Us For Availability
21
Washer, Repair (.045 Thickness) WPL 489091 Contact Us For Availability
21
Base WPL 949976 Contact Us For Availability
22
Roller (2) WPL 998726 Contact Us For Availability
23
Support WPL 998744 Contact Us For Availability
24
Screw, 8 x 1/4 (2) WPL 145450 Contact Us For Availability
24
Roll Pin (2) WPL 489015 Contact Us For Availability
25
Compressor, Service (Complete Assembly) WPL 485781 Contact Us For Availability
26
Retainer, Cover WPL 549342 Contact Us For Availability
27
Cover, Terminal WPL 549336 Contact Us For Availability
28
Overload, Protector WPL 649842 Contact Us For Availability
29
Spring, Overload WPL 549086 Contact Us For Availability
30
Relay WPL 549500 Contact Us For Availability
31
Glide (2) WPL 951886 Contact Us For Availability
× ![]()
