Model Whirlpool AD0202XM0 DEHUMIDIFIER – Common Parts & Diagrams

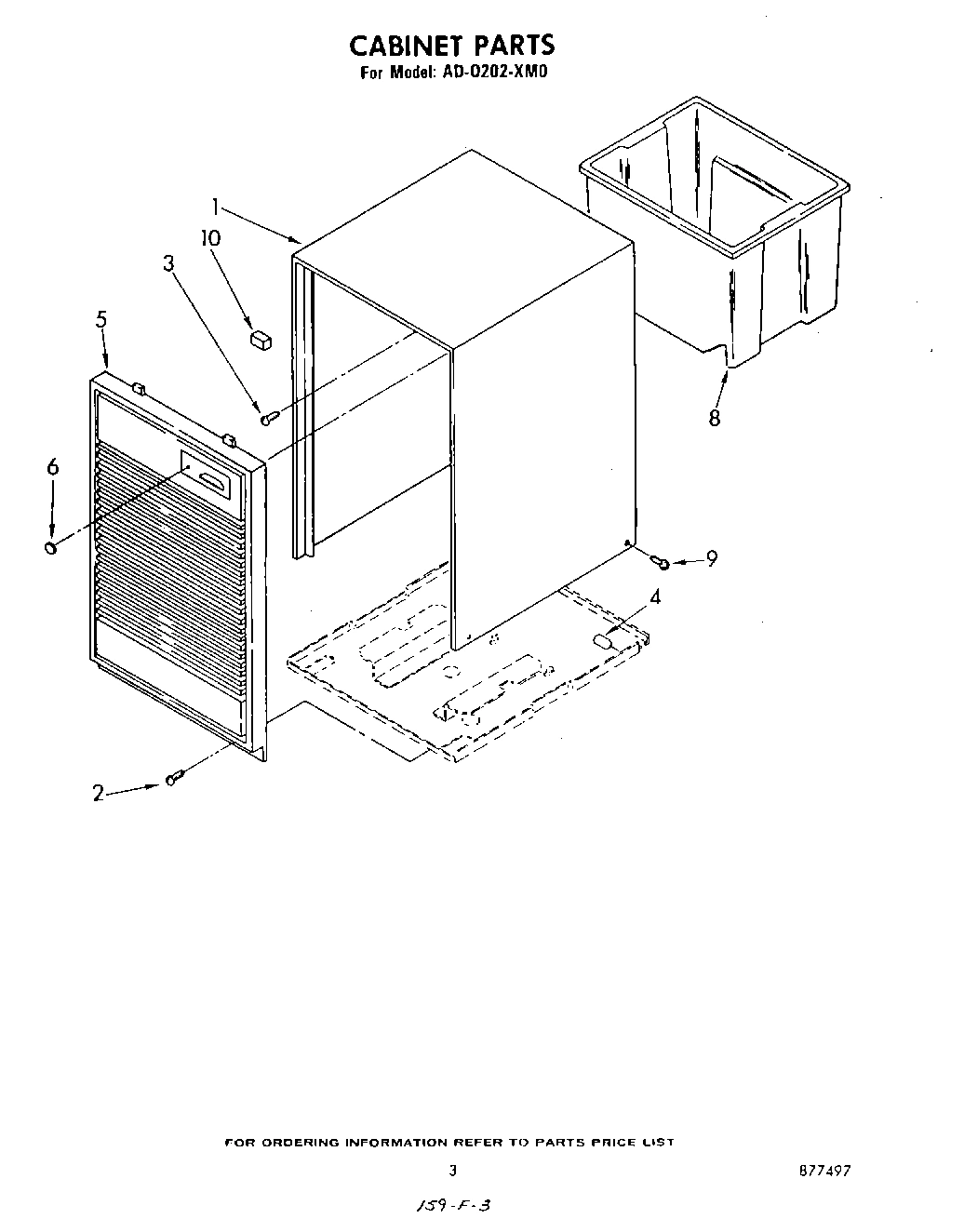

02 - SECTION

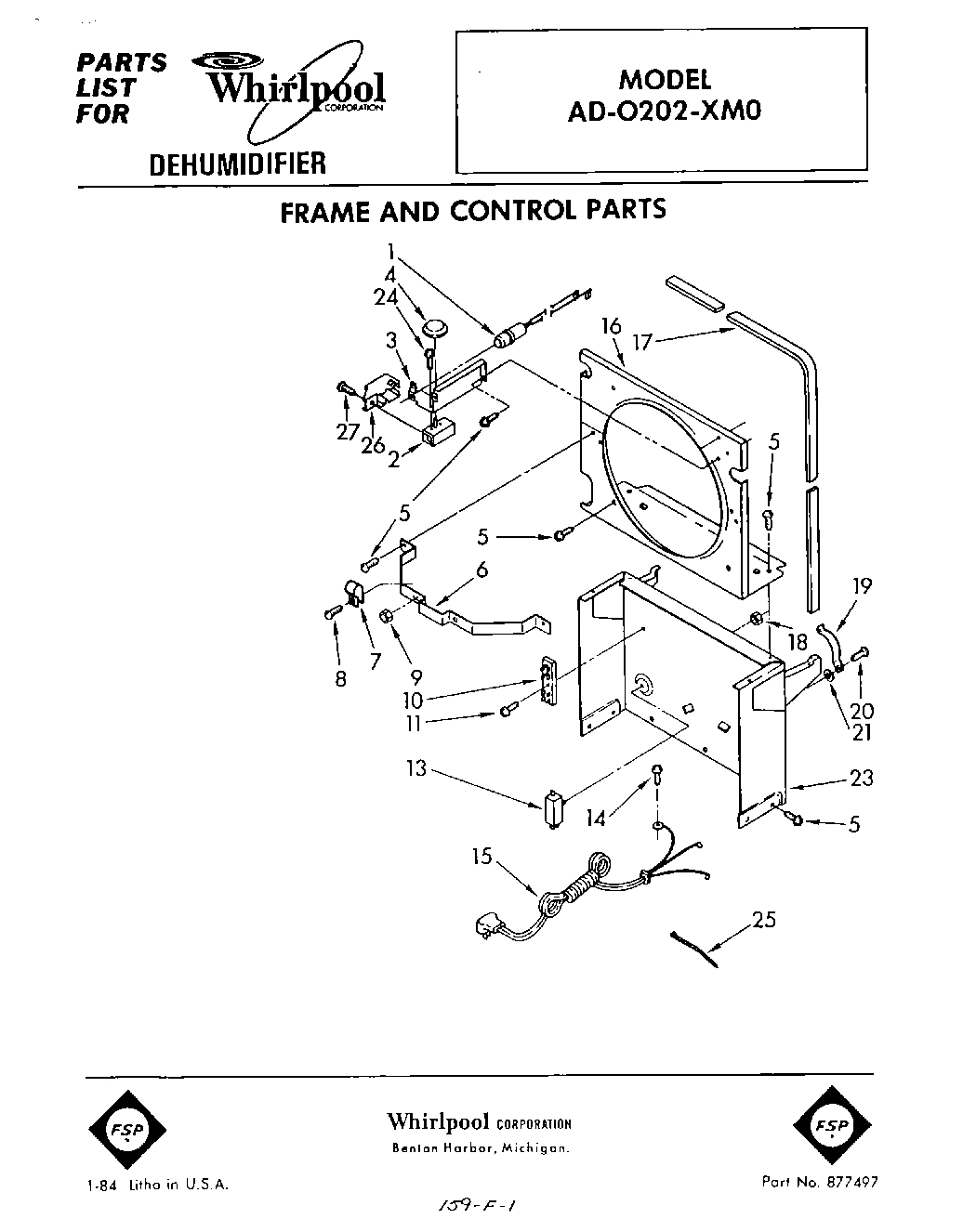

01 - SECTION

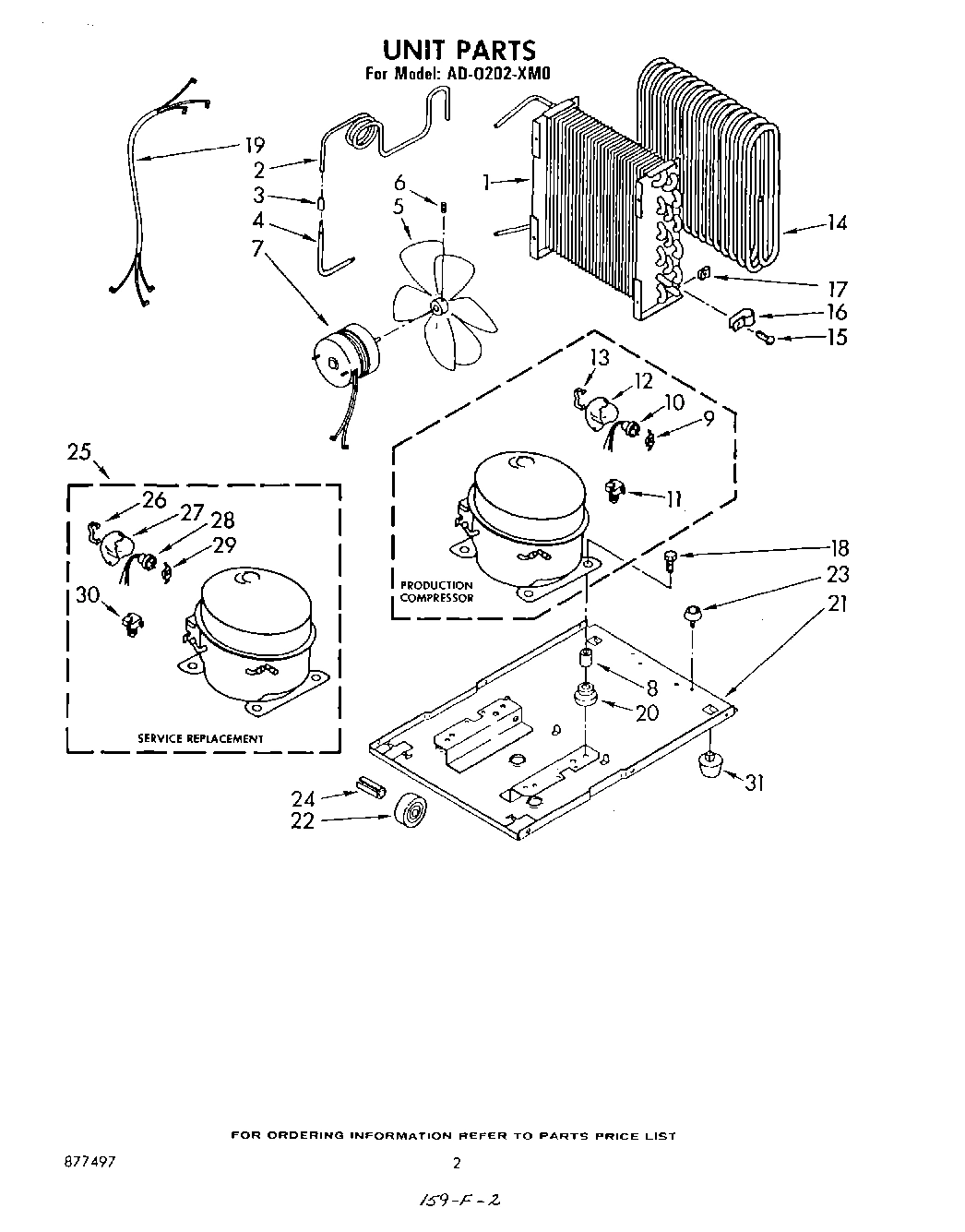

03 - SECTION
Common parts from model Whirlpool AD0202XM0 DEHUMIDIFIER
1
Light, Indicator WPL 950747 Contact Us For Availability
1
Cabinet WPL 998821 Contact Us For Availability
2
Humidistat Assembly WPL 951280 Contact Us For Availability
3
Bracket, Humidistat & Light Assembly WPL 951285 Contact Us For Availability
4
Knob, Humidistat Control WPL 998859 Contact Us For Availability
4
Thread Cap WPL 998869 Contact Us For Availability
5
Screw, S.M. No.8 x 3/8A WPL 488624 Contact Us For Availability
5
Grille, Front WPL 950269 Contact Us For Availability
6
Bracket, Fan Motor Mounting WPL 998777 Contact Us For Availability
6
Lens, Light WPL 998846 Contact Us For Availability
8
Pan, Condensate WPL 998801 Contact Us For Availability
9
Spring, Overload WPL 950061 Contact Us For Availability
9
Screw, TC 8-32 x 3/8 (4) WPL 489016 Contact Us For Availability
10
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
10
Tape, No Drip WPL 505168 Contact Us For Availability
10
Overload, Protector WPL 950234 Contact Us For Availability
10
Board, Terminal WPL 950431 Contact Us For Availability
10
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
10
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
10
Cup, Condensate Pan WPL 646753 Contact Us For Availability
10
Thinner (1 Gal.) WPL 799351 Contact Us For Availability
10
List, Repair Parts WPL 877497 Contact Us For Availability
10
Spacer, Block WPL 948584 Contact Us For Availability
10
Guide, Consumer Buy WPL 950270 Contact Us For Availability
10
Sheet, Service Tech WPL 951036 Contact Us For Availability
10
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
10
Guide, Use & Care WPL 998866 Contact Us For Availability
11
Relay, Start WPL 950235 Contact Us For Availability
11
screw, 6 x 3/8 WPL 488966 Contact Us For Availability
12
Cover, Terminal WPL 950055 Contact Us For Availability
13
Retainer, Cover WPL 950056 Contact Us For Availability
13
Switch, Water Level Control WPL 998783 Contact Us For Availability
14
Evaporator WPL 996604 Contact Us For Availability
15
Cord, Appliance WPL 950743 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
17
Seal WPL 998802 Contact Us For Availability
18
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
19
Harness, Wire WPL 484136 Contact Us For Availability
19
Spring, Water Level WPL 998730 Contact Us For Availability
20
Grommet (4) WPL 646499 Contact Us For Availability
21
Base WPL 949976 Contact Us For Availability
21
Washer, Repair (.060 Thickness) WPL 489029 Contact Us For Availability
21
Washer, Repair (.030 Thickness) WPL 489083 Contact Us For Availability
21
Washer, Repair (.045 Thickness) WPL 489091 Contact Us For Availability
22
Roller (2) WPL 998726 Contact Us For Availability
23
Foot (2) WPL 472577 Contact Us For Availability
23
Support WPL 998729 Contact Us For Availability
24
Roll Pin (2) WPL 489015 Contact Us For Availability
25
Compressor, Service (Complete Assembly) WPL 485781 Contact Us For Availability
26
Retainer, Cover WPL 831282 Contact Us For Availability
26
Cover, Terminal WPL 951281 Contact Us For Availability
27
Cover, Terminal WPL 865068 Contact Us For Availability
28
Overload, Protector WPL 876690 Contact Us For Availability
29
Spring, Overload WPL 549086 Contact Us For Availability
30
Relay WPL 876693 Contact Us For Availability
31
Glide (2) WPL 998725 Contact Us For Availability
× ![]()
