  • Whirlpool AD0152XV2

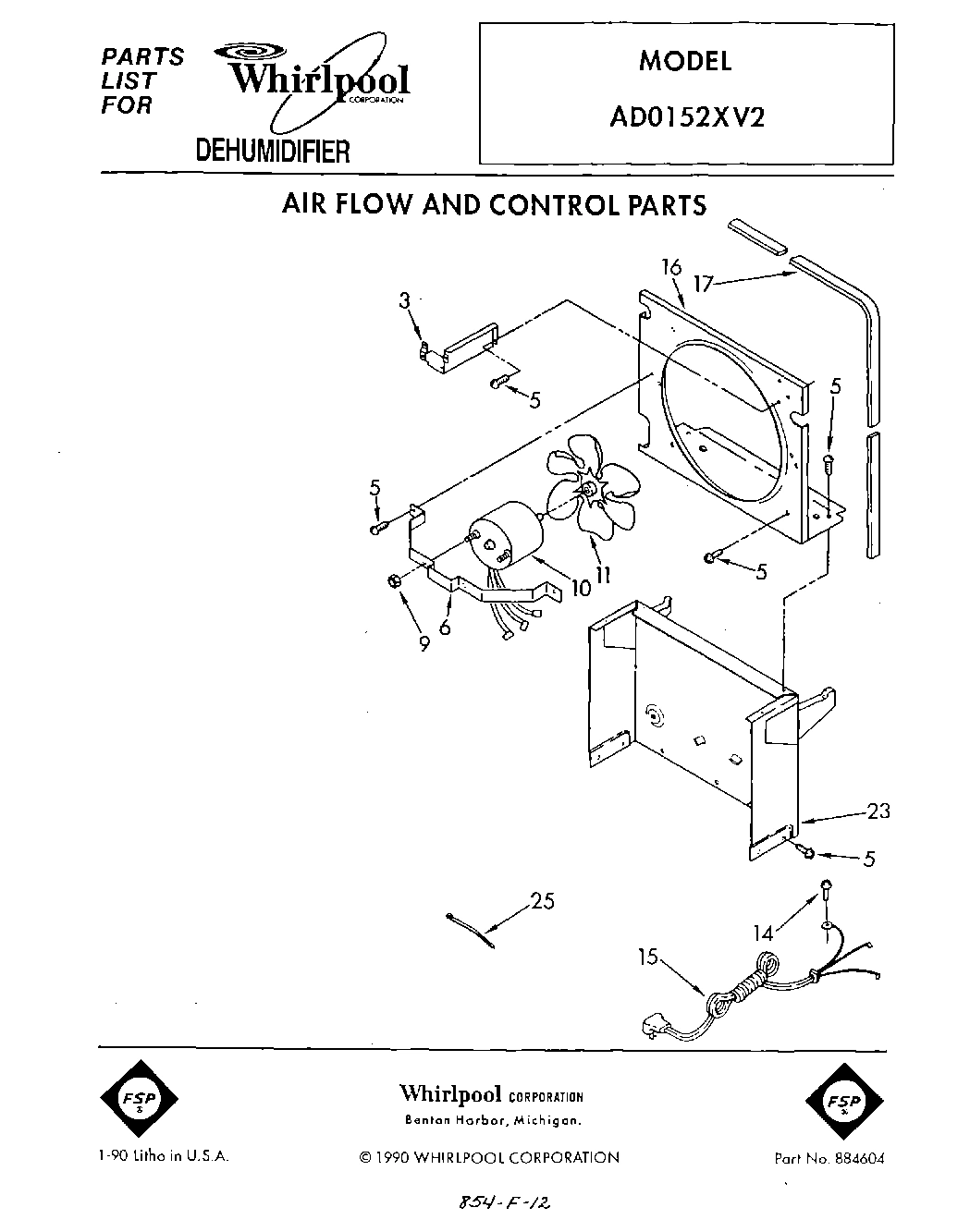

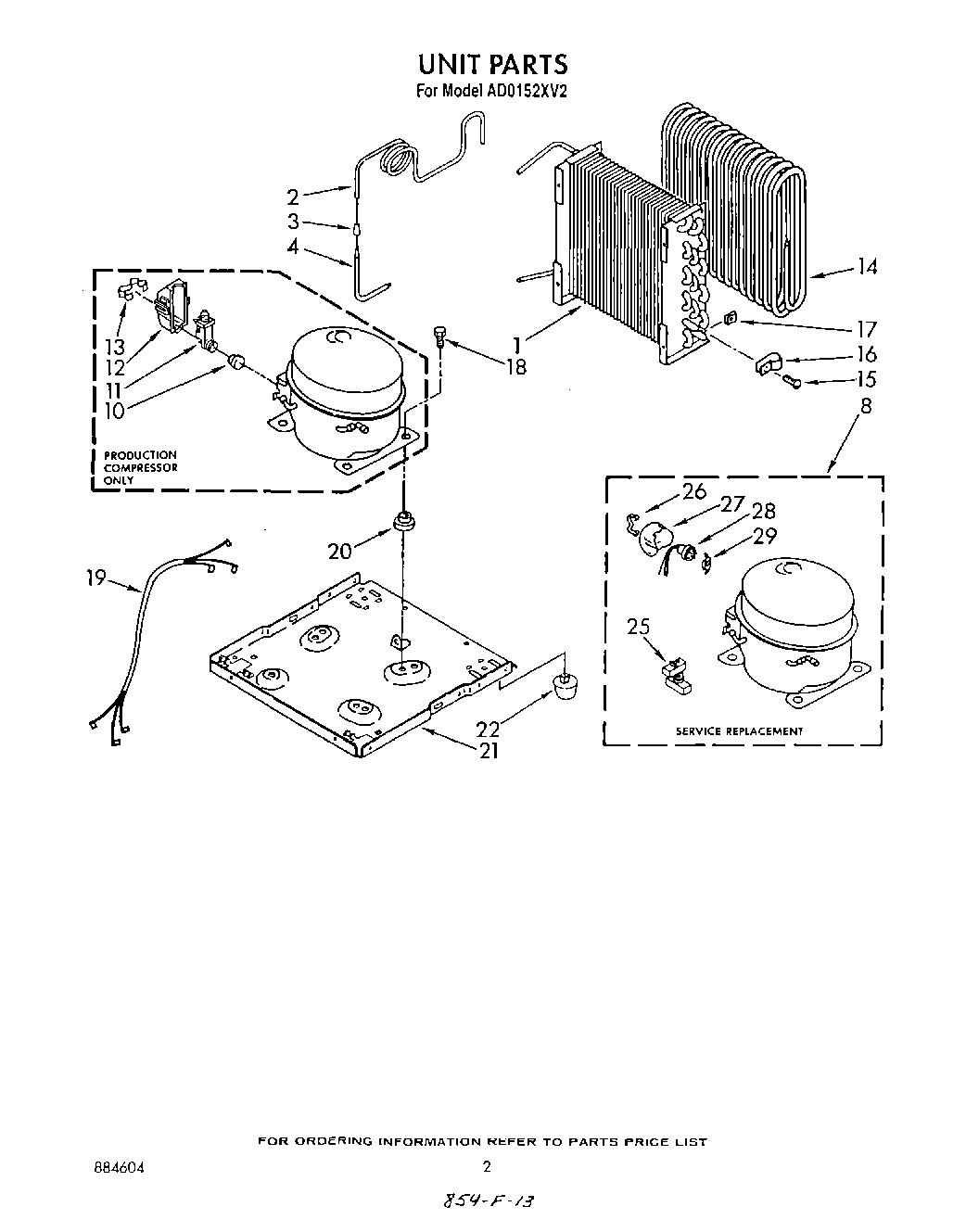

Model Whirlpool AD0152XV2 DEHUMIDIFIER – Common Parts & Diagrams

Guide, Use And Care
Guide, Use And Care WPL LIT1156849 Contact Us For Availability
View on Model
Tech Sheet And Wiring Diagram
Tech Sheet And Wiring Diagram WPL LIT1158787 Contact Us For Availability
View on Model
List, Repair Parts
List, Repair Parts WPL LIT884604 Contact Us For Availability
View on Model
1
Condenser
Condenser WPL 949893 Contact Us For Availability
View on Model
1
Cabinet
Cabinet WPL 998821 Contact Us For Availability
View on Model
2
Tube, Restrictor (41.0`` Length)
Tube, Restrictor (41.0`` Length) WPL 1156836 Contact Us For Availability
View on Model
3
Strainer, Outlet Tube
Strainer, Outlet Tube WPL 474013 Contact Us For Availability
View on Model
4
Tube, Outlet (Includes No.3)
Tube, Outlet (Includes No.3) WPL 949896 Contact Us For Availability
View on Model
5
Grille, Front
Grille, Front WPL 950385 Contact Us For Availability
View on Model
8
Compressor, Service (Complete Assembly)
Compressor, Service (Complete Assembly) WPL 485780 Contact Us For Availability
View on Model
10
Overload
Overload WPL 1158783 Contact Us For Availability
View on Model
11
Relay, Start
Relay, Start WPL 1156812 Contact Us For Availability
View on Model
11
Screw
Screw WPL 1158781 Contact Us For Availability
View on Model
12
Cover, Terminal
Cover, Terminal WPL 1157582 Contact Us For Availability
View on Model
12
Pan, Condensate
Pan, Condensate WPL 951901 Contact Us For Availability
View on Model
13
Retainer, Cover
Retainer, Cover WPL 938384 Contact Us For Availability
View on Model
13
Spacer, Grille
Spacer, Grille WPL 948584 Contact Us For Availability
View on Model
14
5/8`` Tube O.D.
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
View on Model
14
Tape, No Drip Valve, Access
Tape, No Drip Valve, Access WPL 505168 Contact Us For Availability
View on Model
14
Evaporator
Evaporator WPL 995082 Contact Us For Availability
View on Model
14
epoxy, tube (aluminum repair)
epoxy, tube (aluminum repair) WPL 484310 Contact Us For Availability
View on Model
14
Paint, Gray (1/2 Pt. Uncut)
Paint, Gray (1/2 Pt. Uncut) WPL 485425 Contact Us For Availability
View on Model
14
Cap, Pan
Cap, Pan WPL 646753 Contact Us For Availability
View on Model
14
1/2`` Tube O.D.
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
View on Model
14
Seal, Ring (Access Valve) (20 - Pack)
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
View on Model
16
Plate, Orifice
Plate, Orifice WPL 998779 Contact Us For Availability
View on Model
17
Seal
Seal WPL 998802 Contact Us For Availability
View on Model
18
Screw, 1/4-28 x 1`` (4)
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
View on Model
19
Harness, Wire
Harness, Wire WPL 484136 Contact Us For Availability
View on Model
20
Grommet (4)
Grommet (4) WPL 1156748 Contact Us For Availability
View on Model
21
Base
Base WPL 1157584 Contact Us For Availability
View on Model
22
Glide (4)
Glide (4) WPL 951886 Contact Us For Availability
View on Model
23
Support
Support WPL 998744 Contact Us For Availability
View on Model
25
Relay, Start
Relay, Start WPL 876693 Contact Us For Availability
View on Model
26
Retainer, Cover
Retainer, Cover WPL 831282 Contact Us For Availability
View on Model
27
Cover, Terminal
Cover, Terminal WPL 865068 Contact Us For Availability
View on Model
28
Overload
Overload WPL 876690 Contact Us For Availability
View on Model
29
Spring, Overload
Spring, Overload WPL 549086 Contact Us For Availability
