Model Whirlpool AD0152XV0 DEHUMIDIFIER – Common Parts & Diagrams

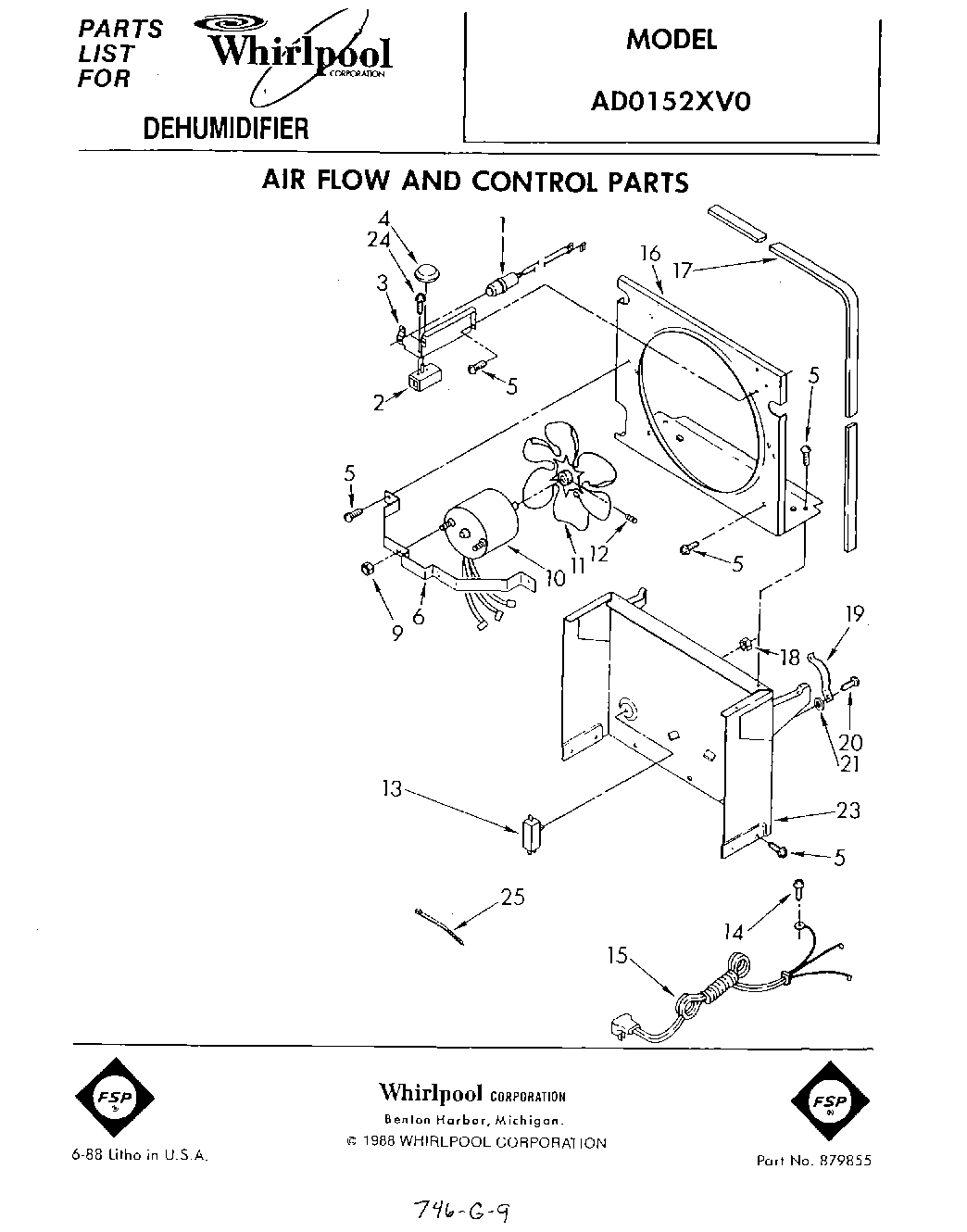

01 - SECTION

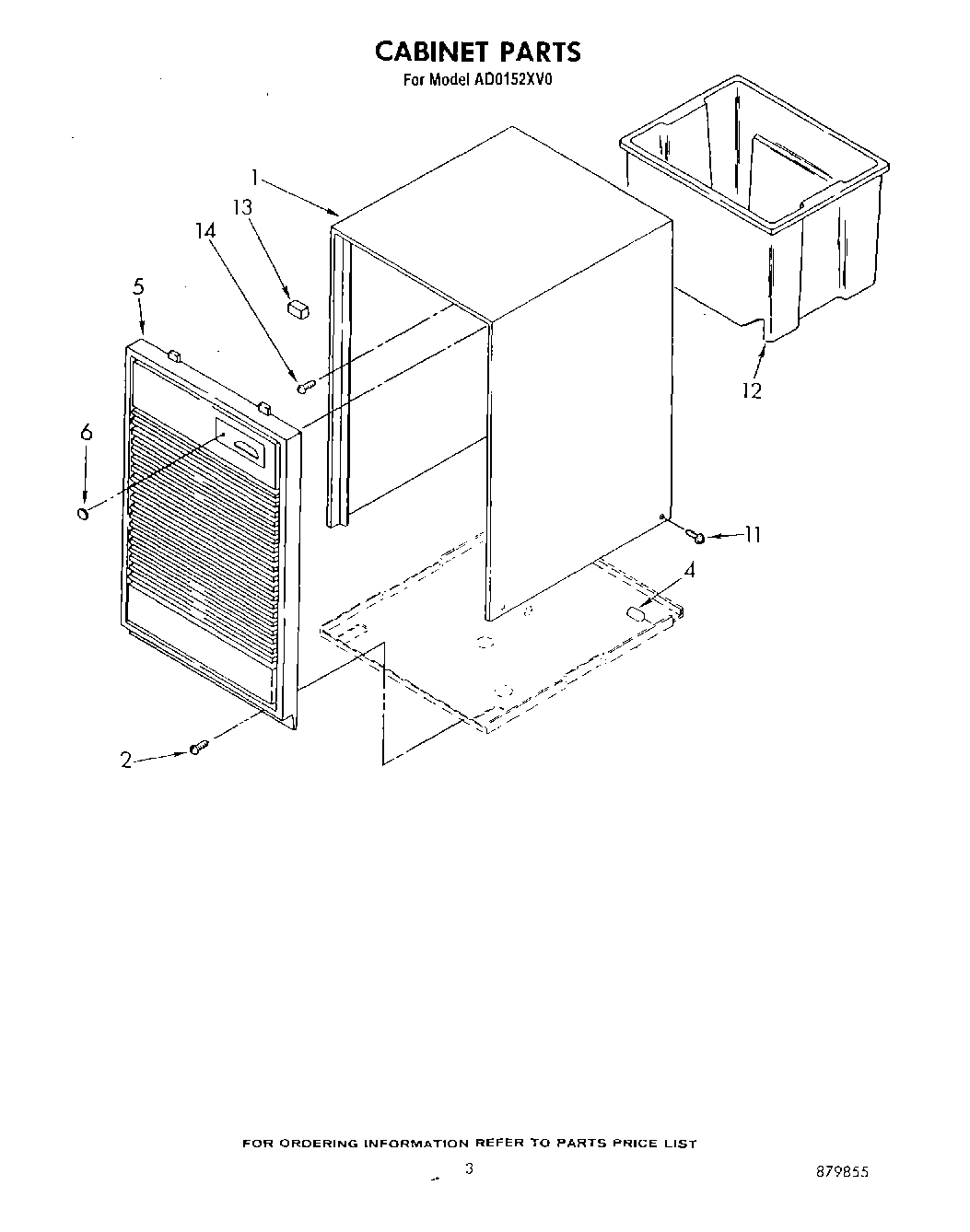

03 - SECTION
02 - SECTION
04 - SECTION
Common parts from model Whirlpool AD0152XV0 DEHUMIDIFIER
Sheet, Tech And Wiring Diagram WPL LIT1155408 Contact Us For Availability
Guide, Use And Care WPL LIT1155876 Contact Us For Availability
List, Repair Parts WPL LIT879855 Contact Us For Availability
1
Cabinet WPL 998821 Contact Us For Availability
1
Condenser WPL 949893 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Tube, Restrictor (35.0`` Length) WPL 948793 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Strainer, Outlet Tube WPL 474013 Contact Us For Availability
4
Cap, Thread Cover (2) WPL 998869 Contact Us For Availability
4
Tube, Outlet (Includes No.3) WPL 949896 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Grille, Front WPL 950269 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Lens, Light WPL 998846 Contact Us For Availability
6
Pin, Roller (2) WPL 489015 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Roller (2) WPL 998726 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Compressor, Service (Complete Assembly) WPL 485780 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Spring, Overload WPL 950061 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Overload WPL 950248 Contact Us For Availability
11
Screw, TC 8-32 x 3/8 (4) WPL 489016 Contact Us For Availability
11
Relay, Start WPL 950249 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Pan, Condensate WPL 951901 Contact Us For Availability
12
Cover, Terminal WPL 950055 Contact Us For Availability
13
Spacer, Grille WPL 948584 Contact Us For Availability
13
Retainer, Cover WPL 950056 Contact Us For Availability
14
Evaporator WPL 995082 Contact Us For Availability
14
Cap, Condensate Pan WPL 646753 Contact Us For Availability
15
Cord, Appliance WPL 1155670 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
17
Seal WPL 998802 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
18
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
19
Spring, Water Level WPL 998730 Contact Us For Availability
19
Harness, Wire WPL 484136 Contact Us For Availability
20
Grommet (4) WPL 646498 Contact Us For Availability
21
Washer, Repair (.060 Thickness) WPL 489029 Contact Us For Availability
21
Washer, Repair (.030 Thickness) WPL 489083 Contact Us For Availability
21
Washer, Repair (.045 Thickness) WPL 489091 Contact Us For Availability
21
Base WPL 950359 Contact Us For Availability
22
Glide (2) WPL 951886 Contact Us For Availability
23
Support WPL 998744 Contact Us For Availability
24
Screw, 8 x 1/4 (2) WPL 145450 Contact Us For Availability
25
Relay, Start WPL 876693 Contact Us For Availability
26
Retainer, Cover WPL 831282 Contact Us For Availability
27
Cover, Terminal WPL 865068 Contact Us For Availability
28
Overload WPL 876690 Contact Us For Availability
29
Spring, Overload WPL 549086 Contact Us For Availability
× ![]()
