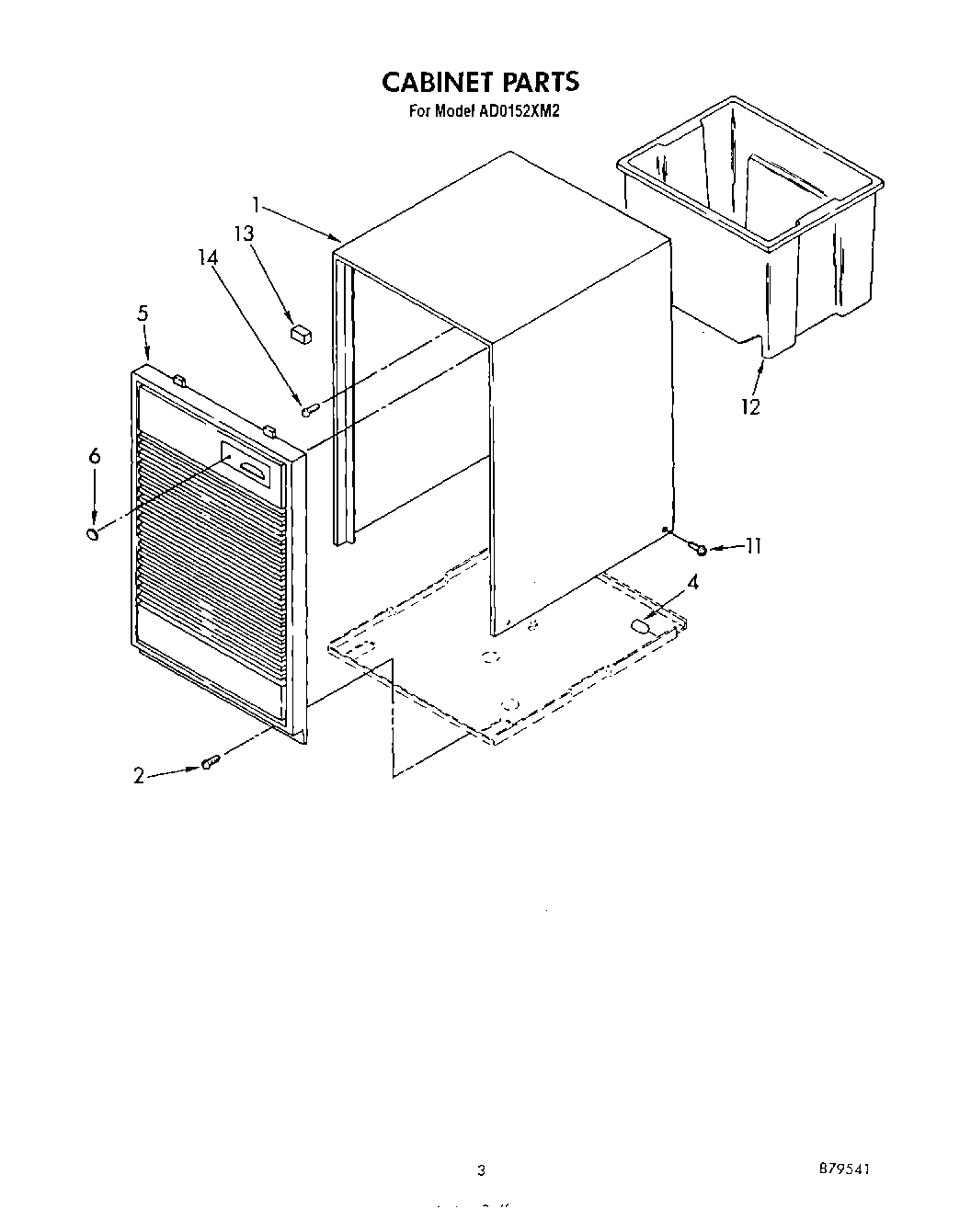

Model Whirlpool AD0152XM2 DEHUMIDIFIER – Common Parts & Diagrams

Sheet, Tech And Wiring Diagram
Sheet, Tech And Wiring Diagram WPL LIT1155408 Contact Us For Availability
View on Model
Guide, Use And Care
Guide, Use And Care WPL LIT1155876 Contact Us For Availability
View on Model
List, Repair Parts
List, Repair Parts WPL LIT879541 Contact Us For Availability
View on Model
1
Light, Indicator
Light, Indicator WPL 1155666 Contact Us For Availability
View on Model
1
Cabinet
Cabinet WPL 998821 Contact Us For Availability
View on Model
2
Humidistat, Control
Humidistat, Control WPL 1155848 Contact Us For Availability
View on Model
3
Bracket, Control
Bracket, Control WPL 951285 Contact Us For Availability
View on Model
4
Knob, Humidistat Control
Knob, Humidistat Control WPL 998859 Contact Us For Availability
View on Model
4
Cap, Thread Cover (2)
Cap, Thread Cover (2) WPL 998869 Contact Us For Availability
View on Model
5
Screw, S.M. No.8 x 3/8A
Screw, S.M. No.8 x 3/8A WPL 488624 Contact Us For Availability
View on Model
5
Grille, Front
Grille, Front WPL 950269 Contact Us For Availability
View on Model
6
Bracket, Fan Motor Mounting
Bracket, Fan Motor Mounting WPL 998777 Contact Us For Availability
View on Model
6
Lens, Light
Lens, Light WPL 998846 Contact Us For Availability
View on Model
10
Motor, Fan
Motor, Fan WPL 1155662 Contact Us For Availability
View on Model
11
Relay, Start
Relay, Start WPL 950249 Contact Us For Availability
View on Model
11
Blade, Fan
Blade, Fan WPL 949645 Contact Us For Availability
View on Model
11
Screw, TC 8-32 x 3/8 (4)
Screw, TC 8-32 x 3/8 (4) WPL 489016 Contact Us For Availability
View on Model
12
Cover, Terminal
Cover, Terminal WPL 950055 Contact Us For Availability
View on Model
12
Screw, Set 1/4-28 x 5/16
Screw, Set 1/4-28 x 5/16 WPL 488035 Contact Us For Availability
View on Model
12
Pan, Condensate
Pan, Condensate WPL 951901 Contact Us For Availability
View on Model
13
Retainer, Cover
Retainer, Cover WPL 950056 Contact Us For Availability
View on Model
13
Switch, Water Level Control
Switch, Water Level Control WPL 998783 Contact Us For Availability
View on Model
13
Spacer, Grille
Spacer, Grille WPL 948584 Contact Us For Availability
View on Model
14
5/8`` Tube O.D.
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
View on Model
14
Tape, No Drip 30`
Tape, No Drip 30` WPL 505168 Contact Us For Availability
View on Model
14
Evaporator
Evaporator WPL 995082 Contact Us For Availability
View on Model
14
Lacquer, Starlight Gray (1/2 Pt. Uncut)
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
View on Model
14
Cap, Condensate Pan
Cap, Condensate Pan WPL 646753 Contact Us For Availability
View on Model
14
Epoxy, Tube (Aluminum Repair)
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
View on Model
14
1/2`` Tube O.D.
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
View on Model
14
Seal, Ring Access Valve (20 - Pack)
Seal, Ring Access Valve (20 - Pack) WPL 978965 Contact Us For Availability
View on Model
15
Cord, Appliance
Cord, Appliance WPL 1155670 Contact Us For Availability
View on Model
16
Plate, Orifice
Plate, Orifice WPL 998779 Contact Us For Availability
View on Model
17
Seal
Seal WPL 998802 Contact Us For Availability
View on Model
18
Screw, 1/4-28 x 1`` (4)
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
View on Model
18
Palnut, 3/8-32
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
View on Model
19
Harness, Wire
Harness, Wire WPL 484136 Contact Us For Availability
View on Model
19
Spring, Water Level
Spring, Water Level WPL 998730 Contact Us For Availability
View on Model
20
Grommet (4)
Grommet (4) WPL 646498 Contact Us For Availability
View on Model
21
Base
Base WPL 950359 Contact Us For Availability
View on Model
21
Washer, Repair (.060 Thickness)
Washer, Repair (.060 Thickness) WPL 489029 Contact Us For Availability
View on Model
21
Washer, Repair (.030 Thickness)
Washer, Repair (.030 Thickness) WPL 489083 Contact Us For Availability
View on Model
21
Washer, Repair (.045 Thickness)
Washer, Repair (.045 Thickness) WPL 489091 Contact Us For Availability
View on Model
22
Glide (2)
Glide (2) WPL 951886 Contact Us For Availability
View on Model
23
Support
Support WPL 998744 Contact Us For Availability
View on Model
24
Screw, 8 x 1/4 (2)
Screw, 8 x 1/4 (2) WPL 145450 Contact Us For Availability
View on Model
25
Relay, Start
Relay, Start WPL 876693 Contact Us For Availability
View on Model
26
Retainer, Cover
Retainer, Cover WPL 831282 Contact Us For Availability
View on Model
27
Cover, Terminal
Cover, Terminal WPL 865068 Contact Us For Availability
View on Model
28
Overload
Overload WPL 876690 Contact Us For Availability
View on Model
29
Spring, Overload
Spring, Overload WPL 549086 Contact Us For Availability
