  • Whirlpool AD0122XM3

Model Whirlpool AD0122XM3 DEHUMIDIFIER – Common Parts & Diagrams

Sheet, Tech and Wiring Diagram
Sheet, Tech and Wiring Diagram WPL LIT1155825 Contact Us For Availability
View on Model
Guide, Use And Care
Guide, Use And Care WPL LIT1155876 Contact Us For Availability
View on Model

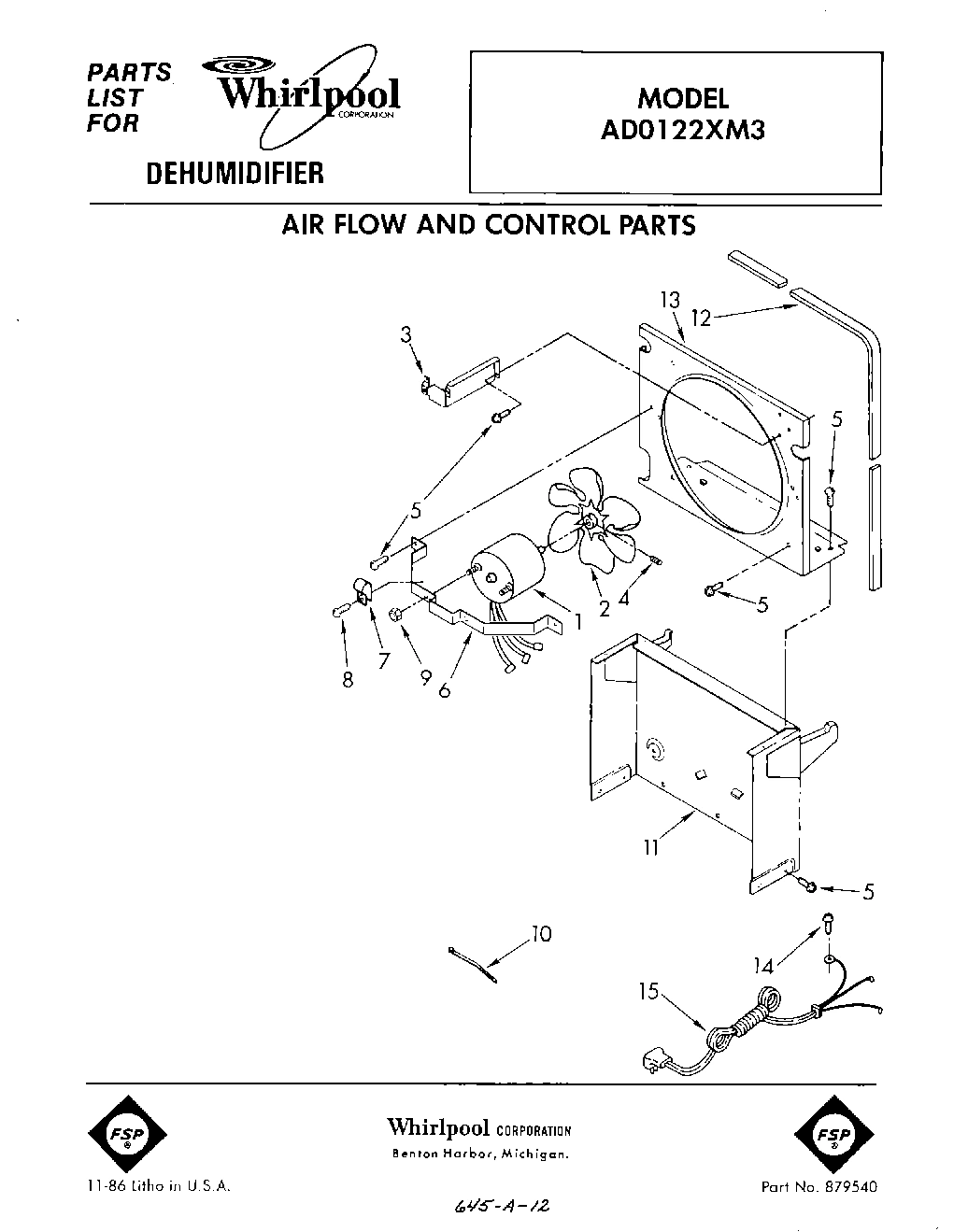

List, Repair Parts
List, Repair Parts WPL LIT879540 Contact Us For Availability
View on Model
1

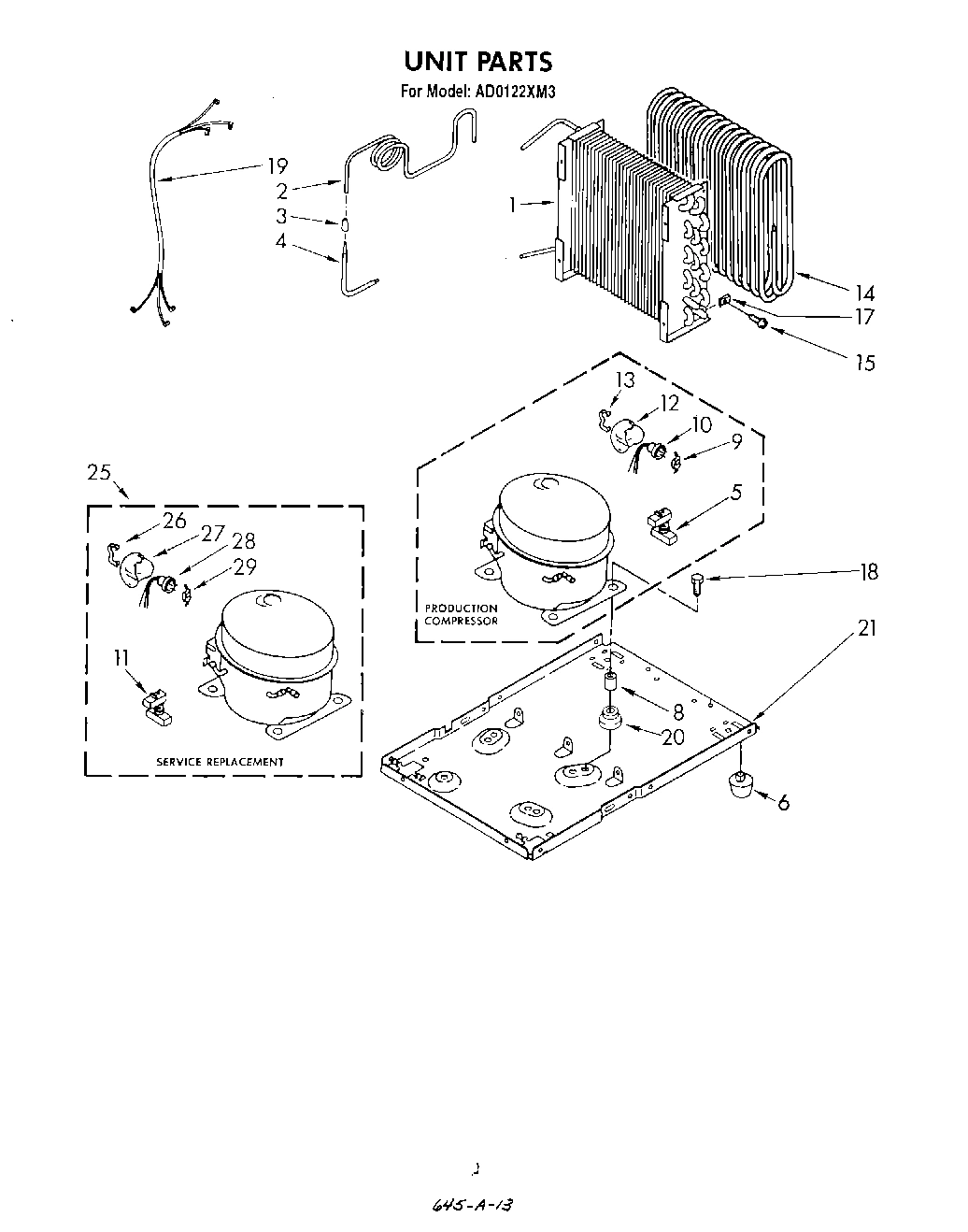

Condenser
Condenser WPL 949893 Contact Us For Availability
View on Model
1

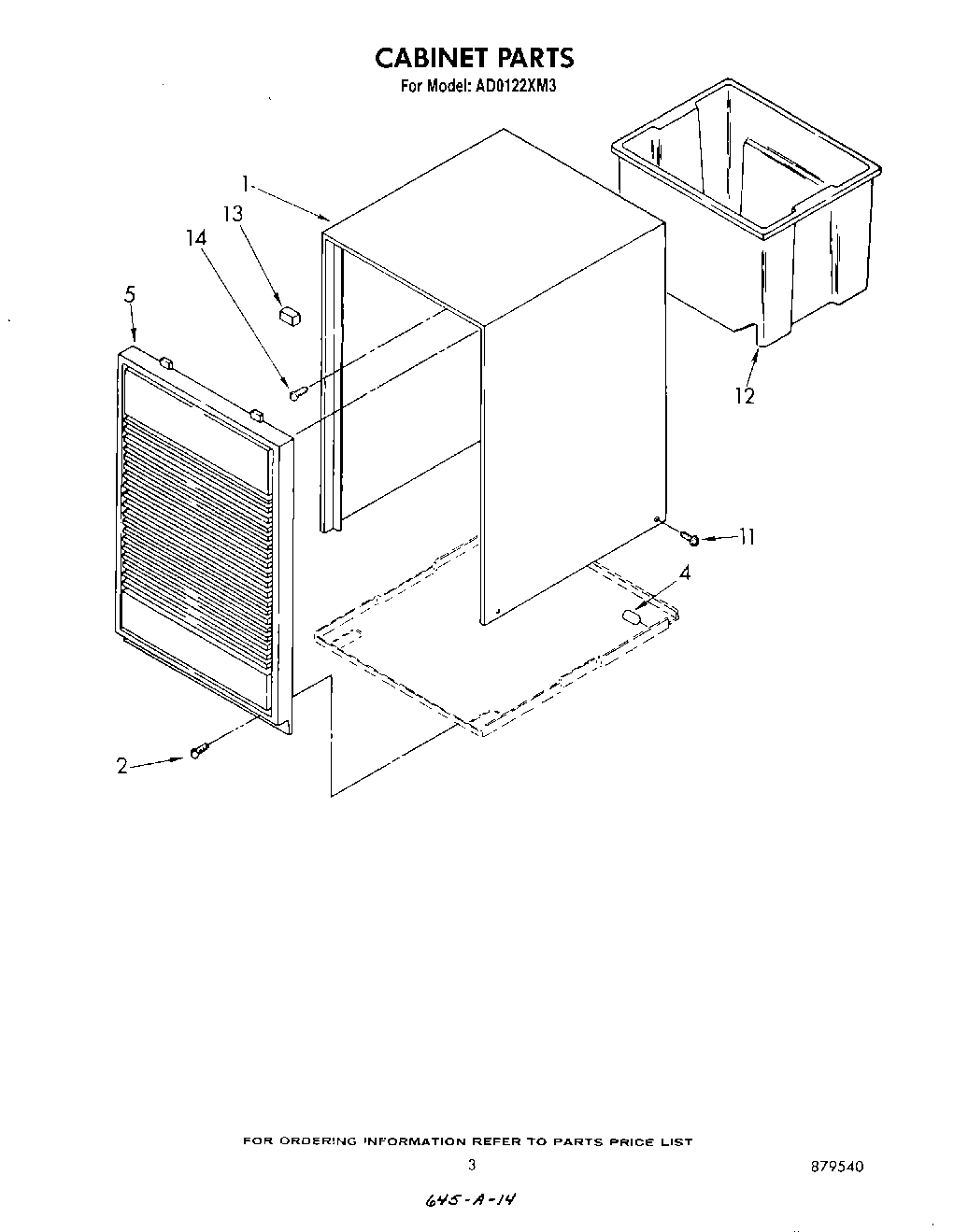

Cabinet
Cabinet WPL 998820 Contact Us For Availability
View on Model
2
Tube, Restrictor (35.0`` Length)
Tube, Restrictor (35.0`` Length) WPL 998759 Contact Us For Availability
View on Model
3
Strainer, Tube
Strainer, Tube WPL 474013 Contact Us For Availability
View on Model
4
Tube, Outlet (Includes Item 3)
Tube, Outlet (Includes Item 3) WPL 949896 Contact Us For Availability
View on Model
4
Cap, Thread Cover (2)
Cap, Thread Cover (2) WPL 998869 Contact Us For Availability
View on Model
5
Relay, Start
Relay, Start WPL 951720 Contact Us For Availability
View on Model
5
Grille, Front
Grille, Front WPL 950385 Contact Us For Availability
View on Model
6
Glide (4)
Glide (4) WPL 951886 Contact Us For Availability
View on Model
8
Sleeve (4)
Sleeve (4) WPL 646498 Contact Us For Availability
View on Model
9
Spring, Overload
Spring, Overload WPL 950061 Contact Us For Availability
View on Model
10
Overload, Protector
Overload, Protector WPL 951663 Contact Us For Availability
View on Model
11
Support
Support WPL 998729 Contact Us For Availability
View on Model
11
Relay, Starting
Relay, Starting WPL 549380 Contact Us For Availability
View on Model
11
Screw, TC 8-32 x 3/8 (4)
Screw, TC 8-32 x 3/8 (4) WPL 489016 Contact Us For Availability
View on Model
12
Seal
Seal WPL 998802 Contact Us For Availability
View on Model
12
Cover, Terminal
Cover, Terminal WPL 950055 Contact Us For Availability
View on Model
12
Pan, Condensate
Pan, Condensate WPL 951901 Contact Us For Availability
View on Model
13
Plate, Orifice
Plate, Orifice WPL 998779 Contact Us For Availability
View on Model
13
Retainer, Cover
Retainer, Cover WPL 950056 Contact Us For Availability
View on Model
13
Spacer, Grille
Spacer, Grille WPL 948584 Contact Us For Availability
View on Model
14
5/8`` Tube O.D.
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
View on Model
14
Tape, No Drip (30` Roll) Valve, Access
Tape, No Drip (30` Roll) Valve, Access WPL 505168 Contact Us For Availability
View on Model
14
Evaporator
Evaporator WPL 998743 Contact Us For Availability
View on Model
14
Paint, Touch-Up Starlite 1/2 Pt. Laquer
Paint, Touch-Up Starlite 1/2 Pt. Laquer WPL 485426 Contact Us For Availability
View on Model
14
Cap, Condensate Pan
Cap, Condensate Pan WPL 646753 Contact Us For Availability
View on Model
14
Epoxy, Tube (Aluminum Repair)
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
View on Model
14
1/2`` Tube O.D.
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
View on Model
14
Seal, Ring (Access Valve) (20 - Pack)
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
View on Model
15
Cord, Appliance
Cord, Appliance WPL 1155671 Contact Us For Availability
View on Model
18
Screw, 1/4-28 x 1`` (4)
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
View on Model
19
Harness, Wire
Harness, Wire WPL 484136 Contact Us For Availability
View on Model
20
Grommet (4)
Grommet (4) WPL 646499 Contact Us For Availability
View on Model
21
Base
Base WPL 949976 Contact Us For Availability
View on Model
25
Compressor, Service (Complete Assembly)
Compressor, Service (Complete Assembly) WPL 484210 Contact Us For Availability
View on Model
26
Retainer, Cover
Retainer, Cover WPL 549342 Contact Us For Availability
View on Model
27
Cover, Terminal
Cover, Terminal WPL 549336 Contact Us For Availability
View on Model
28
Overload
Overload WPL 649833 Contact Us For Availability
View on Model
29
Spring, Overload
Spring, Overload WPL 549086 Contact Us For Availability
View on Model
