Model Whirlpool ACW864XP0 AIR CONDITIONER – Common Parts & Diagrams

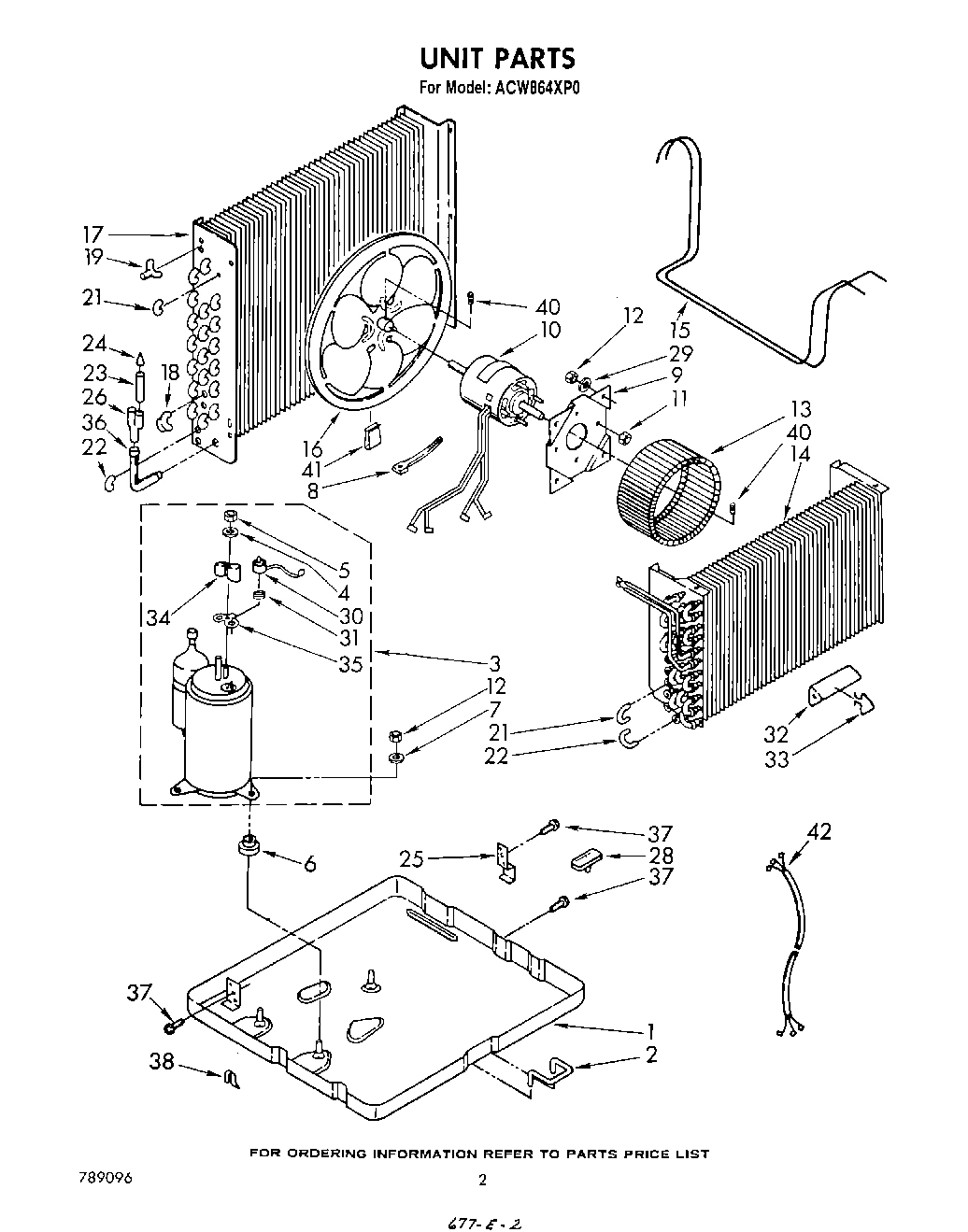

02 - UNIT

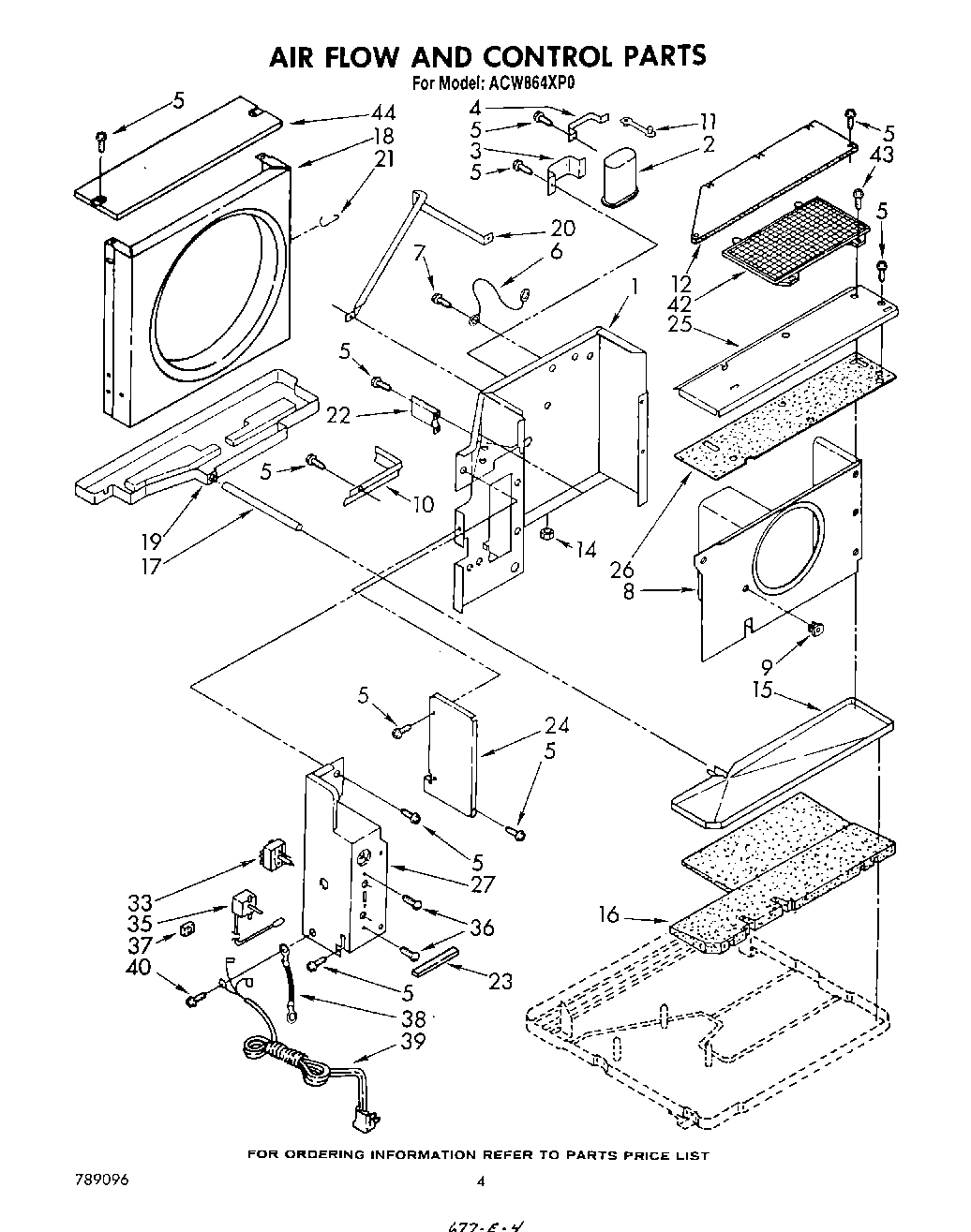

03 - AIRFLOW AND CONTROL , LIT/OPTIONAL
04 - ACCESSORY KIT
05 - CABINET , FRONT
Common parts from model Whirlpool ACW864XP0 AIR CONDITIONER
1
wall, dividing (requires insulation 649939) WPL 947417 Contact Us For Availability
1
Kit, Condensate Cup WPL 978929 Contact Us For Availability
1
Retainer, Filter WPL 476707 Contact Us For Availability
1
cabinet (requires insulation no. 649939) WPL 853367 Contact Us For Availability
2
Capacitor, Running WPL 949092 Contact Us For Availability
2
Kit, Outside Support WPL 485679 Contact Us For Availability
2
Filter WPL 648008 Contact Us For Availability
3
Bracket, Running Capacitor WPL 852992 Contact Us For Availability
3
Kit, Wide Window WPL 485676 Contact Us For Availability
3
Seal, Cabinet Front WPL 647914 Contact Us For Availability
4
Bracket, Running Capacitor WPL 475844 Contact Us For Availability
4
Kit, Quick Mount WPL 485675 Contact Us For Availability
4
screw WPL 487371 Contact Us For Availability
4
Spring, Detent (2) WPL 641484 Contact Us For Availability
5
Kit, Standard Installation WPL 485674 Contact Us For Availability
5
Link, Vertical Louver (2) WPL 647799 Contact Us For Availability
5
Panel, Front WPL 853974 Contact Us For Availability
6
Wire, Capacitor Ground WPL 948285 Contact Us For Availability
6
Louver, Vertical WPL 647798 Contact Us For Availability
7
Bolt, 1/4-20 x 3/4 WPL 488750 Contact Us For Availability
7
Handle, Vertical Louver (2) WPL 644165 Contact Us For Availability
7
seal, weather WPL 649972 Contact Us For Availability
8
Housing, Blower Wheel WPL 852875 Contact Us For Availability
8
Seal, Cabinet Bottom WPL 647854 Contact Us For Availability
8
Seal WPL 649198 Contact Us For Availability
9
Cup, Condensate WPL 647850 Contact Us For Availability
9
Fastener, snap (2) WPL 487808 Contact Us For Availability
9
Grommet, Appliance Cable WPL 647849 Contact Us For Availability
10
Motor, Fan WPL 948206 Contact Us For Availability
10
Channel, Wiring WPL 852317 Contact Us For Availability
10
Support, Cup WPL 995075 Contact Us For Availability
10
front, cabinet WPL 947659 Contact Us For Availability
10
cabinet assembly WPL A0W23W1 Contact Us For Availability
11
Lockwasher WPL 486009 No Longer Available
11
Clamp, Cable WPL 648791 Contact Us For Availability
11
clip, front mounting (2) WPL 649966 Contact Us For Availability
12
Nut, Lock WPL 858122 Contact Us For Availability
12
cover, discharge WPL 947943 Contact Us For Availability
12
Nut, 1/4-20 WPL 486035 Contact Us For Availability
12
Wire, Ground WPL 857017 Contact Us For Availability
13
Wheel, Blower WPL 859495 Contact Us For Availability
13
Bracket, Cabinet Support WPL 644281 Contact Us For Availability
13
Screw, 8 x 3/8 WPL 488854 Contact Us For Availability
14
Evaporator WPL 950174 Contact Us For Availability
14
Clip, Speed WPL 853831 Contact Us For Availability
14
Support, Cabinet (2) WPL 644283 Contact Us For Availability
14
Screw, 8 x 3/8 WPL 488853 Contact Us For Availability
15
tube, restrictor (2) (Length 40.0``) WPL 951539 Contact Us For Availability
15
Pan, Evaporator Condensate WPL 853268 Contact Us For Availability
15
Extension, Support (2) WPL 644284 Contact Us For Availability
16
Blade, Fan WPL 859496 Contact Us For Availability
16
insulation, condendate pan WPL 853269 Contact Us For Availability
16
Retainer, Support (2) WPL 644285 Contact Us For Availability
16
accessory bag WPL 948213 Contact Us For Availability
17
Condenser WPL 951538 Contact Us For Availability
17
Tube, Condensate WPL 465777 Contact Us For Availability
17
Knob, Control WPL 947264 Contact Us For Availability
18
Bend, Return (3-Way) WPL 953169 Contact Us For Availability
18
Shroud, Condenser WPL 853356 Contact Us For Availability
18
gas, meeting rail WPL 479158 Contact Us For Availability
18
plate, escutcheon WPL 952531 Contact Us For Availability
19
Bend, Return (3-Way) WPL 476078 Contact Us For Availability
19
pan, condenser condensaste WPL 853391 Contact Us For Availability
19
Board, Filler (2) WPL 647835 Contact Us For Availability
19
Spacer, Escutcheon Plate WPL 470036 Contact Us For Availability
20
Support, Unit WPL 852318 Contact Us For Availability
20
Bracket, Mounting (R.S.) WPL 485454 Contact Us For Availability
20
Bracket, Mounting (L.S.) WPL 485455 Contact Us For Availability
20
Front, Cabinet Assembly WPL 947658 Contact Us For Availability
20
(See Optional Parts) WPL ARI144152A Contact Us For Availability
21
bend, return (evaporator (15)) WPL 855199 Contact Us For Availability
21
Retainer, Shroud Cover (3) WPL 647873 Contact Us For Availability
21
Retainer, Curtain (2) WPL 644388 Contact Us For Availability
22
Bend, (return condenser (3)) WPL 854624 Contact Us For Availability
22
cover, dividing WPL 853329 Contact Us For Availability
22
Strip, Seal WPL 477597 Contact Us For Availability
23
Tube, Outlet (Includes Illus. 24) WPL 484230 Contact Us For Availability
23
Channel, Bottom Mounting WPL 644387 Contact Us For Availability
24
Strainer WPL 49599 Contact Us For Availability
24
Wall, Dividing L.S. WPL 852994 Contact Us For Availability
24
Screw, SM No.8 x 7/16A (6) WPL 488730 Contact Us For Availability
25
Condenser, Support (R.S.) WPL 647824 Contact Us For Availability
25
Cover, Evaporator WPL 856957 Contact Us For Availability
25
Curtain Housing Assembly, R.S. WPL 647840 Contact Us For Availability
25
Curtain Housing Assembly, L.S. WPL 647841 Contact Us For Availability
26
Tube, Flow Divider WPL 947364 Contact Us For Availability
26
Insulation, Evaporator Cover WPL 948410 Contact Us For Availability
26
Thumbscrew (2) WPL 475581 Contact Us For Availability
27
box, control WPL 952362 Contact Us For Availability
27
Seal, Meeting Rail WPL 469877 Contact Us For Availability
28
Washer (2) WPL 488520 Contact Us For Availability
29
Washer, Shim WPL 470280 Contact Us For Availability
30
Overload WPL 950073 Contact Us For Availability
30
Channel, Top Mounting WPL 644380 Contact Us For Availability
31
Spring, Overload WPL 950032 Contact Us For Availability
31
Seal WPL 855265 Contact Us For Availability
32
Anticipator, Temperature WPL 475573 Contact Us For Availability
32
Bracket, Window Lock WPL 644228 Contact Us For Availability
33
Clip, Anticipator WPL 475577 Contact Us For Availability
33
Switch, Rotary WPL 950523 Contact Us For Availability
33
Block, Spacer (4) WPL 995274 Contact Us For Availability
34
Wood Screw, No.8 x 3/4 (5) WPL 488255 Contact Us For Availability
35
Control, Tempetature WPL 949431 Contact Us For Availability
35
Bracket, R.S. WPL 645562 Contact Us For Availability
35
Bracket, L.S. WPL 645563 Contact Us For Availability
36
tube, 90o WPL 950814 Contact Us For Availability
36
Screw, Mach 6-32 x .175 (2) WPL 488734 Contact Us For Availability
36
Strip, Seal WPL 856979 Contact Us For Availability
37
Grommet, Wiring WPL 647865 Contact Us For Availability
37
Angle, Side Mounting (2) WPL 645564 Contact Us For Availability
38
Clamp, Restrictor Tube WPL 642684 Contact Us For Availability
38
Wire, Ground WPL 857634 Contact Us For Availability
39
cable, appliance WPL 997694 Contact Us For Availability
40
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
41
Clip, Balancing WPL 485334 Contact Us For Availability
42
(5/8``) tube WPL 978029 Contact Us For Availability
42
Tape, No Drip WPL 505168 Contact Us For Availability
42
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
42
Harness, Wiring WPL 484136 Contact Us For Availability
42
epoxy, aluminum WPL 484310 Contact Us For Availability
42
(1/2``) tube WPL 978028 Contact Us For Availability
42
Guard, Blower Wheel WPL 997949 Contact Us For Availability
44
Cover, Winter WPL 484069 Contact Us For Availability
44
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
44
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
44
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
44
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
44
cord, retainer (winter, cover) WPL 813610 Contact Us For Availability
44
Cover, Shroud (Condenser) WPL 853390 Contact Us For Availability
× ![]()
