Model Whirlpool ACW094XT0 AIR CONDITIONER – Common Parts & Diagrams

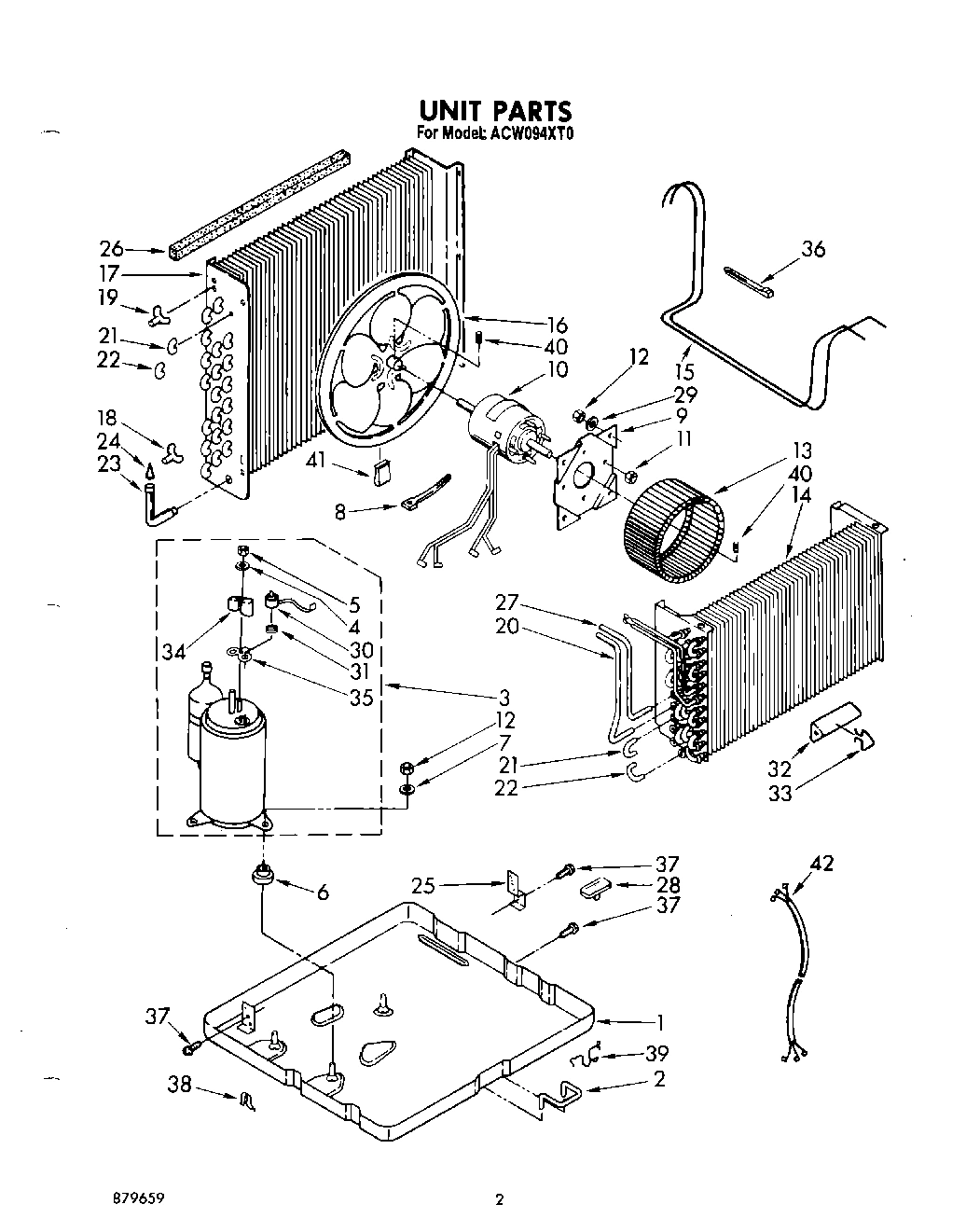

02 - UNIT

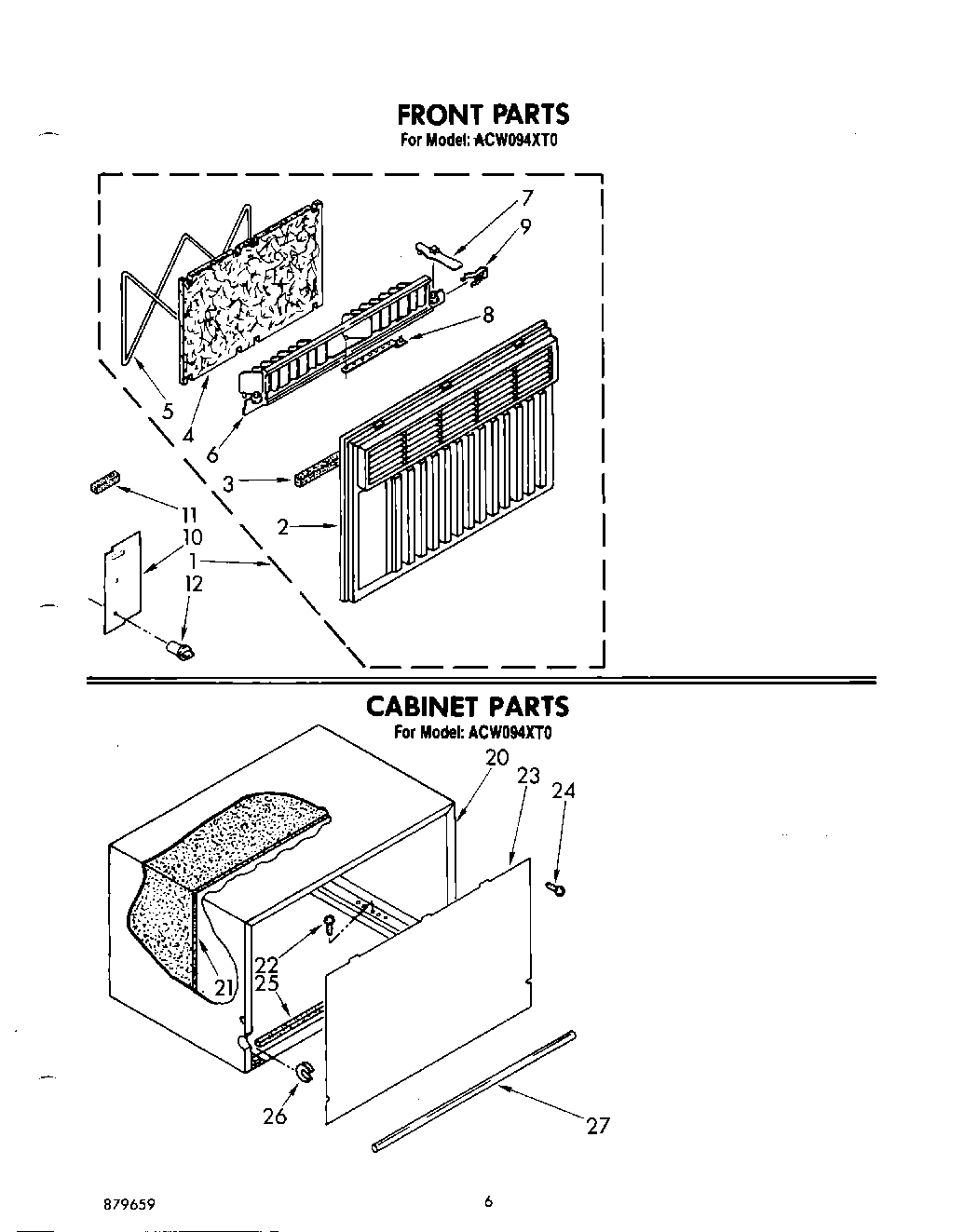

04 - FRONT, CABINET

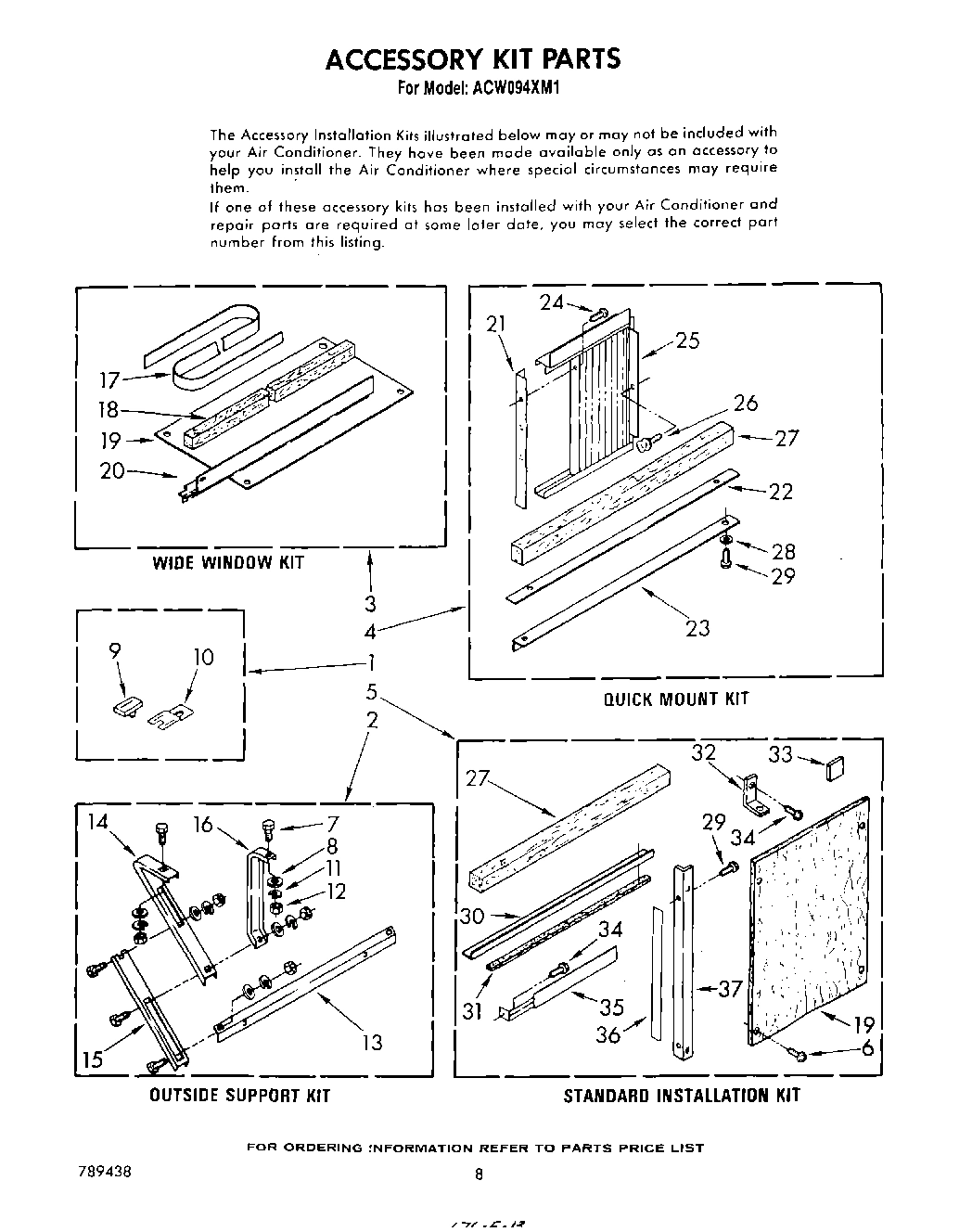

06 - ACCESSORY KIT

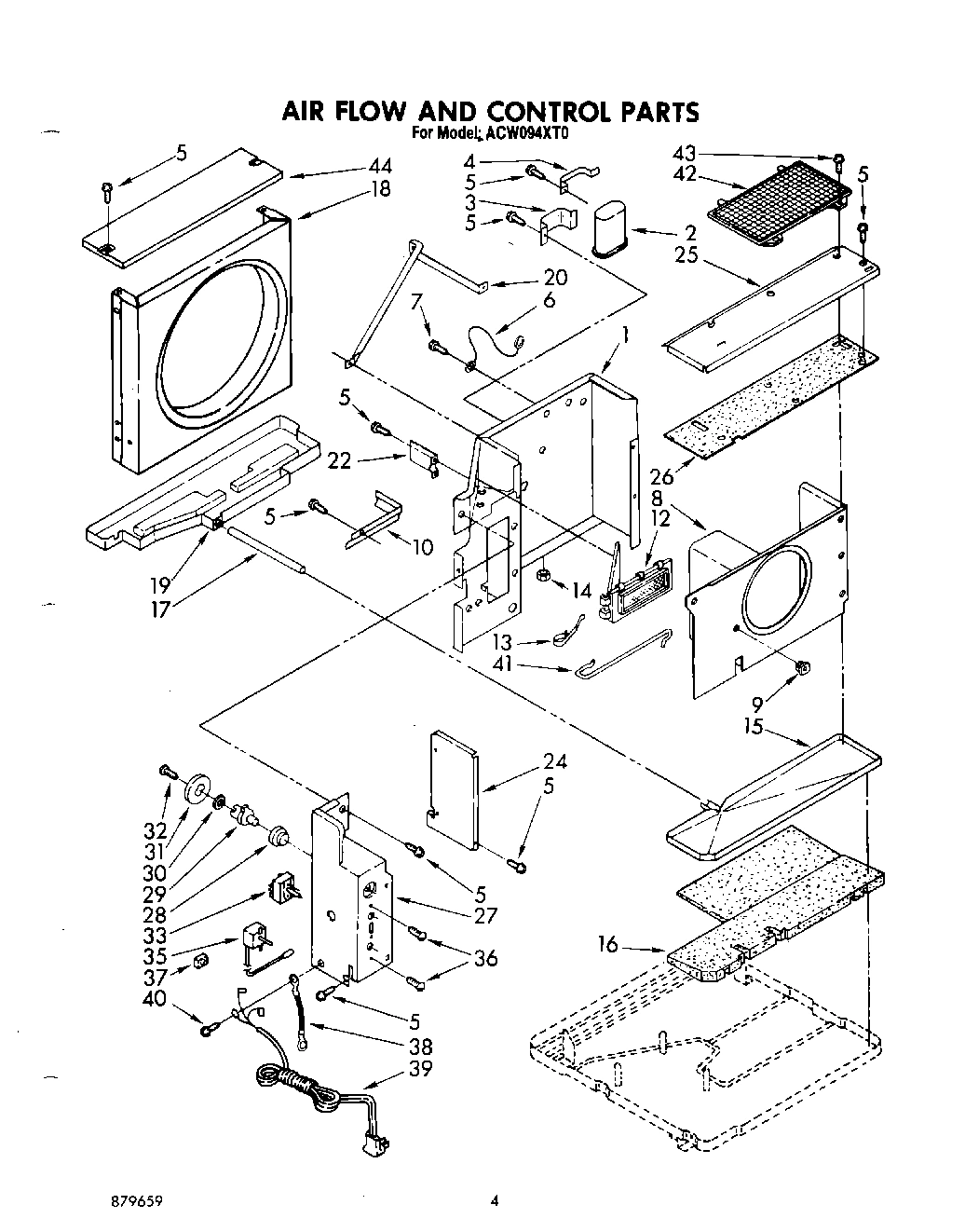

03 - AIRFLOW AND CONTROL

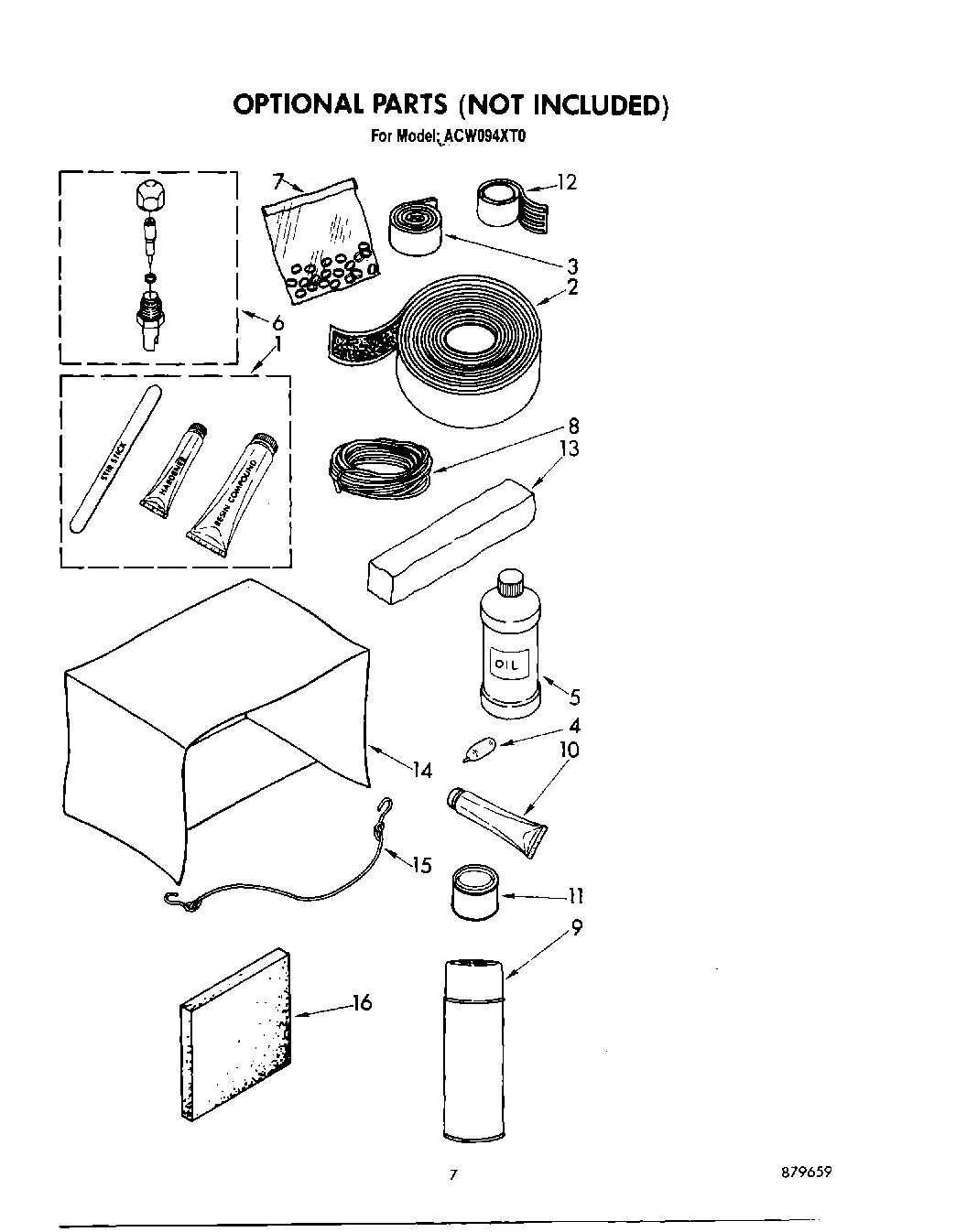

05 - OPTIONAL
Common parts from model Whirlpool ACW094XT0 AIR CONDITIONER
1
Front, Cabinet (Complete Assembly) WPL 951115 Contact Us For Availability
1
Kit, Condensate Cup WPL 978929 Contact Us For Availability
1
Wall, Dividing WPL 998003 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Frame, Front WPL 950539 Contact Us For Availability
2
Kit, Outside Support WPL 485679 Contact Us For Availability
2
Capacitor, Running WPL 999781 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Seal, Front (Middle) WPL 647914 Contact Us For Availability
3
Kit, Wide Window WPL 485676 Contact Us For Availability
3
Bracket, Running Capacitor WPL 852992 Contact Us For Availability
4
Filter, Air WPL 648008 Contact Us For Availability
4
Kit, Quick Mount WPL 485675 Contact Us For Availability
4
Bracket, Running Capacitor WPL 475844 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Retainer, Filter WPL 476707 Contact Us For Availability
5
Kit, Standard Installation WPL 485674 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Louver, Vertical WPL 647798 Contact Us For Availability
6
Wire, Capacitor Ground WPL 948285 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Handle, WPL 644165 Contact Us For Availability
7
Bolt, 1/4-20 x 3/4 WPL 488750 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Link, Louver (2) WPL 647799 Contact Us For Availability
8
Housing, Blower Wheel WPL 852875 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Cup, Condensate WPL 647850 Contact Us For Availability
9
Spring, Clip (2) WPL 641484 Contact Us For Availability
9
Fastener, snap (2) WPL 487808 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Plate, Escutcheon WPL 952597 Contact Us For Availability
10
Support, Cup WPL 995075 Contact Us For Availability
10
Channel, Wiring WPL 852317 Contact Us For Availability
11
Lockwasher WPL 486009 Contact Us For Availability
11
Spacer, Plate (3) WPL 470036 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Nut, Lock WPL 858122 Contact Us For Availability
12
Knob, Control (3) WPL 947264 Contact Us For Availability
12
Nut, 1/4-20 WPL 486035 Contact Us For Availability
12
Door, Exhaust WPL 649720 Contact Us For Availability
13
Wheel, Blower WPL 859495 Contact Us For Availability
13
Bracket, Cabinet Support WPL 644281 Contact Us For Availability
13
Spring, Exhaust Door WPL 859369 Contact Us For Availability
14
Cover, Winter WPL 484069 Contact Us For Availability
14
Evaporator WPL 950174 Contact Us For Availability
14
Support, Cabinet (2) WPL 644283 Contact Us For Availability
14
Clip, Speed WPL 853831 Contact Us For Availability
15
tube, restrictor (2) (Length 40.0``) WPL 951539 Contact Us For Availability
15
Extension, Support (2) WPL 644284 Contact Us For Availability
15
Pan, Evaporator Condensate WPL 853268 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Blade, Fan WPL 859496 Contact Us For Availability
16
Retainer, Support (2) WPL 644285 Contact Us For Availability
16
Insulation, Condensate Pan WPL 853269 Contact Us For Availability
16
Cabinet (Right Side) WPL 647847 Contact Us For Availability
16
Cabinet (Left side) WPL 647848 Contact Us For Availability
16
Cabinet (Top) WPL 950157 Contact Us For Availability
17
Condenser WPL 951538 Contact Us For Availability
17
Tube, Condensate WPL 465777 Contact Us For Availability
18
Bend, Return (3-Way) WPL 953169 Contact Us For Availability
18
Gasket, Meeting Rail WPL 479158 Contact Us For Availability
18
Shroud, Condenser WPL 853356 Contact Us For Availability
19
Bend, Return (3-Way) WPL 476078 Contact Us For Availability
19
Board, Filler (2) WPL 647835 Contact Us For Availability
19
pan, condenser condensaste WPL 853391 Contact Us For Availability
20
Tube, Outlet (Front) WPL 993755 Contact Us For Availability
20
Cabinet WPL 857273 Contact Us For Availability
20
Bracket, Mounting (R.S.) WPL 485454 Contact Us For Availability
20
Bracket, Mounting (L.S.) WPL 485455 Contact Us For Availability
20
Support, Unit WPL 852318 Contact Us For Availability
21
Bend, Return Condenser (22) Evaporator (15) WPL 855199 Contact Us For Availability
21
Insulation, Cabinet (Top And Sides) WPL 855438 Contact Us For Availability
21
Retainer, Curtain (2) WPL 644388 Contact Us For Availability
22
Bend, Return Condenser (3) Evaporator (4) WPL 854624 Contact Us For Availability
22
Screw, Wood No. 10 x 3/4 (8) WPL 487371 Contact Us For Availability
22
Strip, Seal WPL 477597 Contact Us For Availability
22
Cover, Dividing Wall WPL 853329 Contact Us For Availability
23
Tube, Outlet (Includes No.24) WPL 484230 Contact Us For Availability
23
Panel, Front WPL 853974 Contact Us For Availability
23
Channel, Bottom Mounting WPL 644387 Contact Us For Availability
24
Strainer, Tube WPL 49599 Contact Us For Availability
24
Screw, SM No.8 x 7/16A (6) WPL 488730 Contact Us For Availability
24
Wall, Dividing L.S. WPL 852994 Contact Us For Availability
25
Condenser, Support (R.S.) WPL 647824 Contact Us For Availability
25
Seal, Cabinet Weather WPL 649972 Contact Us For Availability
25
Seal, Cabinet (Bottom) WPL 998961 Contact Us For Availability
25
Curtain Housing Assembly, R.S. WPL 647840 Contact Us For Availability
25
Curtain Housing Assembly, L.S. WPL 647841 Contact Us For Availability
25
Cover, Evaporator WPL 856957 Contact Us For Availability
26
Grommet, Cable WPL 647849 Contact Us For Availability
26
Thumbscrew (2) WPL 475581 Contact Us For Availability
26
Insulation, Evaporator Cover WPL 948410 Contact Us For Availability
27
Tube, Outlet (Rear) WPL 993756 Contact Us For Availability
27
Seal, Meeting Rail WPL 469877 Contact Us For Availability
27
Box, Control WPL 994174 Contact Us For Availability
28
Washer (2) WPL 488520 Contact Us For Availability
28
Bushing, Control Shaft WPL 647879 Contact Us For Availability
29
Washer, Shim WPL 470280 Contact Us For Availability
29
Shaft, Control WPL 852023 Contact Us For Availability
30
Overload WPL 1156038 Contact Us For Availability
30
Channel, Top Mounting WPL 644380 Contact Us For Availability
30
Washer, Spring WPL 647881 Contact Us For Availability
31
Spring, Overload WPL 950032 Contact Us For Availability
31
Seal WPL 855265 Contact Us For Availability
31
Cam, Control WPL 647882 Contact Us For Availability
32
Anticipator, Temperature WPL 475573 Contact Us For Availability
32
Bracket, Window Lock WPL 644228 Contact Us For Availability
33
Clip, Anticipator WPL 475577 Contact Us For Availability
33
Block, Spacer (4) WPL 995274 Contact Us For Availability
33
Switch, Rotary WPL 950523 Contact Us For Availability
34
Wood Screw, No.8 x 3/4 (5) WPL 488255 Contact Us For Availability
35
Bracket, R.S. WPL 645562 Contact Us For Availability
35
Bracket, L.S. WPL 645563 Contact Us For Availability
35
Control, Tempetature WPL 949431 Contact Us For Availability
36
Strip, Seal WPL 856979 Contact Us For Availability
36
Screw, Mach 6-32 x .175 (2) WPL 488734 Contact Us For Availability
37
Instructions, Installation (Kit, Quick Mount) WPL 485687 Contact Us For Availability
37
Instructions, Installation (Kit, Wide Window) WPL 485688 Contact Us For Availability
37
Instructions, Installation (Kit, Outside Supp WPL 485707 Contact Us For Availability
37
Angle, Side Mounting (2) WPL 645564 Contact Us For Availability
37
Instructions, Installation (Kit, Condensate C WPL 978930 Contact Us For Availability
37
Instructions, Installation (Kit, Standard Ins WPL 993380 Contact Us For Availability
37
Grommet, Wiring WPL 647865 Contact Us For Availability
38
Clamp, Restrictor Tube WPL 642684 Contact Us For Availability
38
Wire, Ground WPL 857634 Contact Us For Availability
39
Clip, Mtg. (2) (Base to Front) WPL 949634 Contact Us For Availability
39
cable, appliance WPL 997694 Contact Us For Availability
40
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
41
Clip, Balancing WPL 876034 Contact Us For Availability
41
Wire, Control WPL 859370 Contact Us For Availability
42
Harness, Wiring WPL 484136 Contact Us For Availability
42
Guard, Blower Wheel WPL 997949 Contact Us For Availability
44
Cover, Shroud (Condenser) WPL 853390 Contact Us For Availability
× ![]()
