Model Whirlpool ACW082XS0 AIR CONDITIONER – Common Parts & Diagrams

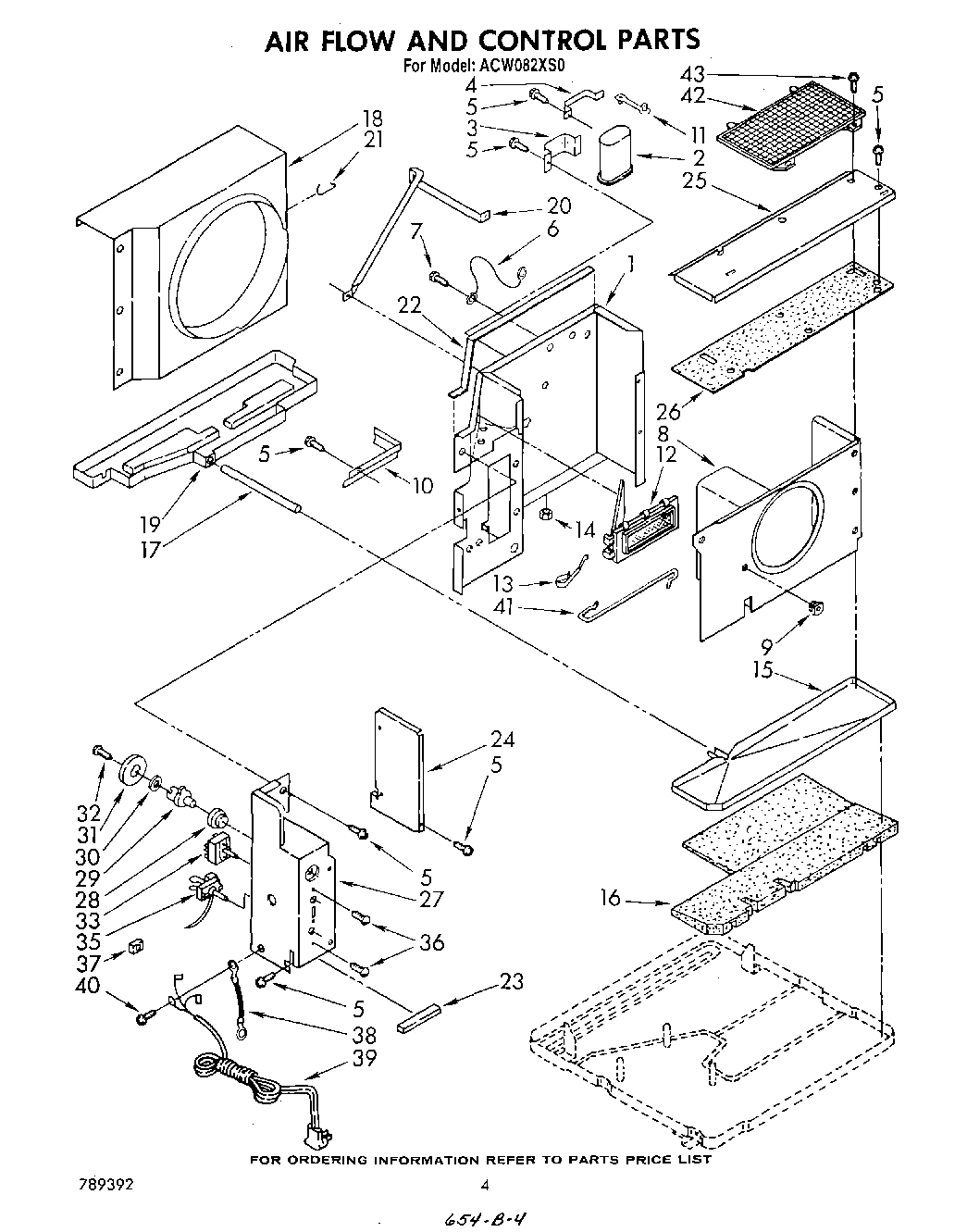

03 - AIR FLOW AND CONTROL

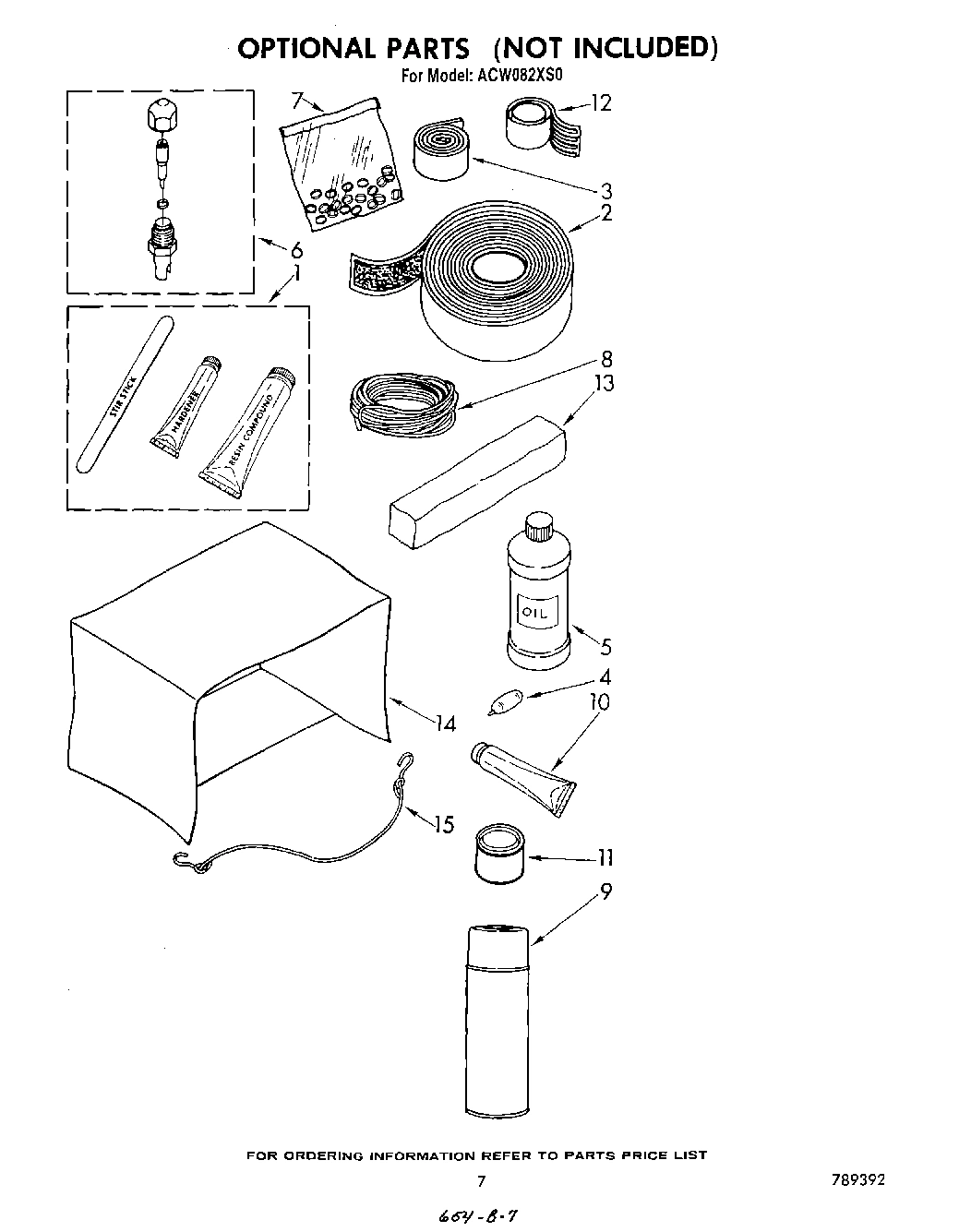

05 - LIT/OPTIONAL
06 - ACCESSORY KIT
02 - UNIT
04 - FRONT, CABINET
Common parts from model Whirlpool ACW082XS0 AIR CONDITIONER
Guide, Energy WPL LIT1155967 Contact Us For Availability
GUIDE, USE & CARE Installation WPL LIT1155971 Contact Us For Availability
List, Repair Parts WPL LIT789392 Contact Us For Availability
Sheet, Tech And Wiring Diagram WPL LIT951496 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Kit, Condensate Cup WPL 978929 Contact Us For Availability
1
Base WPL 951481 Contact Us For Availability
1
Front Assembly, Cabinet (Complete) WPL 1155387 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Kit, Outside Support WPL 485679 Contact Us For Availability
2
Handle, Base WPL 647971 Contact Us For Availability
2
Front, Cabinet WPL 1155388 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Kit, Wide Window WPL 485676 Contact Us For Availability
3
compressor WPL 813535 Contact Us For Availability
3
Door, Control WPL 1155390 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Kit, Quick Mount WPL 485675 Contact Us For Availability
4
Gasket, Nut WPL 950037 Contact Us For Availability
4
Catch, Door WPL 649949 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Kit, Standard Installation WPL 485674 Contact Us For Availability
5
Hinge, Pin (2) WPL 649943 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Plate, Name WPL 951927 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Bolt, 1/4-20 x 3/4 WPL 488750 Contact Us For Availability
7
Seal, Front (Middle) WPL 647914 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Seal, Condenser WPL 649610 Contact Us For Availability
8
Filter, Air WPL 852413 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Plate, Fan Motor WPL 998024 Contact Us For Availability
9
Retainer, Filter WPL 476707 Contact Us For Availability
10
Support, Cup WPL 995075 Contact Us For Availability
10
Motor, Fan WPL 949054 Contact Us For Availability
10
Louver, Vertical WPL 647798 Contact Us For Availability
11
Lockwasher WPL 486009 No Longer Available
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Handle, Louver (2) WPL 644165 Contact Us For Availability
12
Nut, 1/4-20 WPL 486035 Contact Us For Availability
12
Nut, Lock WPL 858122 Contact Us For Availability
12
Link, Louver (2) WPL 647799 Contact Us For Availability
13
Bracket, Cabinet Support WPL 644281 Contact Us For Availability
13
Wheel, Blower WPL 859495 Contact Us For Availability
13
Spring, Clip (2) WPL 641484 Contact Us For Availability
14
Cover, Winter WPL 484069 Contact Us For Availability
14
Support, Cabinet (2) WPL 644283 Contact Us For Availability
14
Evaporator WPL 951669 Contact Us For Availability
14
Plate, Escutcheon WPL 1155395 Contact Us For Availability
15
Pan, Evaporator Condensate WPL 853268 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Extension, Support (2) WPL 644284 Contact Us For Availability
15
Tube, Restrictor (Length 25.5``) WPL 951487 Contact Us For Availability
15
Spacer, Plate (3) WPL 470036 Contact Us For Availability
16
Insulation, Condensate Pan WPL 853269 Contact Us For Availability
16
Retainer, Support (2) WPL 644285 Contact Us For Availability
16
Blade, Fan WPL 859496 Contact Us For Availability
16
Knob, Control (3) WPL 947264 Contact Us For Availability
17
Tube, Condensate WPL 49181 Contact Us For Availability
17
Condenser WPL 951488 Contact Us For Availability
18
Shroud, Condenser WPL 647862 Contact Us For Availability
18
Gasket, Meeting Rail WPL 479158 Contact Us For Availability
18
Tube, Flow Divider WPL 947364 Contact Us For Availability
19
Pan, Condenser Condensate WPL 859238 Contact Us For Availability
19
Board, Filler (2) WPL 647835 Contact Us For Availability
19
Tube, Outlet WPL 950814 Contact Us For Availability
20
Support, Unit WPL 852318 Contact Us For Availability
20
Bracket, Mounting (R.S.) WPL 485454 Contact Us For Availability
20
Bracket, Mounting (L.S.) WPL 485455 Contact Us For Availability
20
Tube, Inlet WPL 852454 Contact Us For Availability
20
Cabinet WPL 857273 Contact Us For Availability
21
Retainer, Shroud Cover (3) WPL 647873 Contact Us For Availability
21
Retainer, Curtain (2) WPL 644388 Contact Us For Availability
21
Bend, Return Condenser (18) Evaporator (5) WPL 855199 Contact Us For Availability
21
Insulation, Cabinet (Top And Sides) WPL 855438 Contact Us For Availability
22
Strip, Seal WPL 477597 Contact Us For Availability
22
Bend, Return Condenser (4) Evaporator (10) WPL 854624 Contact Us For Availability
22
Screw, Wood No. 10 x 3/4 (8) WPL 487371 Contact Us For Availability
23
Channel, Bottom Mounting WPL 644387 Contact Us For Availability
23
Tube, Outlet (Includes No.24) WPL 484230 Contact Us For Availability
23
Panel, Front WPL 853974 Contact Us For Availability
24
Wall, Dividing L.S. WPL 852994 Contact Us For Availability
24
Screw, SM No.8 x 7/16A (6) WPL 488730 Contact Us For Availability
24
Strainer WPL 49599 Contact Us For Availability
25
Cover, Evaporator WPL 856957 Contact Us For Availability
25
Curtain Housing Assembly, R.S. WPL 647840 Contact Us For Availability
25
Curtain Housing Assembly, L.S. WPL 647841 Contact Us For Availability
25
Condenser, Support (R.S.) WPL 647824 Contact Us For Availability
25
Seal, Cabinet Weather WPL 649972 Contact Us For Availability
25
Seal, Cabinet (Bottom) WPL 998961 Contact Us For Availability
26
Insulation, Evaporator Cover WPL 948410 Contact Us For Availability
26
Thumbscrew (2) WPL 475581 Contact Us For Availability
26
Seal, Condenser WPL 649609 Contact Us For Availability
26
Grommet, Cable WPL 647849 Contact Us For Availability
27
Box, Control WPL 994174 Contact Us For Availability
27
Seal, Meeting Rail WPL 469877 Contact Us For Availability
27
Tube, Outlet WPL 647949 Contact Us For Availability
28
Bushing, Control Shaft WPL 647879 Contact Us For Availability
28
Cup, Condensate WPL 647850 Contact Us For Availability
28
Washer (2) WPL 488520 Contact Us For Availability
29
Shaft, Control WPL 852023 Contact Us For Availability
29
Washer, Shim WPL 470280 Contact Us For Availability
30
Washer, Spring WPL 647881 Contact Us For Availability
30
Channel, Top Mounting WPL 644380 Contact Us For Availability
31
Cam, Control WPL 647882 Contact Us For Availability
31
Seal WPL 855265 Contact Us For Availability
31
Spring, Overload WPL 950032 Contact Us For Availability
32
Bracket, Window Lock WPL 644228 Contact Us For Availability
32
Anticipator, Temperature WPL 475573 Contact Us For Availability
33
Switch, Rotary WPL 950523 Contact Us For Availability
33
Block, Spacer (4) WPL 995274 Contact Us For Availability
33
Clip, Anticipator WPL 475577 Contact Us For Availability
34
Wood Screw, No.8 x 3/4 (5) WPL 488255 Contact Us For Availability
35
Control, Tempetature WPL 949431 Contact Us For Availability
35
Bracket, R.S. WPL 645562 Contact Us For Availability
35
Bracket, L.S. WPL 645563 Contact Us For Availability
36
Screw, Mach 6-32 x .175 (2) WPL 488734 Contact Us For Availability
36
Strip, Seal WPL 856979 Contact Us For Availability
37
Grommet, Wiring WPL 647865 Contact Us For Availability
37
Instructions, Installation (Kit, Quick Mount) WPL 485687 Contact Us For Availability
37
Instructions, Installation (Kit, Wide Window) WPL 485688 Contact Us For Availability
37
Instructions, Installation (Kit, Outside Supp WPL 485707 Contact Us For Availability
37
Angle, Side Mounting (2) WPL 645564 Contact Us For Availability
37
Instructions, Installation (Kit, Condensate C WPL 978930 Contact Us For Availability
37
Instructions, Installation (Kit, Standard Ins WPL 993380 Contact Us For Availability
38
Wire, Ground WPL 857634 Contact Us For Availability
38
Clamp, Restrictor Tube WPL 642684 Contact Us For Availability
39
Cable, Appliance WPL 648535 Contact Us For Availability
40
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
41
Wire, Control WPL 859370 Contact Us For Availability
41
Clip, Balancing WPL 876034 Contact Us For Availability
42
Guard, Blower Wheel WPL 997949 Contact Us For Availability
42
Harness, Wiring WPL 484136 Contact Us For Availability
43
Clip, Cabinet Front Mtg (2) WPL 949634 Contact Us For Availability
× ![]()
