Model Whirlpool ACV072XG0 AIR CONDITIONER – Common Parts & Diagrams

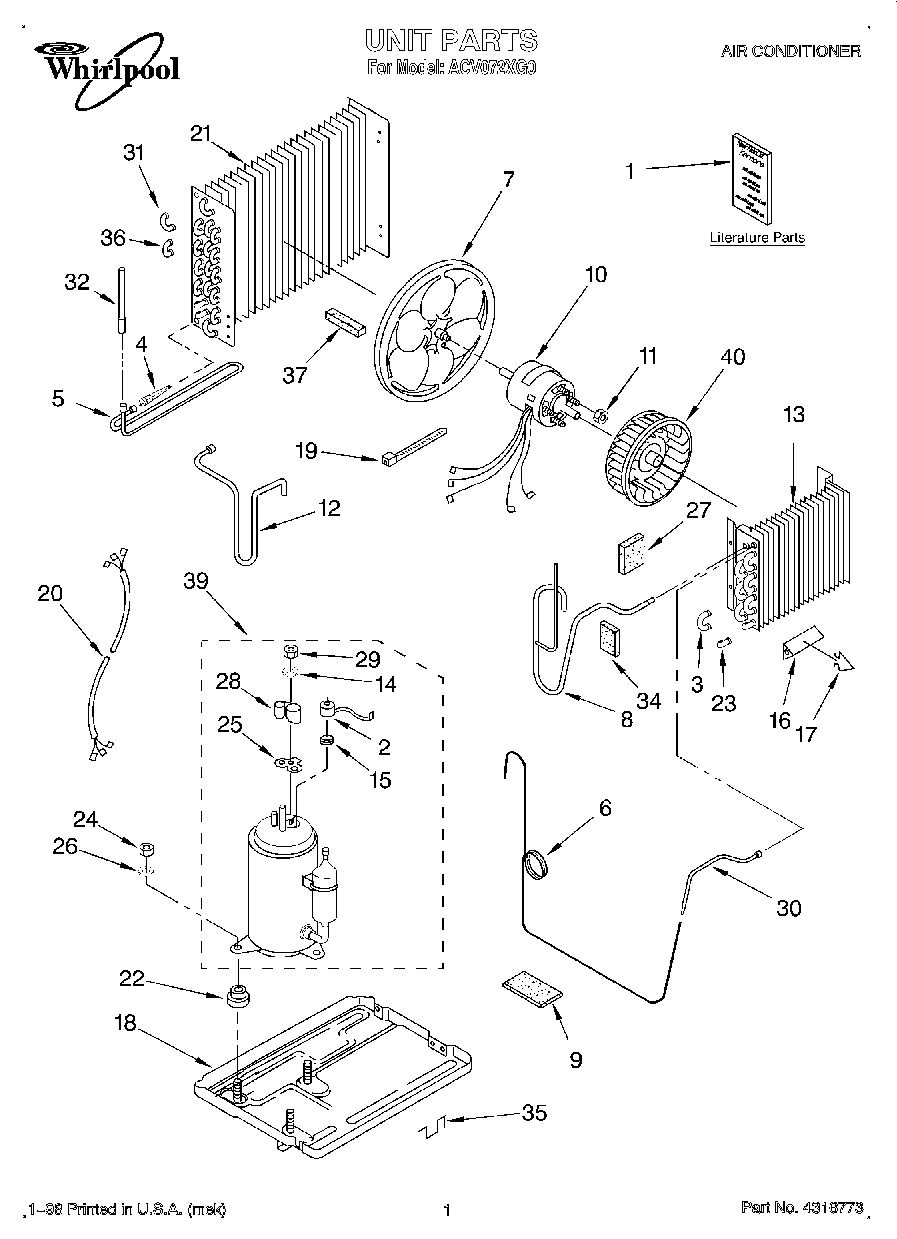

01 - UNIT, LITERATURE

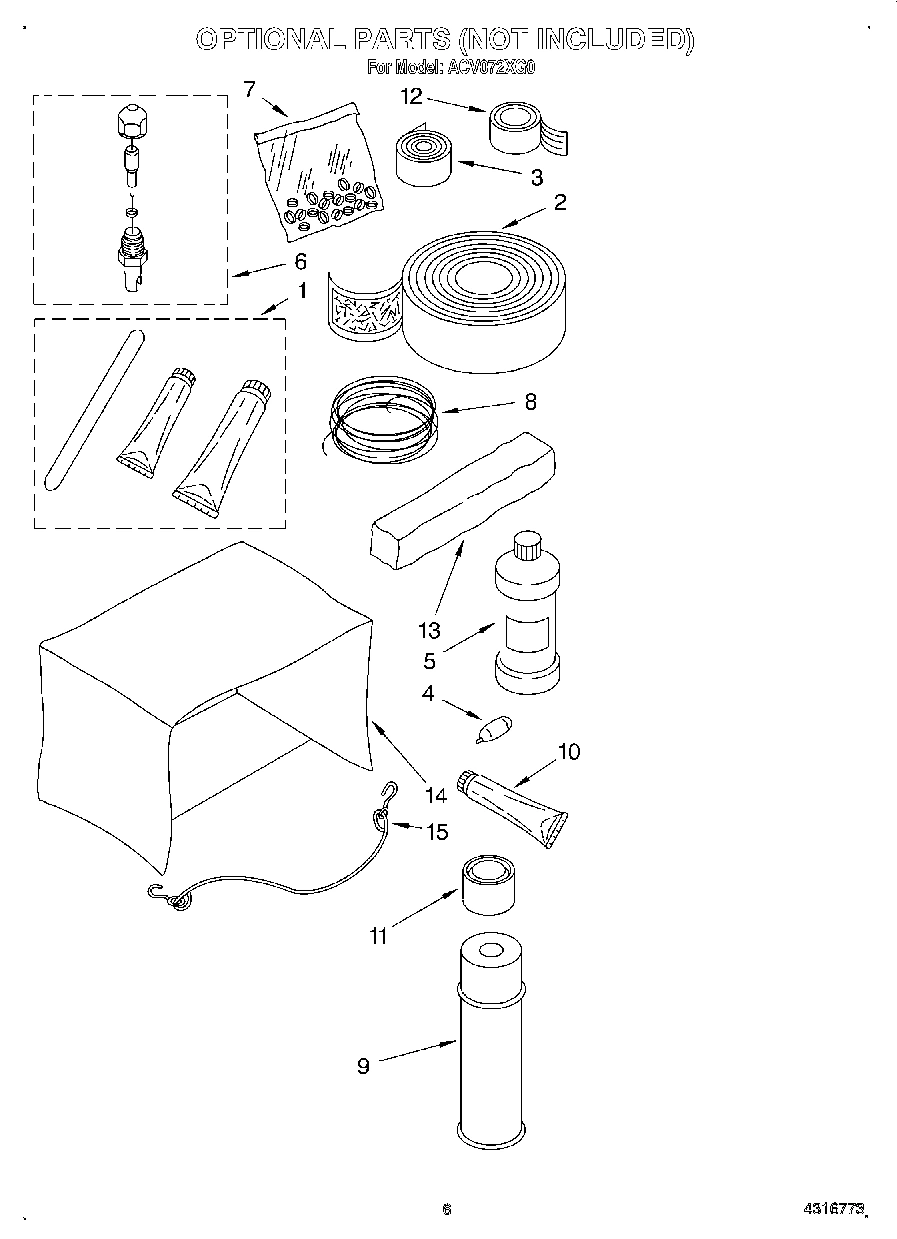

04 - OPTIONAL

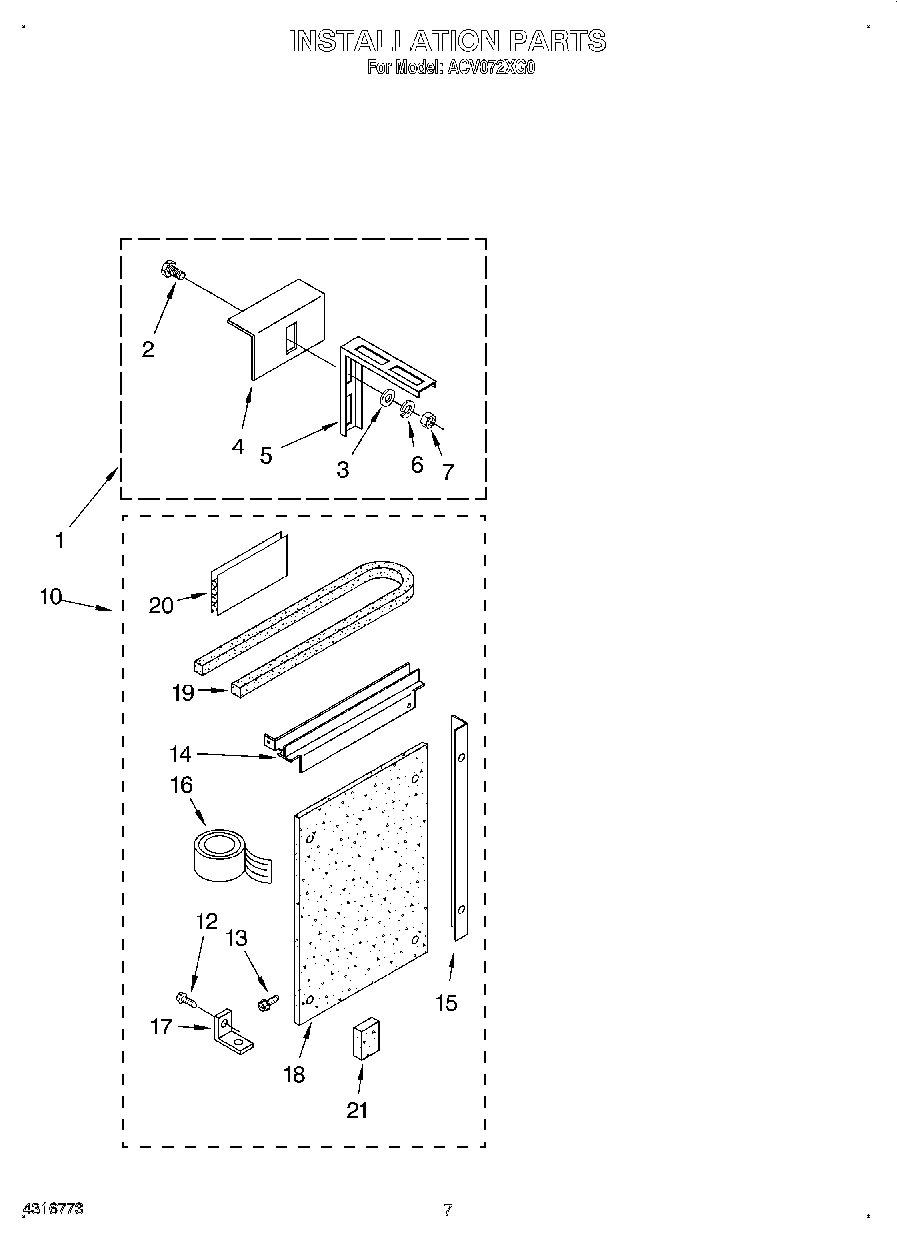

05 - INSTALLATION

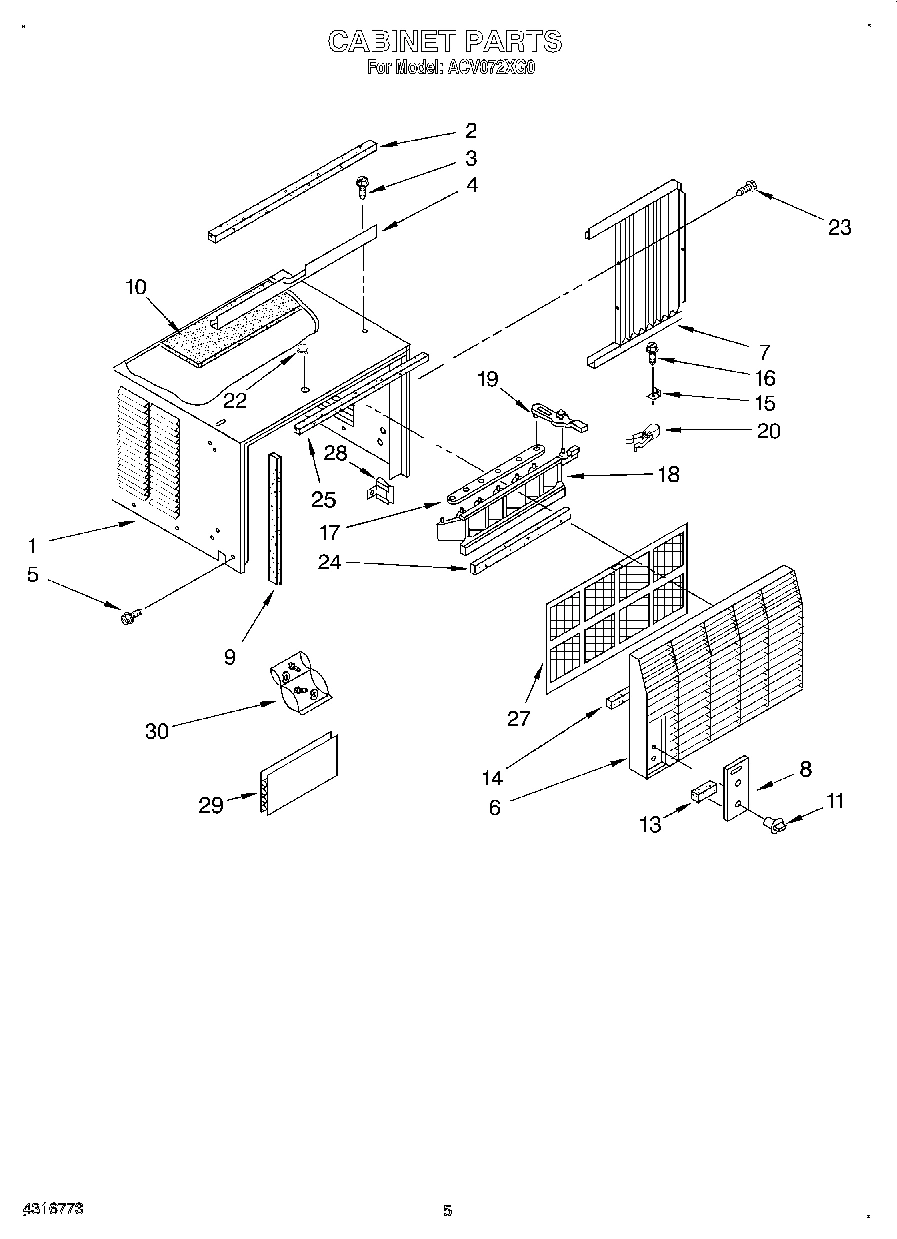

03 - CABINET

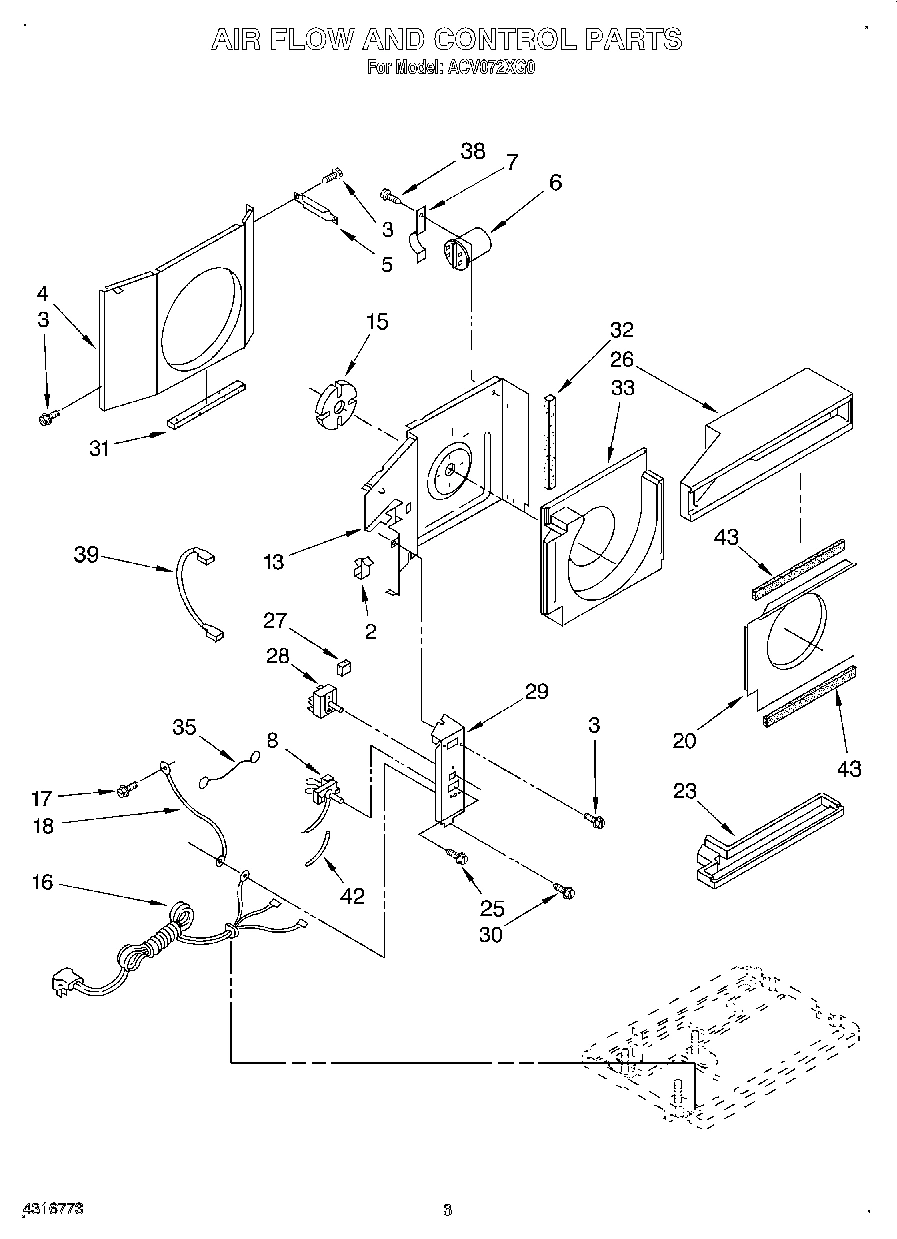

02 - AIRFLOW AND CONTROL
Common parts from model Whirlpool ACV072XG0 AIR CONDITIONER
Instructions, Installation (Standard Mounting WPL LIT1155124 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
1
Cabinet WPL 1169770 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
2
Clamp, Wiring WPL 852451 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
4
Channel, Top WPL 1168393 Contact Us For Availability
4
Shroud, Condenser WPL 1157908 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
5
Support, Unit WPL 649879 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 No Longer Available
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Front, Cabinet WPL 1162161 Contact Us For Availability
6
Capacitor, Running WPL 1162595 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
7
Curtain (R.S.) WPL 1162961 Contact Us For Availability
7
Curtain (L.S.) WPL 1162963 Contact Us For Availability
7
Bracket, Capacitor WPL 1167611 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Escutcheon WPL 1181766 Contact Us For Availability
8
Control, Temp. WPL 950403 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Kit, Window Installation WPL 994818 Contact Us For Availability
10
Insulation, Top WPL 1157942 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Knob, Control (2) WPL 1167617 Contact Us For Availability
13
Spacer WPL 470036 Contact Us For Availability
13
Wall, Dividing WPL 1158451 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Bracket, Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 645563 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Angle, Side WPL 646988 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
15
Insulation, Motor WPL 1168622 Contact Us For Availability
16
Anticipator WPL 996773 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
16
Strip, Seal WPL 856979 Contact Us For Availability
16
Cord, Appliance WPL 1164674 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
17
Link, Louver WPL 645684 Contact Us For Availability
18
Base WPL 1157926 Contact Us For Availability
18
Board, Filler (2) WPL 648854 Contact Us For Availability
18
Louver, Vertical WPL 1158325 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
19
Handle, Louver WPL 648626 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
Spring, Detent WPL 641484 Contact Us For Availability
20
Shroud, Evaporator WPL 1164655 Contact Us For Availability
21
Condenser WPL 1169245 Contact Us For Availability
21
Spacer, Block WPL 995274 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Cover, Hole WPL 1157126 Contact Us For Availability
23
Screw 3/8 WPL 1161561 Contact Us For Availability
23
Pan, Evaporator WPL 1164671 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
25
Seal WPL 1181735 Contact Us For Availability
25
Screw No.6 x 32 WPL 488734 Contact Us For Availability
26
Hood, Air Housing WPL 1164670 Contact Us For Availability
27
Filter WPL 1162158 Contact Us For Availability
27
Sealer, Tube WPL 1164551 Contact Us For Availability
27
Seal, Foam WPL 1159443 Contact Us For Availability
28
Clip, Vertical Louver WPL 1158294 Contact Us For Availability
28
Switch, Rotary WPL 1181972 Contact Us For Availability
29
Panel, Control WPL 1159409 Contact Us For Availability
30
Tube, Feeder (Restrictor) WPL 1165066 Contact Us For Availability
30
Bag, Accessory WPL 476180 Contact Us For Availability
30
Screw, 3/8 WPL 1159222 Contact Us For Availability
31
Bend, Return (4) WPL 708532 Contact Us For Availability
32
Tube, Process WPL 1168423 Contact Us For Availability
33
Housing, Air WPL 1164648 Contact Us For Availability
35
Clip, Mtg (2) (Cabinet-Front) WPL 949634 Contact Us For Availability
35
Wire, Lead WPL 1160302 Contact Us For Availability
36
Bend, Return (13) WPL 708531 Contact Us For Availability
38
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
39
Compressor Assembly WPL 1157026 Contact Us For Availability
39
Wire, Jumper WPL 1166916 Contact Us For Availability
40
Wheel, Blower WPL 1164650 Contact Us For Availability
42
Sleeve, Insul. WPL 475841 Contact Us For Availability
43
Seal (2) WPL 1164680 Contact Us For Availability
× ![]()
