Model Whirlpool ACU124XX0 AIR CONDITIONER – Common Parts & Diagrams
03 - AIR FLOW AND CONTROL
05 - OPTIONAL

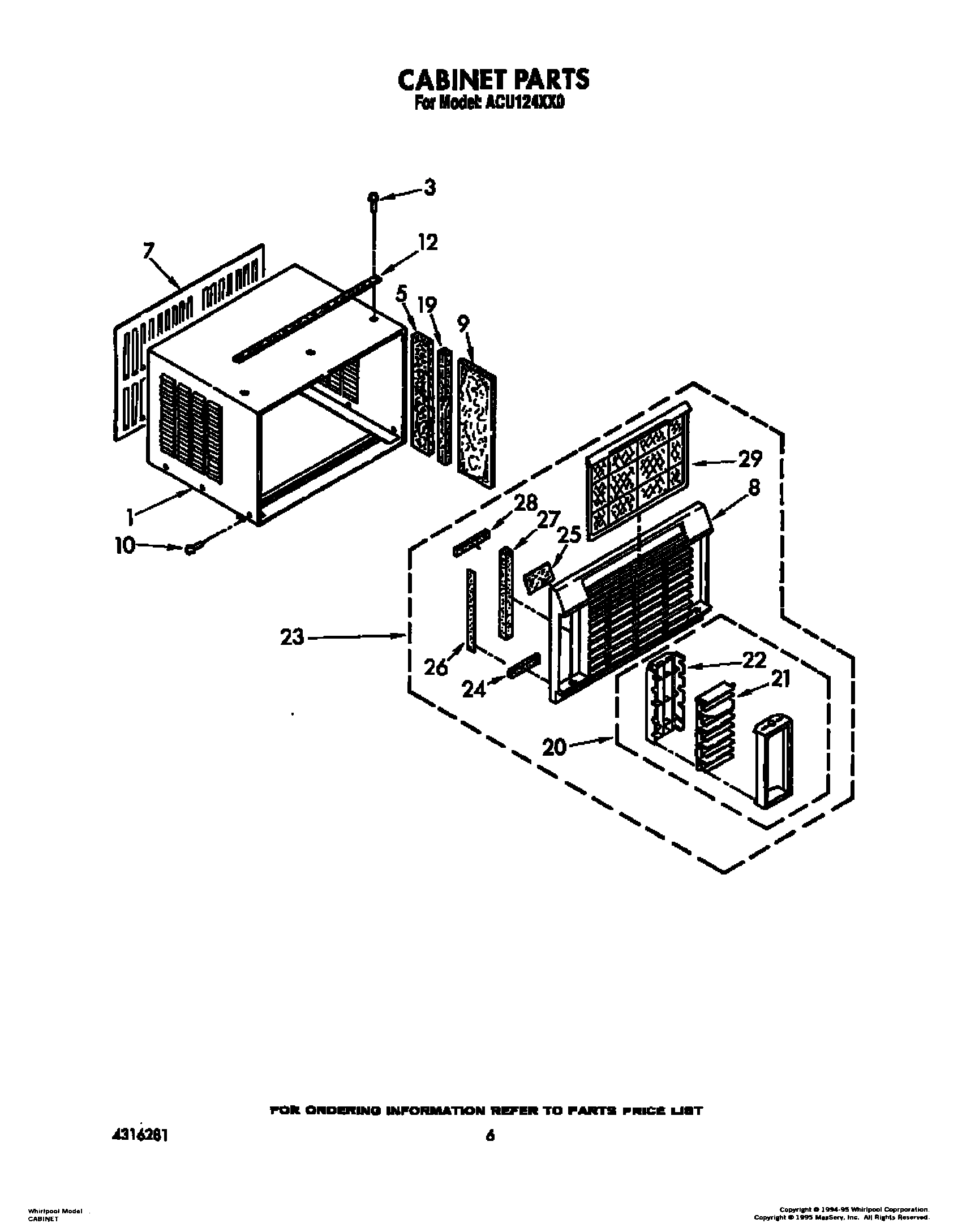

04 - CABINET

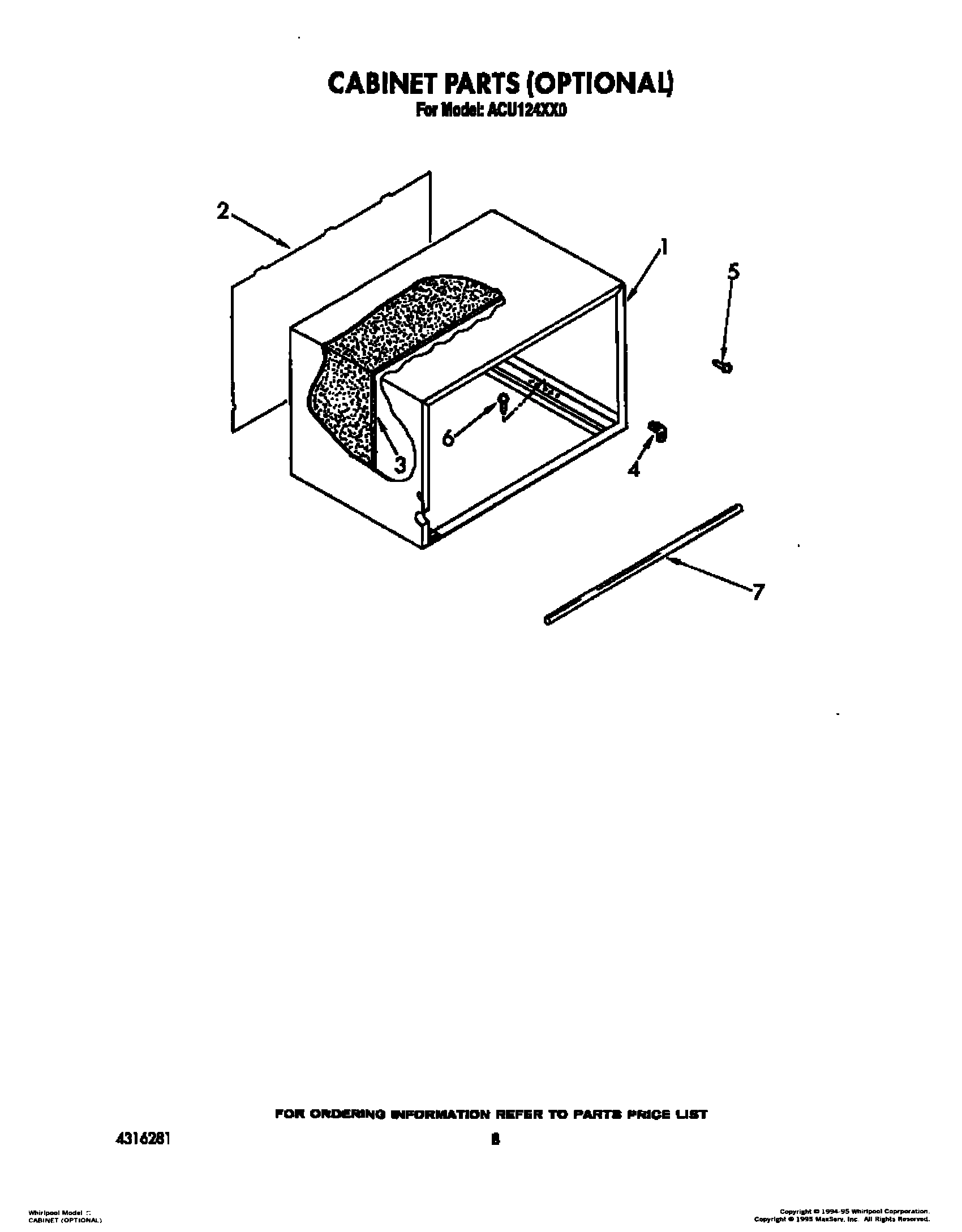

06 - CABINET (OPTIONAL)

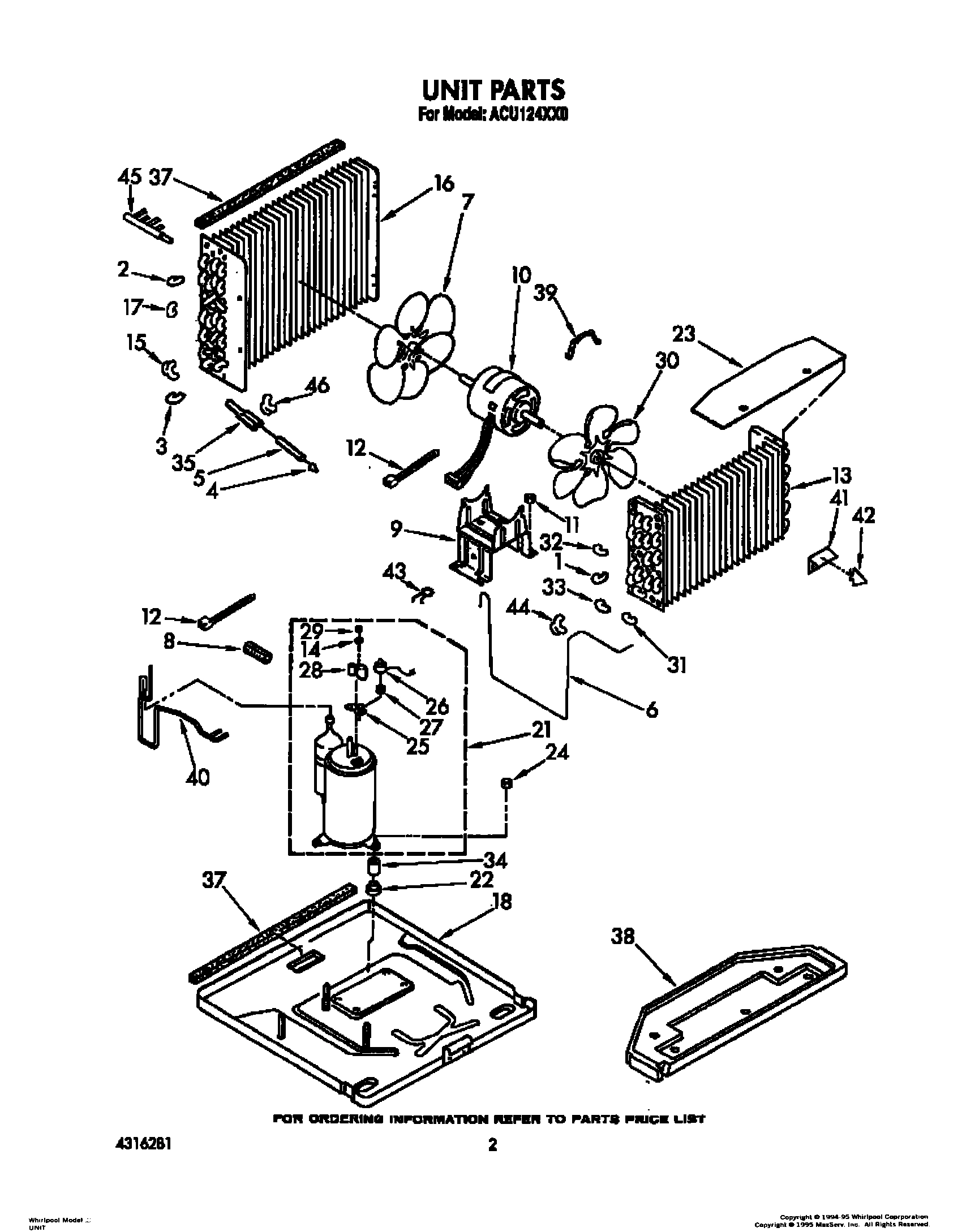

02 - UNIT, LIT/OPTIONAL
Common parts from model Whirlpool ACU124XX0 AIR CONDITIONER
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Cabinet WPL 1156956 Contact Us For Availability
1
Cabinet WPL 1159323 Contact Us For Availability
1
Bend, Return (2) WPL 854624 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Panel, Rear WPL 1156968 Contact Us For Availability
2
Bend, Return Condenser (2) WPL 1160083 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Seal, Cabinet (Top) WPL 1160111 Contact Us For Availability
3
Seal, Cabinet (Sides) WPL 1160112 Contact Us For Availability
3
Seal, Cabinet (Rear) WPL 1160113 Contact Us For Availability
3
Bend, Return Condenser (4) WPL 1160079 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Bracket, Support (5) WPL 1160605 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Insulation, Side (2) WPL 1160334 Contact Us For Availability
5
Tube, Outlet (Includes Item 4) WPL 950822 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Screw No.10 x 3/4 (8) WPL 487371 Contact Us For Availability
6
Tube, Restrictor (2) WPL 1159926 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1159606 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Cabinet Front WPL 1156971 Contact Us For Availability
8
Seal, Suction Tube WPL 1159284 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Insulation (2) WPL 1160333 Contact Us For Availability
9
Bracket, Fan Motor WPL 1156961 Contact Us For Availability
10
Motor, Fan WPL 1159721 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
13
Evaporator WPL 1159029 Contact Us For Availability
14
Cover, Winter (22``x15``x3 to 18``) WPL 484184 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Return Bend 3-Way (2) WPL 1160085 Contact Us For Availability
16
Condenser WPL 1160086 Contact Us For Availability
17
Return Bend (2) WPL 1160082 Contact Us For Availability
18
Base WPL 1157199 Contact Us For Availability
19
Raceway, Wiring WPL 1156934 Contact Us For Availability
19
Seal, Strip (2) WPL 1160092 Contact Us For Availability
20
Panel, Control WPL 1156933 Contact Us For Availability
20
Cartridge, Complete WPL 1156972 Contact Us For Availability
21
Support, Unit (2) WPL 1156939 Contact Us For Availability
21
Horzontal Louver WPL 1156974 Contact Us For Availability
21
Compressor WPL 4317911 Contact Us For Availability
22
Ribs, Vertical WPL 1156975 Contact Us For Availability
23
Cup, Condensate WPL 1159580 Contact Us For Availability
23
Front, Complete WPL 1161207 Contact Us For Availability
23
Insulation, Evaporator Shroud WPL 1157173 Contact Us For Availability
24
Wall, Dividing WPL 1156926 Contact Us For Availability
24
Seal (2) WPL 1159080 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Seal, Evaporator WPL 1158271 Contact Us For Availability
25
Seal WPL 1159081 Contact Us For Availability
26
Switch, Rotary WPL 1157650 Contact Us For Availability
26
Seal (2) WPL 1159079 Contact Us For Availability
26
Overload WPL 1159722 Contact Us For Availability
27
Wire, Thermostat To Switch WPL 1156982 Contact Us For Availability
27
Seal (2) WPL 1157624 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1159719 Contact Us For Availability
29
Clip, Shroud WPL 1158257 Contact Us For Availability
29
Filter WPL 1156976 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
30
Blade, Fan (Evaporator) WPL 947533 Contact Us For Availability
31
Cam, Exhaust WPL 997813 Contact Us For Availability
31
Return Bend (2) WPL 855457 Contact Us For Availability
32
Bushing, Shaft WPL 859233 Contact Us For Availability
32
Return Bend (2) WPL 855644 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
33
Return Bend (14) WPL 855199 Contact Us For Availability
34
Sleeve, Insulation WPL 475841 Contact Us For Availability
34
Sleeve (3) WPL 950020 Contact Us For Availability
35
Washer WPL 647881 Contact Us For Availability
35
Tube, Flow Divider WPL 1159832 Contact Us For Availability
36
Shaft, Control Exhaust WPL 1158253 Contact Us For Availability
37
Harness, Wiring - Control Box WPL 1157651 Contact Us For Availability
37
Seal, Condenser Bottom WPL 1157622 Contact Us For Availability
38
Control Box WPL 1156932 Contact Us For Availability
38
Pan, Drain WPL 1158519 Contact Us For Availability
39
Back Panel, Control Box WPL 1156965 Contact Us For Availability
40
Return Bend (14) WPL 1160078 Contact Us For Availability
41
Wire, Exhaust Door WPL 1157181 Contact Us For Availability
41
Anticipator WPL 996773 Contact Us For Availability
42
Impeller Guard (2) WPL 1158249 Contact Us For Availability
42
Clip, Anticipator WPL 475577 Contact Us For Availability
43
Escutcheon WPL 1156977 Contact Us For Availability
43
Clamp, Tube WPL 642684 Contact Us For Availability
44
Return Bend 3-Way WPL 1159633 Contact Us For Availability
45
Knob, Controls (3) WPL 1158054 Contact Us For Availability
45
Manifold Header WPL 1159829 Contact Us For Availability
46
Control, Temperature WPL 1157605 Contact Us For Availability
46
Return Bend WPL 1159642 Contact Us For Availability
46
Use And Care Guide WPL LIT1157669 Contact Us For Availability
46
Instructions, Installation WPL LIT1157672 Contact Us For Availability
46
Tech Sheet WPL LIT1160326 Contact Us For Availability
46
Literature Parts (List, Repair Parts) WPL LIT4316281 Contact Us For Availability
47
Seal, Housing WPL 1158516 Contact Us For Availability
× ![]()
