Model Whirlpool ACU124XD1 AIR CONDITIONER – Common Parts & Diagrams
03 - CABINET
05 - SLEEVE MODEL AOW22W21 (OPTIONAL)

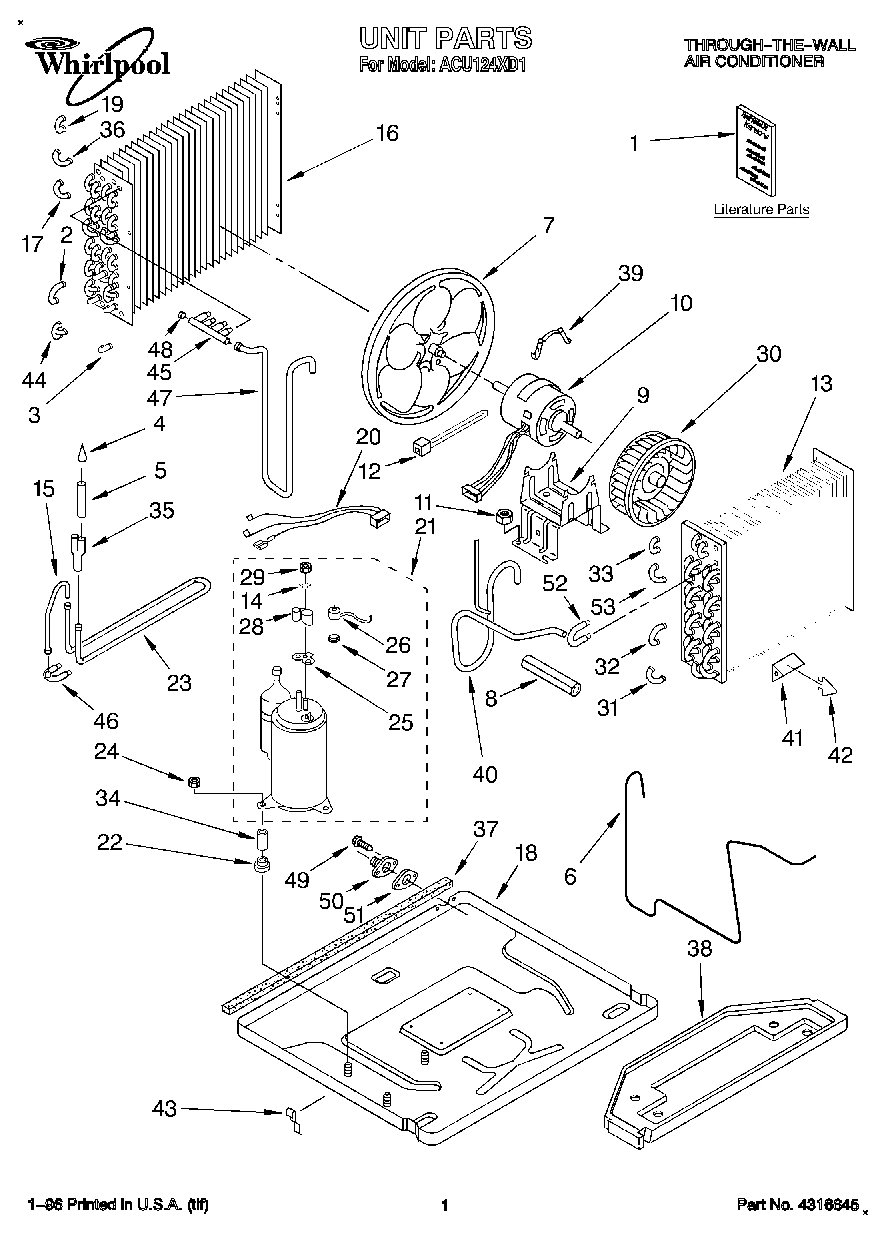

01 - UNIT, LITERATURE

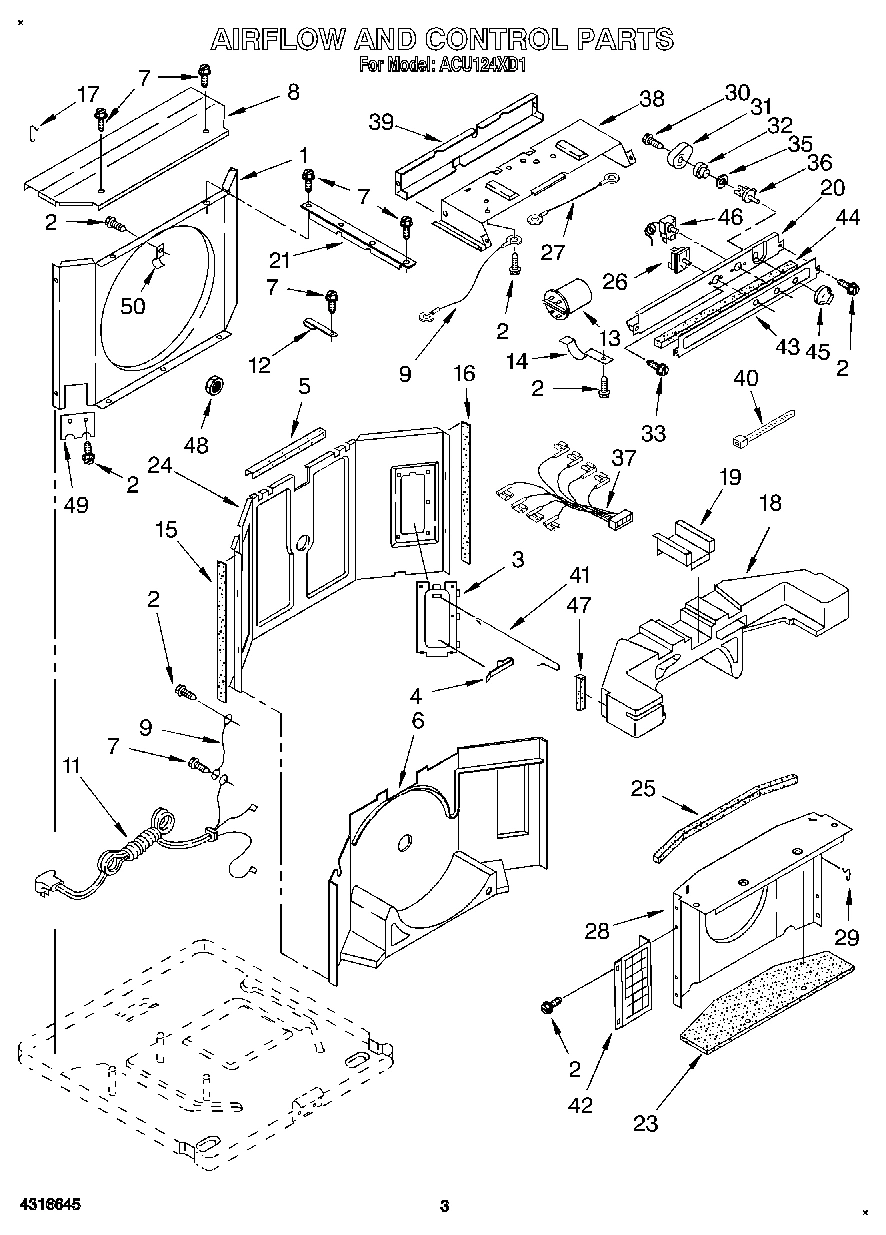

02 - AIRFLOW AND CONTROL

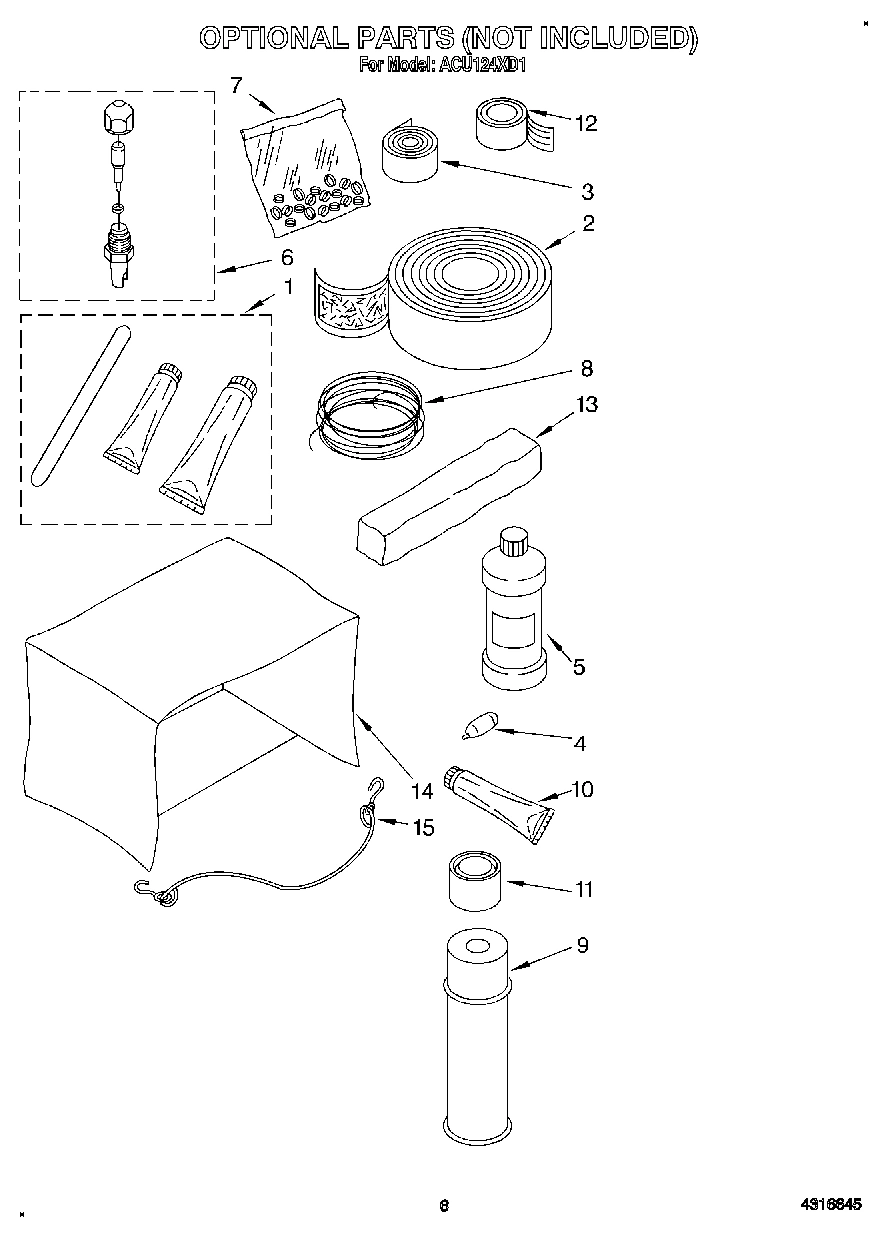

04 - OPTIONAL
Common parts from model Whirlpool ACU124XD1 AIR CONDITIONER
1
Wiring Diagram WPL LIT1157445 Contact Us For Availability
1
Instructions, Installation WPL LIT1163570 Contact Us For Availability
1
Tech Sheet WPL LIT1166489 Contact Us For Availability
1
Use And Care Guide WPL LIT1166503 Contact Us For Availability
1
Shroud, Condenser WPL 1165435 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bend, Return Condenser (1) WPL 1158407 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Seal, Cabinet (Top) WPL 1160111 Contact Us For Availability
3
Seal, Cabinet (Sides) (2) WPL 1160112 Contact Us For Availability
3
Seal, Cabinet (Rear) (2) WPL 1160113 Contact Us For Availability
3
Bend, Return Condenser (4) WPL 708532 Contact Us For Availability
3
Door, Exhaust WPL 1157193 Contact Us For Availability
4
Bracket, Support (5) WPL 1160605 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Spring, Door WPL 998178 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Tube, Outlet (Includes Item 4) WPL 950822 Contact Us For Availability
5
Grommet WPL 1162200 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Screw No.10 x 3/4 (8) WPL 487371 Contact Us For Availability
6
Tube, Restrictor (2) WPL 1165433 Contact Us For Availability
6
Scroll (Lower) WPL 1158771 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1156979 Contact Us For Availability
7
Screw 3/8 WPL 1161561 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Seal, Suction Tube WPL 1165440 Contact Us For Availability
8
Top, Condenser WPL 1156964 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Bracket, Fan Motor WPL 1156961 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Motor, Fan WPL 1163416 Contact Us For Availability
11
Cord, Appliance WPL 1167745 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Strap, Dividing Wall WPL 1159002 Contact Us For Availability
13
Evaporator WPL 1165346 Contact Us For Availability
13
Capacitor WPL 1162592 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Bracket, Capacitor WPL 1167611 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Tube, Wet Loop Connect WPL 1165438 Contact Us For Availability
15
Seal, Left Side WPL 1158514 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Condenser WPL 1160086 Contact Us For Availability
16
Seal, Right Side WPL 1158515 Contact Us For Availability
17
Return Bend Condenser (1) WPL 1158692 Contact Us For Availability
17
Clip, Shroud (2) WPL 1164511 Contact Us For Availability
18
Base WPL 1162966 Contact Us For Availability
18
Scroll, Upper WPL 1158772 Contact Us For Availability
19
Bend, Return Condenser (14) WPL 708531 Contact Us For Availability
19
Raceway, Wiring WPL 1156934 Contact Us For Availability
20
Harness, Wiring (Compressor) WPL 1157607 Contact Us For Availability
20
Panel, Control WPL 1156933 Contact Us For Availability
21
Horzontal Louver (Right, Side) WPL 1159333 Contact Us For Availability
21
Compressor WPL 1159698 Contact Us For Availability
21
Support, Unit (2) WPL 1156939 Contact Us For Availability
23
Wet Loop WPL 1165439 Contact Us For Availability
23
Insulation, Evaporator Shroud WPL 1157173 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Wall, Dividing WPL 1156926 Contact Us For Availability
25
Seal, Evaporator WPL 1160947 Contact Us For Availability
26
Overload WPL 1159722 Contact Us For Availability
26
Switch, Rotary WPL 1158669 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
27
Wire, Thermostat To Switch WPL 1156982 Contact Us For Availability
28
Shroud, Evaporator WPL 1156929 Contact Us For Availability
29
Filter WPL 1166496 Contact Us For Availability
29
Clip, Shroud WPL 994686 Contact Us For Availability
30
Blower, Wheel (Evaporator) WPL 1161550 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
31
Return Bend (2) WPL 855457 Contact Us For Availability
31
Cam, Exhaust WPL 997813 Contact Us For Availability
32
Return Bend (8) WPL 855644 Contact Us For Availability
32
Bushing, Shaft WPL 859233 Contact Us For Availability
33
Return Bend (2) WPL 855199 Contact Us For Availability
33
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
34
Sleeve (3) WPL 950020 Contact Us For Availability
35
Tube, Flow Divider WPL 1159832 Contact Us For Availability
35
Washer WPL 647881 Contact Us For Availability
36
Bend, Return Condenser (2) WPL 1156329 Contact Us For Availability
36
Shaft, Control Exhaust WPL 1158253 Contact Us For Availability
37
Seal, Condenser Bottom WPL 1157622 Contact Us For Availability
37
Harness, Wiring - Control Box WPL 1167524 Contact Us For Availability
38
Pan, Drain WPL 1158519 Contact Us For Availability
38
Box, Control WPL 1167612 Contact Us For Availability
39
Back Panel, Control Box WPL 1156965 Contact Us For Availability
40
Tube, Suction (Includes Item 52) WPL 1163924 Contact Us For Availability
41
Anticipator WPL 1166782 Contact Us For Availability
41
Wire, Exhaust Door WPL 1157181 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
42
Impeller Guard (2) WPL 1158249 Contact Us For Availability
43
Clamp, Tube WPL 471088 Contact Us For Availability
43
Escutcheon WPL 1166499 Contact Us For Availability
44
Return Bend 3-Way (2) WPL 1158685 Contact Us For Availability
45
Knob, Controls (3) WPL 1158054 Contact Us For Availability
45
Manifold Header WPL 1159829 Contact Us For Availability
46
Return Bend Three-Way WPL 1159642 Contact Us For Availability
46
Control, Temperature WPL 1160214 Contact Us For Availability
47
Tube, Discharge WPL 1159778 Contact Us For Availability
47
Seal, Housing WPL 1158516 Contact Us For Availability
48
Cap, Manifold WPL 1160488 Contact Us For Availability
49
Clip, Nylon WPL 1165626 Contact Us For Availability
50
Drain Plug WPL 1163502 Contact Us For Availability
50
Clip, Wet Loop WPL 1161248 Contact Us For Availability
51
Gasket, Drain Plug WPL 1164093 Contact Us For Availability
52
Return Bend 3-Way WPL 1161002 Contact Us For Availability
53
Bend, Return Evaporator (8) WPL 854624 Contact Us For Availability
× ![]()
