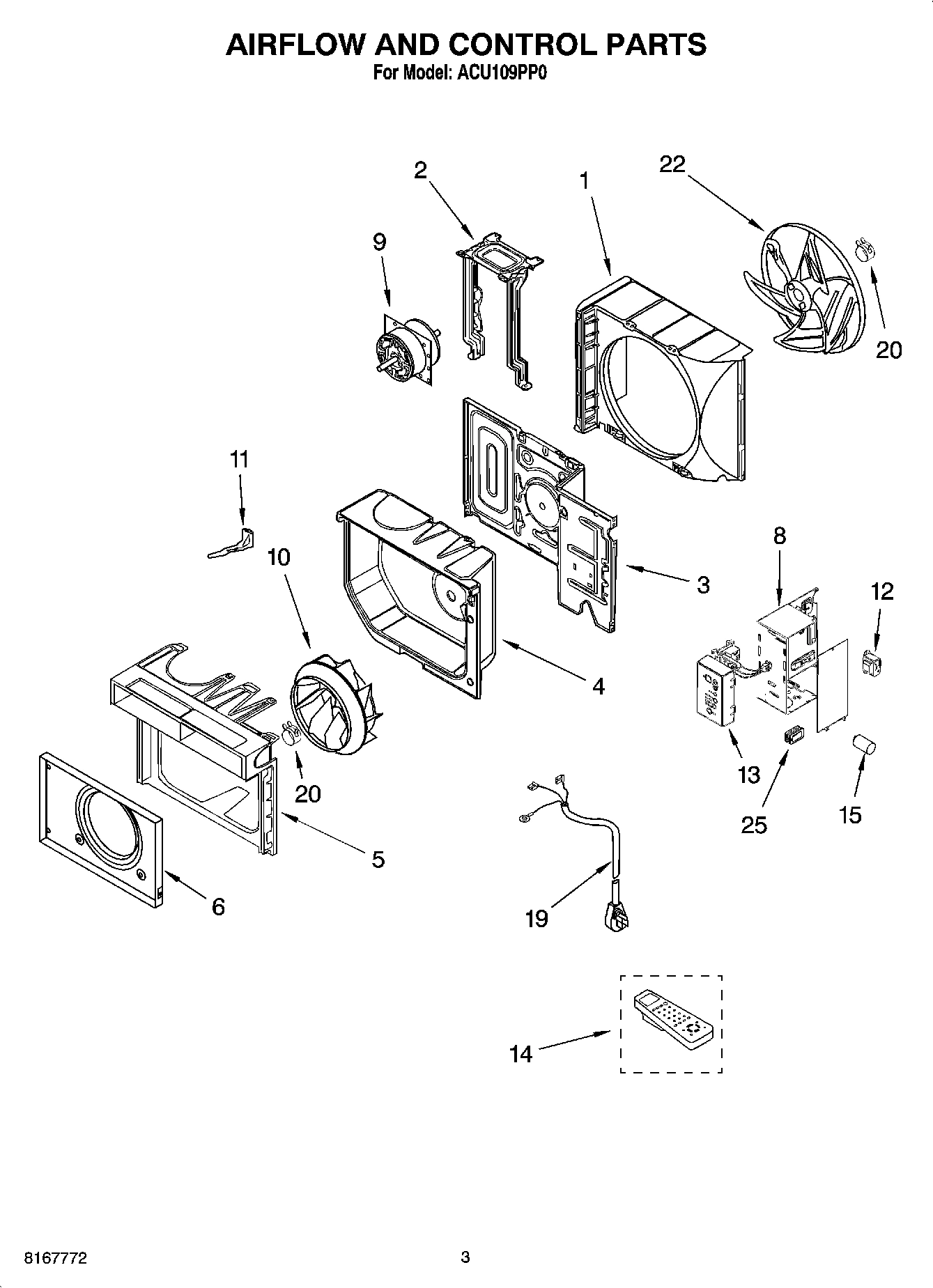

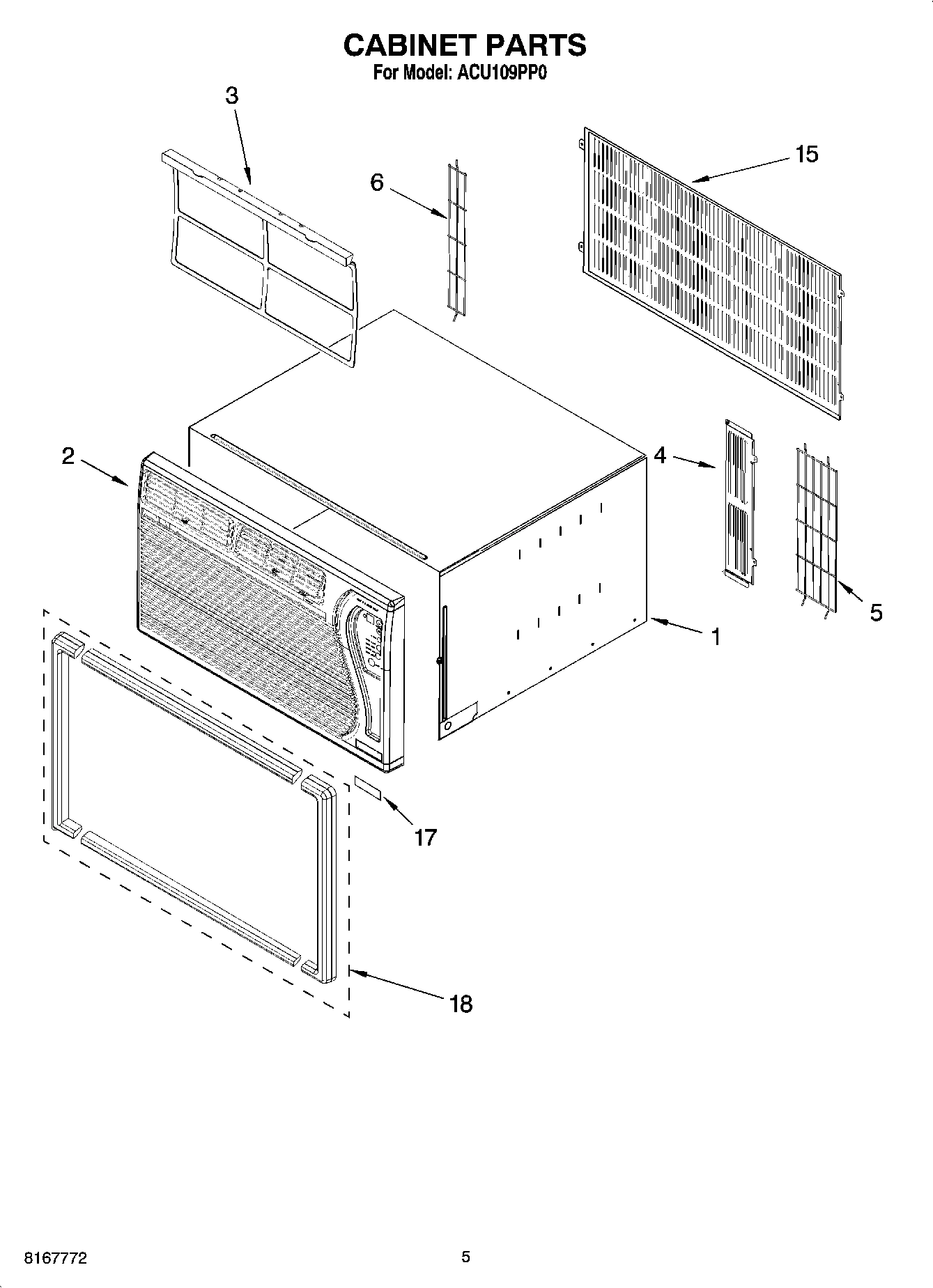

Model Whirlpool ACU109PP0 AIR CONDITIONER – Common Parts & Diagrams

1
Cabinet Assembly
Cabinet Assembly WPL 8199577 Contact Us For Availability
View on Model
1
Shroud, Condenser
Shroud, Condenser WPL 8199597 Contact Us For Availability
View on Model
1
Literature Parts (Use And Care Guide)
Literature Parts (Use And Care Guide) WPL LIT8199583 Contact Us For Availability
View on Model
2
Front Assembly
Front Assembly WPL 8199576 Contact Us For Availability
View on Model
2
Mount, Motor
Mount, Motor WPL 8199600 Contact Us For Availability
View on Model
2
Pan, Drain (Evaporator)
Pan, Drain (Evaporator) WPL 8199629 Contact Us For Availability
View on Model
3
Filter, Air
Filter, Air WPL 8199578 Contact Us For Availability
View on Model
3
Wall, Dividing
Wall, Dividing WPL 8199601 Contact Us For Availability
View on Model
4
Deflector, Air
Deflector, Air WPL 8199581 Contact Us For Availability
View on Model
4
Housing, Blower
Housing, Blower WPL 8199602 Contact Us For Availability
View on Model
4
Clip, Thermistor
Clip, Thermistor WPL 8199539 Contact Us For Availability
View on Model
5
Grille, Rear-Wire Large
Grille, Rear-Wire Large WPL 8199579 Contact Us For Availability
View on Model
5
Shroud, Evaporator
Shroud, Evaporator WPL 8199605 Contact Us For Availability
View on Model
5
Base
Base WPL 8199622 Contact Us For Availability
View on Model
6
Grille, Rear-Wire Small
Grille, Rear-Wire Small WPL 8199580 Contact Us For Availability
View on Model
6
Insert, Shroud
Insert, Shroud WPL 8199608 Contact Us For Availability
View on Model
6
Tube, Restrictor
Tube, Restrictor WPL 8199643 Contact Us For Availability
View on Model
7
Condenser
Condenser WPL 8199625 Contact Us For Availability
View on Model
8
Box, Control
Box, Control WPL 8199586 Contact Us For Availability
View on Model
9
Motor, Fan
Motor, Fan WPL 8199599 Contact Us For Availability
View on Model
10
Wheel, Blower
Wheel, Blower WPL 8199603 Contact Us For Availability
View on Model
11
Door, Exhaust
Door, Exhaust WPL 8199607 Contact Us For Availability
View on Model
12
Transformer
Transformer WPL 8199542 Contact Us For Availability
View on Model
13
Control Assembly
Control Assembly WPL 8199584 Contact Us For Availability
View on Model
13
Evaporator
Evaporator WPL 8199627 Contact Us For Availability
View on Model
14
Control, Remote
Control, Remote WPL 8199591 Contact Us For Availability
View on Model
14
Grommet
Grommet WPL 8199630 Contact Us For Availability
View on Model
15
Grille, Rear
Grille, Rear WPL 4396739 Contact Us For Availability
View on Model
15
Capacitor
Capacitor WPL 8199593 Contact Us For Availability
View on Model
17
Nameplate
Nameplate WPL 8199582 Contact Us For Availability
View on Model
18
Frame, Trim Assembly Kit (Includes Sides, Top
Frame, Trim Assembly Kit (Includes Sides, Top WPL 4396738 Contact Us For Availability
View on Model
18
Sleeve, Cabinet
Sleeve, Cabinet WPL 4396743 Contact Us For Availability
View on Model
18
Following Parts Not Illustrated (Optional Par
Following Parts Not Illustrated (Optional Par WPL ARI20183A7 Contact Us For Availability
View on Model
19
Cable, Appliance
Cable, Appliance WPL 8199589 Contact Us For Availability
View on Model
20
Clamp
Clamp WPL 8199610 Contact Us For Availability
View on Model
20
Compressor
Compressor WPL 8199611 Contact Us For Availability
View on Model
21
Sleeve (3)
Sleeve (3) WPL 8199620 Contact Us For Availability
View on Model
22
Blade Fan, Condenser
Blade Fan, Condenser WPL 8199595 Contact Us For Availability
View on Model
22
Grommet (3)
Grommet (3) WPL 789827 Contact Us For Availability
View on Model
24
Nut
Nut WPL 789661 Contact Us For Availability
View on Model
25
Relief, Strain
Relief, Strain WPL 789806 Contact Us For Availability
View on Model
26
Overload
Overload WPL 8199615 Contact Us For Availability
View on Model
27
Gasket, Terminal
Gasket, Terminal WPL 8199631 Contact Us For Availability
View on Model
28
Cover, Terminal
Cover, Terminal WPL 8199646 Contact Us For Availability
View on Model
29
Strainer
Strainer WPL 789673 Contact Us For Availability
View on Model
29
Snubber, Two 1/4 Tubes
Snubber, Two 1/4 Tubes WPL 789735 Contact Us For Availability
View on Model
29
Nut, Terminal Cover
Nut, Terminal Cover WPL 789912 Contact Us For Availability
View on Model
29
Filler, Panel
Filler, Panel WPL 789985 Contact Us For Availability
View on Model
29
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI20181A1 Contact Us For Availability
View on Model
29
REFRIGERANT CHARGE 16.50 oz.
REFRIGERANT CHARGE 16.50 oz. WPL ARI20182A9 Contact Us For Availability
View on Model
