Model Whirlpool ACU104PM0 THROUGH-THE-WALL AIR CONDITIONER – Common Parts & Diagrams

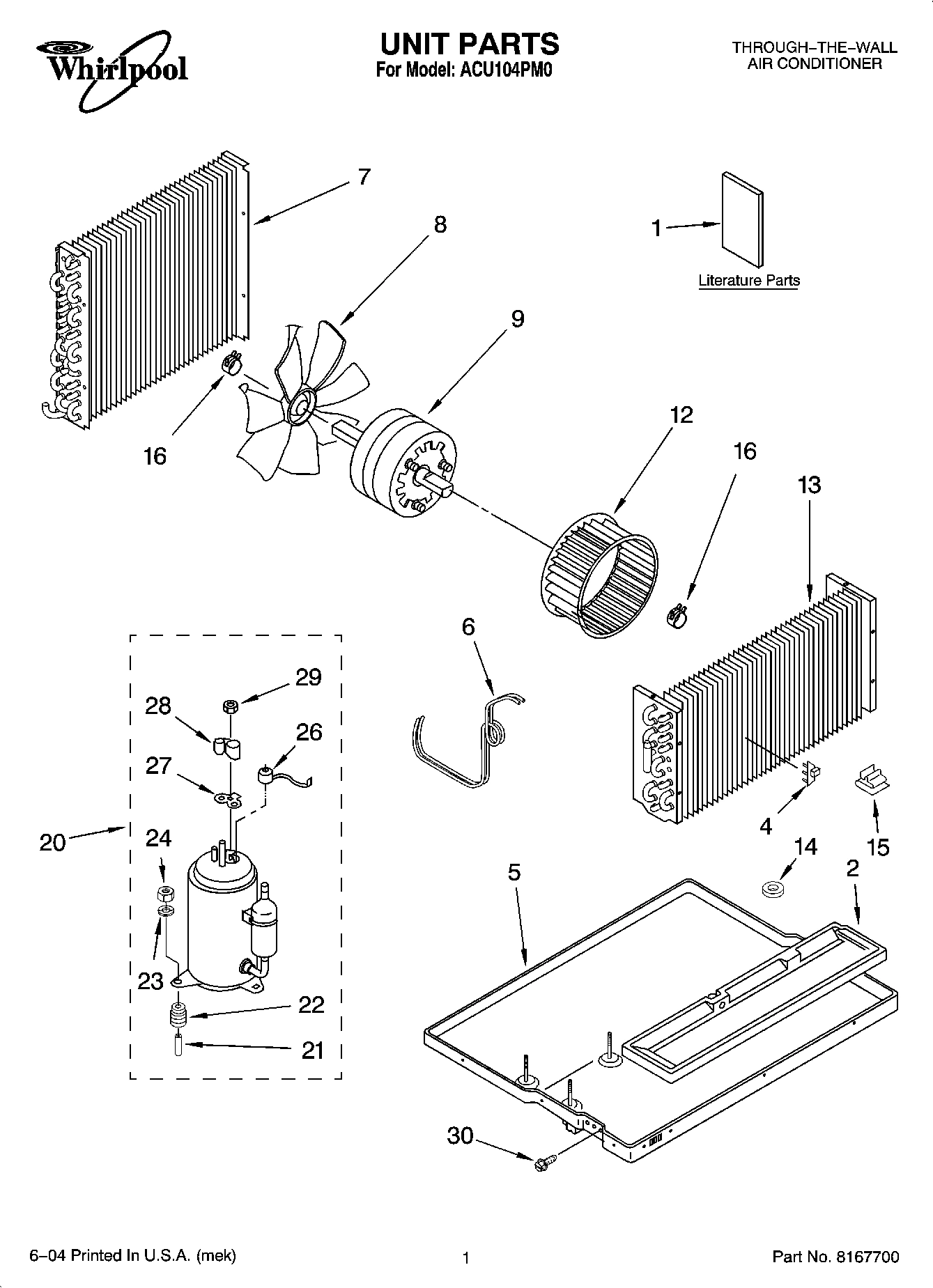

01 - UNIT PARTS

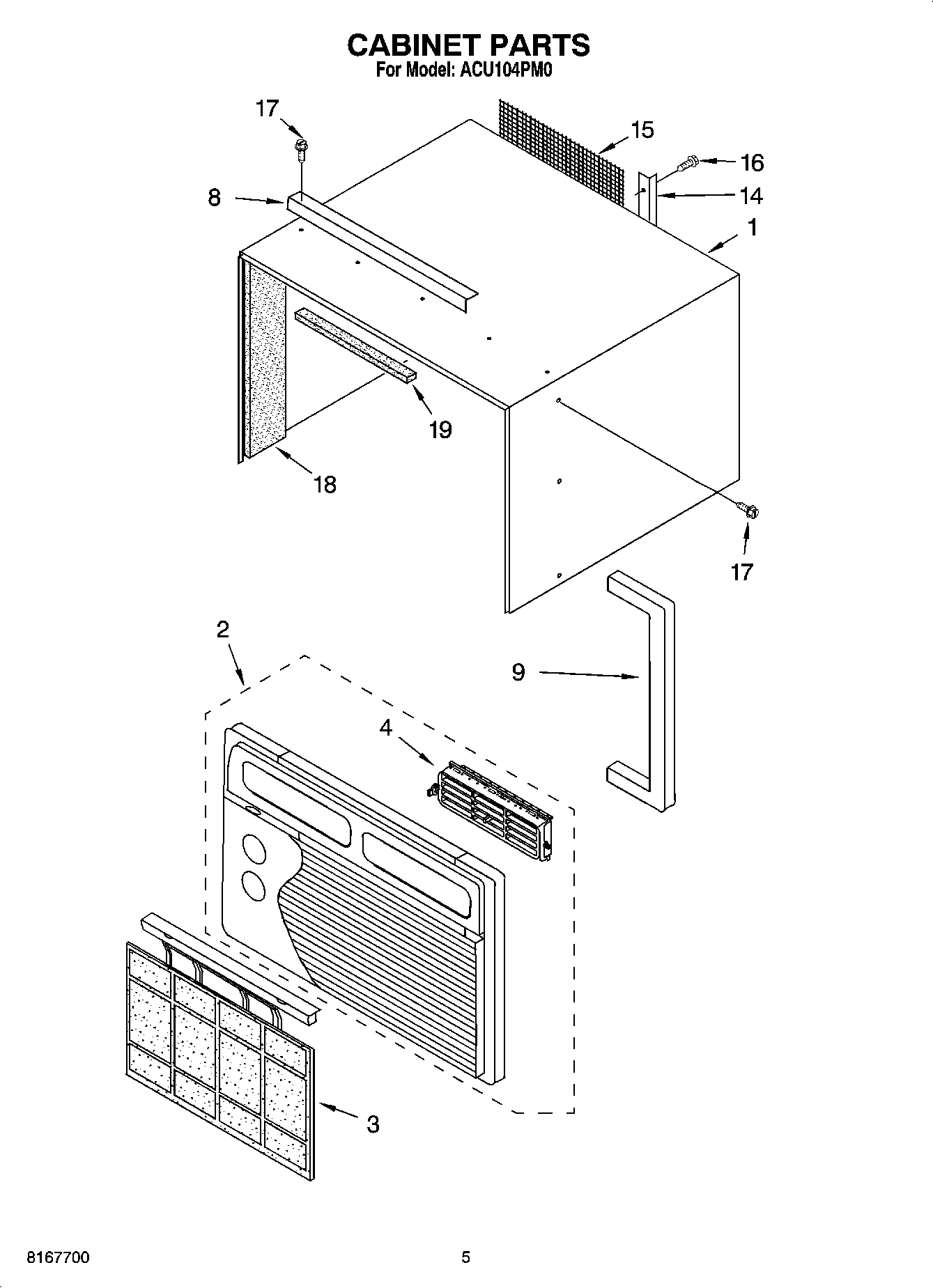

03 - CABINET PARTS
02 - AIRFLOW AND CONTROL PARTS
Common parts from model Whirlpool ACU104PM0 THROUGH-THE-WALL AIR CONDITIONER
1
Use And Care Guide WPL 8199538 Contact Us For Availability
1
Cabinet Assembly (Includes Insulation and Ite WPL 8199550 Contact Us For Availability
1
Shroud, Condenser WPL 8199548 Contact Us For Availability
2
Pan, Drain (Evaporator) WPL 8199547 Contact Us For Availability
2
Front Assembly WPL 8199536 Contact Us For Availability
2
Support, Unit WPL 789891 Contact Us For Availability
3
Filter, Air WPL 789980 Contact Us For Availability
3
Wall, Dividing WPL 8199543 Contact Us For Availability
4
Clip, Thermistor WPL 8199539 Contact Us For Availability
4
Louver Assembly (Not Serviced Separately) WPL ARI20172A9 Contact Us For Availability
4
Scroll, Blower WPL 8199544 Contact Us For Availability
5
Base WPL 8199553 Contact Us For Availability
5
Shroud, Evaporator WPL 789774 Contact Us For Availability
6
Tube, Restrictor .042 I.D. x 35`` (2) WPL 8199509 Contact Us For Availability
6
Cover, Evaporator WPL 8199545 Contact Us For Availability
7
Condenser WPL 789953 Contact Us For Availability
8
Blade, Fan (Condenser) WPL 789636 Contact Us For Availability
8
Trim, Frame (Top And Bottom) WPL 789998 Contact Us For Availability
8
Panel, Control WPL 8199541 Contact Us For Availability
9
Motor, Fan WPL 789955 Contact Us For Availability
9
Trim, Frame (Side) WPL 789997 Contact Us For Availability
12
Wheel, Blower WPL 789895 Contact Us For Availability
12
Transformer WPL 8199542 Contact Us For Availability
13
Evaporator WPL 8199554 Contact Us For Availability
13
Control Assembly WPL 8199549 Contact Us For Availability
14
Grommet WPL 789755 Contact Us For Availability
14
Baffle, Condenser WPL 8199510 Contact Us For Availability
15
Clip WPL 789763 Contact Us For Availability
15
Guard, Wire WPL 789899 Contact Us For Availability
16
Clamp WPL 789889 Contact Us For Availability
17
Screw WPL 4380603 Contact Us For Availability
18
Insulation, Cabinet (Side) ((Right Side)) WPL 789738 Contact Us For Availability
18
Insulation, Cabinet (Side) ((Left Side)) WPL 789739 Contact Us For Availability
19
Seal, Strip (Top Rear) WPL 1181046 Contact Us For Availability
19
Sleeve, Cabinet WPL 4378882 Contact Us For Availability
19
Following Parts Not Illustrated (Optional Par WPL ARI20173A8 Contact Us For Availability
19
Cable, Appliance WPL 789909 Contact Us For Availability
20
Compressor WPL 8199551 Contact Us For Availability
20
Screw 8 x 1/2 WPL 4363526 Contact Us For Availability
21
Sleeve (3) WPL 789783 Contact Us For Availability
22
Grommet (3) WPL 789827 Contact Us For Availability
22
Screw, 8 x 1/4 WPL 3148443 Contact Us For Availability
24
Nut WPL 789661 Contact Us For Availability
25
Relief, Strain WPL 789806 Contact Us For Availability
26
Overload WPL 8199552 Contact Us For Availability
27
Gasket, Terminal WPL 789882 Contact Us For Availability
28
Cover, Terminal WPL 789881 Contact Us For Availability
29
Nut, Terminal Cover WPL 789883 Contact Us For Availability
30
Strainer WPL 789673 Contact Us For Availability
30
Snubber, Two 1/4 Tubes WPL 789735 Contact Us For Availability
30
Filler, Panel WPL 789985 Contact Us For Availability
30
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI20170A5 Contact Us For Availability
30
REFRIGERANT CHARGE 25.50 oz. WPL ARI20171A3 Contact Us For Availability
× ![]()
