Model Whirlpool ACU104PK0 THROUGH-THE-WALL AIR CONDITIONER – Common Parts & Diagrams
02 - AIRFLOW AND CONTROL PARTS
03 - CABINET PARTS

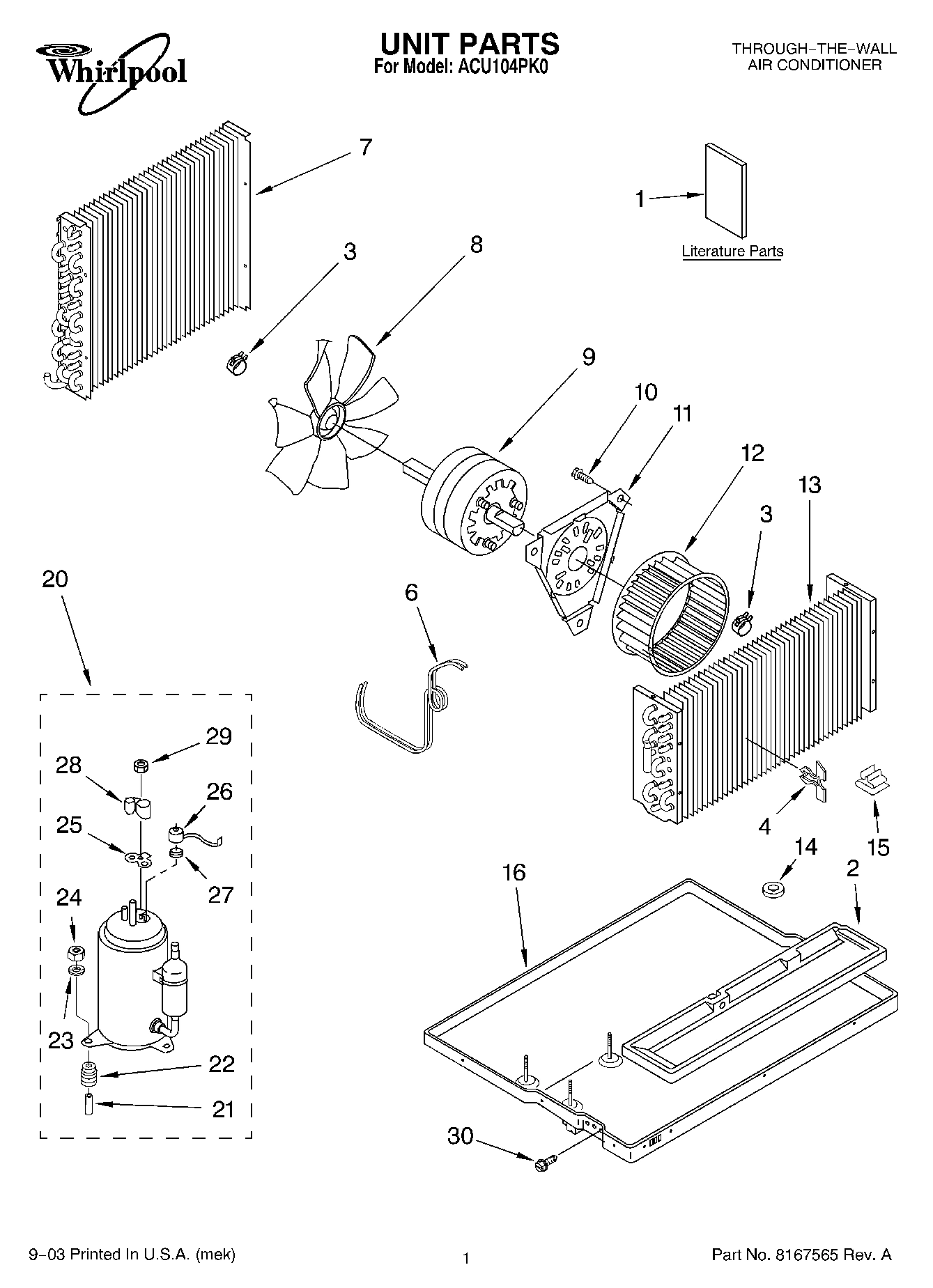

01 - UNIT PARTS
Common parts from model Whirlpool ACU104PK0 THROUGH-THE-WALL AIR CONDITIONER
1
Cabinet Assembly (Includes Insulation and Ite WPL 789999 Contact Us For Availability
1
Literature Parts (Use And Care Guide) WPL LIT789957 Contact Us For Availability
2
Support, Unit WPL 789891 Contact Us For Availability
2
Front Assembly WPL 789994 Contact Us For Availability
2
Pan, Drain (Evaporator) WPL 789856 Contact Us For Availability
3
Wall, Dividing WPL 789893 Contact Us For Availability
3
Filter, Air WPL 789980 Contact Us For Availability
3
Clamp WPL 789889 Contact Us For Availability
4
Scroll, Blower WPL 789894 Contact Us For Availability
4
Louver Assembly (Not Serviced Separately) WPL ARI20164A2 Contact Us For Availability
4
Clip, Thermostat Bulb WPL 789799 Contact Us For Availability
5
Shroud, Evaporator WPL 789774 Contact Us For Availability
6
Cover, Evaporator WPL 789993 Contact Us For Availability
6
Tube, Restrictor .042 I.D. x 27.5`` (2) WPL 789670 Contact Us For Availability
7
Screen, Air Discharge WPL 789645 Contact Us For Availability
7
Condenser WPL 789945 Contact Us For Availability
8
Panel, Control WPL 789986 Contact Us For Availability
8
Trim, Frame (Top And Bottom) WPL 789998 Contact Us For Availability
8
Blade, Fan (Condenser) WPL 789888 Contact Us For Availability
9
Trim, Frame (Side) WPL 789997 Contact Us For Availability
9
Motor, Fan WPL 789955 Contact Us For Availability
10
Knob, Control WPL 789996 Contact Us For Availability
11
Plate, Motor Mounting WPL 789793 Contact Us For Availability
12
Door, Exhaust WPL 789991 Contact Us For Availability
12
Wheel, Blower WPL 789895 Contact Us For Availability
13
Actuator, Door WPL 789992 Contact Us For Availability
13
Evaporator WPL 789914 Contact Us For Availability
14
Assist, Start WPL 789801 Contact Us For Availability
14
Baffle, Condenser WPL 789615 Contact Us For Availability
14
Grommet WPL 789755 Contact Us For Availability
15
Capacitor WPL 789631 Contact Us For Availability
15
Guard, Wire WPL 789899 Contact Us For Availability
15
Clip (2) WPL 789763 Contact Us For Availability
16
Strap, Capacitor WPL 789749 Contact Us For Availability
16
Base WPL 789983 Contact Us For Availability
17
Switch, Rotary WPL 789904 Contact Us For Availability
17
Screw WPL 4380603 Contact Us For Availability
18
Thermostat WPL 789958 Contact Us For Availability
18
Insulation, Cabinet (Side) ((Right Side)) WPL 789738 Contact Us For Availability
18
Insulation, Cabinet (Side) ((Left Side)) WPL 789739 Contact Us For Availability
19
Cable, Appliance WPL 789909 Contact Us For Availability
19
Seal, Strip (Top Rear) WPL 1181046 Contact Us For Availability
19
Sleeve, Cabinet WPL 4378882 Contact Us For Availability
19
Following Parts Not Illustrated (Optional Par WPL ARI20165A2 Contact Us For Availability
20
Screw 8 x 1/2 WPL 4363526 Contact Us For Availability
20
Compressor WPL 789944 Contact Us For Availability
21
Sleeve (3) WPL 789783 Contact Us For Availability
22
Grommet (3) WPL 789827 Contact Us For Availability
24
Nut WPL 789661 Contact Us For Availability
25
Relief, Strain WPL 789806 Contact Us For Availability
25
Gasket, Terminal Cover WPL 789882 Contact Us For Availability
26
Overload WPL 789941 Contact Us For Availability
27
Spring, Overload WPL 789830 Contact Us For Availability
28
Cover, Terminal WPL 789942 Contact Us For Availability
29
Nut, Terminal Cover WPL 789912 Contact Us For Availability
30
Screw, 8 x 1/4 WPL 3148443 Contact Us For Availability
30
Strainer WPL 789673 Contact Us For Availability
30
Snubber, Two 1/4 Tubes WPL 789735 Contact Us For Availability
30
Filler Panel WPL 78985 Contact Us For Availability
30
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI20162A7 Contact Us For Availability
30
REFRIGERANT CHARGE 19.50 oz. WPL ARI20163A4 Contact Us For Availability
× ![]()
