Model Whirlpool ACU088PR1 AIR CONDITIONER – Common Parts & Diagrams

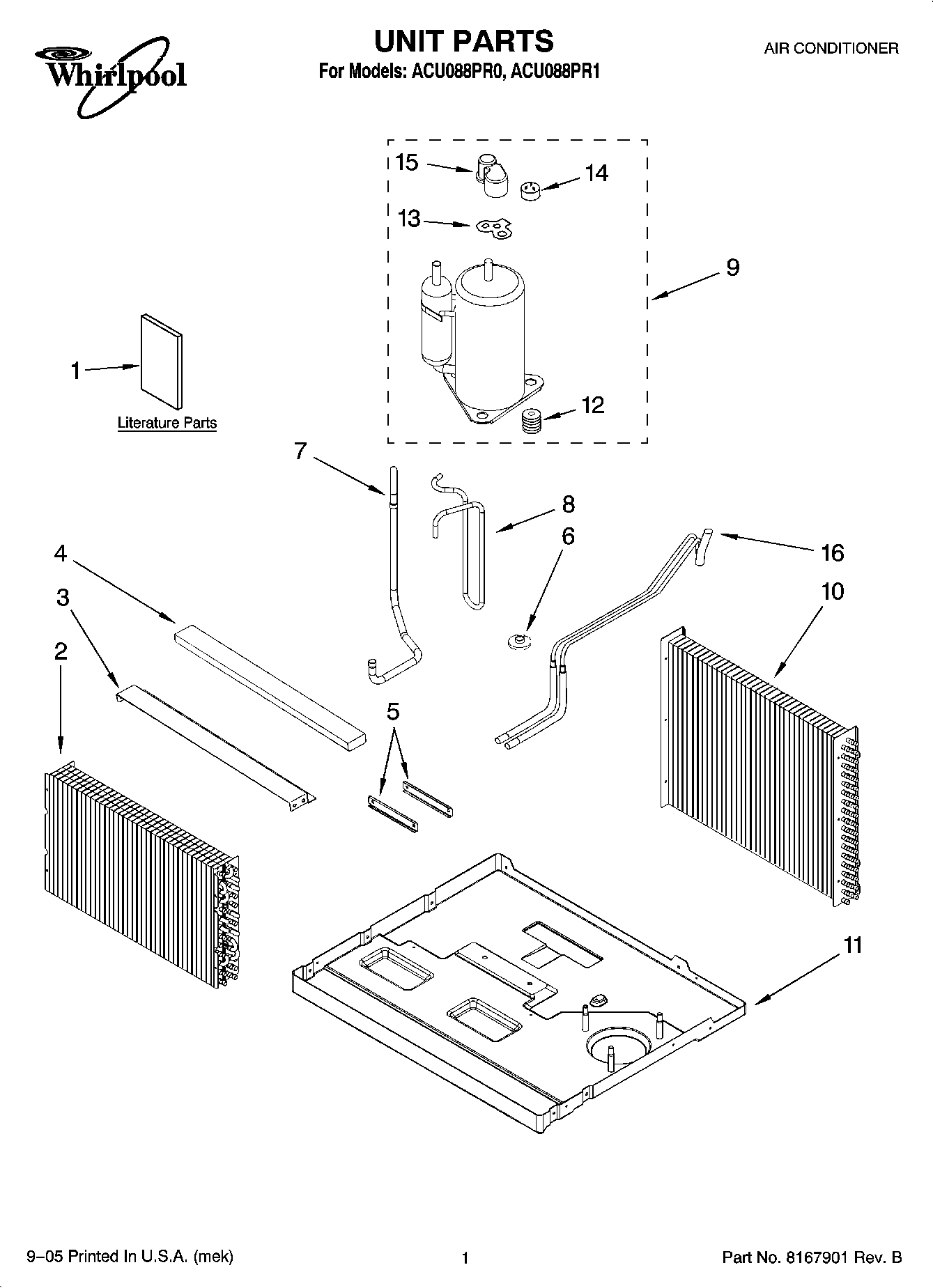

01 - UNIT PARTS

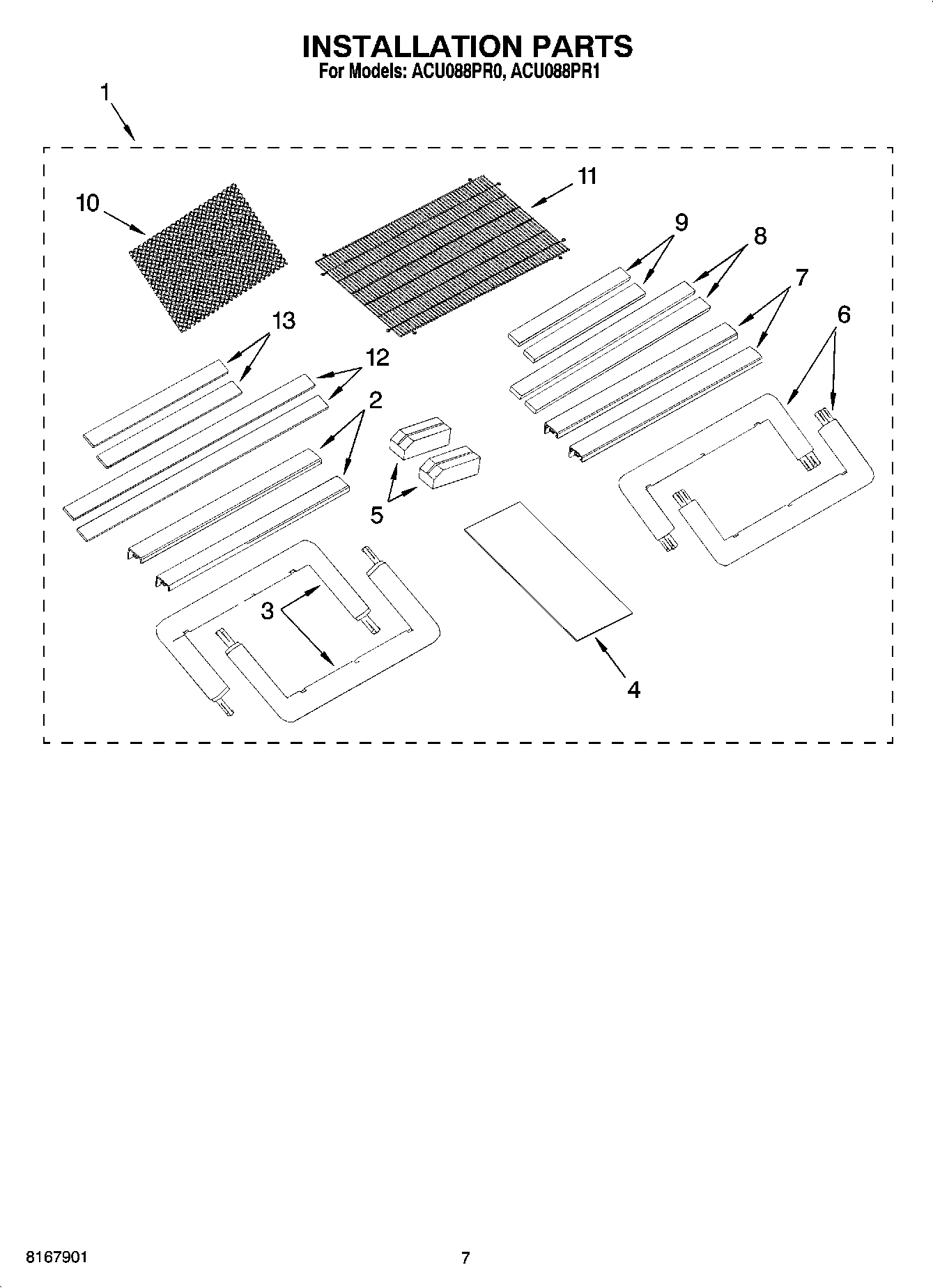

04 - INSTALLATION PARTS
02 - AIR FLOW AND CONTROL PARTS
03 - CABINET PARTS
Common parts from model Whirlpool ACU088PR1 AIR CONDITIONER
1
Diagram, Wiring WPL 8199804 Contact Us For Availability
1
Use and Care Guide WPL 8199924 Contact Us For Availability
1
Label, Energy WPL 8199925 Contact Us For Availability
1
Kit, Installation WPL 8199852 Contact Us For Availability
1
Door, Fresh Air WPL 8199848 Contact Us For Availability
1
Front WPL 8199985 Contact Us For Availability
2
Evaporator WPL 8199841 Contact Us For Availability
2
Retainer, Trim Frame WPL 8199874 Contact Us For Availability
2
Overlay WPL 8199830 Contact Us For Availability
2
Louver, W/Handle WPL 8199808 Contact Us For Availability
3
Seal-Support, Evaporator WPL 8199843 Contact Us For Availability
3
Retainer, Trim Frame WPL 8199875 Contact Us For Availability
3
Base, Control Panel WPL 8199831 Contact Us For Availability
3
Louver WPL 8199882 Contact Us For Availability
4
Seal, Evaporator WPL 8199850 Contact Us For Availability
4
Filler Board WPL 8199812 Contact Us For Availability
4
PCB, Control WPL 8199833 Contact Us For Availability
4
Filter WPL 8199846 Contact Us For Availability
5
Support, Evaporator WPL 8199842 Contact Us For Availability
5
Block, Support WPL 8199872 Contact Us For Availability
5
Housing, Air- Bottom WPL 8199857 Contact Us For Availability
5
Louver, Horizontal WPL 8199851 Contact Us For Availability
6
Nut WPL 8199788 Contact Us For Availability
6
Retainer, Trim Frame WPL 8199877 Contact Us For Availability
6
Housing, Top WPL 8199881 Contact Us For Availability
6
Connector, Louver WPL 8199855 Contact Us For Availability
7
Tube, Suction WPL 8199871 Contact Us For Availability
7
Retainer, Trim Frame WPL 8199876 Contact Us For Availability
7
Support, Unit WPL 8199854 Contact Us For Availability
7
Guide, Filter WPL 8199847 Contact Us For Availability
8
Tube, Discharge WPL 8199837 Contact Us For Availability
8
Seal, Trim Frame- Long WPL 8199878 Contact Us For Availability
8
Cover, Air Housing WPL 8199834 Contact Us For Availability
8
Cabinet WPL 8199813 Contact Us For Availability
9
Compressor WPL 8199823 Contact Us For Availability
9
Seal, Trim Frame- Short WPL 8199879 Contact Us For Availability
9
Dividing Wall, Left Side WPL 8199853 Contact Us For Availability
9
Seal, Cabinet Side WPL 8199814 Contact Us For Availability
10
Condenser WPL 8199827 Contact Us For Availability
10
Grille, Rear WPL 8199863 Contact Us For Availability
10
Bracket, Fan Motor WPL 8199860 Contact Us For Availability
10
Grille, Compressor WPL 8199825 Contact Us For Availability
11
Base WPL 8199819 Contact Us For Availability
11
Grille WPL 8199885 Contact Us For Availability
11
Wheel, Blower WPL 8199816 Contact Us For Availability
11
Nameplate WPL 8199927 Contact Us For Availability
12
GROMMET WPL 8199969 Contact Us For Availability
12
Seal, Long WPL 8199867 Contact Us For Availability
12
Motor, Fan WPL 8199844 Contact Us For Availability
12
Sleeve, Cabinet WPL 4396818 Contact Us For Availability
12
Control, Remote WPL 8199995 Contact Us For Availability
12
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI20137A6 Contact Us For Availability
12
(Optional Parts Only) WPL ARI20138A9 Contact Us For Availability
13
Gasket WPL 8199972 Contact Us For Availability
13
Seal, Short WPL 8199868 Contact Us For Availability
13
Blade, Fan WPL 8199811 Contact Us For Availability
14
Protector, Overload WPL 8199970 Contact Us For Availability
14
Shroud, Condenser WPL 8199826 Contact Us For Availability
15
Cover, Terminal WPL 8199971 Contact Us For Availability
15
Side Panel, Condenser WPL 8199828 Contact Us For Availability
16
Tube, Restrictor WPL 8199986 Contact Us For Availability
16
REFRIGERANT CHARGE 20.46 oz. WPL ARI20136A3 Contact Us For Availability
16
Dividing Wall, Right Side WPL 8199866 Contact Us For Availability
17
Clip, Wire WPL 8199884 Contact Us For Availability
18
PCB, Power Board WPL 8199865 Contact Us For Availability
19
Box, Control WPL 8199838 Contact Us For Availability
20
Support, PCB WPL 8199862 Contact Us For Availability
21
Transformer WPL 8199720 Contact Us For Availability
23
Bracket, Capacitor WPL 8199815 Contact Us For Availability
24
Capacitor, Compressor WPL 8199731 Contact Us For Availability
25
CORD-POWER WPL 8199923 Contact Us For Availability
× ![]()
