  • Maytag ACS200SX

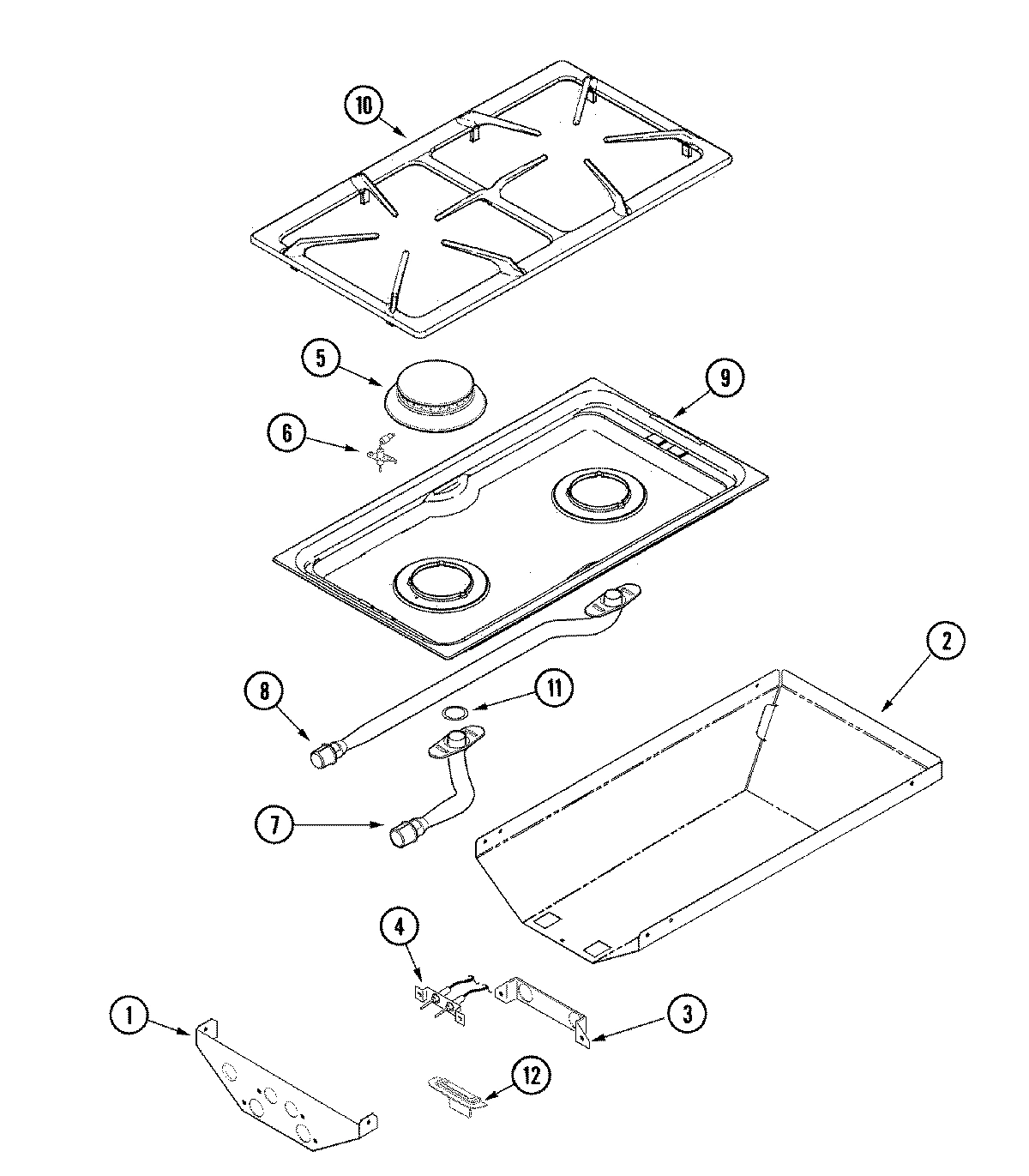

Model Maytag ACS200SX ACS200Sx – Common Parts & Diagrams

2
CAP, BURNER 12/13K (MATTE BLK)
CAP, BURNER 12/13K (MATTE BLK) MAY 31782701MB Contact Us For Availability
View on Model
2
CAP, BURNER 12/13K (SPKLE GRY)
CAP, BURNER 12/13K (SPKLE GRY) MAY 31782702SY Contact Us For Availability
View on Model
3
TOP BURNER (MEDIUM 9K)
TOP BURNER (MEDIUM 9K) MAY Y0315768 Contact Us For Availability
View on Model
4
TOP BURNER (LARGE 12/13K)
TOP BURNER (LARGE 12/13K) MAY Y0315767 Contact Us For Availability
View on Model
5
SCREW, ELECTRODE
SCREW, ELECTRODE MAY Y0316775 Contact Us For Availability
View on Model
7
TOP, MODULE-SEALED BURNER (SS)
TOP, MODULE-SEALED BURNER (SS) MAY Y0316364 Contact Us For Availability
View on Model
7
TOP, MODULE-SEALED BURNER(BLK)
TOP, MODULE-SEALED BURNER(BLK) MAY 315754B Contact Us For Availability
View on Model
7
TOP, MODULE-SEALED BURNER(BSQ)
TOP, MODULE-SEALED BURNER(BSQ) MAY 315754C Contact Us For Availability
View on Model
7
TOP, MODULE-SEALED BURNER(WHT)
TOP, MODULE-SEALED BURNER(WHT) MAY 315754W Contact Us For Availability
View on Model
9
ELECTRODE, BURNER IGN. 21``WIRE
ELECTRODE, BURNER IGN. 21``WIRE MAY Y0316389 Contact Us For Availability
View on Model
10
ELECTRODE, BURNER IGN. 1O``WIRE
ELECTRODE, BURNER IGN. 1O``WIRE MAY Y0315751 Contact Us For Availability
View on Model
11
BRKT, VENTURI
BRKT, VENTURI MAY 31749501 Contact Us For Availability
View on Model
12
BRKT, VENTURI CLAMPING
BRKT, VENTURI CLAMPING MAY 31813601 Contact Us For Availability
View on Model
NI
MODULE PAN,GAS SEALED BRNR(BLA
MODULE PAN,GAS SEALED BRNR(BLA MAY 315757B Contact Us For Availability
View on Model
NI
WASHER, LOCK 5/32 X 9/32 O.D.
WASHER, LOCK 5/32 X 9/32 O.D. MAY 31750007 Contact Us For Availability
View on Model
NI
SCREW, No.6-32 X .312 PANHD(BLK)
SCREW, No.6-32 X .312 PANHD(BLK) MAY 31750310 Contact Us For Availability
View on Model
NI
SCREW, No.8-18 X 1/4 P TRS HD
SCREW, No.8-18 X 1/4 P TRS HD MAY 31750422 Contact Us For Availability
View on Model
NI
VENTURI, FRONT BURNER-HW
VENTURI, FRONT BURNER-HW MAY 31909301 Contact Us For Availability
View on Model
NI
VENTURI, REAR BURNER-HW
VENTURI, REAR BURNER-HW MAY 31909401 Contact Us For Availability
View on Model
NI
STRIKE, GRILLE PAN
STRIKE, GRILLE PAN MAY Y0315593 Contact Us For Availability
View on Model
NI
BRKT, BURNER MTG.
BRKT, BURNER MTG. MAY Y0315755 Contact Us For Availability
