Model Whirlpool ACS102XM AIR CONDITIONER – Common Parts & Diagrams

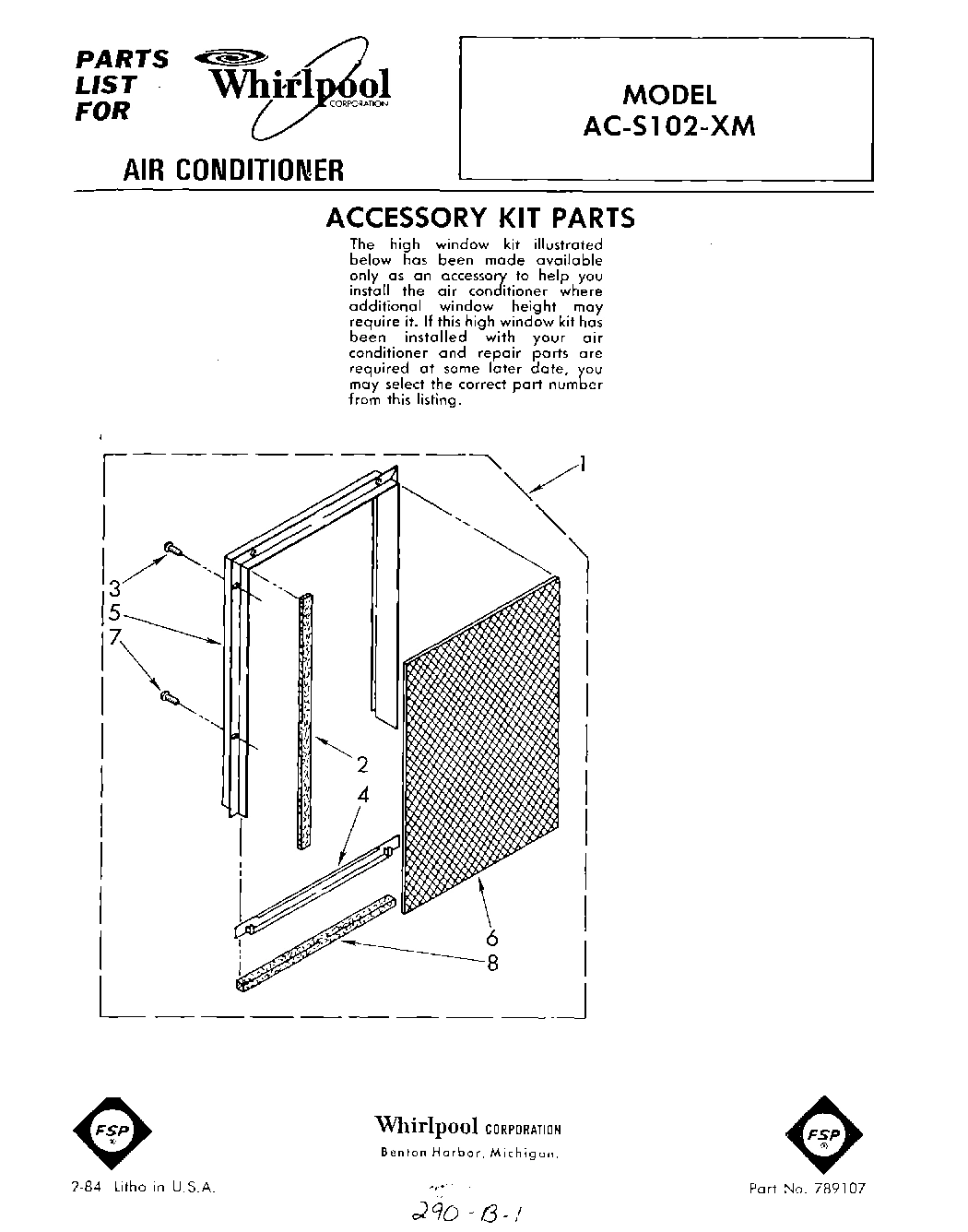

01 - SECTION

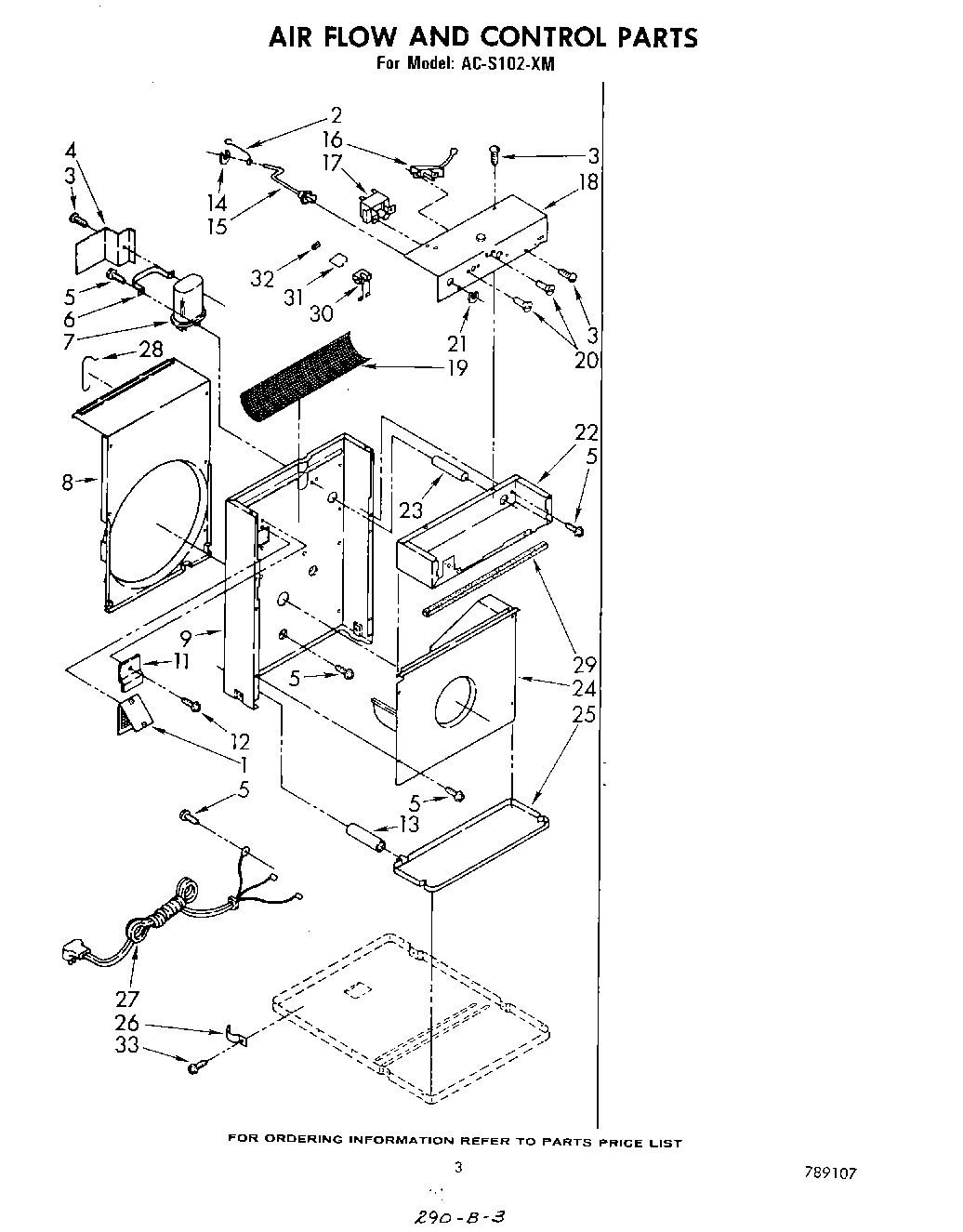

03 - SECTION
02 - SECTION
04 - SECTION
Common parts from model Whirlpool ACS102XM AIR CONDITIONER
1
Door, Exhaust WPL 977891 Contact Us For Availability
1
Condenser WPL 977952 Contact Us For Availability
1
Cabinet WPL 977870 Contact Us For Availability
2
Link, Wire WPL 977901 Contact Us For Availability
2
Strainer WPL 977848 Contact Us For Availability
2
Strip, Seal Window WPL 977906 Contact Us For Availability
3
Tube, Strainer WPL 977979 Contact Us For Availability
3
Clip, Filter (2) WPL 977850 Contact Us For Availability
4
Bracket, Shield Capacitor WPL 977409 Contact Us For Availability
4
Tube, Restrictor (Length 22.0``) WPL 980941 Contact Us For Availability
5
Fan, Slinger WPL 977554 Contact Us For Availability
5
Filler, Frame WPL 977897 Contact Us For Availability
6
Clamp, Capacitor WPL 977707 Contact Us For Availability
6
Mount, Compressor WPL 977951 Contact Us For Availability
6
Board, Filler WPL 977902 Contact Us For Availability
7
Capacitor, Running WPL 980942 Contact Us For Availability
7
Base, Assembly WPL 977969 Contact Us For Availability
8
Instructions, Installation WPL 977532 Contact Us For Availability
8
Meeting Rail Gasket WPL 977546 Contact Us For Availability
8
Shroud, Condenser WPL 977700 Contact Us For Availability
8
Front WPL 980936 Contact Us For Availability
9
Wall, Dividing WPL 980707 Contact Us For Availability
9
Motor, Fan WPL 977857 Contact Us For Availability
9
Bracket, Window Locking (2) WPL 980703 Contact Us For Availability
10
Bolt, 5/16 x 1-1/2 (4) WPL 798389 Contact Us For Availability
10
Seal Strip WPL 977907 Contact Us For Availability
11
Stop, Door Door WPL 977950 Contact Us For Availability
11
Sleeve (4) WPL 798393 Contact Us For Availability
11
Strip, Seal WPL 977677 Contact Us For Availability
12
Grommet (4) WPL 798392 Contact Us For Availability
12
Strip, Seal WPL 977710 Contact Us For Availability
13
Tube, Drain WPL 977462 Contact Us For Availability
13
Retainer, Louver (2) WPL 977589 Contact Us For Availability
14
Clip WPL 977452 Contact Us For Availability
14
Louver, Vertical WPL 832171 Contact Us For Availability
15
Control, Exhaust WPL 977890 Contact Us For Availability
15
Angle, Top WPL 977896 Contact Us For Availability
16
Control, Temperature WPL 977945 Contact Us For Availability
16
Plate, Compressor Base WPL 977831 Contact Us For Availability
17
Switch, Rotary WPL 980931 Contact Us For Availability
17
Spring, Baseplate WPL 977440 Contact Us For Availability
18
Screw, 89 x 3/4 (2) WPL 832086 Contact Us For Availability
18
Cover, Control Box WPL 977911 Contact Us For Availability
18
Nut, Hex No. 1/4 (3) WPL 977858 Contact Us For Availability
19
Guard, Hazard WPL 977690 Contact Us For Availability
19
Harness, Wiring (For Compressor Service) WPL 484136 Contact Us For Availability
19
Knob (3) WPL 977949 Contact Us For Availability
20
Screw, 6-32 x 1/4 WPL 977838 Contact Us For Availability
20
Wheel, Blower WPL 977703 Contact Us For Availability
20
Front Assembly WPL 980935 Contact Us For Availability
21
Ring, Retainer WPL 832241 Contact Us For Availability
21
Evaporator WPL 977803 Contact Us For Availability
21
Strip, Backing WPL 977673 Contact Us For Availability
22
Box, Control WPL 977968 Contact Us For Availability
22
Compressor WPL 485552 Contact Us For Availability
22
Plate, Dial WPL 980932 Contact Us For Availability
23
Tube, Wire Guard WPL 977753 Contact Us For Availability
23
Overload WPL 977621 Contact Us For Availability
23
Filter, Air WPL 977839 Contact Us For Availability
24
Housing, Blower Wheel WPL 977463 Contact Us For Availability
24
Spring, Overload WPL 977622 Contact Us For Availability
24
Spring, Front Support (2) WPL 798307 Contact Us For Availability
25
Pan, Drain WPL 977461 Contact Us For Availability
25
Gasket, Cover WPL 977833 Contact Us For Availability
25
Seal, Lower Track WPL 832415 Contact Us For Availability
26
Clamp WPL 798356 Contact Us For Availability
26
Cover, Overload WPL 977834 Contact Us For Availability
26
Strip Seal WPL 977678 Contact Us For Availability
27
Cable, Appliance WPL 832114 Contact Us For Availability
27
Retainer, Cover WPL 977835 Contact Us For Availability
27
Shelf, Window Mounting WPL 977478 Contact Us For Availability
28
Retainer, Shroud Cover (2) WPL 977470 Contact Us For Availability
28
Bracket, Condenser Shroud WPL 977955 Contact Us For Availability
28
Bolt, Carriage (5/16 x 3/4) (2) WPL 487692 Contact Us For Availability
29
Seal, Strip WPL 977664 Contact Us For Availability
29
Anticipator, Temperature WPL 832245 Contact Us For Availability
29
Bracket, Shelf (Large) WPL 977479 Contact Us For Availability
30
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
30
No Drip Tape (For Sweating Tubes) WPL 505168 Contact Us For Availability
30
Heater, Thermostat WPL 977962 Contact Us For Availability
30
Nut, Hex No. 2 (2) WPL 486251 Contact Us For Availability
30
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
30
Clip, Anticipator WPL 832246 Contact Us For Availability
30
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
31
Clip, Heater WPL 977957 Contact Us For Availability
31
Lockwasher (2) WPL 487108 Contact Us For Availability
32
Pad, Heater WPL 977636 Contact Us For Availability
33
Insulation, Fiberglass WPL 469938 Contact Us For Availability
33
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
33
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
33
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
33
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
33
List, Repair Parts WPL 789107 Contact Us For Availability
33
Thinner (1 Gal.) WPL 799351 Contact Us For Availability
33
Guide, Use & Care WPL 980927 Contact Us For Availability
33
Sheet, Tech & Wiring Diagram WPL 980943 Contact Us For Availability
33
Guide, Energy WPL 980944 Contact Us For Availability
33
Bracket, Shelf (Small) WPL 977482 Contact Us For Availability
34
Screw, 10 x 1 (2) WPL 487746 Contact Us For Availability
35
Screw, 10 x 1-3/4 (2) WPL 798399 Contact Us For Availability
× ![]()
