Model Whirlpool ACS102XG0 AIR CONDITIONER – Common Parts & Diagrams
02 - AIR FLOW AND CONTROL
01 - UNIT, LITERATURE

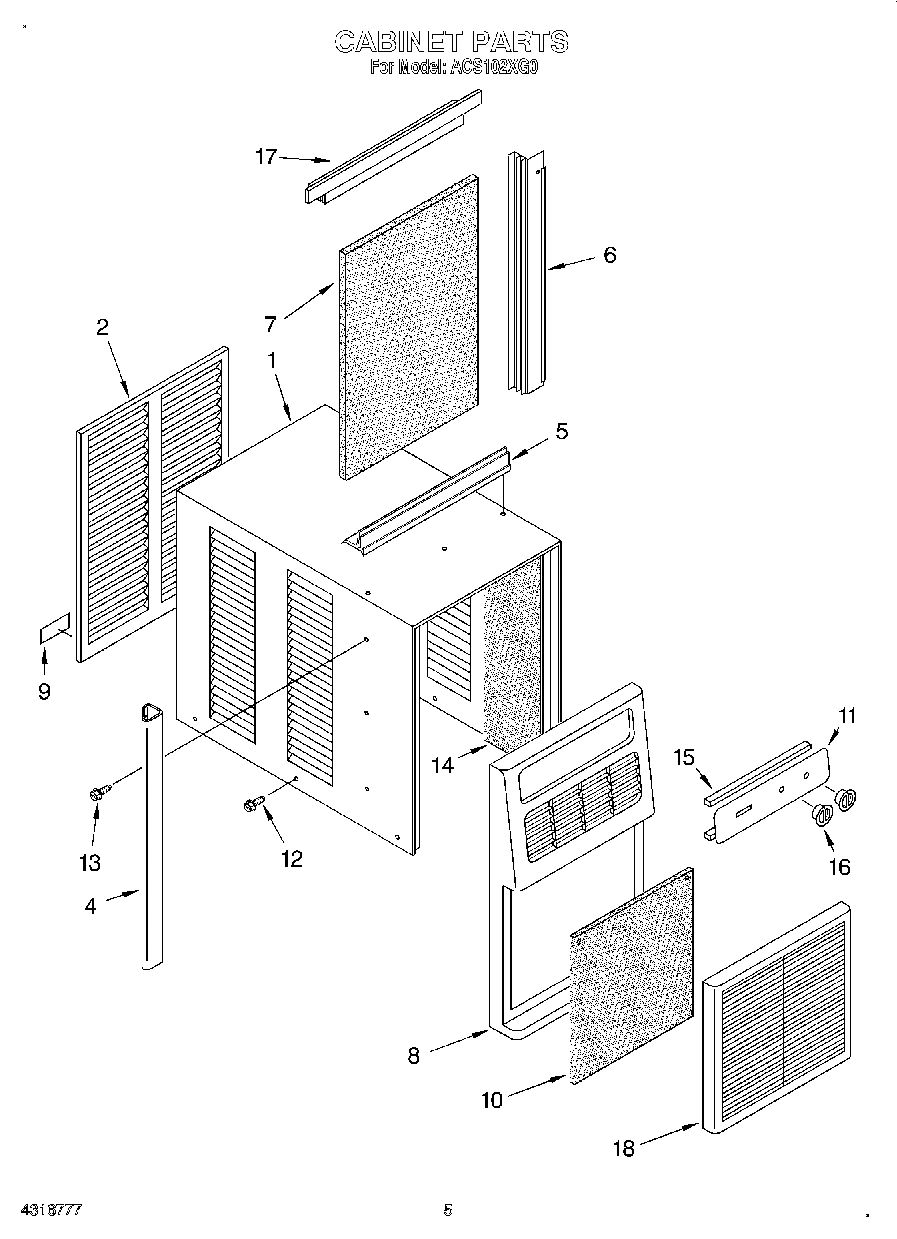

03 - CABINET

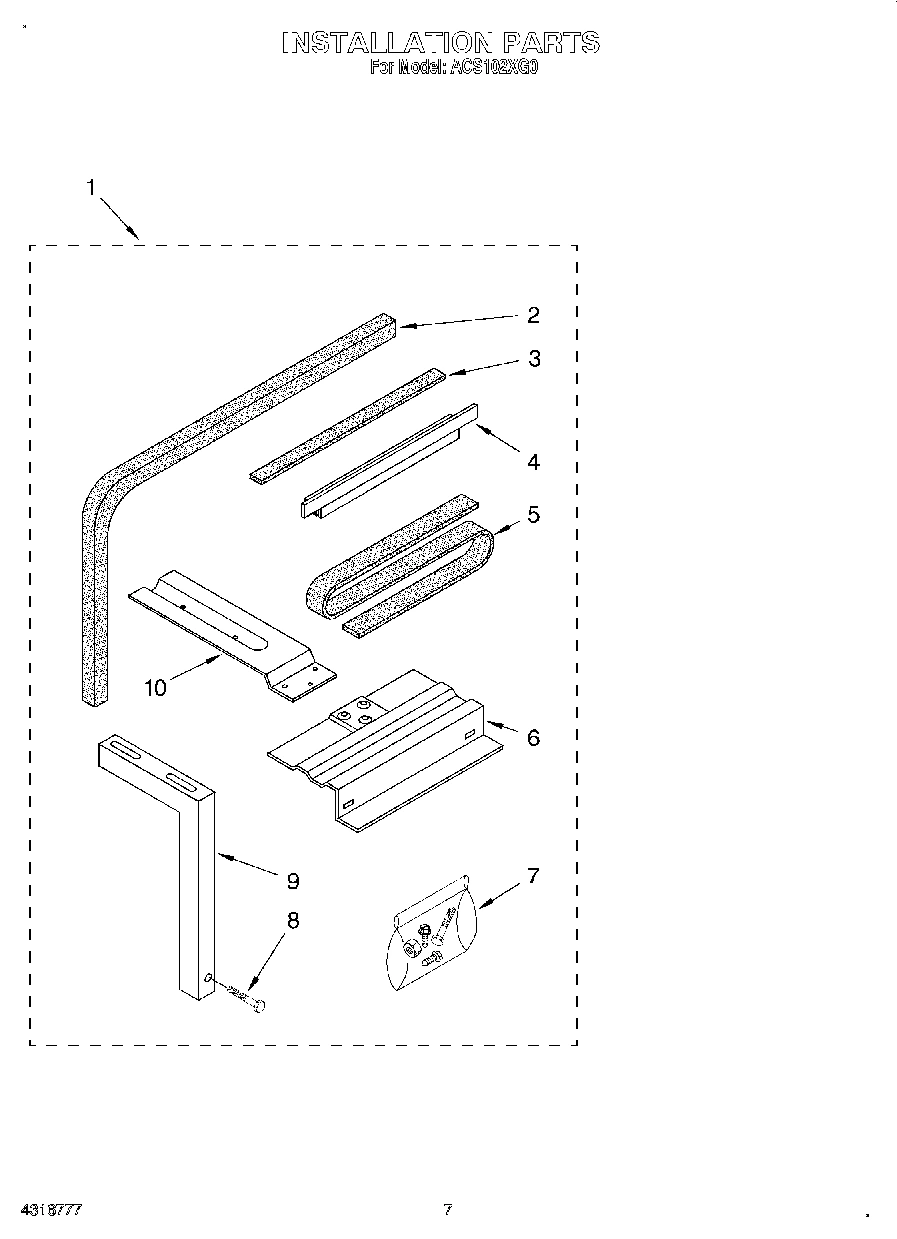

04 - INSTALLATION
Common parts from model Whirlpool ACS102XG0 AIR CONDITIONER
Tech Sheet WPL LIT789770 Contact Us For Availability
Use and Care Guide WPL LIT789771 Contact Us For Availability
1
Blade, Fan WPL 789789 Contact Us For Availability
1
Base WPL 789777 Contact Us For Availability
1
Cabinet Assembly (Includes Insulation and Nos WPL 789814 Contact Us For Availability
1
Kit, Installation WPL 789687 Contact Us For Availability
2
Motor, Fan WPL 789792 Contact Us For Availability
2
Panel, Rear WPL 789680 Contact Us For Availability
2
Seal, Meeting Rail WPL 789692 Contact Us For Availability
3
Shroud, Condenser WPL 789790 Contact Us For Availability
3
Seal, Strip WPL 789745 Contact Us For Availability
4
Wall, Dividing WPL 789794 Contact Us For Availability
4
Pan, Drain (Evaporator) WPL 789778 Contact Us For Availability
4
Retainer, Side (Cabinet) (2) WPL 789815 Contact Us For Availability
4
Retainer, Filler Panel (Top) (Not Serviced Se WPL 789688 Contact Us For Availability
5
Housing, Blower WPL 789795 Contact Us For Availability
5
Evaporator WPL 789780 Contact Us For Availability
5
Retainer, Top (Cabinet) WPL 789682 Contact Us For Availability
5
Seal, Strip WPL 789744 Contact Us For Availability
6
Shroud, Evaporator (Includes Insul.) WPL 789796 Contact Us For Availability
6
Retainer, Panel (Side) (2) WPL 789816 Contact Us For Availability
7
Wheel, Blower WPL 789797 Contact Us For Availability
7
Panel, Filler WPL 789817 Contact Us For Availability
8
Panel, Control (Bottom) WPL 789803 Contact Us For Availability
8
Grommet, Tube WPL 789755 Contact Us For Availability
8
Front Assembly (Includes Item 18) WPL 789808 Contact Us For Availability
9
Thermostat WPL 789627 Contact Us For Availability
9
Tube, Restrictor .042 I.D. x 20`` (2) WPL 789782 Contact Us For Availability
9
Nameplate WPL 789818 Contact Us For Availability
10
Panel, Control WPL 789804 Contact Us For Availability
10
Strainer WPL 789673 Contact Us For Availability
10
Filter, Air WPL 789809 Contact Us For Availability
11
Plate, Motor Mounting WPL 789793 Contact Us For Availability
11
Escutcheon (Also Order Item 15) WPL 789811 Contact Us For Availability
12
Condenser WPL 789776 Contact Us For Availability
12
Screw No.8 x 1/4 Hex WPL 3148443 Contact Us For Availability
13
Actuator, Exhaust Door WPL 789800 Contact Us For Availability
14
Compressor WPL 789786 Contact Us For Availability
14
Insulation, Cab. (Side) (2 Required) WPL 789746 Contact Us For Availability
14
Insulation, Cab. (Top) WPL 789747 Contact Us For Availability
15
Switch, Rotary WPL 789711 Contact Us For Availability
15
Overload WPL 789788 Contact Us For Availability
15
Spacer, Escutcheon WPL 789812 Contact Us For Availability
16
Cord, Power WPL 789805 Contact Us For Availability
16
Gasket, Terminal Cover WPL 789656 Contact Us For Availability
16
Knob WPL 789813 Contact Us For Availability
17
Relief, Strain WPL 789806 Contact Us For Availability
17
Nut, Terminal Cover WPL 789660 Contact Us For Availability
18
Strap, Capacitor WPL 789749 Contact Us For Availability
18
Cover, Terminal WPL 789658 Contact Us For Availability
18
Insert, Front WPL 789810 Contact Us For Availability
19
Capacitor WPL 789802 Contact Us For Availability
19
Nut WPL 789661 Contact Us For Availability
21
Support, Unit WPL 789807 Contact Us For Availability
21
Grommet WPL 789664 Contact Us For Availability
22
Sleeve WPL 789783 Contact Us For Availability
23
Door, Exhaust WPL 789798 Contact Us For Availability
25
Assist, Start WPL 789801 Contact Us For Availability
25
Clip, Thermostat Bulb WPL 789799 Contact Us For Availability
× ![]()
