Model Whirlpool ACS102XE0 AIR CONDITIONER – Common Parts & Diagrams

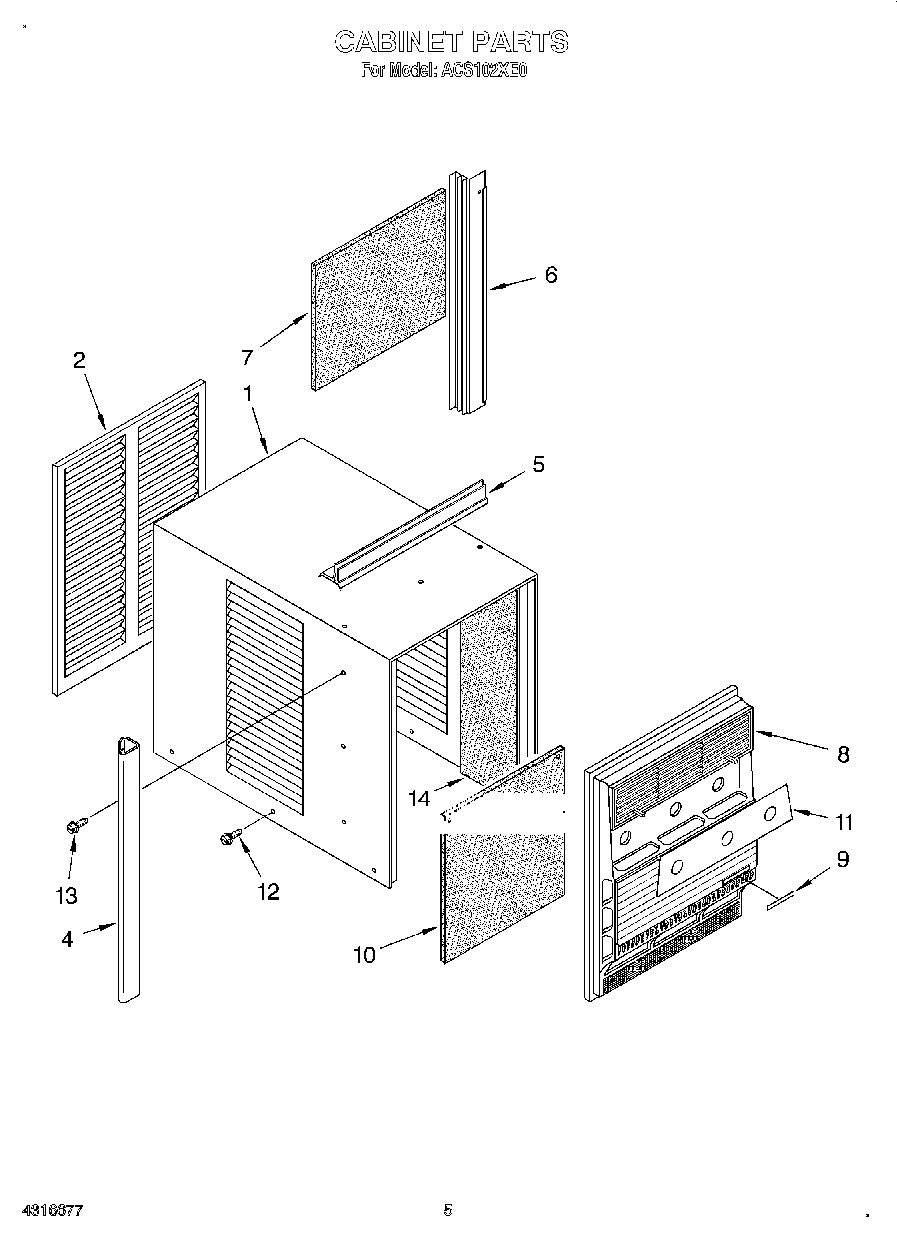

03 - CABINET

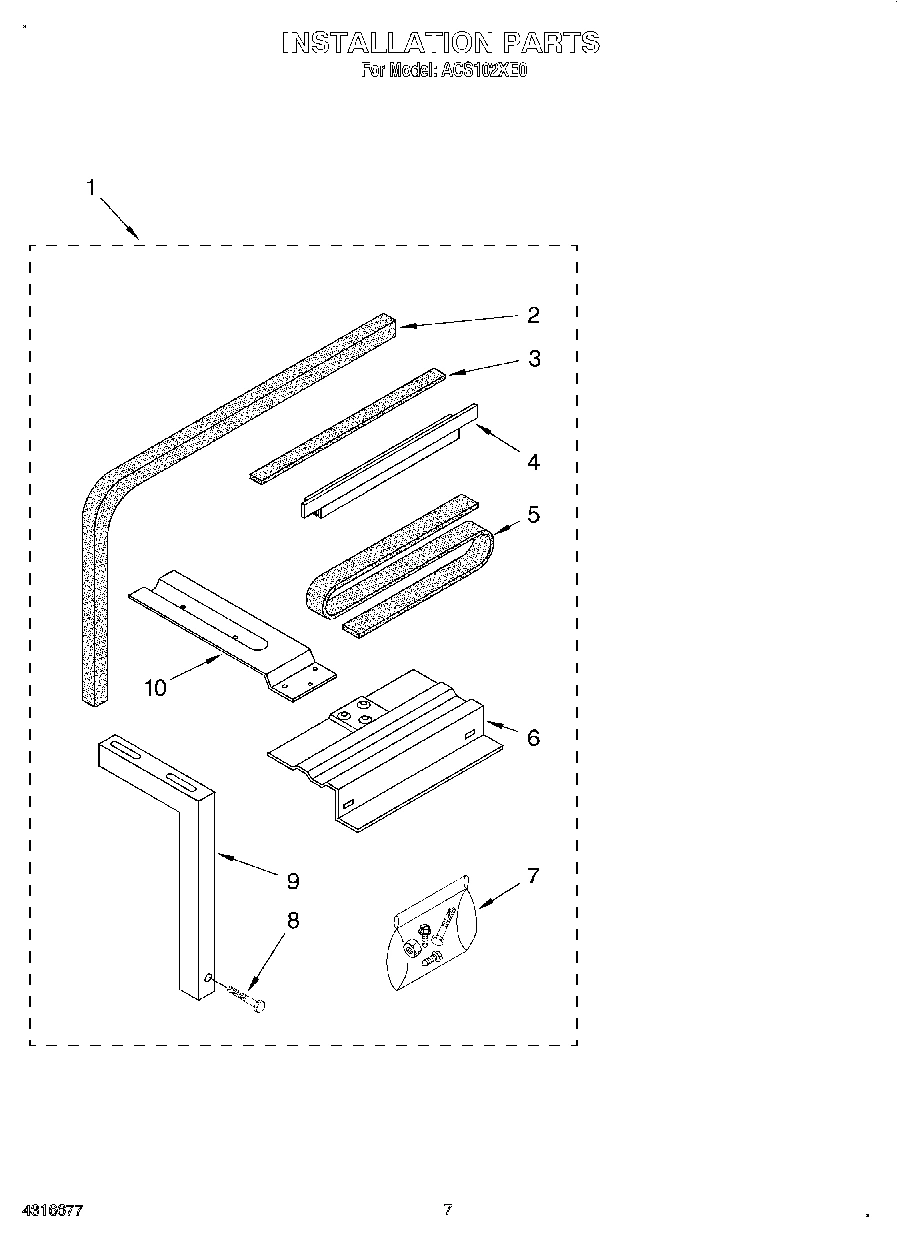

04 - INSTALLATION PARTS

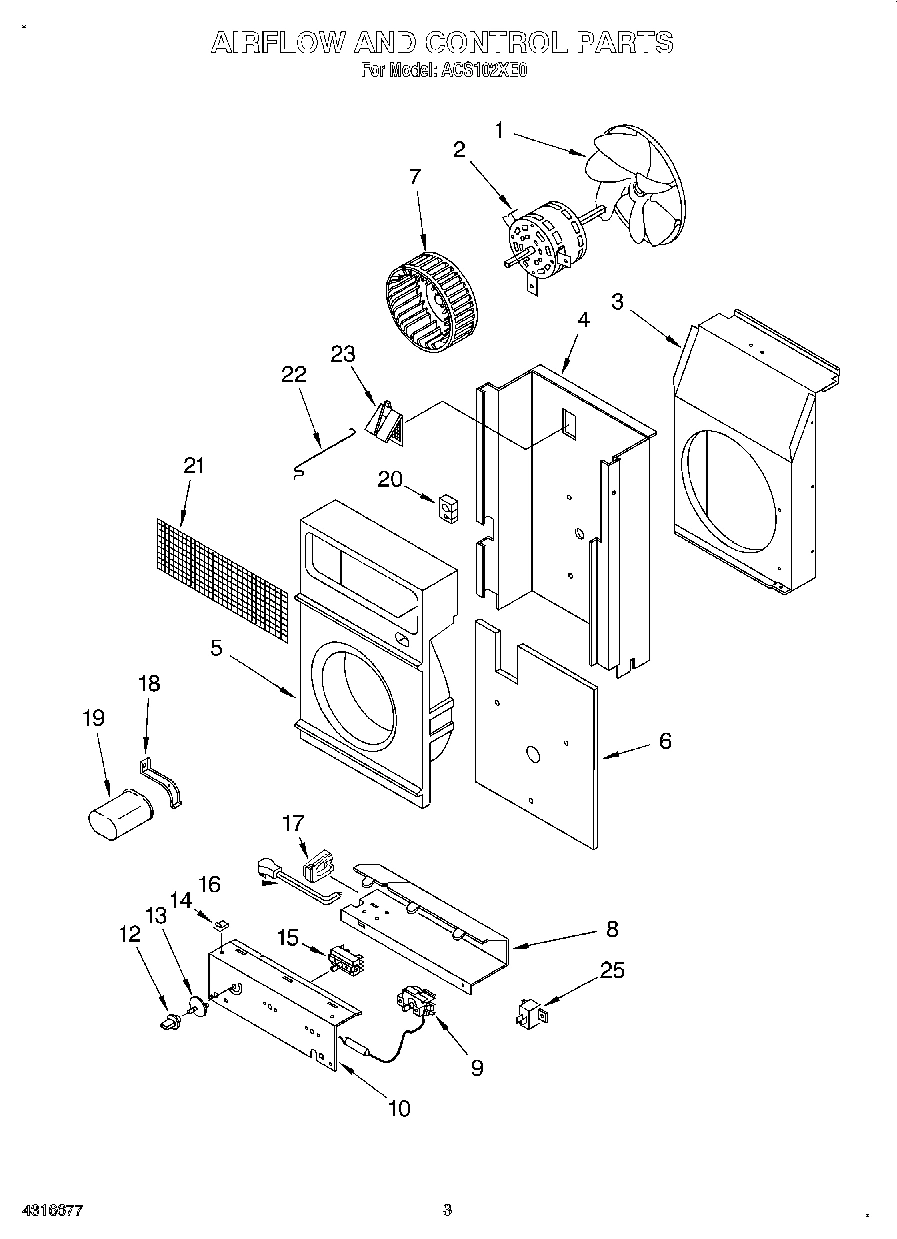

02 - AIRFLOW AND CONTROL

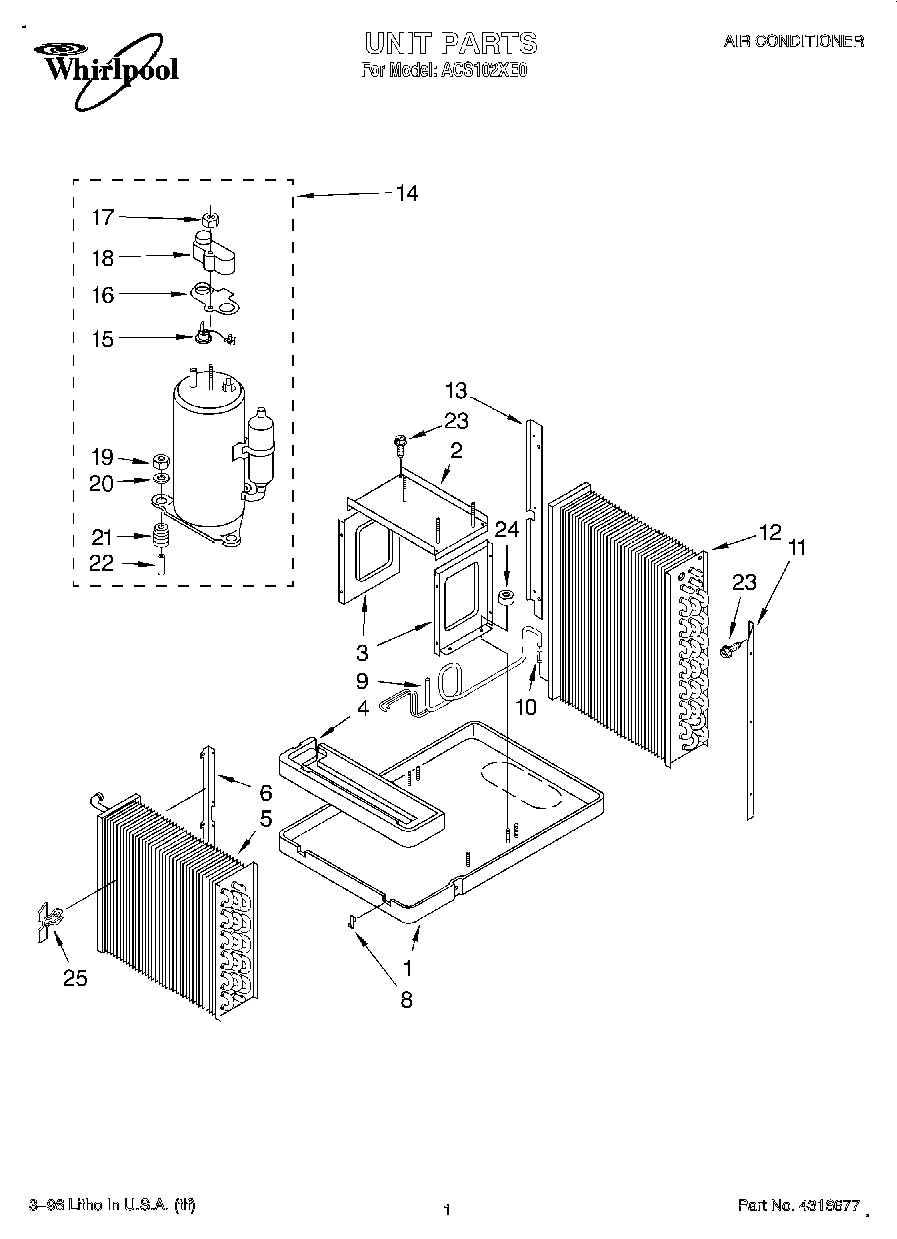

01 - UNIT, LITERATURE
Common parts from model Whirlpool ACS102XE0 AIR CONDITIONER
Use and Care Guide WPL LIT789601 Contact Us For Availability
Tech Sheet WPL LIT789604 Contact Us For Availability
1
Cabinet Assembly (Includes Insulation and Nos WPL 789679 Contact Us For Availability
1
Kit, Installation WPL 789687 Contact Us For Availability
1
Blade, Fan WPL 789697 Contact Us For Availability
1
Base WPL 789719 Contact Us For Availability
2
Panel, Rear WPL 789680 Contact Us For Availability
2
Seal, Meeting Rail WPL 789692 Contact Us For Availability
2
Motor, Fan WPL 789699 Contact Us For Availability
2
Bracket, Comp. Mounting WPL 789721 Contact Us For Availability
3
Seal, Strip WPL 789745 Contact Us For Availability
3
Shroud, Condenser WPL 789700 Contact Us For Availability
3
Support, Bracket (2) WPL 789723 Contact Us For Availability
4
Retainer, Side (Cabinet) (2) WPL 789681 Contact Us For Availability
4
Retainer, Filler Panel (Top) (Not Serviced Se WPL ARI20113A7 Contact Us For Availability
4
Wall, Dividing WPL 789701 Contact Us For Availability
4
Pan, Drain (Evaporator) WPL 789724 Contact Us For Availability
5
Retainer, Top (Cabinet) WPL 789682 Contact Us For Availability
5
Seal, Strip WPL 789744 Contact Us For Availability
5
Housing, Blower WPL 789702 Contact Us For Availability
5
Evaporator WPL 789726 Contact Us For Availability
6
Retainer, Panel (Side) (2) WPL 789683 Contact Us For Availability
6
Insulation, Dividing Wall WPL 789703 Contact Us For Availability
6
Bracket, Baffle (Evaporator) WPL 789727 Contact Us For Availability
7
Panel, Filler WPL 789684 Contact Us For Availability
7
Wheel, Blower WPL 789704 Contact Us For Availability
8
Front Assembly (Also Order Nos. 9 and 11) WPL 789685 Contact Us For Availability
8
Box, Control WPL 789705 Contact Us For Availability
8
Clip, Front Retainer WPL 789728 Contact Us For Availability
9
Nameplate WPL 789686 Contact Us For Availability
9
Thermostat WPL 789627 Contact Us For Availability
9
Tube, Restrictor .042 I.D. x 20`` (2) WPL 789730 Contact Us For Availability
10
Filter, Air WPL 789707 Contact Us For Availability
10
Cover, Control Box WPL 789706 Contact Us For Availability
10
Strainer WPL 789673 Contact Us For Availability
11
Escutcheon WPL 789696 Contact Us For Availability
11
Baffle, Condenser WPL 789731 Contact Us For Availability
12
Screw No.8 x 1/4 Hex WPL 3148443 Contact Us For Availability
12
Knob (3) WPL 789708 Contact Us For Availability
12
Condenser WPL 789733 Contact Us For Availability
13
Actuator, Exhaust Door WPL 789709 Contact Us For Availability
13
Bracket, Condenser Shroud WPL 789734 Contact Us For Availability
14
Insulation, Cab. (Side) (2 Required) WPL 789746 Contact Us For Availability
14
Insulation, Cab. (Top) WPL 789747 Contact Us For Availability
14
Clip, Front Retainer WPL 789710 Contact Us For Availability
14
Compressor WPL 789650 Contact Us For Availability
15
Switch, Rotary WPL 789711 Contact Us For Availability
15
Overload WPL 789653 Contact Us For Availability
16
Cord, Power WPL 789625 Contact Us For Availability
16
Gasket, Terminal Cover WPL 789656 Contact Us For Availability
17
Relief, Strain WPL 789624 Contact Us For Availability
17
Nut, Terminal Cover WPL 789660 Contact Us For Availability
18
Strap, Capacitor WPL 789713 Contact Us For Availability
18
Cover, Terminal WPL 789658 Contact Us For Availability
19
Capacitor WPL 789615 Contact Us For Availability
19
Nut WPL 789661 Contact Us For Availability
20
Grommet (Tube) WPL 789716 Contact Us For Availability
20
Washer WPL 789662 Contact Us For Availability
21
Screen, Air Discharge WPL 789717 Contact Us For Availability
21
Grommet WPL 789664 Contact Us For Availability
22
Wire, Control WPL 789718 Contact Us For Availability
22
Sleeve WPL 789665 Contact Us For Availability
23
Door, Exhaust WPL 789635 Contact Us For Availability
24
Nut, 1/4-20 Lock WPL 789743 Contact Us For Availability
25
Assist, Start WPL 789633 Contact Us For Availability
25
Clip, Thermostat Bulb WPL 789628 Contact Us For Availability
× ![]()
