Model Whirlpool ACS102PP0 AIR CONDITIONER – Common Parts & Diagrams
01 - UNIT PARTS
03 - CABINET PARTS

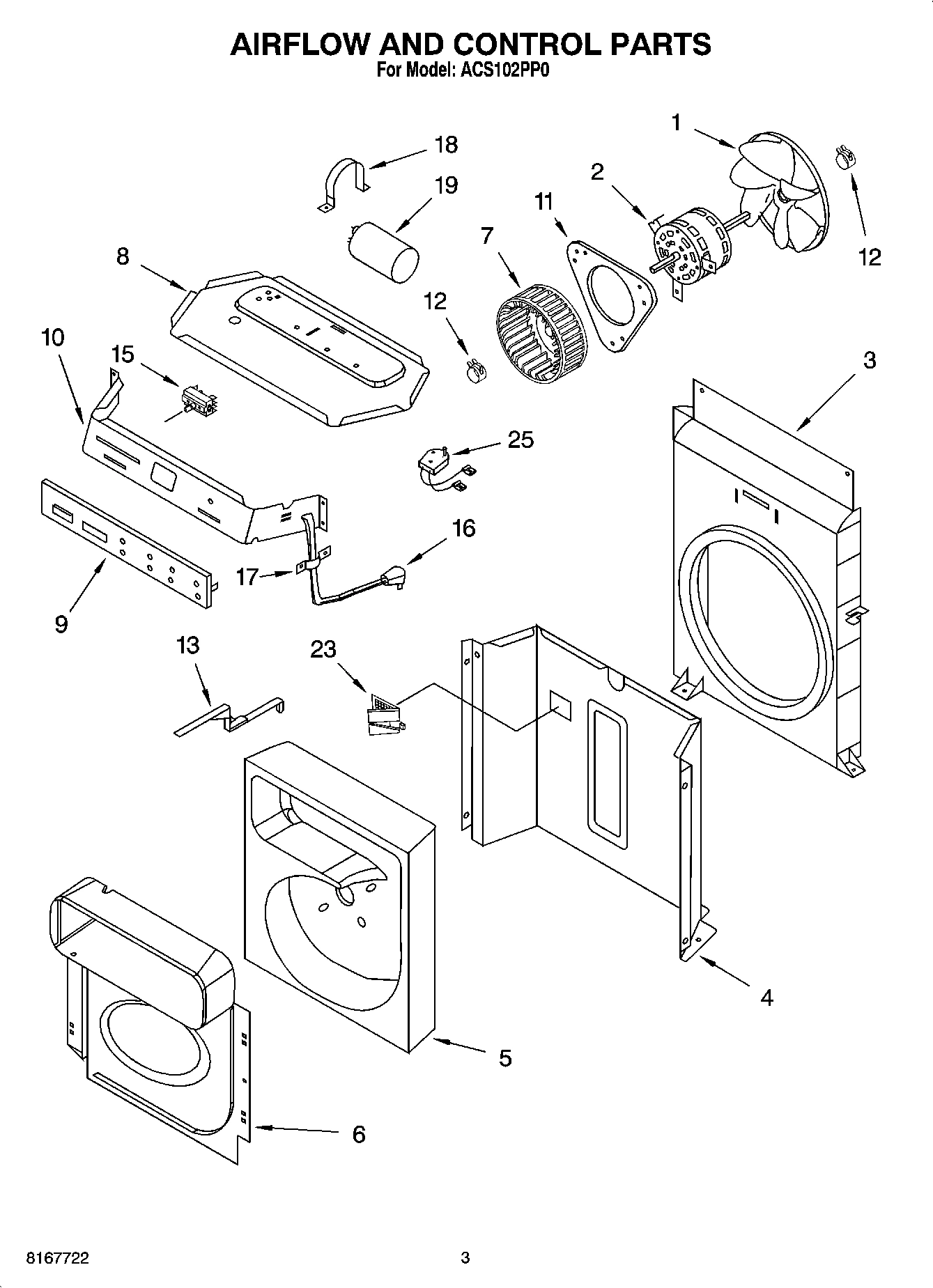

02 - AIR FLOW AND CONTROL PARTS

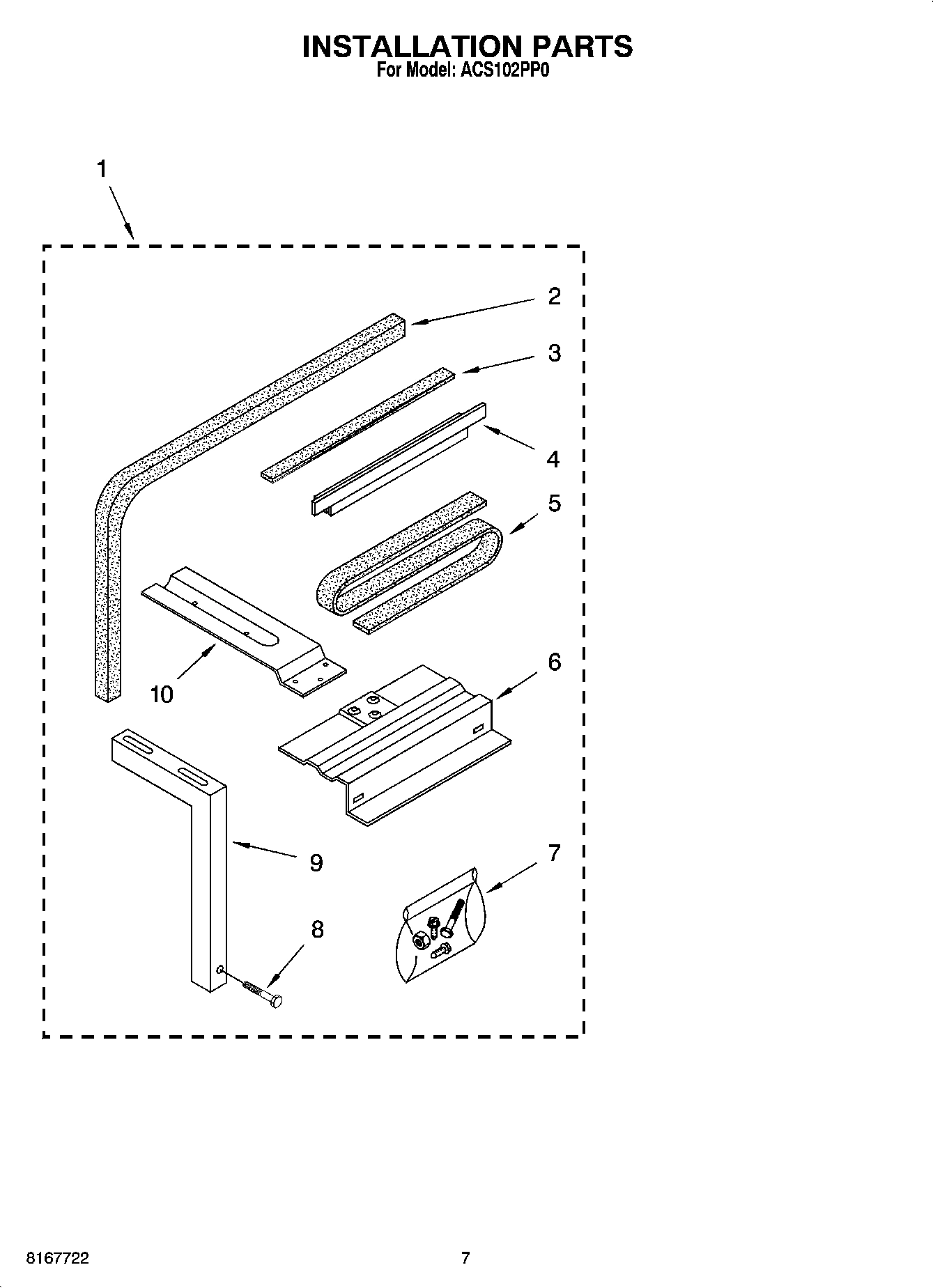

04 - INSTALLATION PARTS
Common parts from model Whirlpool ACS102PP0 AIR CONDITIONER
1
Literature Parts (Use and Care Guide) WPL LIT8199568 Contact Us For Availability
1
Cabinet Assembly (Includes Insulation and Nos WPL 8199566 Contact Us For Availability
1
Blade, Fan WPL 789834 Contact Us For Availability
1
Kit, Installation WPL 789687 Contact Us For Availability
2
BASE WPL 8199556 Contact Us For Availability
2
Panel, Rear WPL 8199567 Contact Us For Availability
2
Motor, Fan WPL 789837 Contact Us For Availability
2
Seal, Meeting Rail WPL 789692 Contact Us For Availability
3
Shroud, Condenser WPL 789836 Contact Us For Availability
3
Seal, Strip WPL 789745 Contact Us For Availability
4
Pan, Drain (Evaporator) WPL 789778 Contact Us For Availability
4
Retainer, Side (Cabinet) (2) WPL 789961 Contact Us For Availability
4
Wall, Dividing WPL 789794 Contact Us For Availability
4
Retainer, Filler Panel (Top) (Not Serviced Se WPL 789688 Contact Us For Availability
5
Evaporator WPL 8199640 Contact Us For Availability
5
Retainer, Top (Cabinet) WPL 789962 Contact Us For Availability
5
Housing, Blower WPL 8199633 Contact Us For Availability
5
Seal, Strip WPL 789744 Contact Us For Availability
6
Retainer, Panel (Side) (2) WPL 789963 Contact Us For Availability
6
Shroud, Evaporator (Includes Insul.) WPL 789796 Contact Us For Availability
6
Plate, Sill (Not Serviced Separate) WPL ARI20107A7 Contact Us For Availability
7
Panel, Filler WPL 789817 Contact Us For Availability
7
Wheel, Blower WPL 789838 Contact Us For Availability
7
Hardware (Not Serviced Separate) WPL ARI20108A3 Contact Us For Availability
8
Grommet, Tube WPL 789755 Contact Us For Availability
8
Front Assembly WPL 8199564 Contact Us For Availability
8
Panel, Control (Bottom) WPL 8199636 Contact Us For Availability
8
Bolt, Leveling 3/8-16 x 2.5`` WPL ARI20109A3 Contact Us For Availability
9
Tube, Restrictor .042 I.D. x 27.5`` (2) WPL 8199509 Contact Us For Availability
9
Nameplate WPL 789925 Contact Us For Availability
9
Touch Pad Assembly WPL 8199634 Contact Us For Availability
9
Angle, Support (Not Serviced Separately) WPL ARI20110A6 Contact Us For Availability
10
Strainer WPL 789673 Contact Us For Availability
10
Filter, Air WPL 789809 Contact Us For Availability
10
Panel, Control WPL 8199572 Contact Us For Availability
10
Platform, Support (Not Serviced Separately) WPL ARI20111A5 Contact Us For Availability
11
Plate, Motor Mounting WPL 789772 Contact Us For Availability
12
Condenser WPL 8199531 Contact Us For Availability
12
Screw 8 x 1/4 Hex WPL 3148443 Contact Us For Availability
12
Clamp WPL 789835 Contact Us For Availability
13
Actuator, Exhaust Door WPL 789917 Contact Us For Availability
14
Compressor WPL 8199641 Contact Us For Availability
14
Insulation, Cab. (Side) (2 Required) WPL 789746 Contact Us For Availability
14
Insulation, Cab. (Top) WPL 789747 Contact Us For Availability
15
Overload WPL 8199617 Contact Us For Availability
15
Transformer WPL 8199574 Contact Us For Availability
16
Gasket, Terminal Cover WPL 789882 Contact Us For Availability
16
Cord, Power WPL 8199638 Contact Us For Availability
17
Nut, Terminal Cover WPL 789883 Contact Us For Availability
17
Retainer, Filler Board (Top) WPL 789964 Contact Us For Availability
17
Relief, Strain WPL 789806 Contact Us For Availability
18
Cover, Terminal WPL 8199642 Contact Us For Availability
18
Insert, Front WPL 8199565 Contact Us For Availability
18
Strap, Capacitor WPL 789749 Contact Us For Availability
19
Nut WPL 789661 Contact Us For Availability
19
Capacitor WPL 8199635 Contact Us For Availability
21
Grommet WPL 789827 Contact Us For Availability
22
Sleeve WPL 789783 Contact Us For Availability
23
Door, Exhaust WPL 789907 Contact Us For Availability
25
Clip, Thermistor WPL 8199639 Contact Us For Availability
25
REFRIGERANT CHARGE 17.75 oz. WPL ARI20106A9 Contact Us For Availability
25
Assist, Start WPL 789801 Contact Us For Availability
× ![]()
