Model Whirlpool ACS088PR0 AIR CONDITIONER – Common Parts & Diagrams

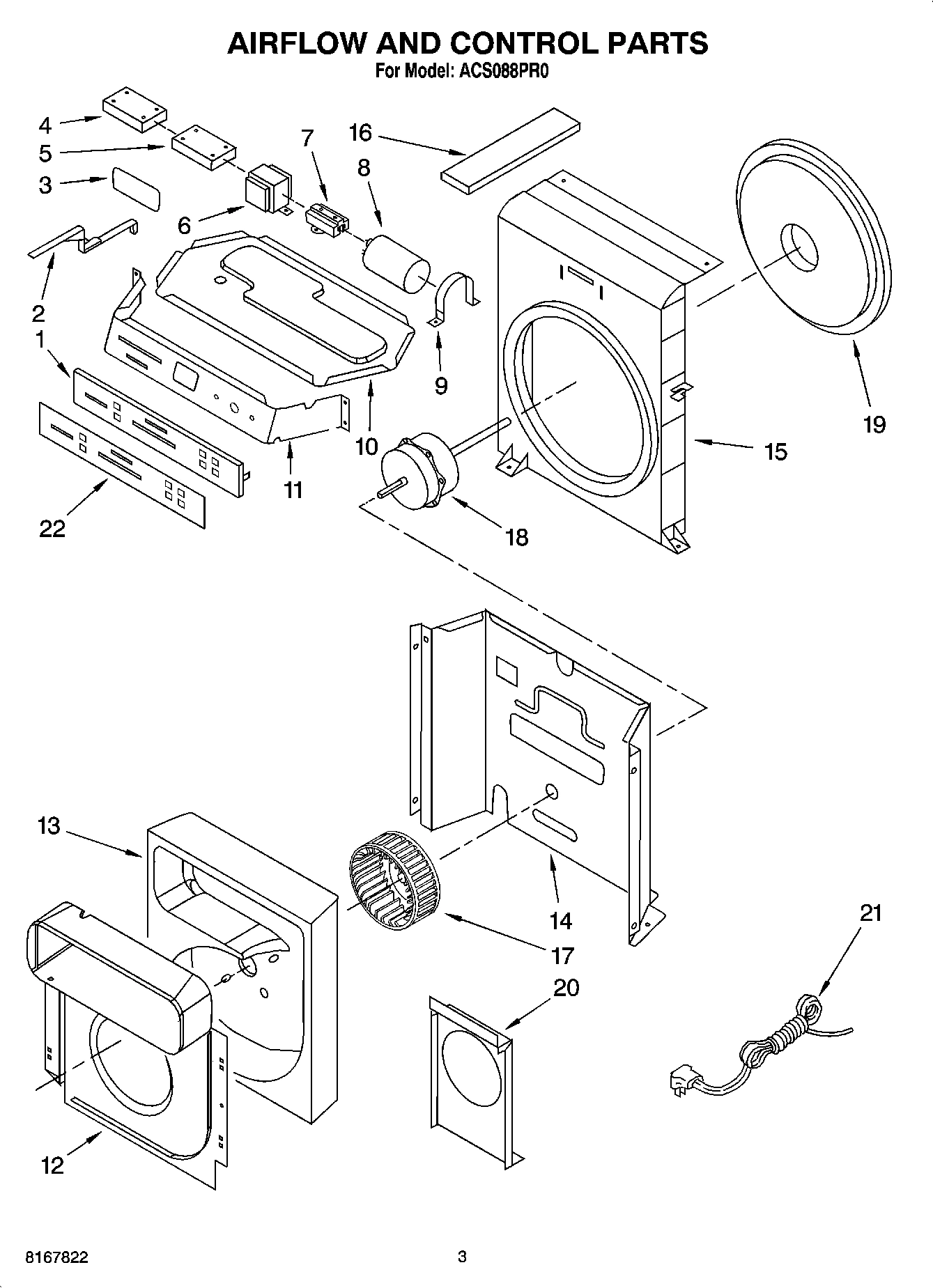

02 - AIR FLOW AND CONTROL PARTS

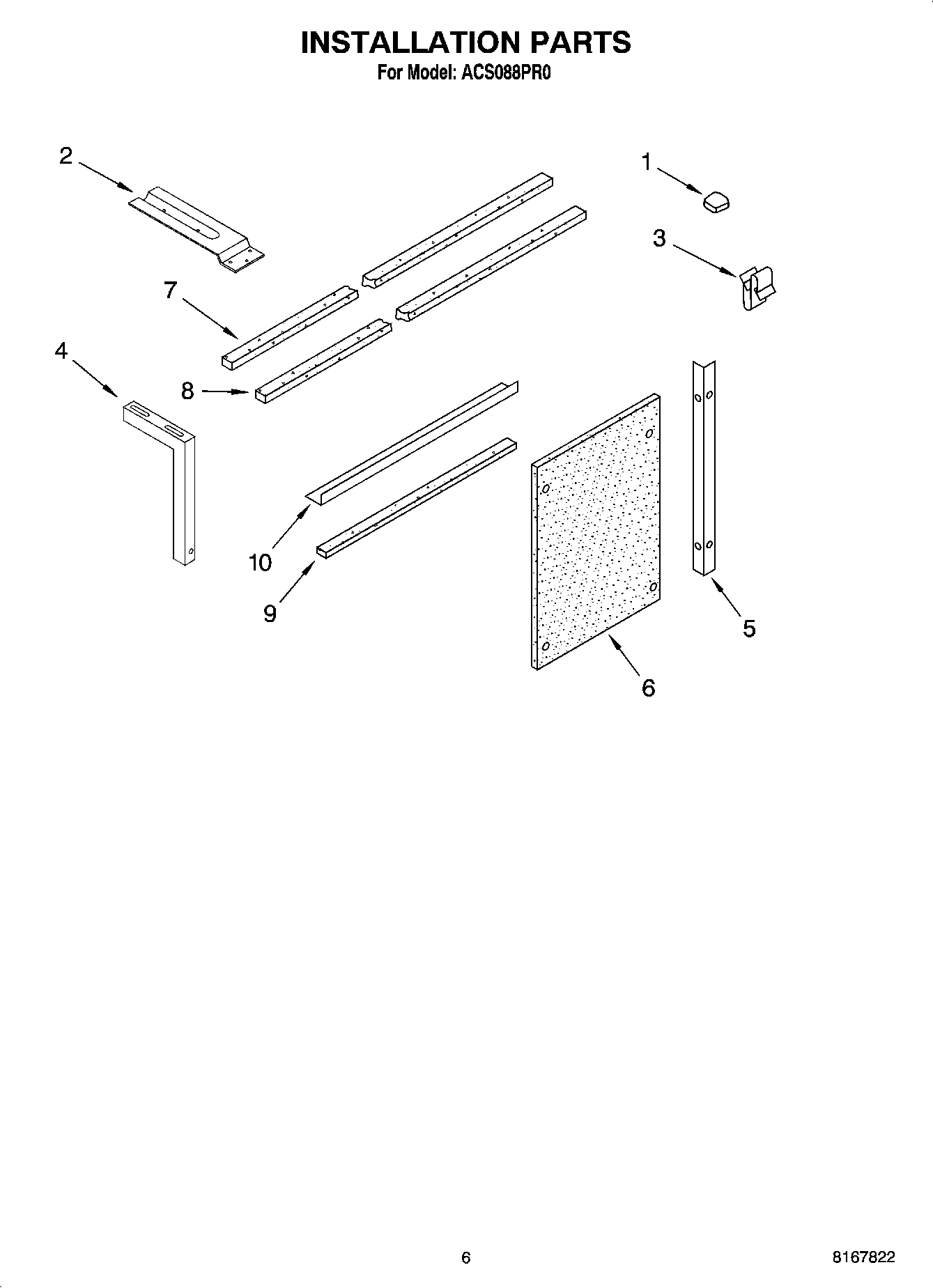

04 - INSTALLATION PARTS

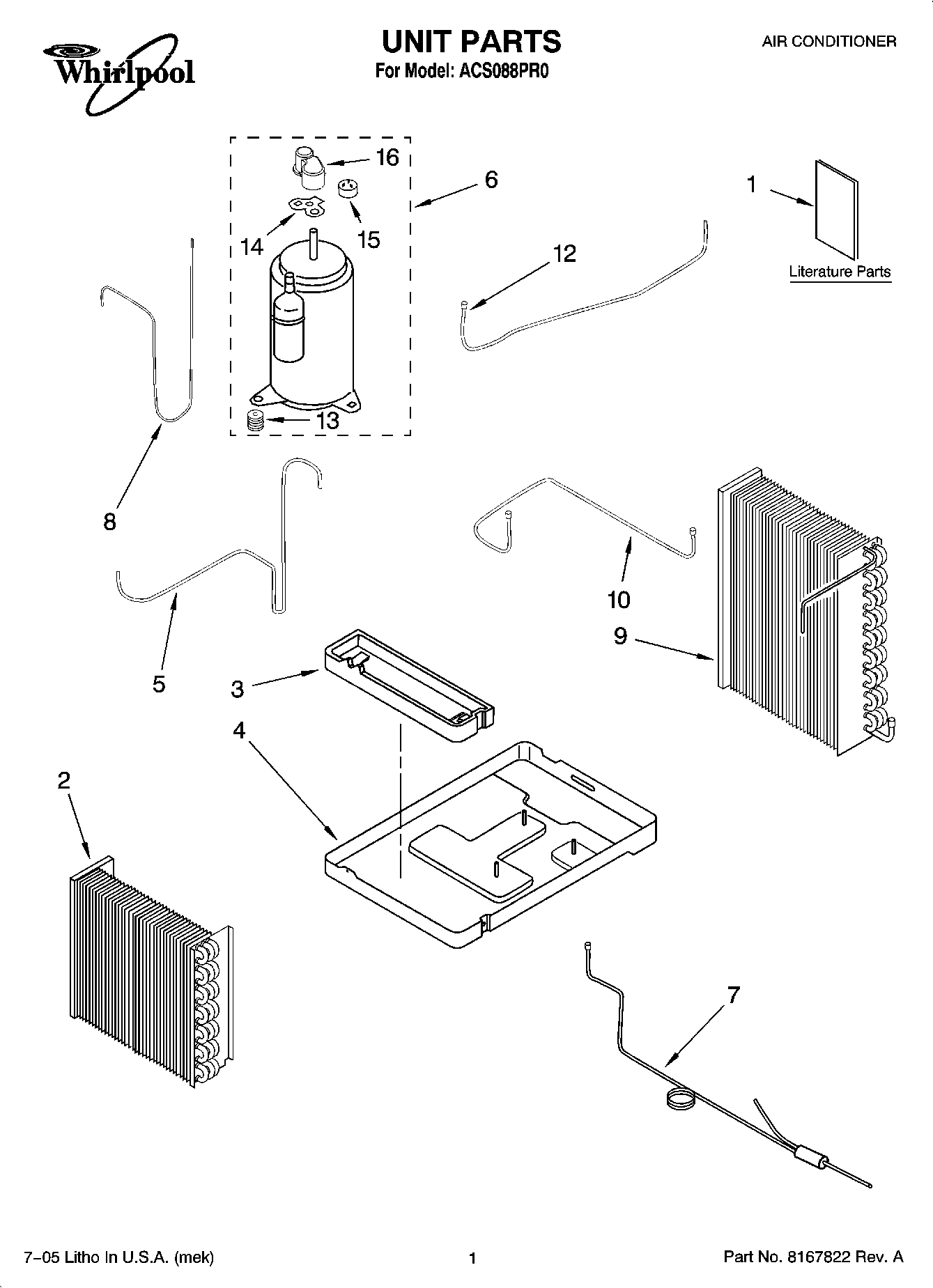

01 - UNIT PARTS

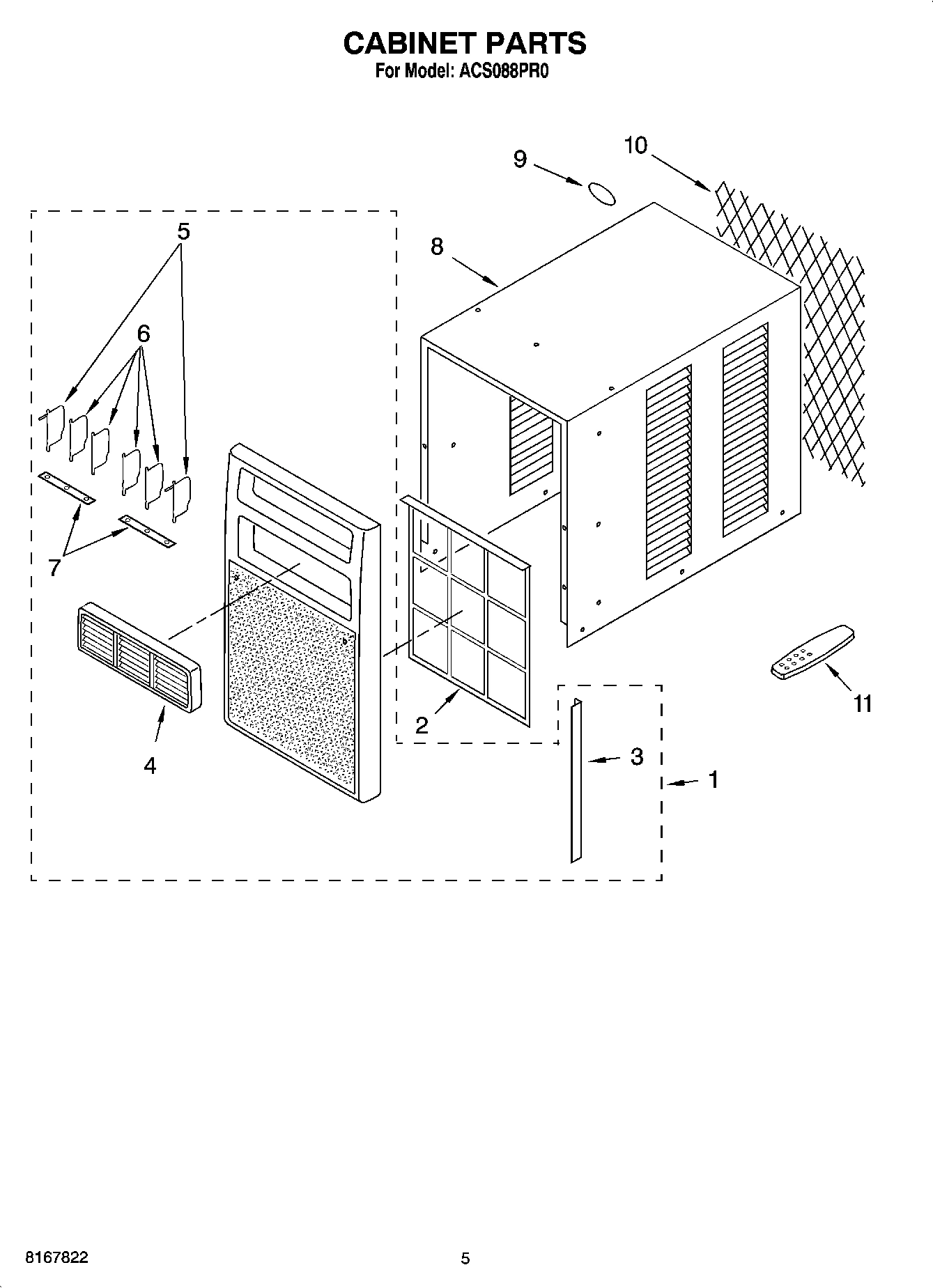

03 - CABINET PARTS
Common parts from model Whirlpool ACS088PR0 AIR CONDITIONER
1
Touch Pad Assembly WPL 8199935 Contact Us For Availability
1
End Cap WPL 8214464 Contact Us For Availability
1
Use And Care Guide WPL 8199802 Contact Us For Availability
1
Diagram, Wiring WPL 8199804 Contact Us For Availability
1
Guide, Energy WPL 8199947 Contact Us For Availability
1
Panel, Front WPL 8199992 Contact Us For Availability
2
Actuator, Exhaust Door WPL 8199714 Contact Us For Availability
2
Support, Platform WPL 8214456 Contact Us For Availability
2
Evaporator WPL 8199730 Contact Us For Availability
2
Filter WPL 8199696 Contact Us For Availability
3
Door, Exhaust WPL 8199715 Contact Us For Availability
3
Clip, Speed WPL 8214457 Contact Us For Availability
3
Pan, Drain WPL 8199768 Contact Us For Availability
3
Guide, Filter WPL 8199697 Contact Us For Availability
4
PC-Board, Control WPL 8199936 Contact Us For Availability
4
Angle, Support WPL 8214458 Contact Us For Availability
4
Base WPL 8199991 Contact Us For Availability
4
Louver, Frame WPL 8199699 Contact Us For Availability
5
PC-Board, Power- Supply WPL 8199718 Contact Us For Availability
5
Retainer, Panel (Side) WPL 8199993 Contact Us For Availability
5
Tube, Suction WPL 8199997 Contact Us For Availability
5
Louver, W/Handle WPL 8199701 Contact Us For Availability
6
Transformer WPL 8199720 Contact Us For Availability
6
Panel, Filler WPL 8214459 Contact Us For Availability
6
Compressor WPL 8214450 Contact Us For Availability
6
Louver WPL 8199704 Contact Us For Availability
7
Capacitor, Fan- Motor WPL 8199722 Contact Us For Availability
7
Seal WPL 8214460 Contact Us For Availability
7
Tube, Restrictor WPL 8199999 Contact Us For Availability
7
Link, Louver WPL 8199705 Contact Us For Availability
8
Capacitor, Compressor WPL 8199996 Contact Us For Availability
8
Foam WPL 8214461 Contact Us For Availability
8
Tube, Discharge WPL 8199998 Contact Us For Availability
8
Cabinet WPL 8199755 Contact Us For Availability
9
Strap, Capacitor WPL 8199727 Contact Us For Availability
9
Seal, Short WPL 8214462 Contact Us For Availability
9
Condenser WPL 8199749 Contact Us For Availability
9
Nameplate WPL 8214455 Contact Us For Availability
10
Panel Control, Bottom WPL 8199712 Contact Us For Availability
10
Retainer, Panel (Top) WPL 8214463 Contact Us For Availability
10
Tube, Process WPL 8199726 Contact Us For Availability
10
Grille, Rear WPL 8199994 Contact Us For Availability
11
Panel, Control WPL 8199710 Contact Us For Availability
11
Control, Remote WPL 8199995 Contact Us For Availability
12
Shroud, Evaporator WPL 8199938 Contact Us For Availability
12
Tube, Process WPL 8199751 Contact Us For Availability
13
Housing, Blower WPL 8199734 Contact Us For Availability
13
Grommet WPL 8214454 Contact Us For Availability
14
Wall, Dividing WPL 8199738 Contact Us For Availability
15
Shroud, Condenser WPL 8199745 Contact Us For Availability
16
Support, Unit WPL 8199743 Contact Us For Availability
16
REFRIGERANT CHARGE 21.87 oz. WPL ARI20098A4 Contact Us For Availability
17
Wheel, Blower WPL 8199939 Contact Us For Availability
18
Motor, Fan WPL 8199940 Contact Us For Availability
19
Blade, Fan WPL 8199747 Contact Us For Availability
20
Plate, Motor Mounting WPL 8199763 Contact Us For Availability
21
Cord, Power WPL 8199946 Contact Us For Availability
22
Overlay WPL 8199961 Contact Us For Availability
× ![]()
