Model Whirlpool ACS072XJ0 AIR CONDITIONER – Common Parts & Diagrams
02 - AIR FLOW AND CONTROL
04 - INSTALLATION

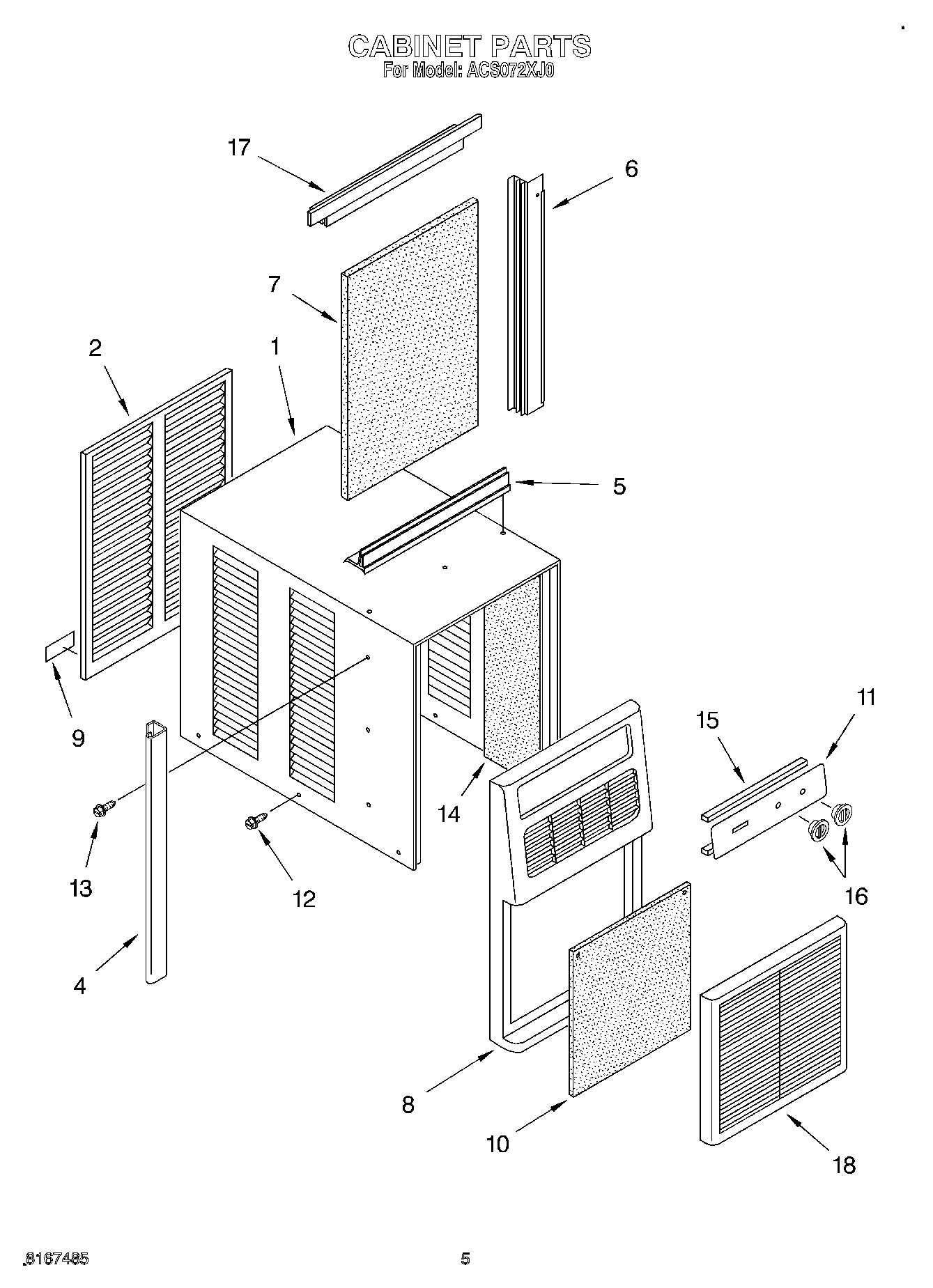

03 - CABINET

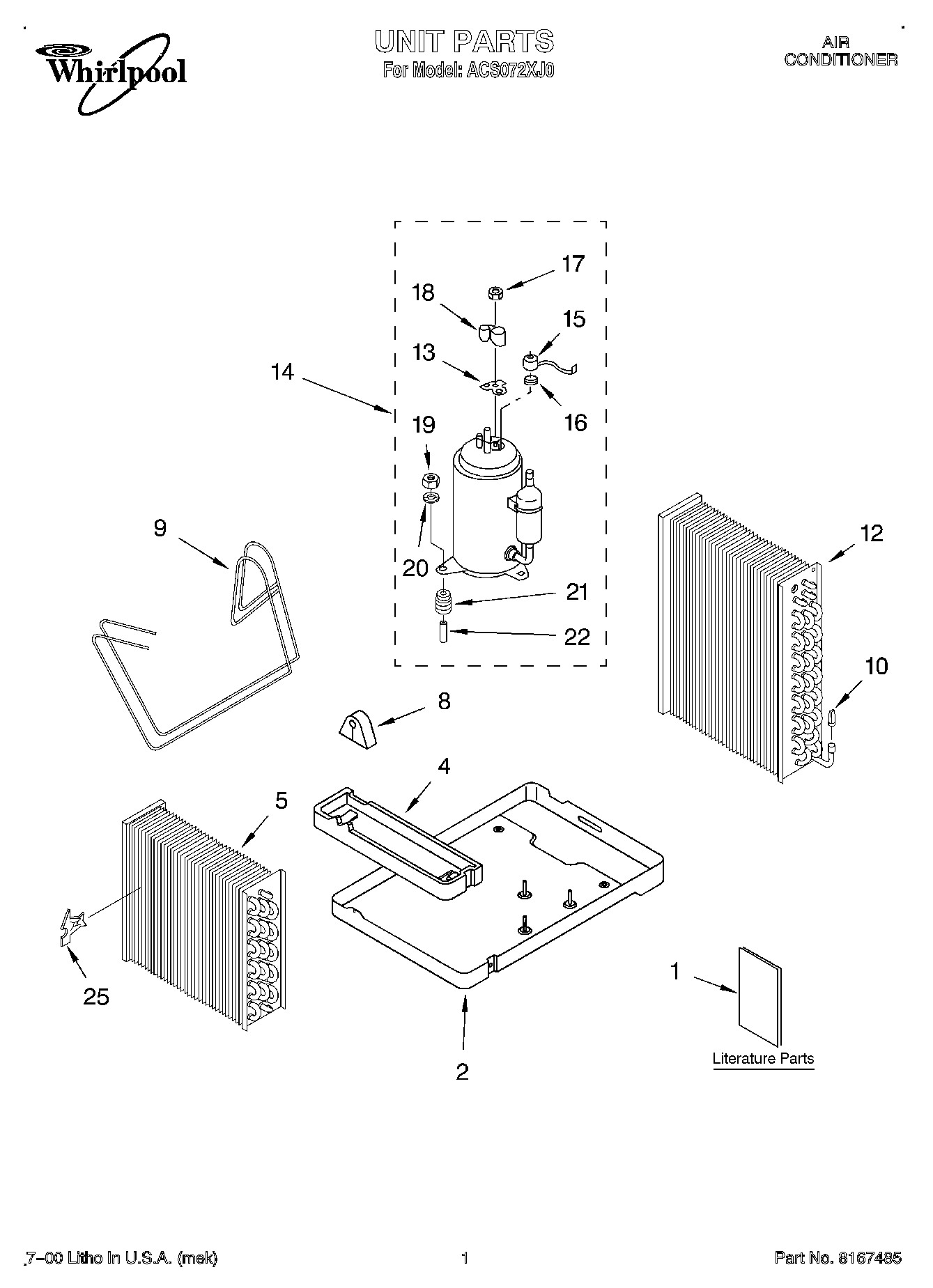

01 - UNIT, LITERATURE
Common parts from model Whirlpool ACS072XJ0 AIR CONDITIONER
1
Blade, Fan WPL 789834 Contact Us For Availability
1
Kit, Installation WPL 789687 Contact Us For Availability
1
Cabinet Assembly (Includes Insulation and Nos WPL 789934 Contact Us For Availability
1
LITERATURE PARTS (Use and Care Guide) WPL LIT789929 Contact Us For Availability
2
Motor, Fan WPL 789837 Contact Us For Availability
2
Seal, Meeting Rail WPL 789692 Contact Us For Availability
2
Panel, Rear WPL 789924 Contact Us For Availability
2
Base WPL 789915 Contact Us For Availability
3
Shroud, Condenser WPL 789836 Contact Us For Availability
3
Seal, Strip WPL 789745 Contact Us For Availability
4
Wall, Dividing WPL 789794 Contact Us For Availability
4
Retainer, Filler Panel (Top) (Not Serviced Se WPL 789688 Contact Us For Availability
4
Retainer, Side (Cabinet) (2) WPL 789920 Contact Us For Availability
4
Pan, Drain (Evaporator) WPL 789778 Contact Us For Availability
5
Housing, Blower WPL 789916 Contact Us For Availability
5
Seal, Strip WPL 789744 Contact Us For Availability
5
Retainer, Top (Cabinet) WPL 789921 Contact Us For Availability
5
Evaporator WPL 789779 Contact Us For Availability
6
Shroud, Evaporator (Includes Insul.) WPL 789796 Contact Us For Availability
6
Retainer, Panel (Side) (2) WPL 789922 Contact Us For Availability
7
Wheel, Blower WPL 789838 Contact Us For Availability
7
Panel, Filler WPL 789817 Contact Us For Availability
8
Panel, Control (Bottom) WPL 789803 Contact Us For Availability
8
Front Assembly (Includes Item 18) WPL 789919 Contact Us For Availability
8
Grommet, Tube WPL 789751 Contact Us For Availability
9
Thermostat WPL 789627 Contact Us For Availability
9
Nameplate WPL 789925 Contact Us For Availability
9
Tube, Restrictor .049 I.D. x 25`` WPL 789781 Contact Us For Availability
10
Panel, Control WPL 789804 Contact Us For Availability
10
Filter, Air WPL 789809 Contact Us For Availability
10
Strainer WPL 789673 Contact Us For Availability
11
Plate, Motor Mounting WPL 789793 Contact Us For Availability
11
Escutcheon (Also Order Item 15) WPL 789840 Contact Us For Availability
12
Clamp WPL 789835 Contact Us For Availability
12
Screw No.8 x 1/4 Hex WPL 3148443 Contact Us For Availability
12
Condenser WPL 789775 Contact Us For Availability
13
Actuator, Exhaust Door WPL 789917 Contact Us For Availability
14
Insulation, Cab. (Side) (2 Required) WPL 789746 Contact Us For Availability
14
Insulation, Cab. (Top) WPL 789747 Contact Us For Availability
14
Compressor WPL 789828 Contact Us For Availability
15
Switch, Rotary WPL 789932 Contact Us For Availability
15
Spacer, Escutcheon WPL 789812 Contact Us For Availability
15
Overload WPL 789829 Contact Us For Availability
16
Cord, Power WPL 789936 Contact Us For Availability
16
Knob WPL 789841 Contact Us For Availability
16
Spring, Overload WPL 789830 Contact Us For Availability
17
Relief, Strain WPL 789806 Contact Us For Availability
17
Retainer, Filler Board (Top) WPL 789923 Contact Us For Availability
17
Nut, Terminal Cover WPL 789833 Contact Us For Availability
18
Strap, Capacitor WPL 789749 Contact Us For Availability
18
Insert, Front WPL 789810 Contact Us For Availability
18
Cover, Terminal WPL 789732 Contact Us For Availability
19
Capacitor WPL 789839 Contact Us For Availability
19
Nut WPL 789661 Contact Us For Availability
21
Support, Unit WPL 789807 Contact Us For Availability
21
Grommet WPL 789664 Contact Us For Availability
22
Sleeve WPL 789783 Contact Us For Availability
23
Door, Exhaust WPL 789907 Contact Us For Availability
25
Assist, Start WPL 789801 Contact Us For Availability
25
Clip, Thermostat Bulb WPL 789799 Contact Us For Availability
× ![]()
