Model Maytag ACR2303MFW3 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

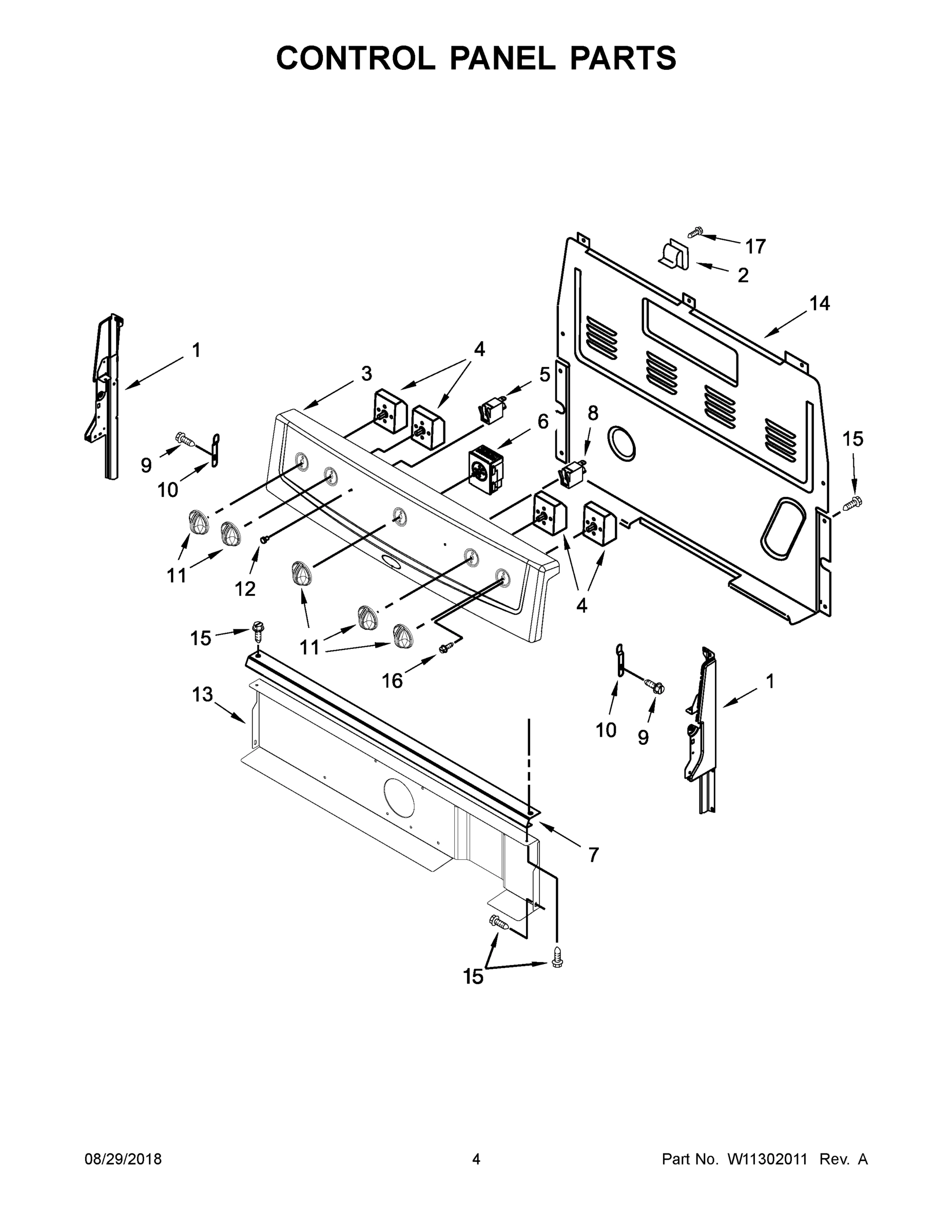

03 - CONTROL PANEL PARTS

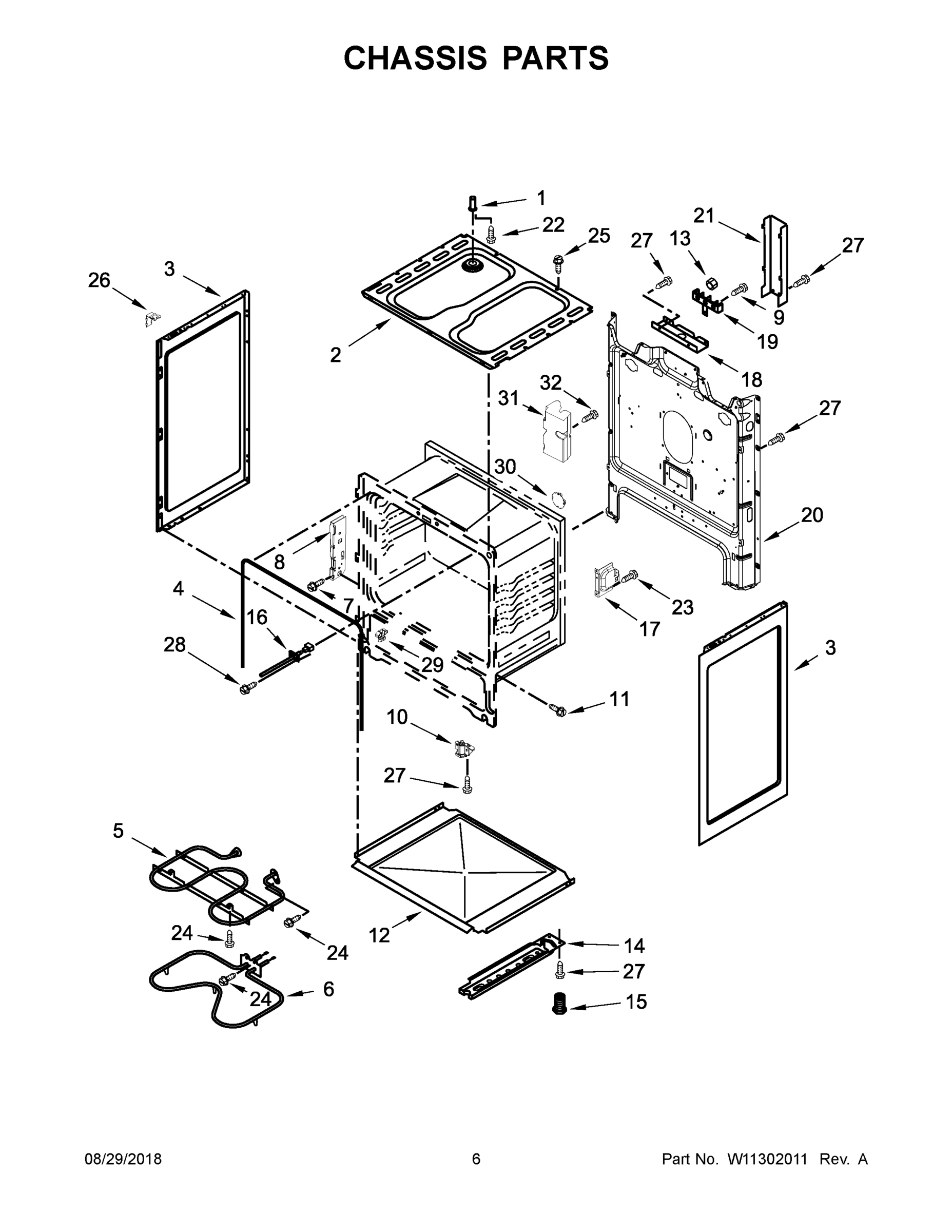

04 - CHASSIS PARTS

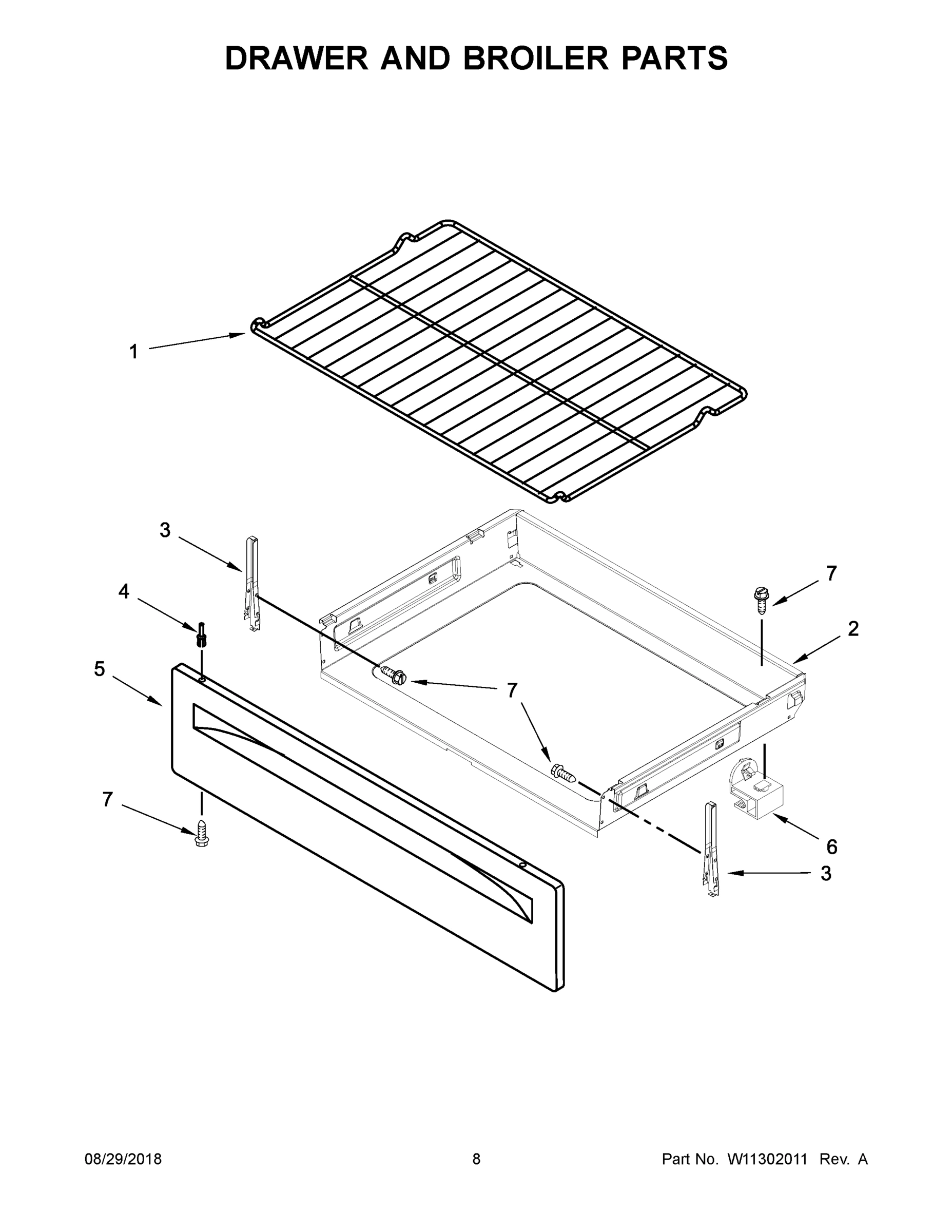

05 - DRAWER AND BROILER PARTS

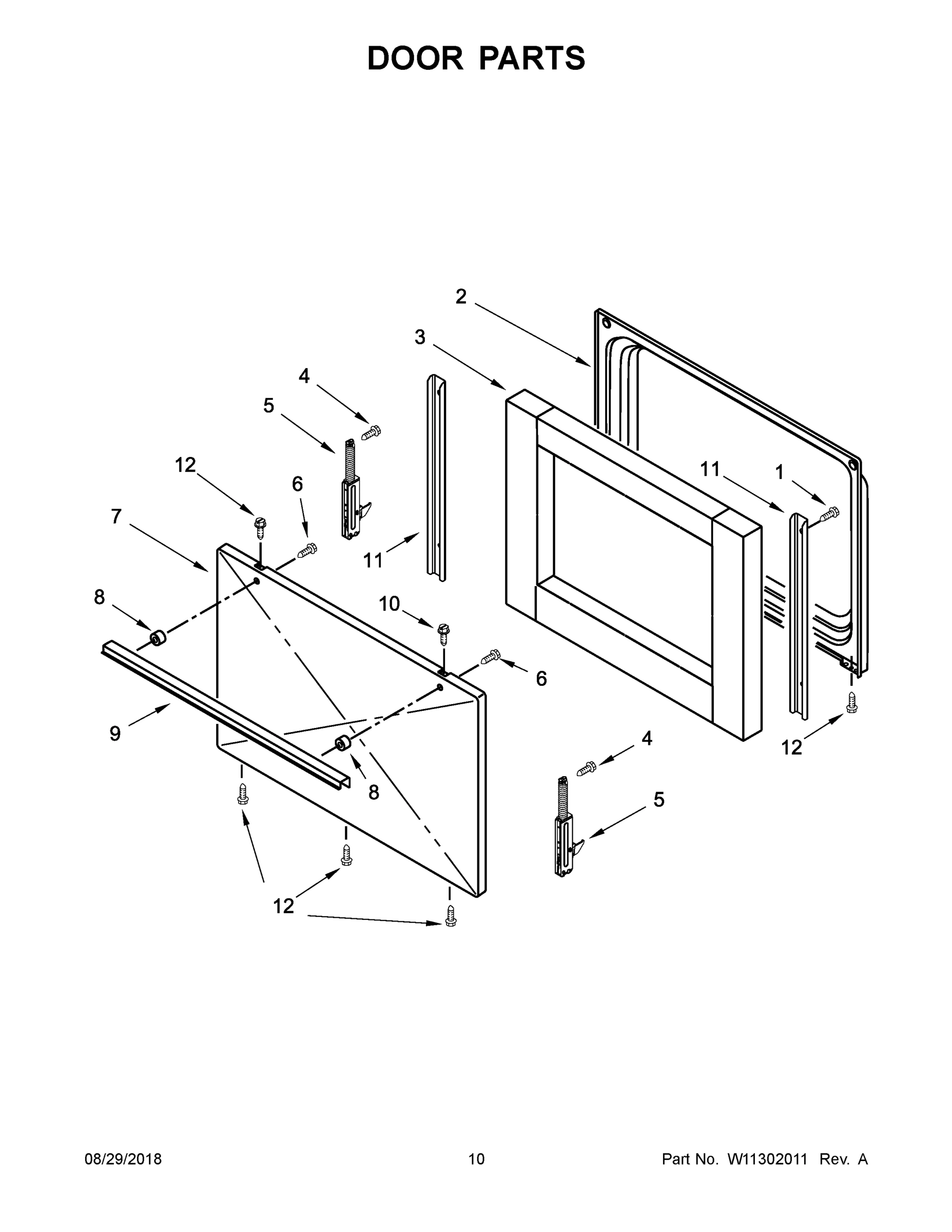

06 - DOOR PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag ACR2303MFW3 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
INSTRUCTIONS, INSTALLATION MAY W11047681 Contact Us For Availability
1
ENDCAP (WHITE (LEFT)) MAY W11130371 Contact Us For Availability
1
TUBE, VENT MAY W11222267 Contact Us For Availability
1
RACK, OVEN MAY W10268578 Contact Us For Availability
1
SCREW MAY W10031790 Contact Us For Availability
1A
USER INSTRUCTIONS MAY W11235897 Contact Us For Availability
1A
ENDCAP (WHITE (RIGHT)) MAY W11130378 Contact Us For Availability
1B
WIRING DIAGRAM MAY W11241245 Contact Us For Availability
2
BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR) MAY W10196406 Contact Us For Availability
2
CLIP, REAR UPPER COVER MAY 8273564 Contact Us For Availability
2
BOX, BURNER MAY W10209613 Contact Us For Availability
2
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
2
LINER, DOOR MAY 9761342 Contact Us For Availability
2A
BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR) MAY W10196405 Contact Us For Availability
3
COOKTOP (WHITE) MAY 3186231 Contact Us For Availability
3
PANEL, BACKGUARD (WHITE) MAY W11134308 Contact Us For Availability
3
PANEL, SIDE (WHITE) MAY W10575396 Contact Us For Availability
3
BRACKET, MOUNTING DRAWER MAY W10462912 Contact Us For Availability
3
INSULATION, DOOR STRIP MAY W10278991 Contact Us For Availability
4
HINGE, COOKTOP MAY 3195060 Contact Us For Availability
4
SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGH MAY 3148953 Contact Us For Availability
4
SEAL, DOOR MAY W10129032 Contact Us For Availability
4
SCREW MAY W10031780 Contact Us For Availability
4
RIVET, PUSH (WHITE) MAY 3196814 Contact Us For Availability
4A
SWITCH, INFINITE (RIGHT FRONT AND LEFT REAR) MAY 3148951 Contact Us For Availability
5
LIGHT, INDICATOR (125V) MAY 8523265 Contact Us For Availability
5
ELEMENT, BROIL MAY W10308476 Contact Us For Availability
5
PANEL, DRAWER FRONT (WHITE) MAY W11123901 Contact Us For Availability
5
HINGE, DOOR (ACTIVE) MAY W10358157 Contact Us For Availability
5A
HINGE, DOOR (PASSIVE) MAY W10299227 Contact Us For Availability
6
CONTROL, ELECTRIC MAY 9762215 Contact Us For Availability
6
ELEMENT, BAKE MAY W11022836 Contact Us For Availability
6
GLIDE, DRAWER REAR MAY W10674708 Contact Us For Availability
6
SCREW MAY W10317886 Contact Us For Availability
7
ROD, SUPPORT MAY 3195812 Contact Us For Availability
7
BRACKET, CONSOLE MOUNTING MAY W10525121 Contact Us For Availability
7
PANEL, STEEL (WHITE) MAY W10844587 Contact Us For Availability
8
ELEMENT, COIL HEATING (1300W) (RIGHT FRONT AN MAY W11199519 Contact Us For Availability
8
INDICATOR, LIGHT (250V) MAY 8523266 Contact Us For Availability
8
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
8
SPACER, HANDLE MAY 3823F017-45 Contact Us For Availability
8A
ELEMENT, COIL HEATING (2150W) (LEFT FRONT AND MAY W11199518 Contact Us For Availability
9
BRACKET, ANTI-TIP MAY W10306542 Contact Us For Availability
9
SCREW MAY 3400016 Contact Us For Availability
9
HANDLE, OVEN DOOR (WHITE) MAY W10323588 Contact Us For Availability
10
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
10
CLIP, SPRING MAY 3196200 Contact Us For Availability
10
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
10
SCREW, TOP (WHITE) MAY 3196558 Contact Us For Availability
11
KNOB, CONTROL (WHITE) MAY W10844800 Contact Us For Availability
11
SCREW MAY W10067840 Contact Us For Availability
11
RETAINER, INSULATION MAY 9761504 Contact Us For Availability
12
SCREW MAY 3196165 Contact Us For Availability
12
LENS, INDICATOR MAY 3196068 Contact Us For Availability
12
RETAINER, INSULATION MAY 8054068 Contact Us For Availability
13
SHIELD, HEAT MAY W10134247 Contact Us For Availability
13
NUT MAY 3400029 Contact Us For Availability
14
COVER, UPPER REAR MAY 8272473 Contact Us For Availability
14
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
14A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
15
FOOT, LEVELING MAY W10058460 Contact Us For Availability
16
SCREW MAY 3400882 Contact Us For Availability
16
SENSOR, OVEN MAY W10181986 Contact Us For Availability
17
CLIP, OVEN SUPPORT MAY W10404688 Contact Us For Availability
18
BRACKET, SERVICE MAY 3186034 Contact Us For Availability
19
BLOCK, TERMINAL MAY W10245259 Contact Us For Availability
21
COVER, TERMINAL BLOCK MAY W10326122 Contact Us For Availability
22
SCREW MAY 3196567 Contact Us For Availability
23
SCREW MAY 3196169 Contact Us For Availability
24
SCREW MAY 3196154 Contact Us For Availability
26
CLIP, PANEL MAY W10137382 Contact Us For Availability
27
SCREW MAY 3196178 Contact Us For Availability
28
SCREW MAY 3400080 Contact Us For Availability
29
GLIDE, DRAWER FRONT MAY W10674705 Contact Us For Availability
30
HOLE, COVER LIGHT MAY W11047127 Contact Us For Availability
31
COUNTERWEIGHT MAY W10910404 Contact Us For Availability
32
SCREW MAY W11034869 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
NI
HARNESS, COOKTOP MAY W11134595 Contact Us For Availability
NI
MAY W11134654 MAY W11134654 Contact Us For Availability
NI
INSULATION, BACK MAY 8272611 Contact Us For Availability
NI
INSULATION, WRAP MAY 8273263 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GLASS MAY 3184478 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
× ![]()
