Model Whirlpool ACR124XD0 AIR CONDITIONER – Common Parts & Diagrams

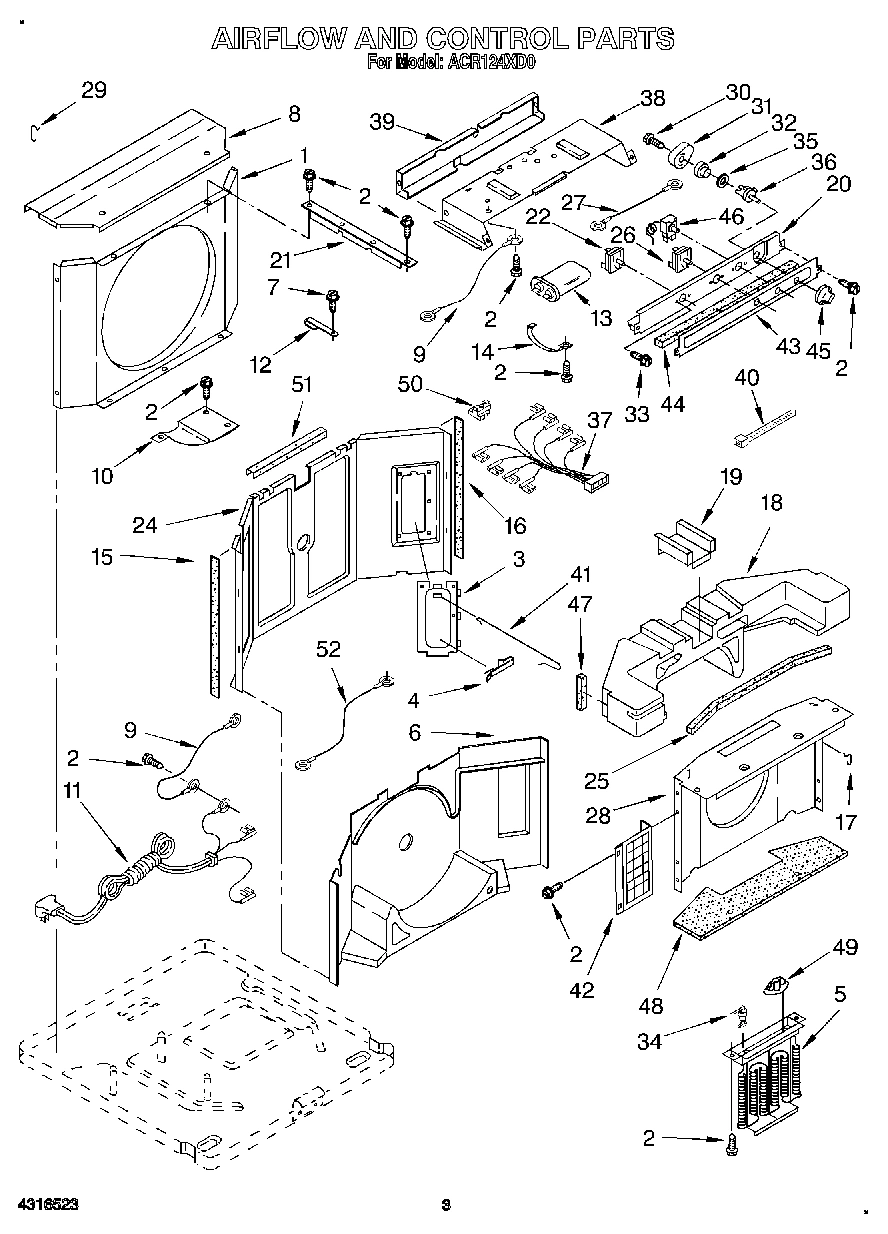

02 - AIRFLOW AND CONTROL

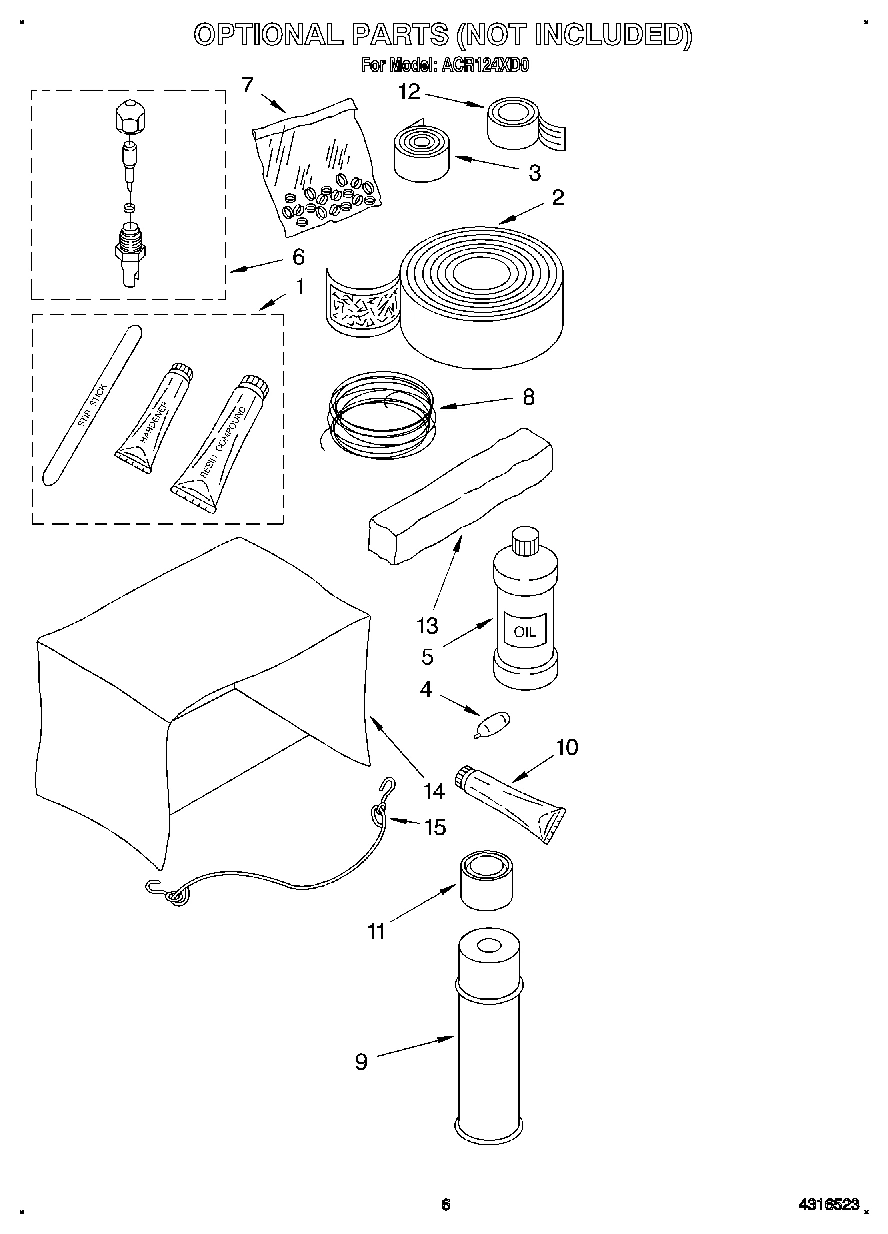

04 - OPTIONAL
01 - UNIT, LITERATURE

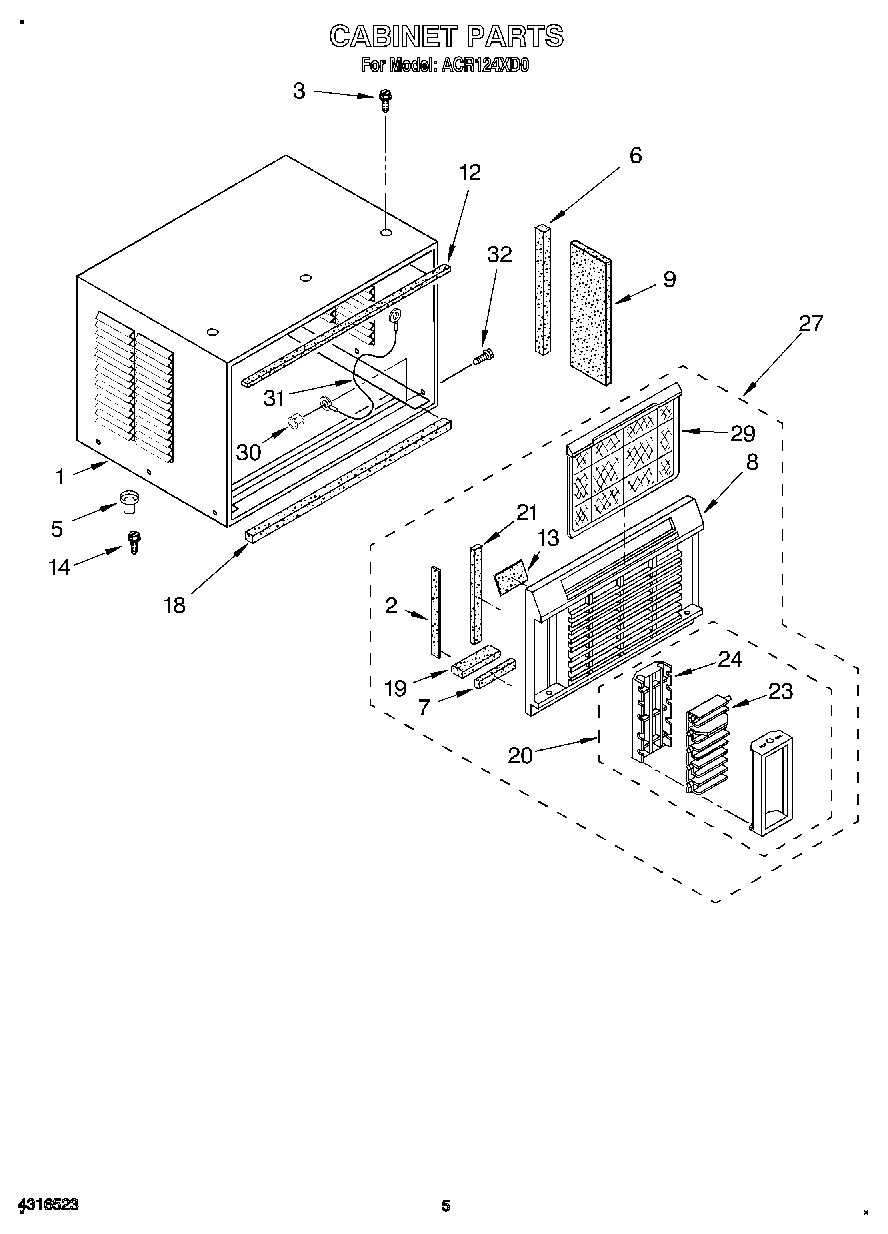

03 - CABINET

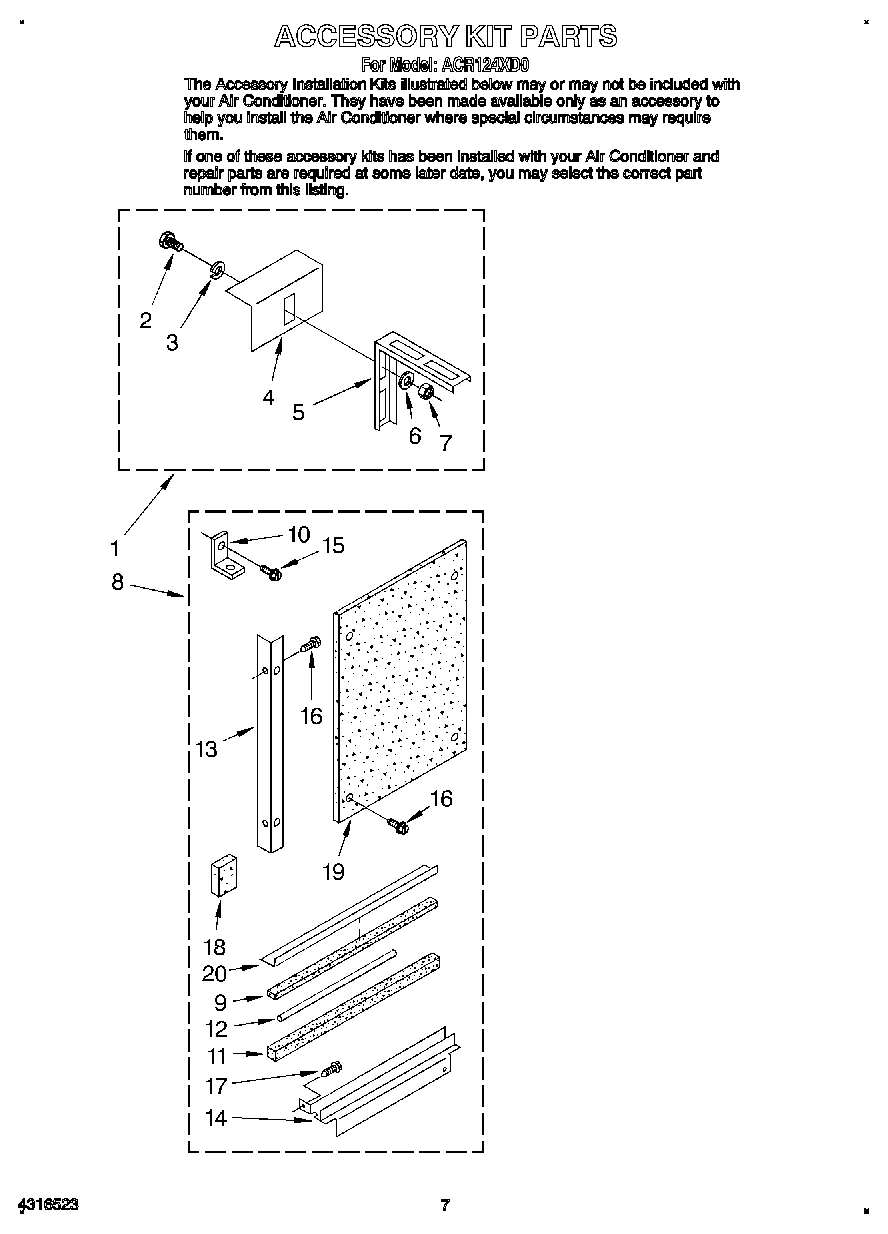

05 - ACCESSORY KIT
Common parts from model Whirlpool ACR124XD0 AIR CONDITIONER
Wiring Diagram WPL LIT1160041 Contact Us For Availability
Instructions, Installation WPL LIT1163225 Contact Us For Availability
Use & Care Guide WPL LIT1166505 Contact Us For Availability
Tech Sheet WPL LIT1166574 Contact Us For Availability
Instructions, Installation (Economy Kit) WPL LIT1155124 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Cabinet WPL 1163055 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bend, Return Condenser (11) WPL 708532 Contact Us For Availability
2
Seal, Front - Sides (2) WPL 1159079 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return Condenser (5) WPL 708531 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Tube, Outlet (Includes Item 4) WPL 950822 Contact Us For Availability
5
Cup, Condensate Drain WPL 997285 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Restrictor (2) WPL 1165347 Contact Us For Availability
6
Seal, Side (2) WPL 1159254 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1159605 Contact Us For Availability
7
Seal, (2) WPL 1161746 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Seal, Suction Tube WPL 1165440 Contact Us For Availability
8
Cabinet Front WPL 1156971 Contact Us For Availability
8
Kit, Economy Installation WPL 1155851 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Bracket, Fan Motor WPL 1156961 Contact Us For Availability
9
Insulation, Cabinet Side (2) WPL 1161748 Contact Us For Availability
9
Strip, Seal WPL 855266 Contact Us For Availability
10
Motor, Fan WPL 1163416 Contact Us For Availability
10
Bracket, Window Lock WPL 644228 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Seal, Meeting Rail WPL 469877 Contact Us For Availability
12
Seal, Cabinet Top WPL 1158593 Contact Us For Availability
13
Evaporator WPL 1165346 Contact Us For Availability
13
Seal, Front WPL 1159081 Contact Us For Availability
13
Angle, Side Mounting (2) WPL 646233 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Screw, Wood 10 x 3/4 WPL 487371 Contact Us For Availability
14
Bracket, Top Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Top Mounting (Left Side) WPL 645563 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Tube, 90~ Connect WPL 1163715 Contact Us For Availability
15
Screw, Wood No.8 x 3/4 (6) WPL 488255 Contact Us For Availability
16
Condenser WPL 1165345 Contact Us For Availability
16
Screw S.M. No.10 x 3/8 (6) WPL 488481 Contact Us For Availability
17
Return Bend (8) WPL 855644 Contact Us For Availability
18
Base WPL 1162621 Contact Us For Availability
18
Seal WPL 1159289 Contact Us For Availability
18
Spacer, Filler Board (2) WPL 995274 Contact Us For Availability
19
Return Bend (2) WPL 855457 Contact Us For Availability
19
Seal, Front EPS WPL 1161205 Contact Us For Availability
19
Board, Filler, (2) WPL 646237 Contact Us For Availability
20
Panel, Control WPL 1160037 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 1159851 Contact Us For Availability
20
Cartridge, Complete WPL 1156972 Contact Us For Availability
20
Channel, Top WPL 646232 Contact Us For Availability
21
Support, Unit (2) WPL 1156939 Contact Us For Availability
21
Compressor WPL 1163710 Contact Us For Availability
21
Seal, Side (2) WPL 1161747 Contact Us For Availability
22
Switch, Rotary WPL 1161379 Contact Us For Availability
23
Horizontal Louver WPL 1159333 Contact Us For Availability
23
Cover, Pan WPL 1159664 Contact Us For Availability
24
Wall, Dividing WPL 1156926 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Ribs, Vertical WPL 1156975 Contact Us For Availability
25
Seal, Evaporator WPL 1160947 Contact Us For Availability
26
Switch, Fan WPL 1159612 Contact Us For Availability
26
Overload WPL 1159723 Contact Us For Availability
27
Wire, Thermostat To Switch WPL 1156982 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
27
Front, Asy WPL 1166561 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1161022 Contact Us For Availability
29
Filter WPL 1166496 Contact Us For Availability
29
Clip, Shroud WPL 1164511 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
30
Blower, Wheel WPL 1161550 Contact Us For Availability
31
Cam, Exhaust WPL 997813 Contact Us For Availability
31
Return Bend (2) WPL 855199 Contact Us For Availability
31
Wire, Ground WPL 856094 Contact Us For Availability
32
Bushing, Shaft WPL 859233 Contact Us For Availability
32
Tube Assy., Valve To Condenser WPL 1163713 Contact Us For Availability
32
Screw, 8-32 x 3/8 WPL 488853 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
33
Return Bend (8) WPL 854624 Contact Us For Availability
34
Fuse WPL 1160510 Contact Us For Availability
34
Sleeve (3) WPL 950020 Contact Us For Availability
35
Washer WPL 647881 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Shaft, Control Exhaust WPL 1158253 Contact Us For Availability
36
Tube Assy., Valve to Evaporator WPL 1163927 Contact Us For Availability
37
Harness, Wiring Control Box WPL 1160039 Contact Us For Availability
37
Seal, Condenser Bottom WPL 1157622 Contact Us For Availability
38
Control Box WPL 1156932 Contact Us For Availability
38
Pan, Drain WPL 1158519 Contact Us For Availability
39
Back Panel, Control Box WPL 1156965 Contact Us For Availability
40
Bend Return Three-Way (2) WPL 1158685 Contact Us For Availability
41
Wire, Exhaust Door WPL 1157181 Contact Us For Availability
41
Anticipator WPL 1166782 Contact Us For Availability
42
Impeller Guard (2) WPL 1158249 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
43
Escutcheon WPL 1166500 Contact Us For Availability
43
Clamp, Tube WPL 471088 Contact Us For Availability
44
Tube, Suction WPL 1159647 Contact Us For Availability
45
Knob, Controls (4) WPL 1158054 Contact Us For Availability
45
Valve, Reversing WPL 1165350 Contact Us For Availability
46
Control, Temperature (Includes anti- cipator WPL 1161021 Contact Us For Availability
46
Tube Assy., Valve to Discharge WPL 1161015 Contact Us For Availability
47
Seal, Housing WPL 1158516 Contact Us For Availability
48
Insulation, Shroud WPL 1160057 Contact Us For Availability
49
Switch, Limit WPL 1160509 Contact Us For Availability
49
Tube Assy., Valve to Accumulator WPL 1161016 Contact Us For Availability
50
Thermostat, Outside WPL 1159836 Contact Us For Availability
50
Coil, Solenoid WPL 1159489 Contact Us For Availability
51
Grommet, Divider Wall WPL 1162200 Contact Us For Availability
51
Bend, Return WPL 1156329 Contact Us For Availability
52
Wire, Jumper WPL 1159948 Contact Us For Availability
52
Bend Return Three-Way WPL 1159633 Contact Us For Availability
53
Dampener, Tube WPL 1164619 Contact Us For Availability
54
Dampener, Tube WPL 1162344 Contact Us For Availability
× ![]()
