Model Whirlpool ACQ294XZ0 AIR CONDITIONER – Common Parts & Diagrams

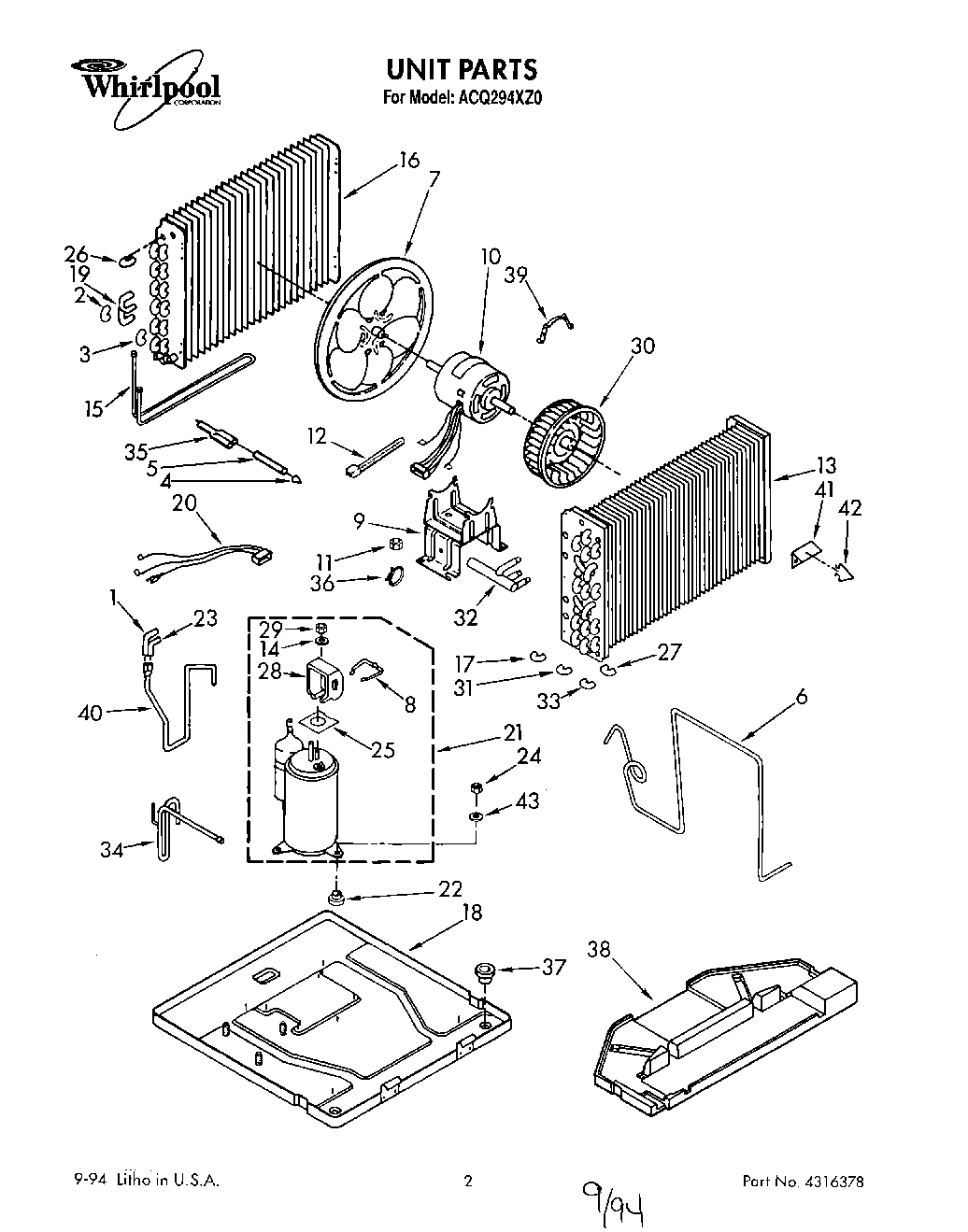

01 - UNIT, LIT/OPTIONAL

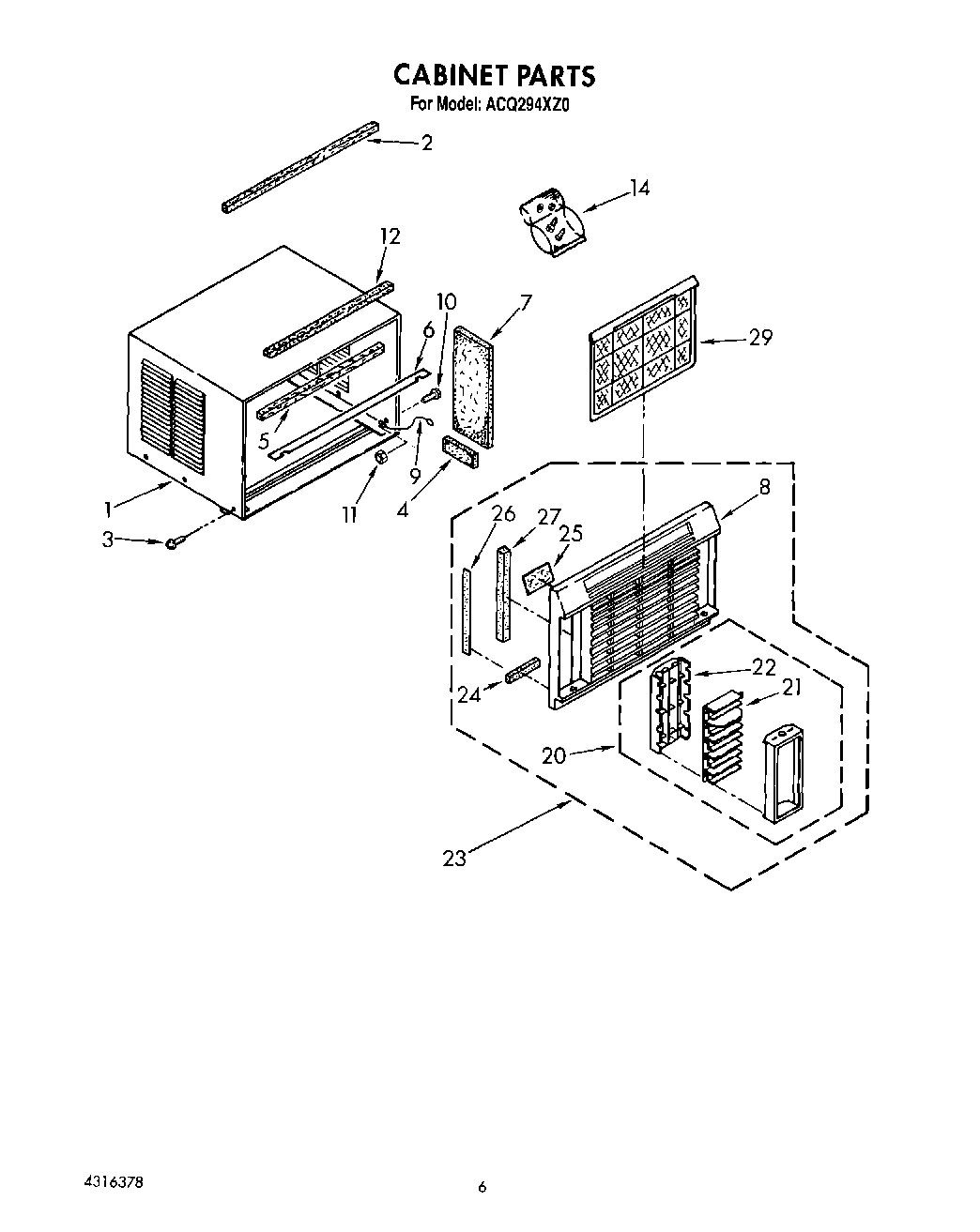

03 - CABINET

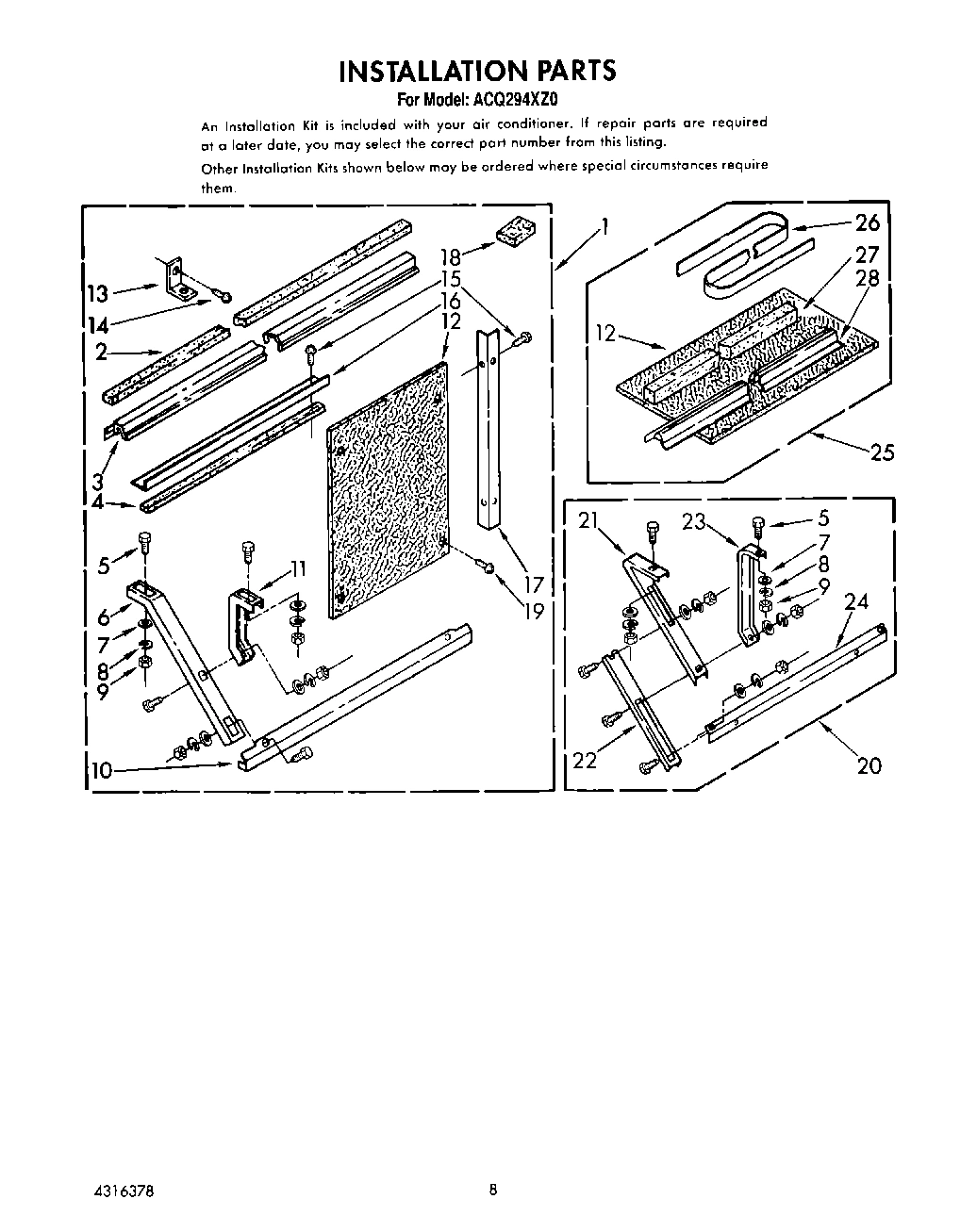

05 - INSTALLATION PARTS

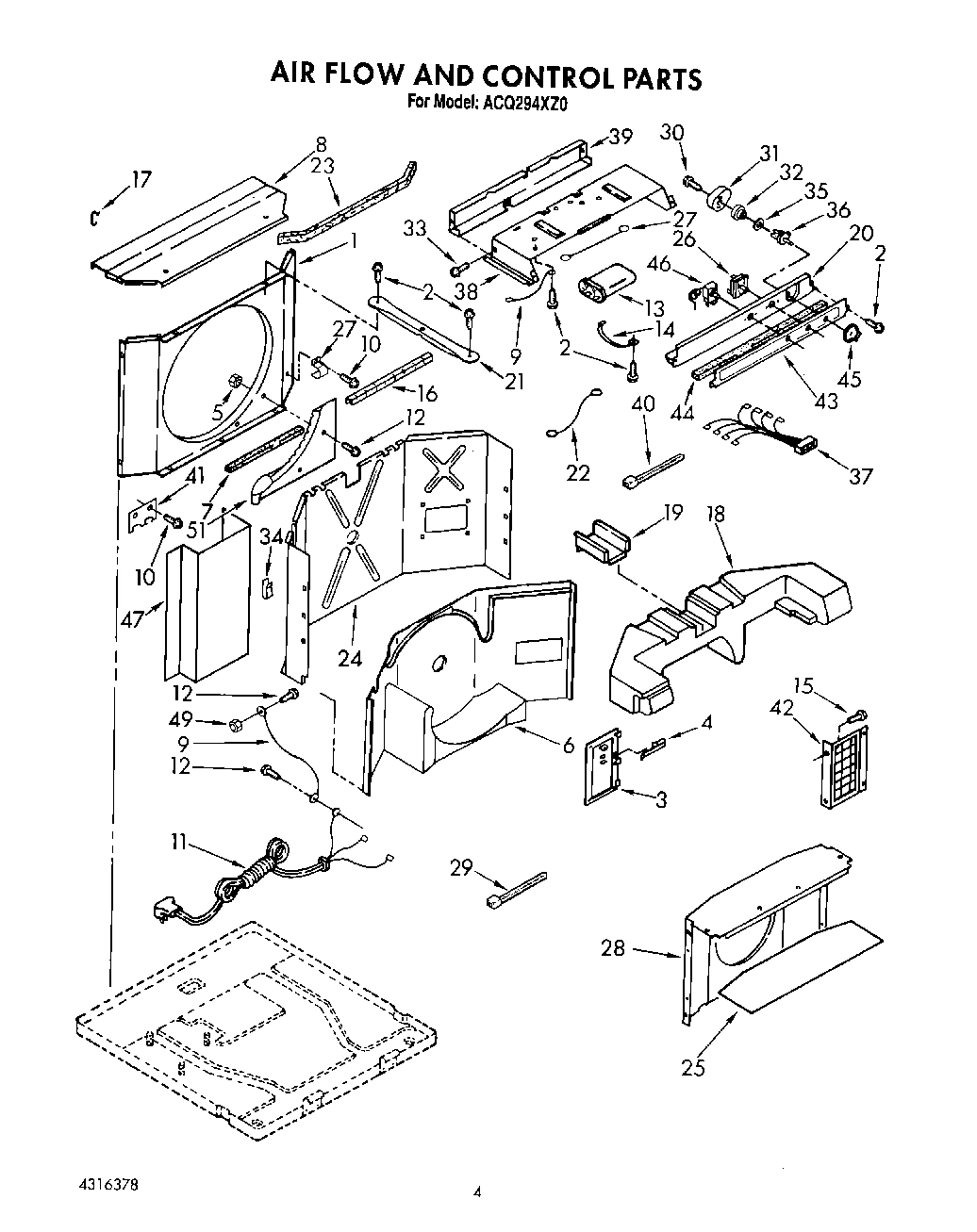

02 - AIR FLOW AND CONTROL

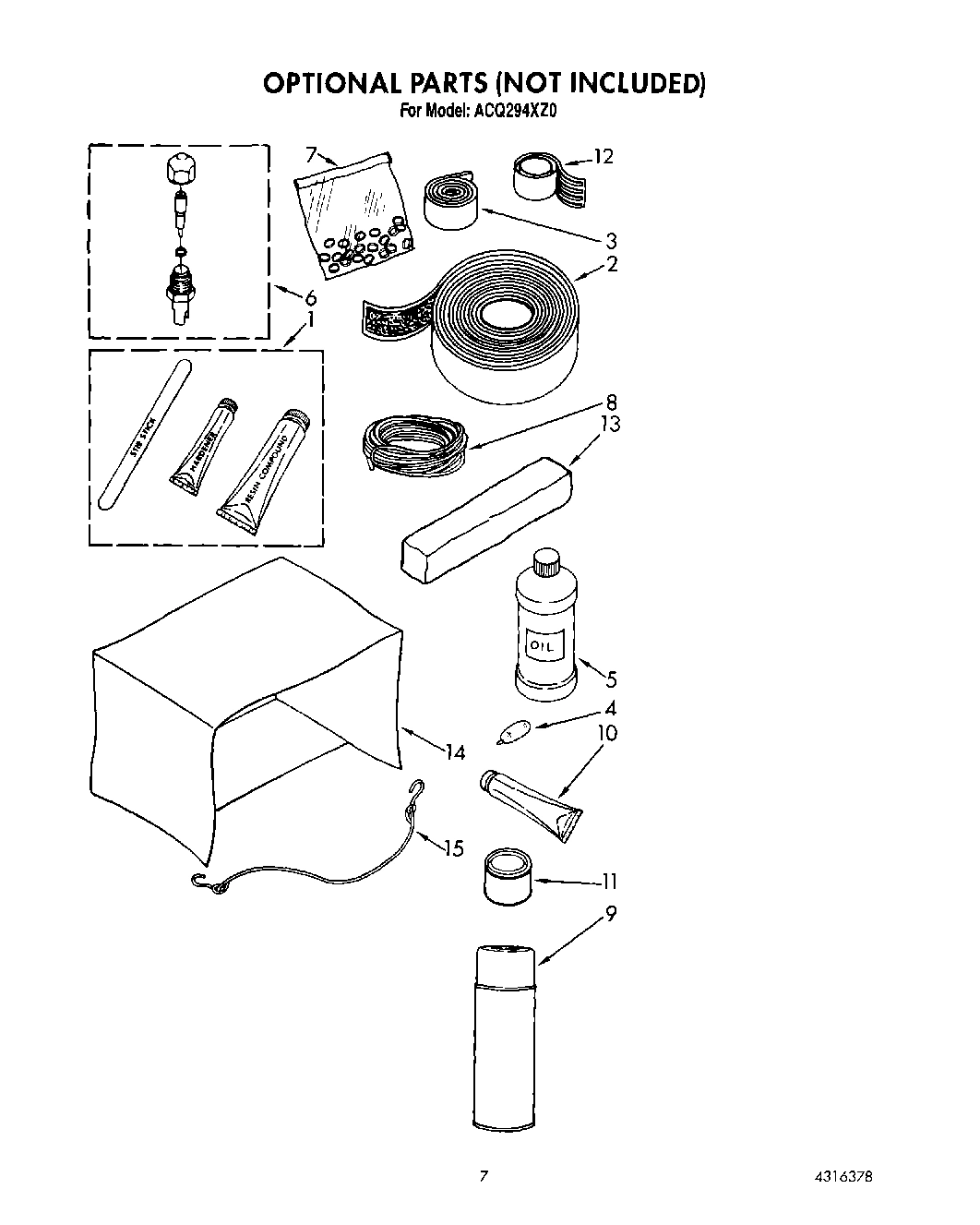

04 - OPTIONAL
Common parts from model Whirlpool ACQ294XZ0 AIR CONDITIONER
Instructions, Installation (Outside Support K WPL LIT485707 Contact Us For Availability
Instructions, Installation (Standard and Wide WPL LIT998618 Contact Us For Availability
1
Cabinet WPL 1162273 Contact Us For Availability
1
Kit, Standard Installation WPL 1160600 Contact Us For Availability
1
Shroud, Condenser WPL 1161244 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Seal WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Gasket, Sash WPL 644288 Contact Us For Availability
3
Door, Exhaust WPL 997221 Contact Us For Availability
4
Insulation, Cabinet Side (2) WPL 1160818 Contact Us For Availability
4
Strip, Seal WPL 855265 Contact Us For Availability
4
Spring, Door WPL 859369 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Seal, Top WPL 1158731 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Seal WPL 1160762 Contact Us For Availability
6
Support, Cabinet (2) WPL 649945 Contact Us For Availability
6
Scroll (Lower) WPL 1158653 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Insulation, Cabinet Side (2) WPL 1160819 Contact Us For Availability
7
Seal, Condensate Cup WPL 1163332 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Cabinet Front WPL 1157463 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Wire, Ground WPL 857022 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Bracket, Support WPL 649947 Contact Us For Availability
11
Support, Retainer (2) WPL 649946 Contact Us For Availability
11
Cord, Appliance WPL 1157537 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Board, Filler WPL 644303 Contact Us For Availability
12
Screw, 8 x 3/8 WPL 1159222 Contact Us For Availability
13
Evaporator WPL 1163441 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Capacitor WPL 1162053 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Bag, Accessory WPL 1158746 Contact Us For Availability
14
Screw, 10 x 3/4 WPL 487371 Contact Us For Availability
14
Bracket, Capacitor WPL 1156967 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Wet, Loop WPL 1161247 Contact Us For Availability
15
Screw, 8-18 x 3/8 WPL 1161561 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Condenser WPL 1160100 Contact Us For Availability
16
Angle, Top WPL 644271 Contact Us For Availability
16
Grommet, Divider Wall WPL 1162200 Contact Us For Availability
17
Angle (2) WPL 644272 Contact Us For Availability
17
Clip, Shroud (2) WPL 1158257 Contact Us For Availability
18
Base WPL 1163440 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Scroll, Upper WPL 1158654 Contact Us For Availability
19
Return Bend 3-Way WPL 1158685 Contact Us For Availability
19
Raceway, Wiring WPL 1157418 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 1163453 Contact Us For Availability
20
Cartridge, Complete WPL 1157464 Contact Us For Availability
20
Kit, Outside Support WPL 485679 Contact Us For Availability
20
Panel, Control WPL 1156933 Contact Us For Availability
21
Compressor WPL 1163771 Contact Us For Availability
21
Horzontal Louver WPL 1157466 Contact Us For Availability
21
Support, Cabinet (2) WPL 644283 Contact Us For Availability
21
Support, Unit (2) WPL 1163452 Contact Us For Availability
22
Grommet (3) WPL 1162080 Contact Us For Availability
22
Ribs, Vertical WPL 1157467 Contact Us For Availability
22
Extension, Support (2) WPL 644284 Contact Us For Availability
22
Wire, Control WPL 1157443 Contact Us For Availability
23
Tube, Feeder WPL 1161216 Contact Us For Availability
23
Front, Complete WPL 1161419 Contact Us For Availability
23
Retainer, Cabinet (2) WPL 644285 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Seal, Bottom (Left Side) WPL 1160763 Contact Us For Availability
24
Seal Bottom (Right Side) WPL 1160764 Contact Us For Availability
24
Bracket, Support WPL 644281 Contact Us For Availability
24
Dividing Wall WPL 1161556 Contact Us For Availability
25
Gasket, Terminal (Production) WPL 1161082 Contact Us For Availability
25
Seal Top (Right Side) WPL 1160770 Contact Us For Availability
25
Seal, Top (Left Side) WPL 1161864 Contact Us For Availability
25
Kit, Wide Window Optional Kit (Not Included) WPL 485856 Contact Us For Availability
25
Seal, Evaporator WPL 1160820 Contact Us For Availability
26
Return Bend (1) WPL 1156329 Contact Us For Availability
26
Seal WPL 1160769 Contact Us For Availability
26
Strip, Seal WPL 856979 Contact Us For Availability
26
Switch, Rotary WPL 1158669 Contact Us For Availability
27
Return Bend WPL 855644 Contact Us For Availability
27
Seal, Meeting Rail WPL 470800 Contact Us For Availability
27
Wet, Loop Clip WPL 1161248 Contact Us For Availability
28
Cover, Terminal (Production) WPL 1161076 Contact Us For Availability
28
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1157404 Contact Us For Availability
29
Filter WPL 1157468 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1162528 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
31
Return Bend (12) WPL 855199 Contact Us For Availability
31
Cam, Exhaust WPL 997813 Contact Us For Availability
32
Manifold, Suction WPL 1162084 Contact Us For Availability
32
Bushing, Shaft WPL 859233 Contact Us For Availability
33
Return Bend (12) WPL 854624 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
34
Suction Tube Assembly WPL 1163447 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
35
Washer WPL 647881 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
36
Shaft, Control Exhaust WPL 1158253 Contact Us For Availability
37
Cup, Condensate Drain WPL 997285 Contact Us For Availability
37
Harness, Wiring (Control Box) WPL 1157536 Contact Us For Availability
38
Pan, Drain WPL 1158652 Contact Us For Availability
38
Control Box WPL 1156932 Contact Us For Availability
39
Back Panel, Control Box WPL 1156965 Contact Us For Availability
40
Discharge Tube Assembly WPL 1161219 Contact Us For Availability
41
Anticipator WPL 484238 Contact Us For Availability
41
Clip, Nylon WPL 1161249 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
42
Impeller Guard (2) WPL 1161555 Contact Us For Availability
43
Escutcheon WPL 1158658 Contact Us For Availability
45
Knob, Controls (3) WPL 1158054 Contact Us For Availability
46
Control, Temperature WPL 1160214 Contact Us For Availability
47
Condensate Guard (Service) WPL 1161623 Contact Us For Availability
48
Bracket, Support WPL 1163467 Contact Us For Availability
51
Cup, Condensate WPL 1160684 Contact Us For Availability
× ![]()
