Model Whirlpool ACQ254XD0 AIR CONDITIONER – Common Parts & Diagrams

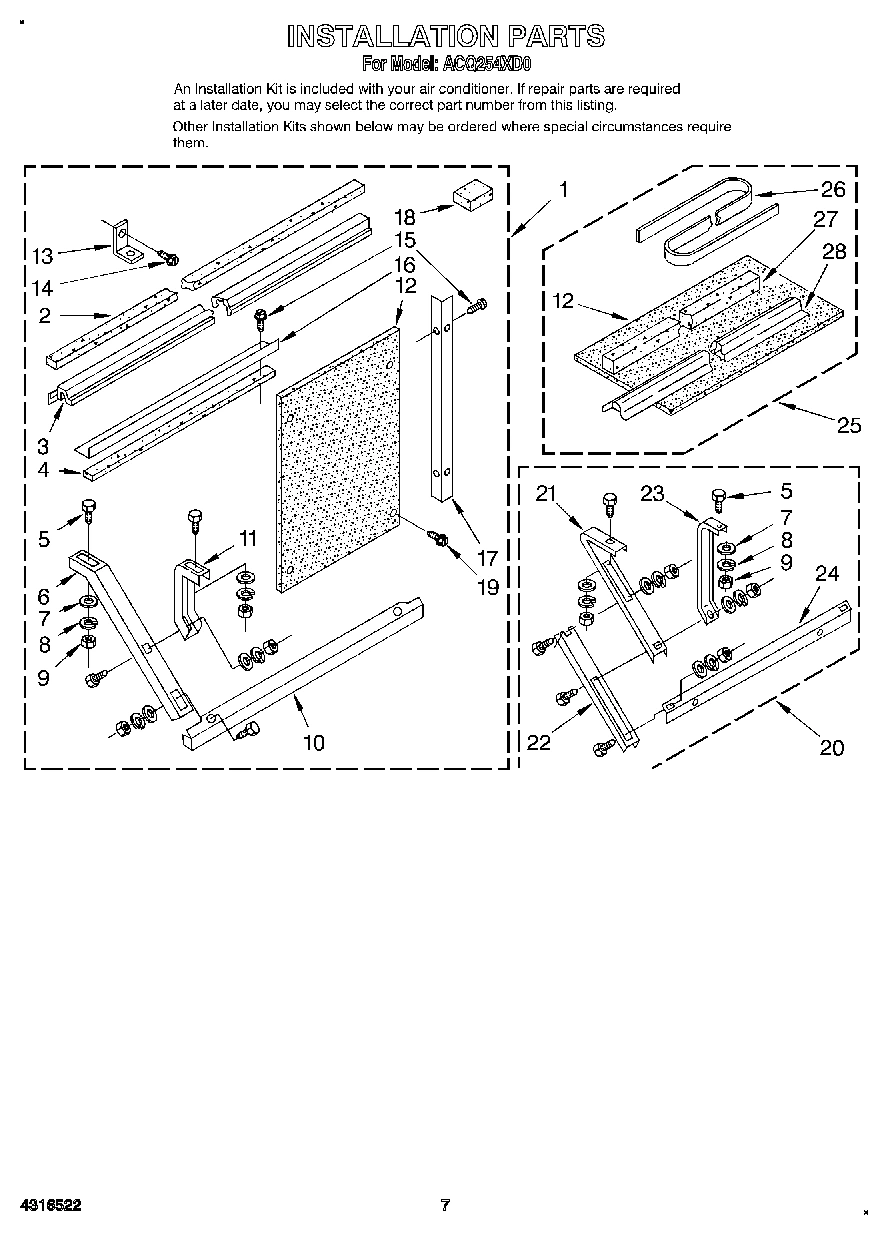

05 - INSTALLATION

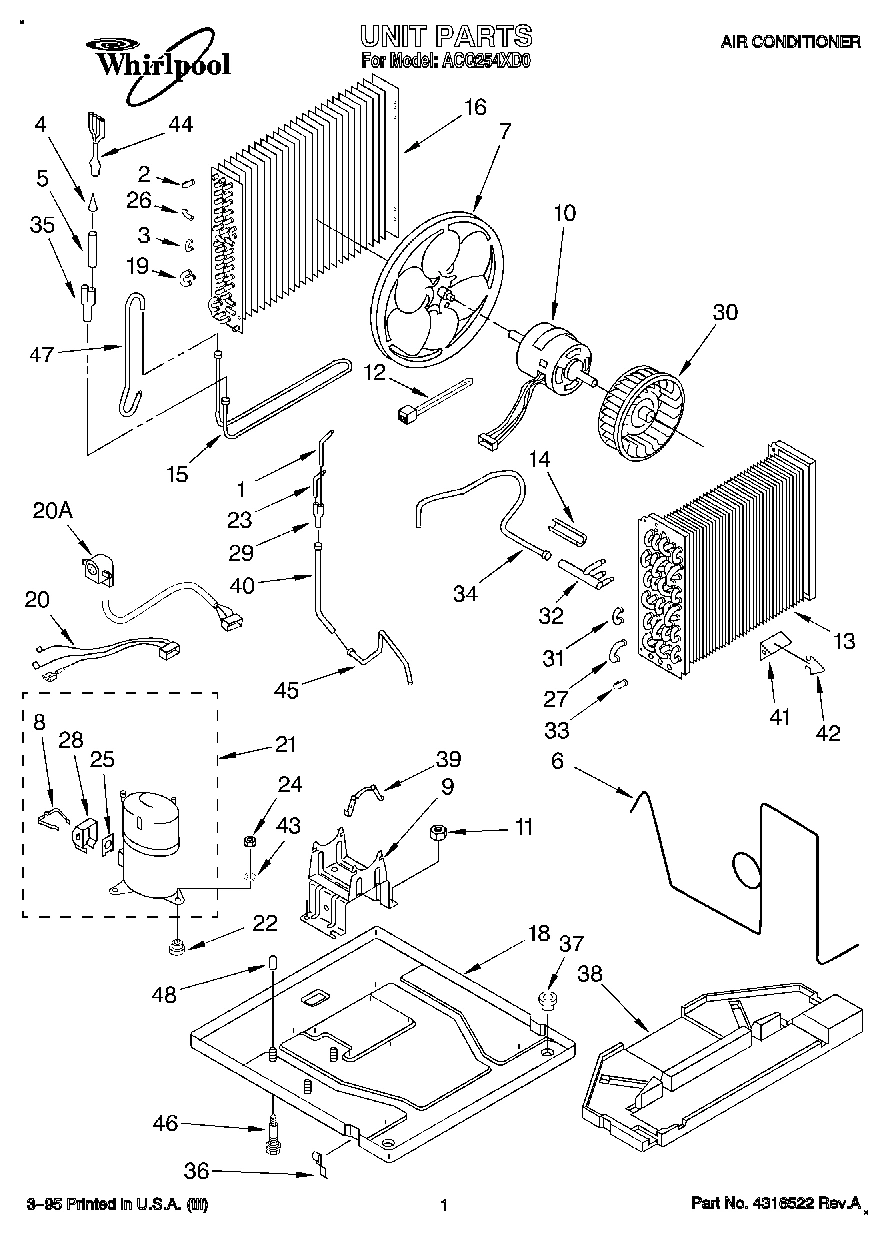

01 - UNIT, LITERATURE

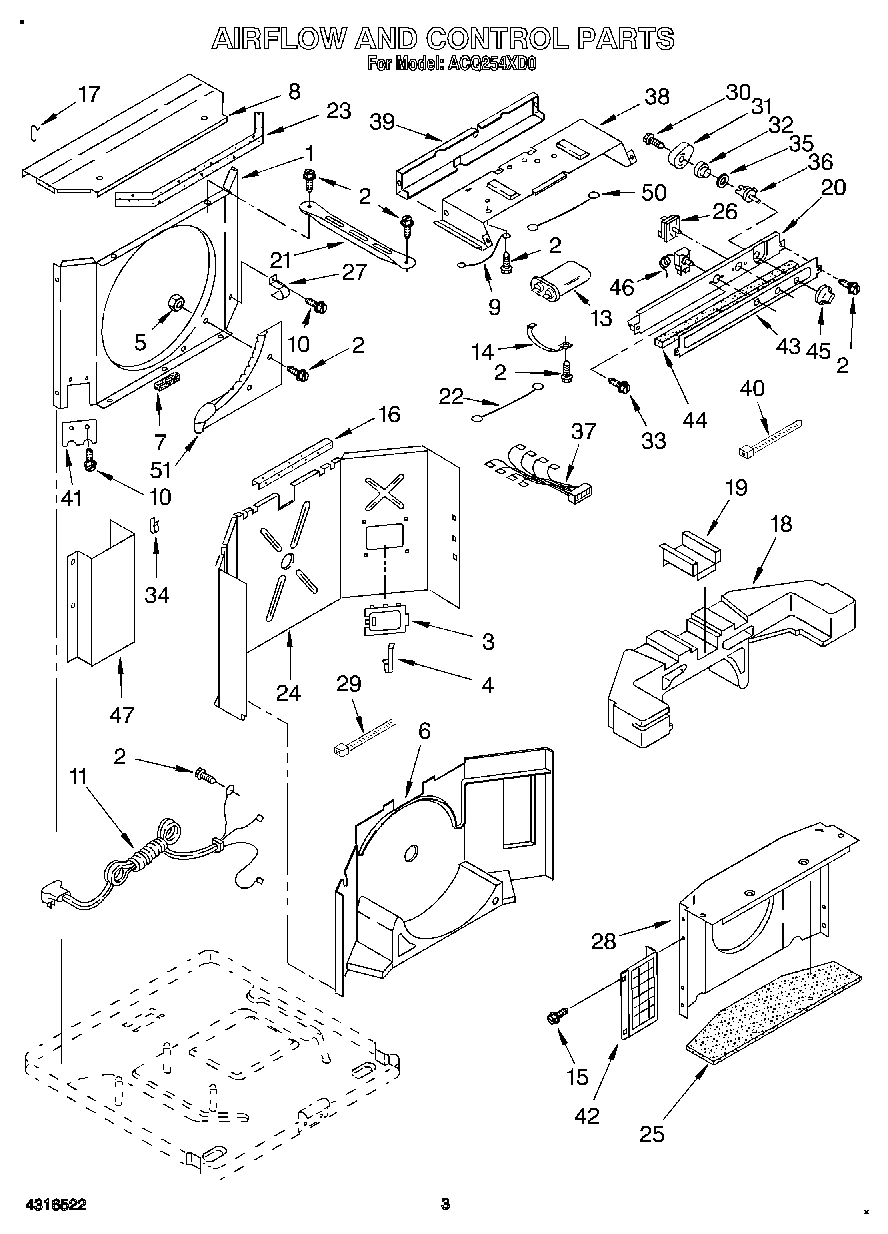

02 - AIRFLOW AND CONTROL

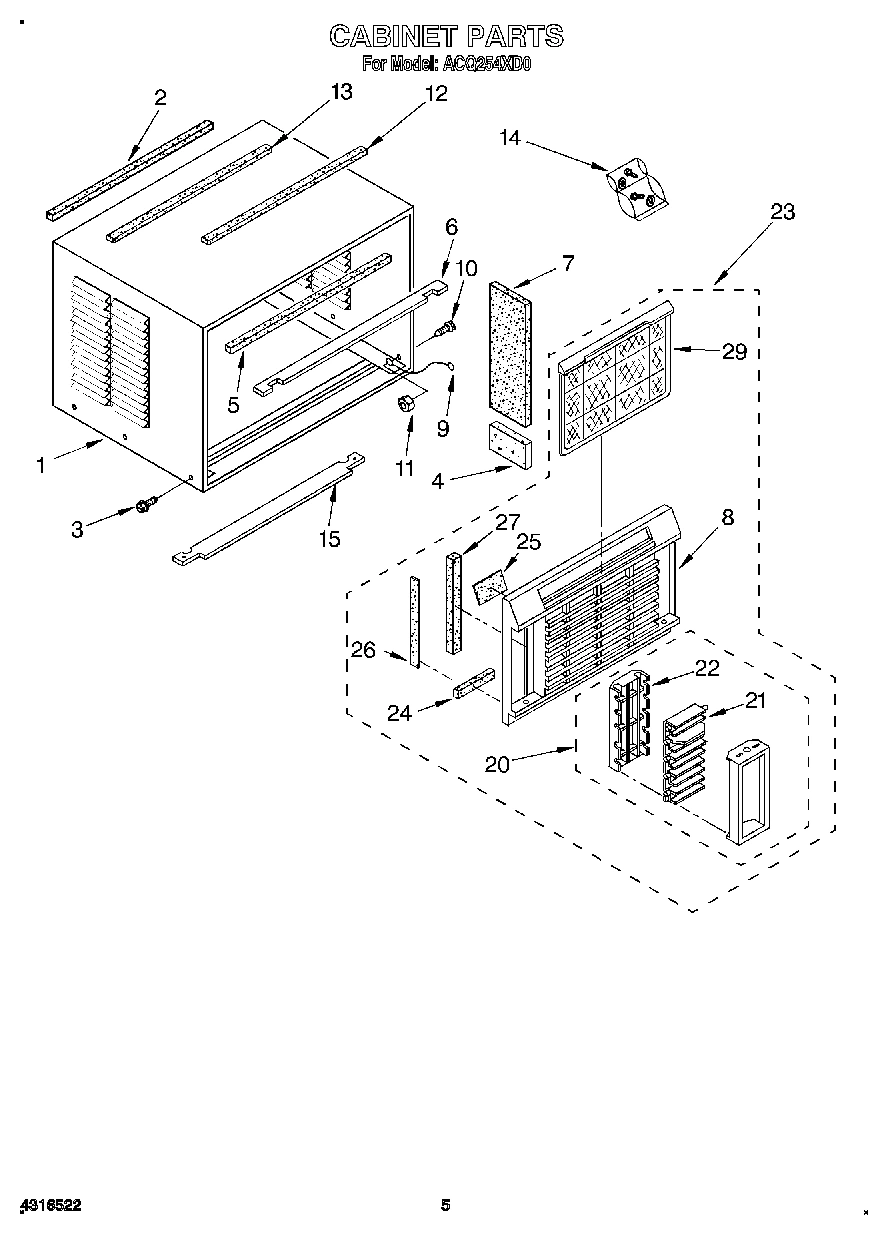

03 - CABINET

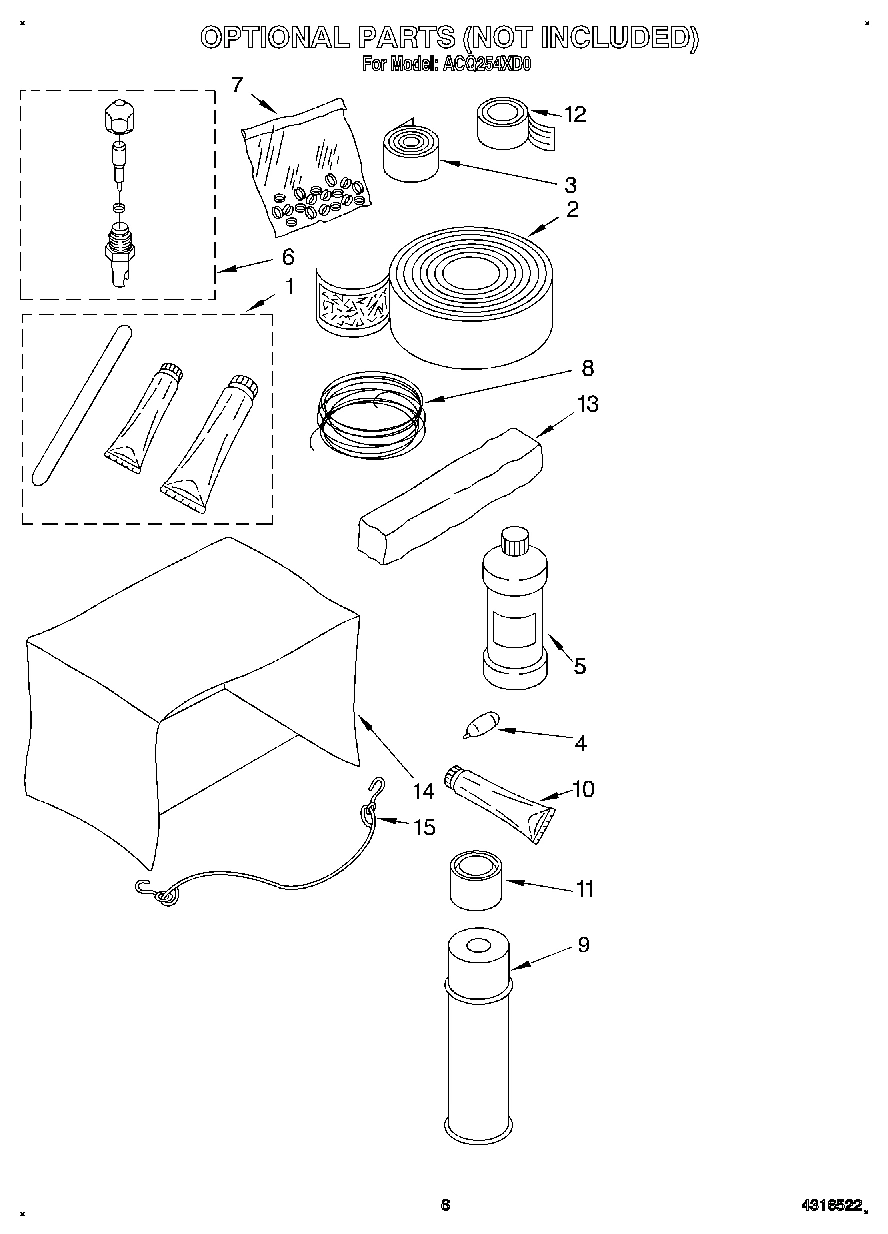

04 - OPTIONAL
Common parts from model Whirlpool ACQ254XD0 AIR CONDITIONER
Wiring Diagram WPL LIT1158715 Contact Us For Availability
Tech Sheet WPL LIT1158719 Contact Us For Availability
Instructions, Installation WPL LIT1166071 Contact Us For Availability
Use And Care WPL LIT1166503 Contact Us For Availability
1
Tube, Feeder WPL 1161217 Contact Us For Availability
1
Shroud, Condenser WPL 1161244 Contact Us For Availability
1
Cabinet WPL 1162272 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bend, Return Condenser (30) WPL 708532 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return Condenser (2) WPL 708531 Contact Us For Availability
3
Door, Exhaust WPL 997221 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Spring, Door WPL 859369 Contact Us For Availability
4
Insulation, Cabinet Side (2) WPL 1160818 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1163768 Contact Us For Availability
5
Seal, Top WPL 1158731 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Tube, Restrictor (5) WPL 1164403 Contact Us For Availability
6
Scroll (Lower) WPL 1158653 Contact Us For Availability
6
Seal WPL 1160762 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
7
Seal, Condensate Cup WPL 1163332 Contact Us For Availability
7
Insulation, Cabinet Side (2) WPL 1160819 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Retainer, Terminal Cover WPL 1161083 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Cabinet Front WPL 1157463 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
9
Wire, Ground WPL 857022 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Motor, Fan WPL 1166221 Contact Us For Availability
11
Cord, Appliance WPL 1158740 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Seal, Cabinet Top WPL 855265 Contact Us For Availability
13
Evaporator WPL 1164564 Contact Us For Availability
13
Capacitor WPL 1158682 Contact Us For Availability
13
Seal-Top Mtg Angle WPL 1163784 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Insulation, Suction Tube WPL 1160870 Contact Us For Availability
14
Bracket, Capacitor WPL 1156967 Contact Us For Availability
14
Bag, Accessory WPL 1166387 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Wet, Loop WPL 1161247 Contact Us For Availability
15
Screw, 8-18 x 3/8 WPL 1161561 Contact Us For Availability
15
Seal, Bottom Cab. WPL 1160768 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Condenser WPL 1160100 Contact Us For Availability
16
Grommet, Divider Wall WPL 1162200 Contact Us For Availability
17
Angle (2) WPL 644272 Contact Us For Availability
17
Clip, Shroud (2) WPL 1164511 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Base (Includes 46) WPL 1163440 Contact Us For Availability
18
Scroll, Upper WPL 1158654 Contact Us For Availability
19
Return Bend 3-Way WPL 1158685 Contact Us For Availability
19
Raceway, Wiring WPL 1157418 Contact Us For Availability
20
Kit, Outside Support WPL 485679 Contact Us For Availability
20
Harness, Wiring (Compressor) WPL 1163453 Contact Us For Availability
20
Panel, Control WPL 1156933 Contact Us For Availability
20
Cartridge, Complete WPL 1157464 Contact Us For Availability
20A
Harness, Wiring (Compressor) (Note: With This WPL 1166220 Contact Us For Availability
21
Support, Cabinet (2) WPL 644283 Contact Us For Availability
21
Compressor WPL 1164071 Contact Us For Availability
21
Support, Unit (2) WPL 1164561 Contact Us For Availability
21
Horzontal Louver WPL 1157466 Contact Us For Availability
22
Extension, Support (2) WPL 644284 Contact Us For Availability
22
Grommet (3) WPL 1165973 Contact Us For Availability
22
Wire, Control WPL 1157443 Contact Us For Availability
22
Ribs, Vertical WPL 1157467 Contact Us For Availability
23
Retainer, Cabinet (2) WPL 644285 Contact Us For Availability
23
Tube, Feeder WPL 1161216 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
23
Front, Complete WPL 1166752 Contact Us For Availability
24
Bracket, Support WPL 644281 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Dividing Wall WPL 1161556 Contact Us For Availability
24
Seal, Bottom (Left Side) WPL 1160763 Contact Us For Availability
24
Seal Bottom (Right Side) WPL 1160764 Contact Us For Availability
25
Kit, Wide Window Optional Kit (Not Included) WPL 485856 Contact Us For Availability
25
Gasket, Terminal WPL 1161082 Contact Us For Availability
25
Seal, Evaporator WPL 1160820 Contact Us For Availability
25
Seal Top (Right Side) WPL 1160770 Contact Us For Availability
25
Seal, Top (Left Side) WPL 1161864 Contact Us For Availability
26
Strip, Seal WPL 856979 Contact Us For Availability
26
Bend, Return (1) WPL 1156329 Contact Us For Availability
26
Switch, Rotary WPL 1158669 Contact Us For Availability
26
Seal WPL 1160769 Contact Us For Availability
27
Seal, Meeting Rail WPL 470800 Contact Us For Availability
27
Bend, Return Evaporator (10) WPL 855644 Contact Us For Availability
27
Wet, Loop Clip WPL 1161248 Contact Us For Availability
28
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
28
Cover, Terminal WPL 1161076 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1157404 Contact Us For Availability
29
Tube, Flow Divider WPL 1159832 Contact Us For Availability
29
Filter WPL 1166750 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1162528 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
31
Bend, Return Evaporator (12) WPL 855199 Contact Us For Availability
31
Cam, Exhaust WPL 997813 Contact Us For Availability
32
Manifold, Suction WPL 1164563 Contact Us For Availability
32
Bushing, Shaft WPL 859233 Contact Us For Availability
33
Bend, Return Evaporator (10) WPL 854624 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
34
Suction Tube Assembly WPL 1164088 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
35
Washer WPL 647881 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
36
Shaft, Control Exhaust WPL 1158253 Contact Us For Availability
37
Cup, Condensate Drain WPL 997285 Contact Us For Availability
37
Harness, Wiring - Control Box WPL 1157651 Contact Us For Availability
38
Pan, Drain WPL 1158652 Contact Us For Availability
38
Control Box WPL 1156932 Contact Us For Availability
39
Back Panel, Control Box WPL 1156965 Contact Us For Availability
40
Discharge Tube Assembly (Includes 1,23,29) WPL 1164087 Contact Us For Availability
41
Anticipator WPL 1166782 Contact Us For Availability
41
Clip, Nylon WPL 1161249 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
42
Impeller Guard (2) WPL 1161555 Contact Us For Availability
43
Escutcheon WPL 1166499 Contact Us For Availability
44
Distributor WPL 1163760 Contact Us For Availability
45
Knob, Controls (3) WPL 1158054 Contact Us For Availability
45
Tube, Discharge (Bottom) WPL 1164086 Contact Us For Availability
46
Bolt, Compressor WPL 1165674 Contact Us For Availability
46
Control, Temperature WPL 1160214 Contact Us For Availability
47
Tube, Wet Loop Connect WPL 1161277 Contact Us For Availability
47
Condensate Guard WPL 1165624 Contact Us For Availability
48
Cap, Bolt WPL 1164562 Contact Us For Availability
50
Wire, Lead WPL 1156982 Contact Us For Availability
51
Cup, Condensate WPL 1160684 Contact Us For Availability
× ![]()
