Model Whirlpool ACQ249XR1 AIR CONDITIONER – Common Parts & Diagrams

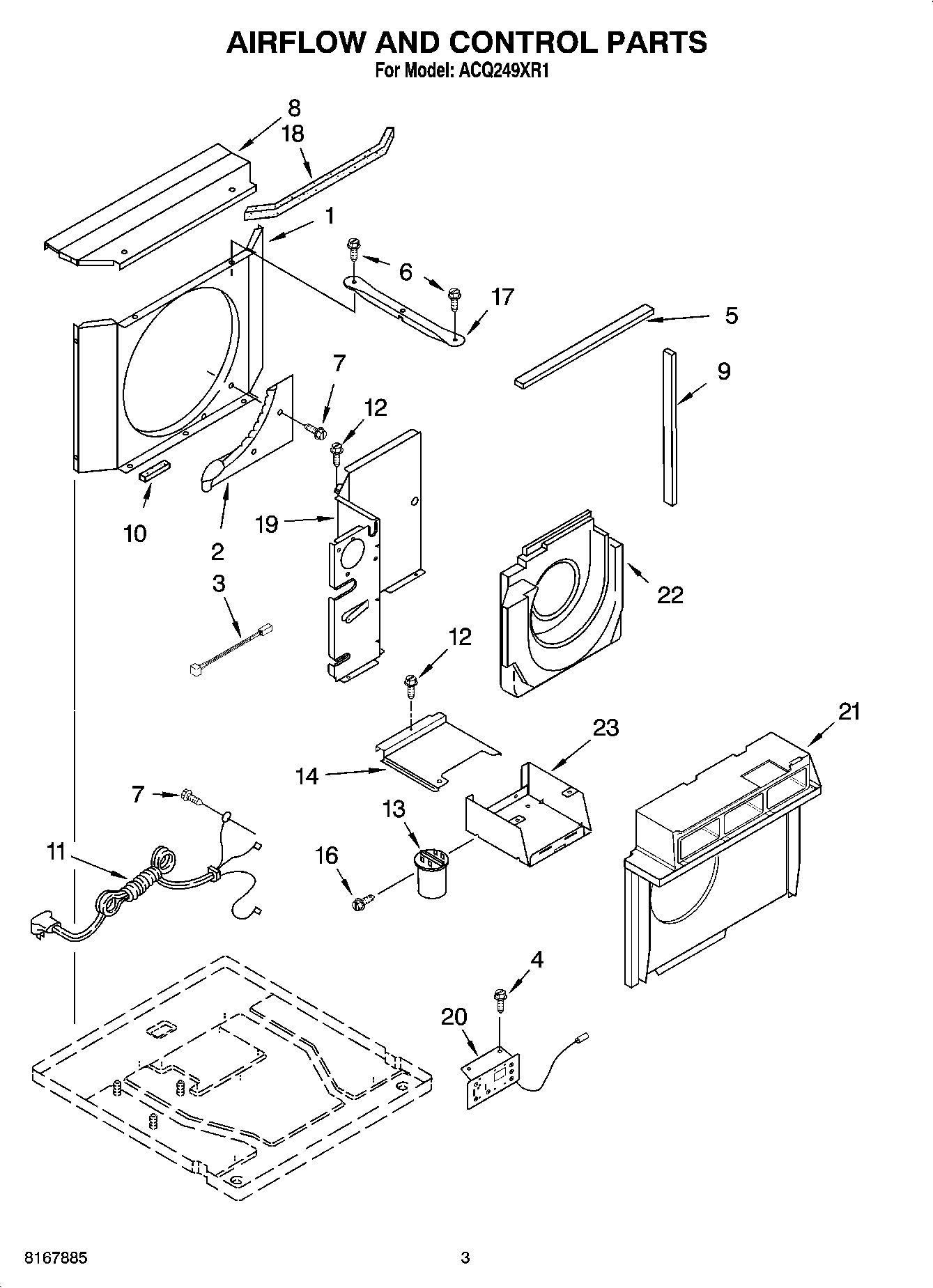

02 - AIRFLOW AND CONTROL PARTS

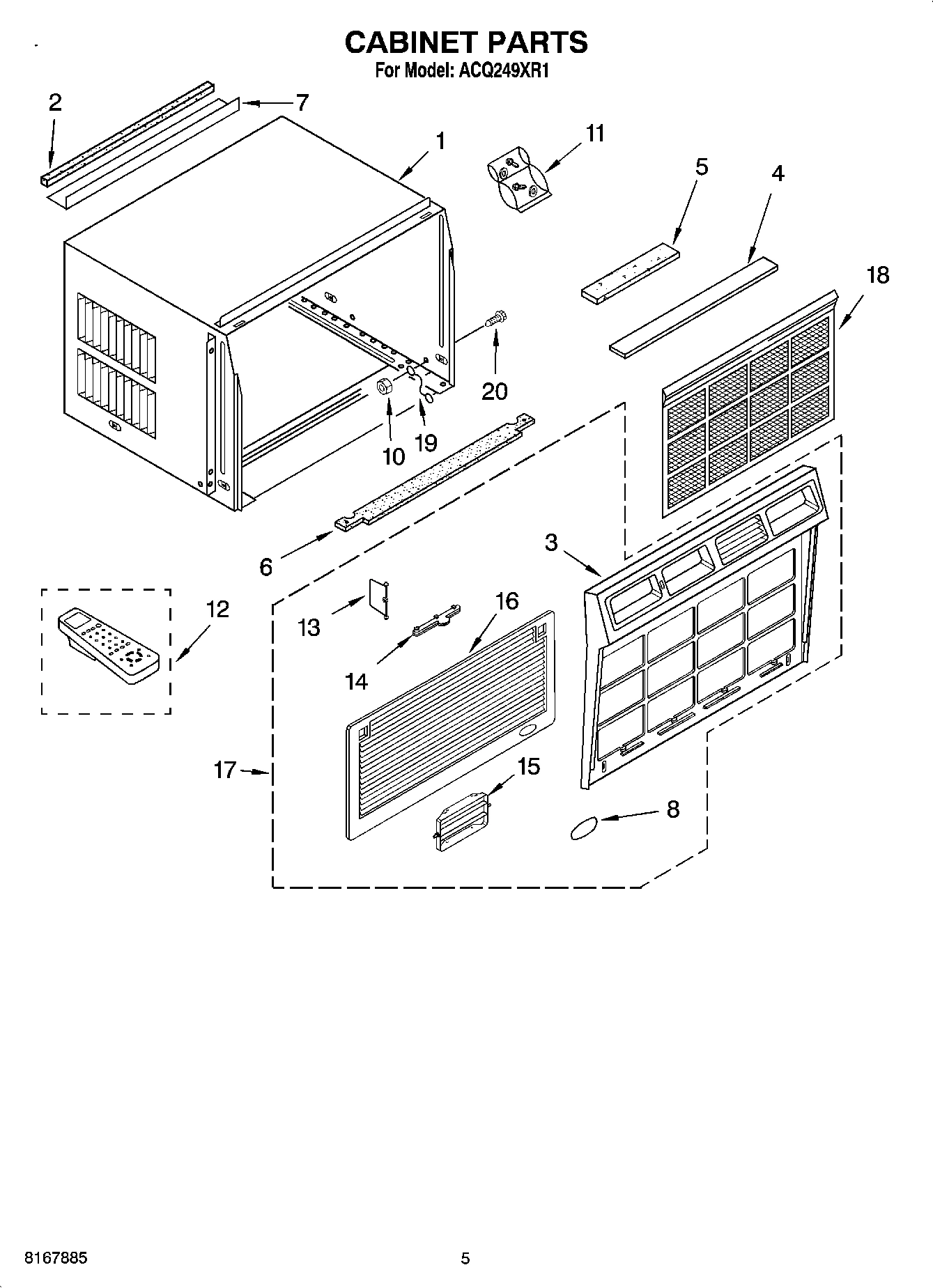

03 - CABINET PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
05 - INSTALLATION PARTS
01 - UNIT PARTS
Common parts from model Whirlpool ACQ249XR1 AIR CONDITIONER
1
Cabinet WPL 1185518 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Screw (4) WPL 1159222 Contact Us For Availability
1
Energy Guide WPL 1188110 Contact Us For Availability
1
Wiring Diagram WPL 1188126 Contact Us For Availability
1
Use & Care Guide WPL 1188127 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
2
Bend, Return WPL 855199 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Frame, Front WPL 1188275 Contact Us For Availability
3
Gasket, Sash WPL 1166388 Contact Us For Availability
3
Insulation, Base (Bottom) WPL 1167085 Contact Us For Availability
4
Seal, Front Large WPL 1187359 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
5
Seal, Front Small WPL 1181735 Contact Us For Availability
5
Oil, Turbine 8 Oz. WPL 99243 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1163768 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Support, Cabinet (2) WPL 1185549 Contact Us For Availability
6
Tube, Restrictor (4) WPL 1186540 Contact Us For Availability
7
BulK Seal, Ring Access Valve (20-Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Nameplate WPL 1187171 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Seal, Suction Tube WPL 1185481 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
10
Motor, Fan WPL 1187770 Contact Us For Availability
11
Bag, Accessory WPL 1186155 Contact Us For Availability
11
Support, Retainer (2) WPL 1168474 Contact Us For Availability
12
Control, Remote WPL 1187933 Contact Us For Availability
12
Board, Filler WPL 1168473 Contact Us For Availability
13
Louver, Verticle WPL 1185541 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Evaporator WPL 1187779 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Link, Verticle Louver (2) WPL 8011106 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 487371 Contact Us For Availability
15
Cartridge WPL 1185540 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Wet, Loop WPL 1185519 Contact Us For Availability
16
Angle (Top) WPL 1168490 Contact Us For Availability
16
Door, Filter WPL 1187336 Contact Us For Availability
16
Return Bend ReplacementKit (5/16 Inch Tube) WPL 4388784 Contact Us For Availability
16
Return Bend ReplacementKit (3/8 Inch Tube) WPL 4388785 Contact Us For Availability
16
CONDENSER WPL 1185738 Contact Us For Availability
17
Front, Complete WPL 1188276 Contact Us For Availability
17
Angle (2) WPL 1168472 Contact Us For Availability
17
Cover, Terminal WPL 1182355 Contact Us For Availability
18
Filter WPL 1185523 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Base WPL 1185503 Contact Us For Availability
19
Wire, Ground WPL 1186627 Contact Us For Availability
19
Screw (Side Angle To Filler Board) WPL 1166265 Contact Us For Availability
19
Gasket, Nut WPL 1182120 Contact Us For Availability
20
Harness, Wiring (Compressor) WPL 1187606 Contact Us For Availability
21
Shroud Assembly, Evaporator WPL 1187338 Contact Us For Availability
21
Compressor WPL 1188266 Contact Us For Availability
22
Housing, Air WPL 1187340 Contact Us For Availability
22
Grommet (3) WPL 1165973 Contact Us For Availability
23
Control Box WPL 1187820 Contact Us For Availability
23
Return Bend 3-Way WPL 1158685 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
26
Distributor (Bottom) WPL 1184612 Contact Us For Availability
27
Dampener WPL 1162344 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1185543 Contact Us For Availability
32
Manifold, Suction WPL 1188265 Contact Us For Availability
34
Tube, Suction WPL 1188285 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
38
Pan, Drain WPL 1185843 Contact Us For Availability
42
Clip, Thermistor WPL 1185337 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Tube, Discharge WPL 1188283 Contact Us For Availability
47
Gasket, Terminal Cover WPL 1182356 Contact Us For Availability
48
Bolt, Compressor WPL 1165674 Contact Us For Availability
51
Tube, Feeder WPL 1188278 Contact Us For Availability
52
Tube, Feeder WPL 1188279 Contact Us For Availability
53
Tube, Flow Divider WPL 1159832 Contact Us For Availability
53
REFRIGERANT CHARGE 54.00 oz. WPL ARI144139A Contact Us For Availability
× ![]()
