Model Whirlpool ACQ214XY1 AIR CONDITIONER – Common Parts & Diagrams

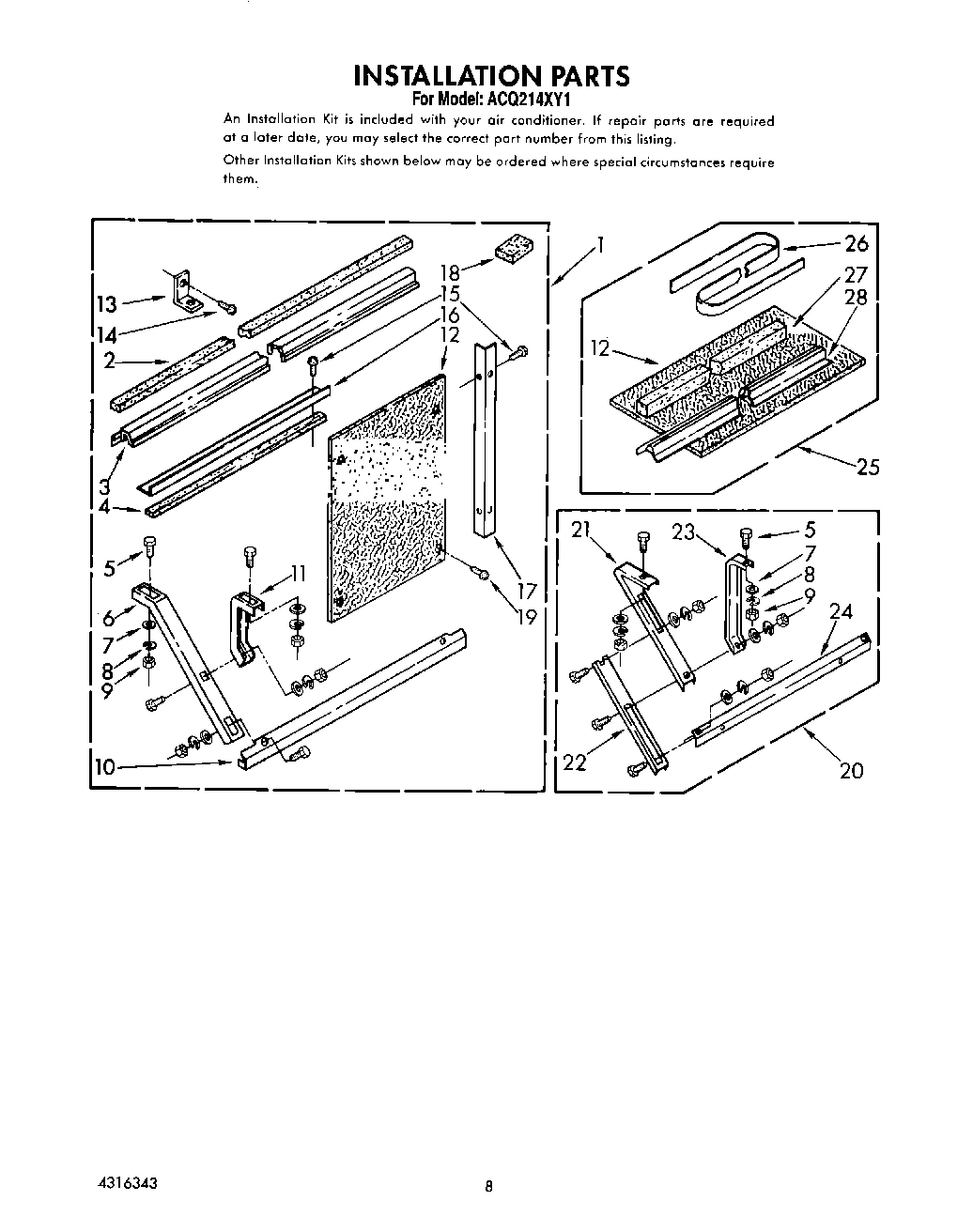

06 - INSTALLATION

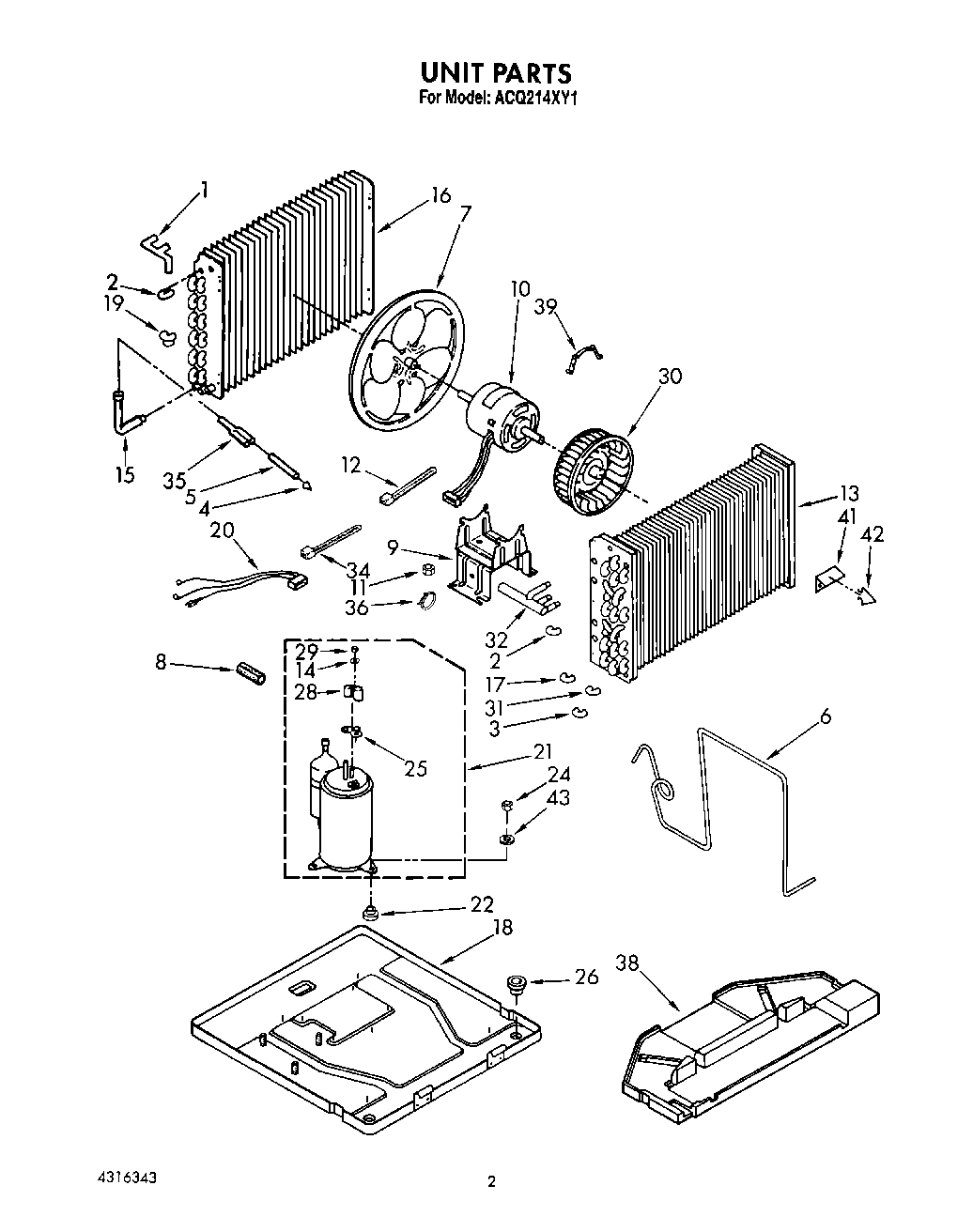

02 - UNIT, LIT/OPTIONAL

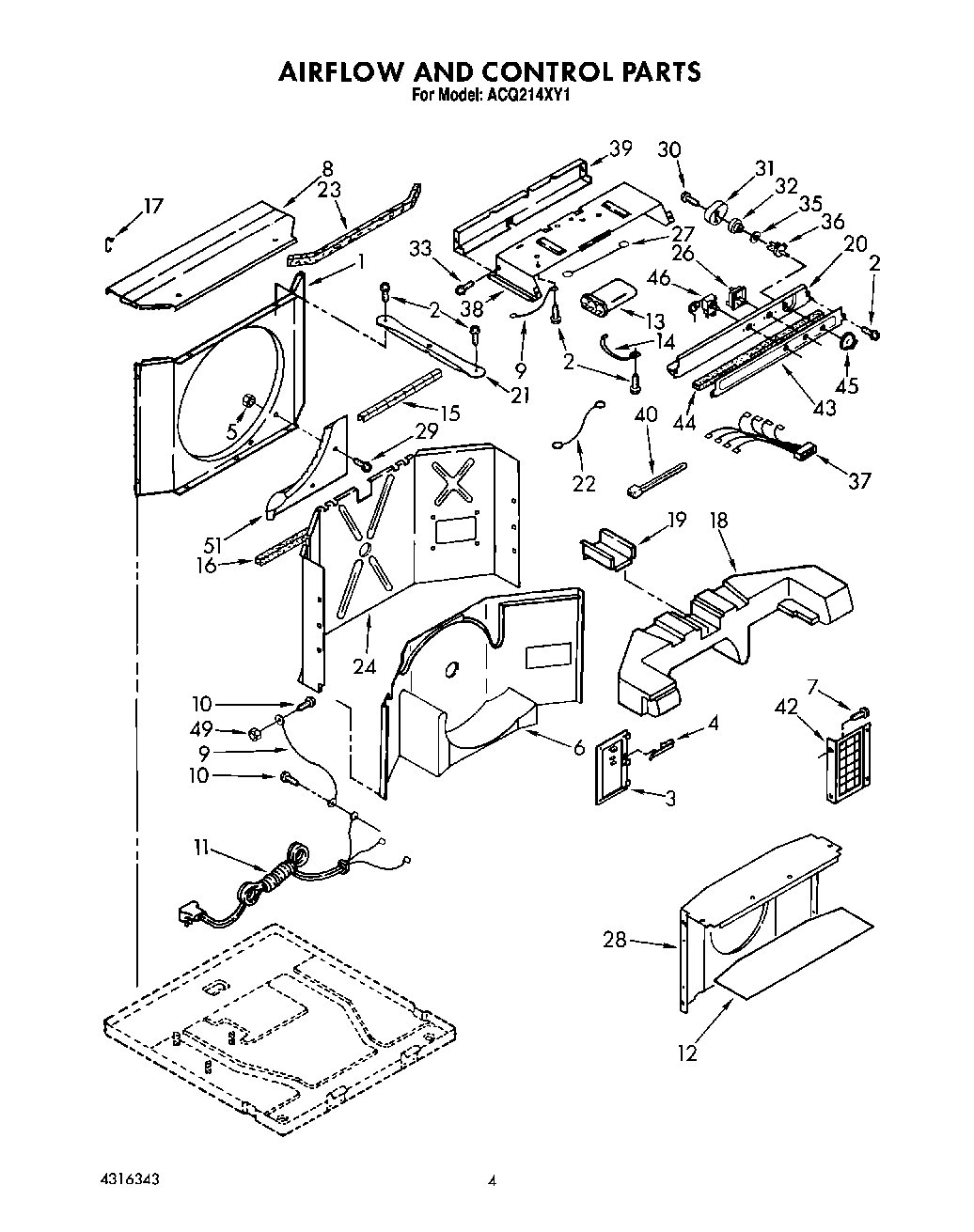

03 - AIRFLOW AND CONTROL

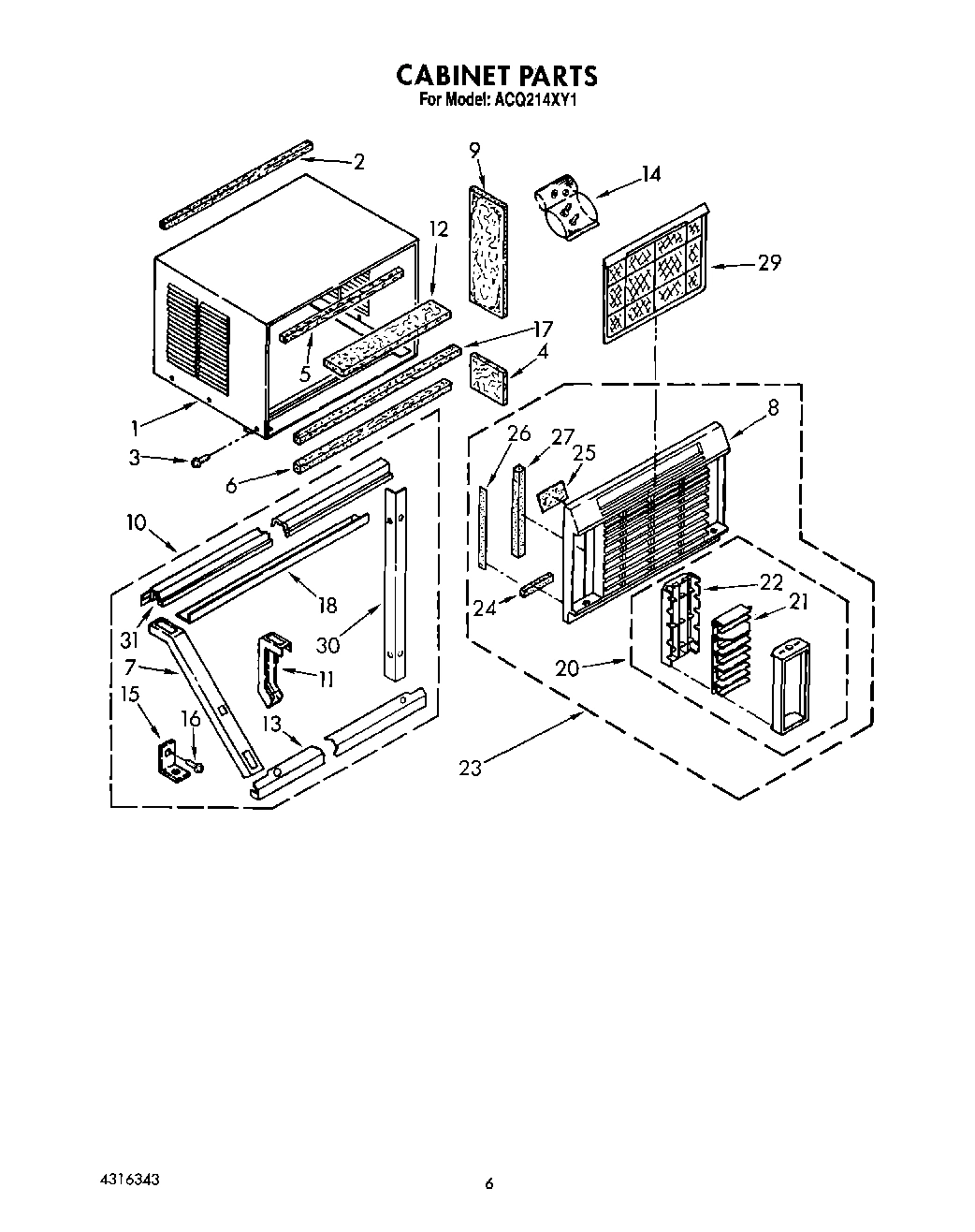

04 - CABINET

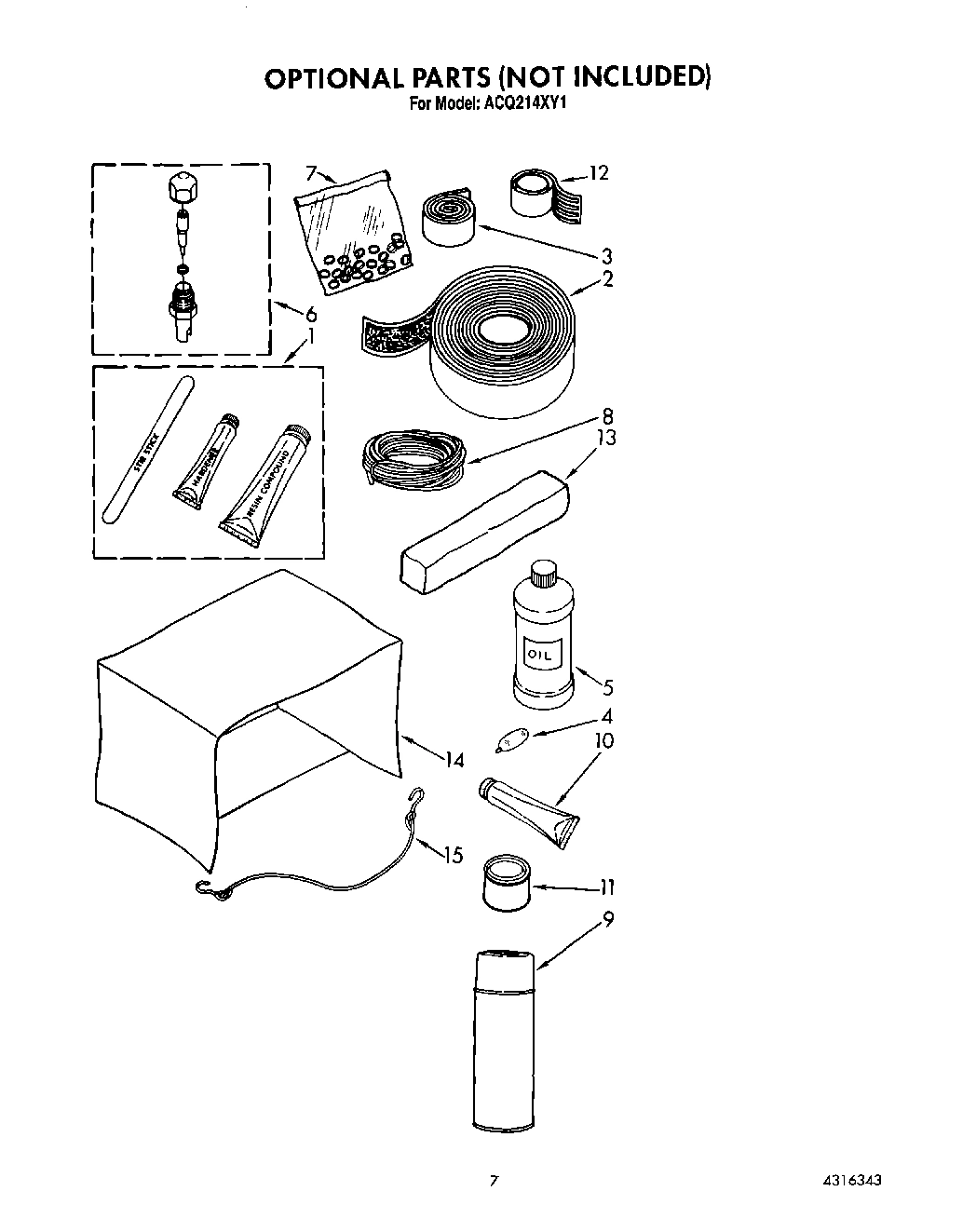

05 - OPTIONAL
Common parts from model Whirlpool ACQ214XY1 AIR CONDITIONER
1
Manifold, Discharge WPL 1162555 Contact Us For Availability
1
Shroud, Condenser WPL 1157403 Contact Us For Availability
1
Cabinet WPL 1162273 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bend, Return Condenser (15) Evaporator (14) WPL 708532 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return Condenser (6) Evaporator (10) WPL 708531 Contact Us For Availability
3
Door, Exhaust WPL 997221 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Spring, Door WPL 859369 Contact Us For Availability
4
Insulation, Cabinet Side (2) WPL 1160818 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1155596 Contact Us For Availability
5
Seal, Top WPL 1158731 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Tube, Restrictor (3) WPL 1162118 Contact Us For Availability
6
Scroll (Lower) WPL 1158653 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
7
Screw, 8-18 x 3/8 WPL 1161561 Contact Us For Availability
7
Support Cabinet WPL 649945 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Seal, Suction Tube WPL 1160870 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Cabinet Front WPL 1157463 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Bracket, Fan Motor WPL 1157411 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
9
Insulation, Cabinet Side (2) WPL 1160819 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Motor, Fan WPL 1158381 Contact Us For Availability
10
Screw, 8 x 3/8 WPL 488853 Contact Us For Availability
10
Window Mtg. Kit WPL 1160600 Contact Us For Availability
11
Cord, Appliance WPL 1158361 Contact Us For Availability
11
Retainer, Cabinet Support WPL 649946 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Seal, Evaporator Shroud WPL 1160820 Contact Us For Availability
12
Seal, Cabinet Top WPL 855265 Contact Us For Availability
13
Evaporator WPL 1162128 Contact Us For Availability
13
Capacitor, Running WPL 1158383 Contact Us For Availability
13
Bracket, Support WPL 649947 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Bracket, Capacitor WPL 1156967 Contact Us For Availability
14
Bag, Accessory WPL 1158746 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Tube, Connecting WPL 1158703 Contact Us For Availability
15
Grommet, Divider Wall WPL 1162200 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Condenser WPL 1162137 Contact Us For Availability
16
Seal, Condensate Cup WPL 1160792 Contact Us For Availability
17
Tube, Riser Condenser (1) Evaporator (7) WPL 1156329 Contact Us For Availability
17
Clip, Shroud (2) WPL 1158257 Contact Us For Availability
17
Seal, Cabinet Top WPL 1160762 Contact Us For Availability
18
Angle, Top Mtg. WPL 644271 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Base WPL 1162146 Contact Us For Availability
18
Scroll, Upper WPL 1158654 Contact Us For Availability
19
Return Bend 3-Way WPL 1158685 Contact Us For Availability
19
Raceway, Wiring WPL 1157418 Contact Us For Availability
20
Kit, Outside Support WPL 485679 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 1158689 Contact Us For Availability
20
Panel, Control WPL 1156933 Contact Us For Availability
20
Cartridge, Complete WPL 1157464 Contact Us For Availability
21
Support, Cabinet (2) WPL 644283 Contact Us For Availability
21
Compressor WPL 1156054 Contact Us For Availability
21
Support, Unit (2) WPL 1157420 Contact Us For Availability
21
Horzontal Louver WPL 1157466 Contact Us For Availability
22
Extension, Support (2) WPL 644284 Contact Us For Availability
22
Wire, Control WPL 1157443 Contact Us For Availability
22
Ribs, Vertical WPL 1157467 Contact Us For Availability
23
Retainer, Cabinet (2) WPL 644285 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
23
Front, Complete WPL 1157462 Contact Us For Availability
24
Bracket, Support WPL 644281 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Dividing Wall WPL 1161556 Contact Us For Availability
24
Seal (2) WPL 1160764 Contact Us For Availability
25
Kit, Wide Window WPL 485856 Contact Us For Availability
25
Seal (Front) WPL 1160769 Contact Us For Availability
25
Seal (Right Side) WPL 1160770 Contact Us For Availability
25
Seal (Left Side) WPL 1161864 Contact Us For Availability
26
Strip, Seal WPL 856979 Contact Us For Availability
26
Cup, Condensate Drain WPL 997285 Contact Us For Availability
26
Switch, Rotary WPL 1158669 Contact Us For Availability
27
Seal, Meeting Rail WPL 470800 Contact Us For Availability
27
Wire, Thermostat To Switch WPL 1156982 Contact Us For Availability
27
Seal (2) WPL 1160763 Contact Us For Availability
28
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1157404 Contact Us For Availability
29
Screw, 8 x 3/8 WPL 1159222 Contact Us For Availability
29
Filter WPL 1157468 Contact Us For Availability
30
Angle, Side Mtg. WPL 644272 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1162529 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
31
Return Bend (2) WPL 1158407 Contact Us For Availability
31
Cam, Exhaust WPL 997813 Contact Us For Availability
31
Gasket, Sash WPL 644288 Contact Us For Availability
32
Manifold, Suction WPL 1162038 Contact Us For Availability
32
Bushing, Shaft WPL 859233 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
35
Washer WPL 647881 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
36
Shaft, Control Exhaust WPL 1158253 Contact Us For Availability
37
Harness, Wiring - Control Box WPL 1157651 Contact Us For Availability
38
Pan, Drain WPL 1158652 Contact Us For Availability
38
Control Box WPL 1156932 Contact Us For Availability
39
Back Panel, Control Box WPL 1156965 Contact Us For Availability
41
Anticipator WPL 484238 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
42
Impeller Guard (2) WPL 1161555 Contact Us For Availability
43
Use And Care Guide WPL LIT1157501 Contact Us For Availability
43
Wiring Diagram WPL LIT1158715 Contact Us For Availability
43
Tech Sheet WPL LIT1158741 Contact Us For Availability
43
Instructions, Installation WPL LIT1162148 Contact Us For Availability
43
Buy Guide WPL LIT1162284 Contact Us For Availability
43
Literature Parts (List, Repair Parts) WPL LIT4316343 Contact Us For Availability
43
Escutcheon WPL 1158658 Contact Us For Availability
45
Knob, Controls (3) WPL 1158054 Contact Us For Availability
46
Control, Temperature WPL 1160214 Contact Us For Availability
51
Cup, Condensate WPL 1158387 Contact Us For Availability
× ![]()
