Model Whirlpool ACQ214XK0 AIR CONDITIONER – Common Parts & Diagrams
03 - CABINET
04 - OPTIONAL

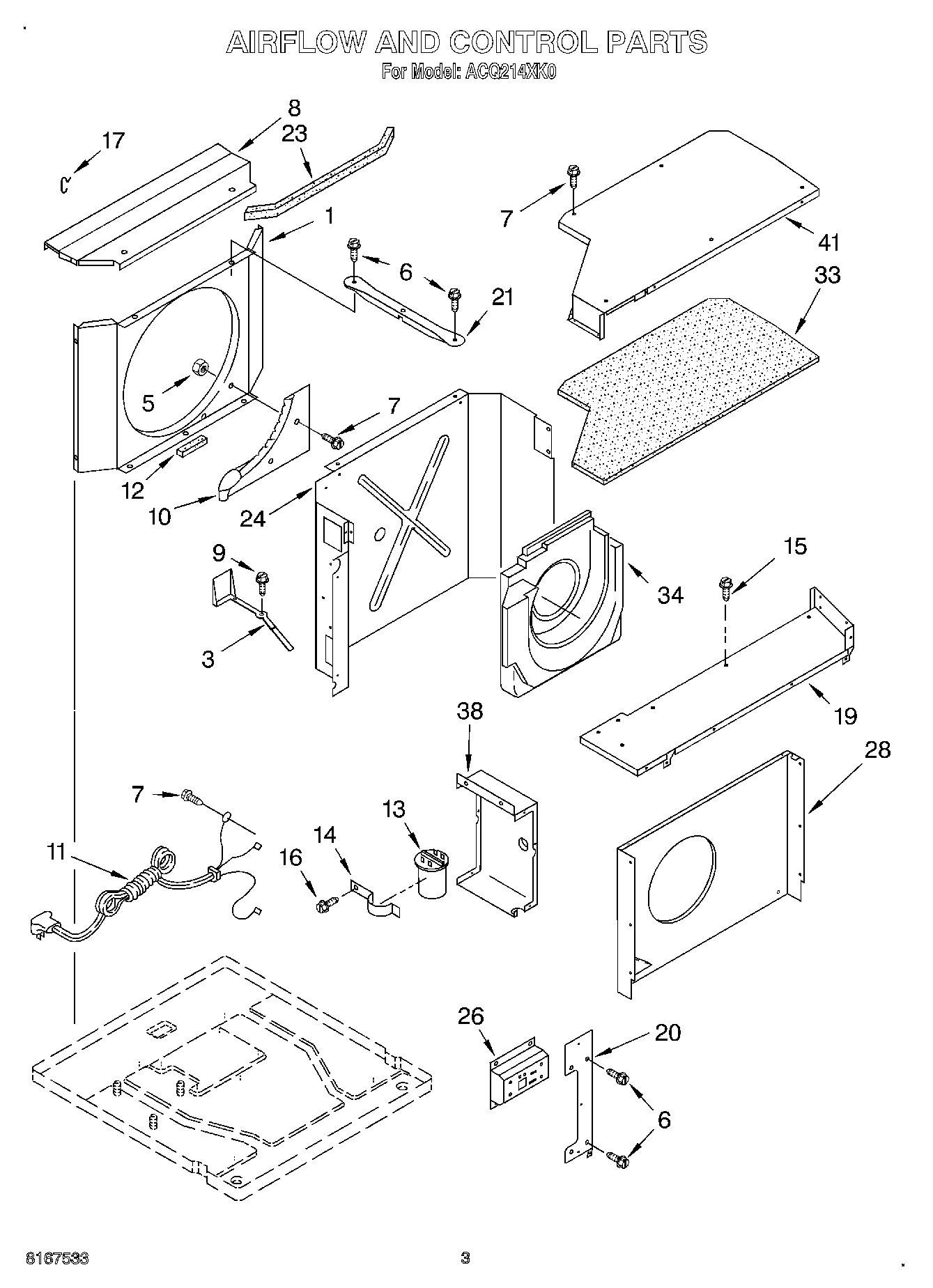

02 - AIR FLOW AND CONTROL

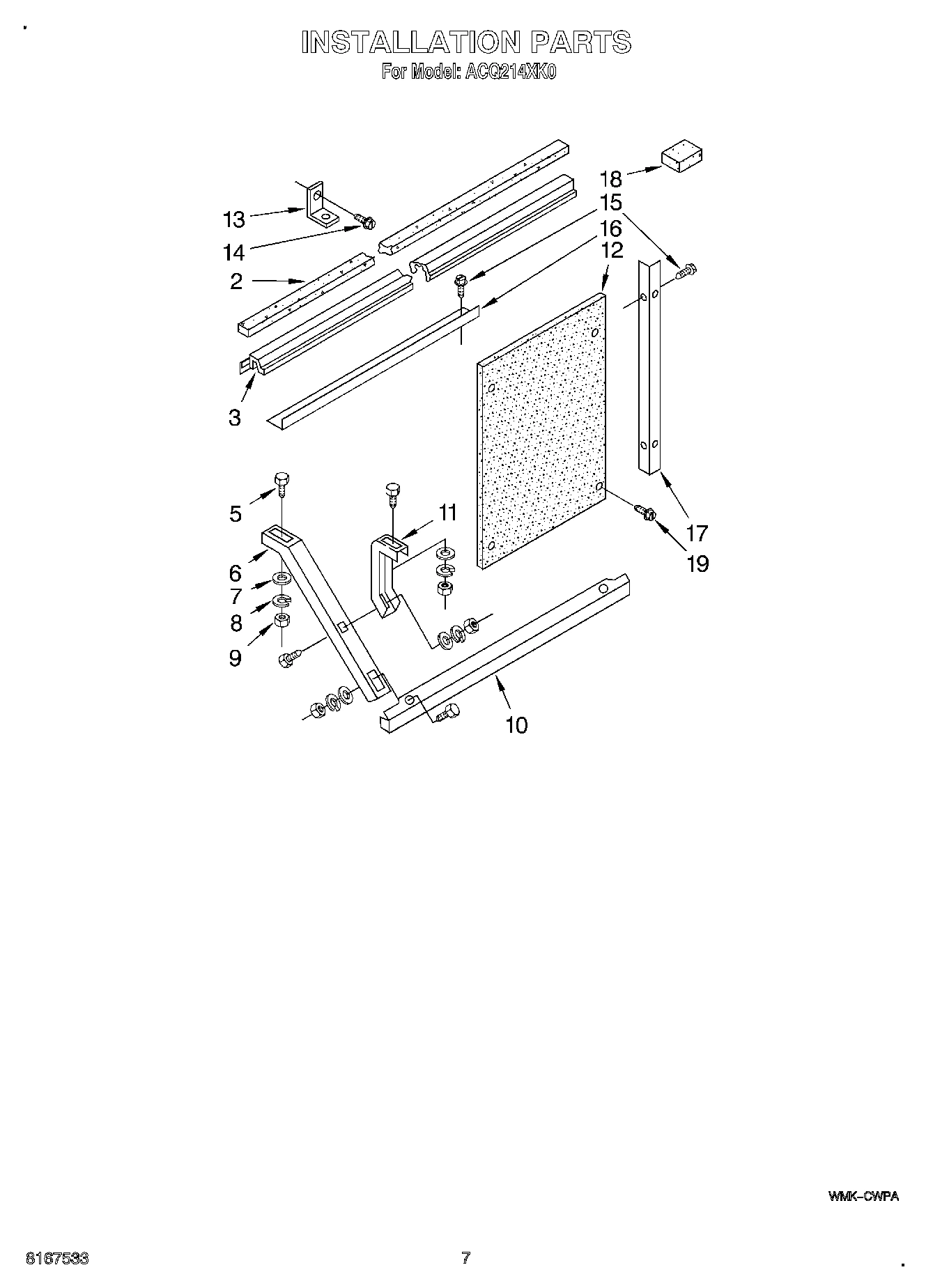

05 - INSTALLATION

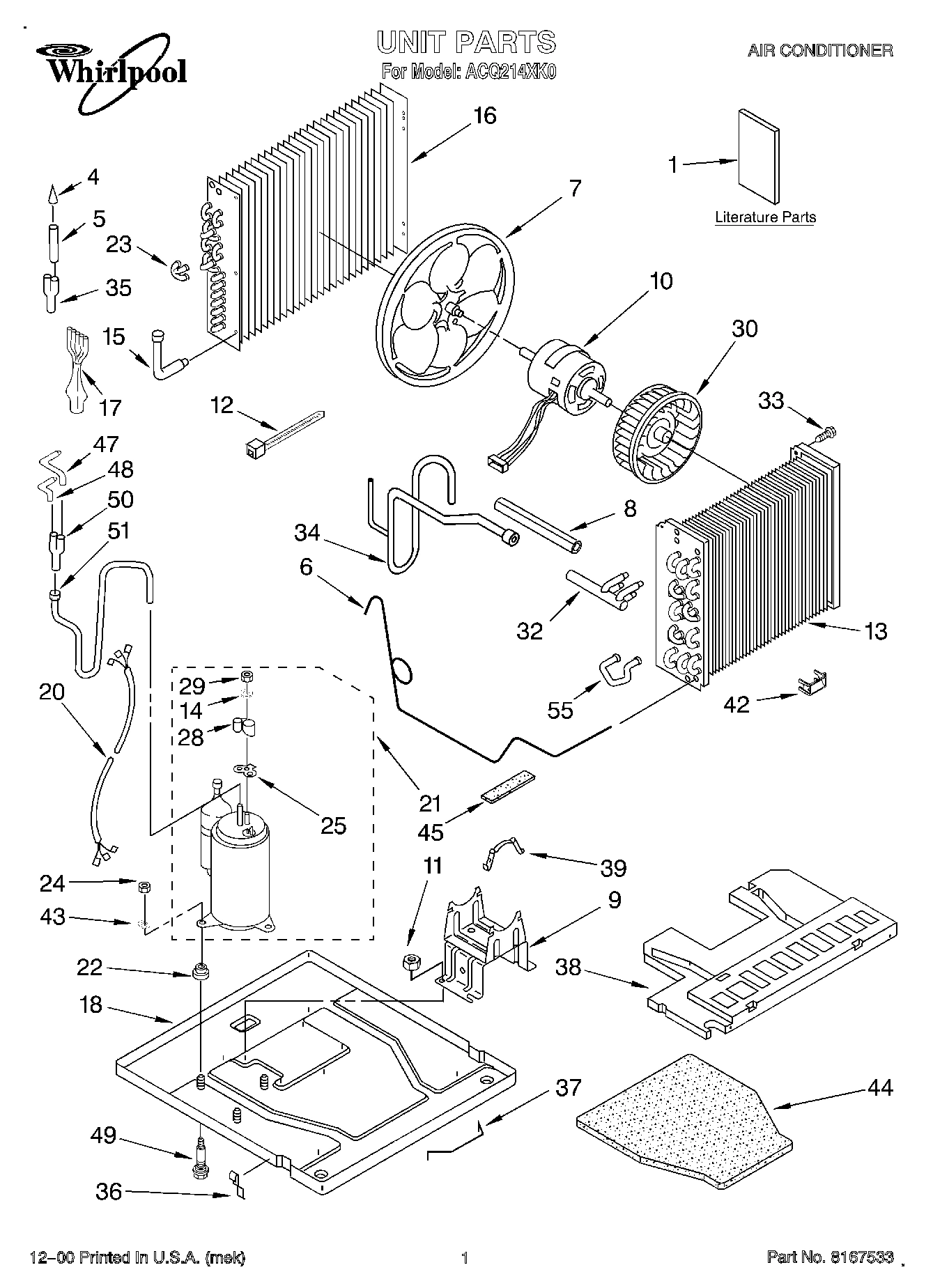

01 - UNIT, LITERATURE
Common parts from model Whirlpool ACQ214XK0 AIR CONDITIONER
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Shroud, Condenser WPL 1157403 Contact Us For Availability
1
LITERATURE PARTS (Wiring Diagram) WPL LIT1184691 Contact Us For Availability
1
Use & Care Guide WPL LIT1184713 Contact Us For Availability
1
Energy Guide WPL LIT1185045 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Door, Air WPL 1183344 Contact Us For Availability
3
Gasket, Sash WPL 1166388 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1163768 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Support, Cabinet (2) WPL 1168475 Contact Us For Availability
6
Tube, Restrictor (3) WPL 1165955 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Seal, Suction Tube WPL 1160870 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Screw WPL 8031309 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
10
Cup, Condensate WPL 1160684 Contact Us For Availability
10
Bracket, Support WPL 1168476 Contact Us For Availability
10
Motor, Fan WPL 1184427 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Cable, Appliance WPL 1184710 Contact Us For Availability
11
Support, Retainer (2) WPL 1168474 Contact Us For Availability
12
Seal, Cup WPL 1163332 Contact Us For Availability
12
Board, Filler WPL 1168473 Contact Us For Availability
13
Capacitor WPL 1184732 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Evaporator WPL 1184607 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 487371 Contact Us For Availability
14
Gasket, Nut WPL 1182120 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Screw (Side & Top Angles to Cabinet) WPL 488624 Contact Us For Availability
15
Tube, Connecting WPL 1158703 Contact Us For Availability
16
Return Bend ReplacementKit (5/16 Inch Tube) WPL 4388784 Contact Us For Availability
16
Return Bend ReplacementKit (3/8 Inch Tube) WPL 4388785 Contact Us For Availability
16
Angle (Top) WPL 1168490 Contact Us For Availability
16
Condenser WPL 1184744 Contact Us For Availability
17
Clip, Shroud (2) WPL 1164511 Contact Us For Availability
17
Angle (2) WPL 1168472 Contact Us For Availability
17
Distributor WPL 1184612 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Base WPL 1168486 Contact Us For Availability
19
Top, Evaporator Shroud WPL 1183528 Contact Us For Availability
19
Screw (Side Angle To Filler Board) WPL 1166265 Contact Us For Availability
20
Panel, Control WPL 1184599 Contact Us For Availability
20
Harness, Wiring (Compressor) WPL 1184699 Contact Us For Availability
21
Support, Unit (2) WPL 1166169 Contact Us For Availability
21
Compressor WPL 1184613 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
23
Return Bend 3-Way WPL 1158685 Contact Us For Availability
24
Louver, Horizontal W/ Handle, Right WPL 1168510 Contact Us For Availability
24
Dividing Wall WPL 1165593 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Louver, Horizontal (Notch Right) WPL 1168512 Contact Us For Availability
25
Louver, Horizontal (Notch Left) WPL 1168513 Contact Us For Availability
25
Gasket, Terminal Cover WPL 1182356 Contact Us For Availability
26
Control, Electronic WPL 1184703 Contact Us For Availability
28
Actuator, Louver (2) WPL 1182348 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1160666 Contact Us For Availability
28
Cover, Terminal WPL 1182355 Contact Us For Availability
29
Filter WPL 1182336 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1158443 Contact Us For Availability
32
Spring, Detent (2) WPL 1167095 Contact Us For Availability
32
Manifold, Suction WPL 1184609 Contact Us For Availability
33
Wire, Ground WPL 857022 Contact Us For Availability
33
Insulation, Top Cover WPL 1163758 Contact Us For Availability
34
Housing, Air WPL 1160657 Contact Us For Availability
34
Tube, Suction WPL 1182060 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
38
Control Box WPL 1184814 Contact Us For Availability
38
Pan, Drain WPL 1160656 Contact Us For Availability
41
Cover, Top WPL 1183529 Contact Us For Availability
42
Clip, Thermistor WPL 475577 Contact Us For Availability
44
Insulation, Base (Bottom) WPL 1167085 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
47
Tube, Feeder WPL 1161071 Contact Us For Availability
48
Tube, Feeder WPL 1160358 Contact Us For Availability
49
Bolt, Compressor WPL 1165674 Contact Us For Availability
50
Tube, Flow Divider WPL 1159832 Contact Us For Availability
51
Tube, Discharge WPL 1166239 Contact Us For Availability
55
Bend, Return (Evaporator - 2) WPL 1184608 Contact Us For Availability
× ![]()
