Model Whirlpool ACQ184XL0 AIR CONDITIONER – Common Parts & Diagrams

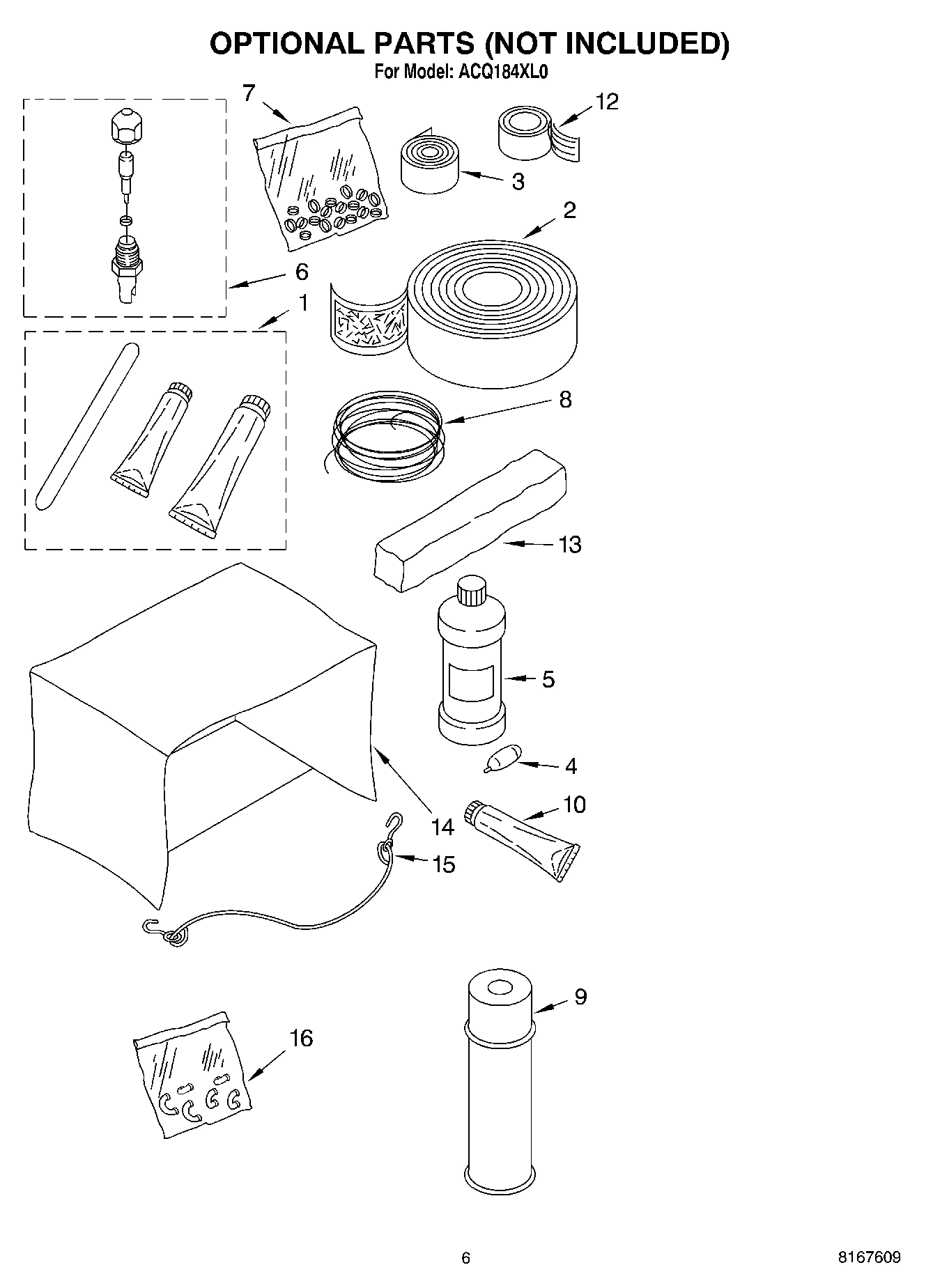

04 - OPTIONAL

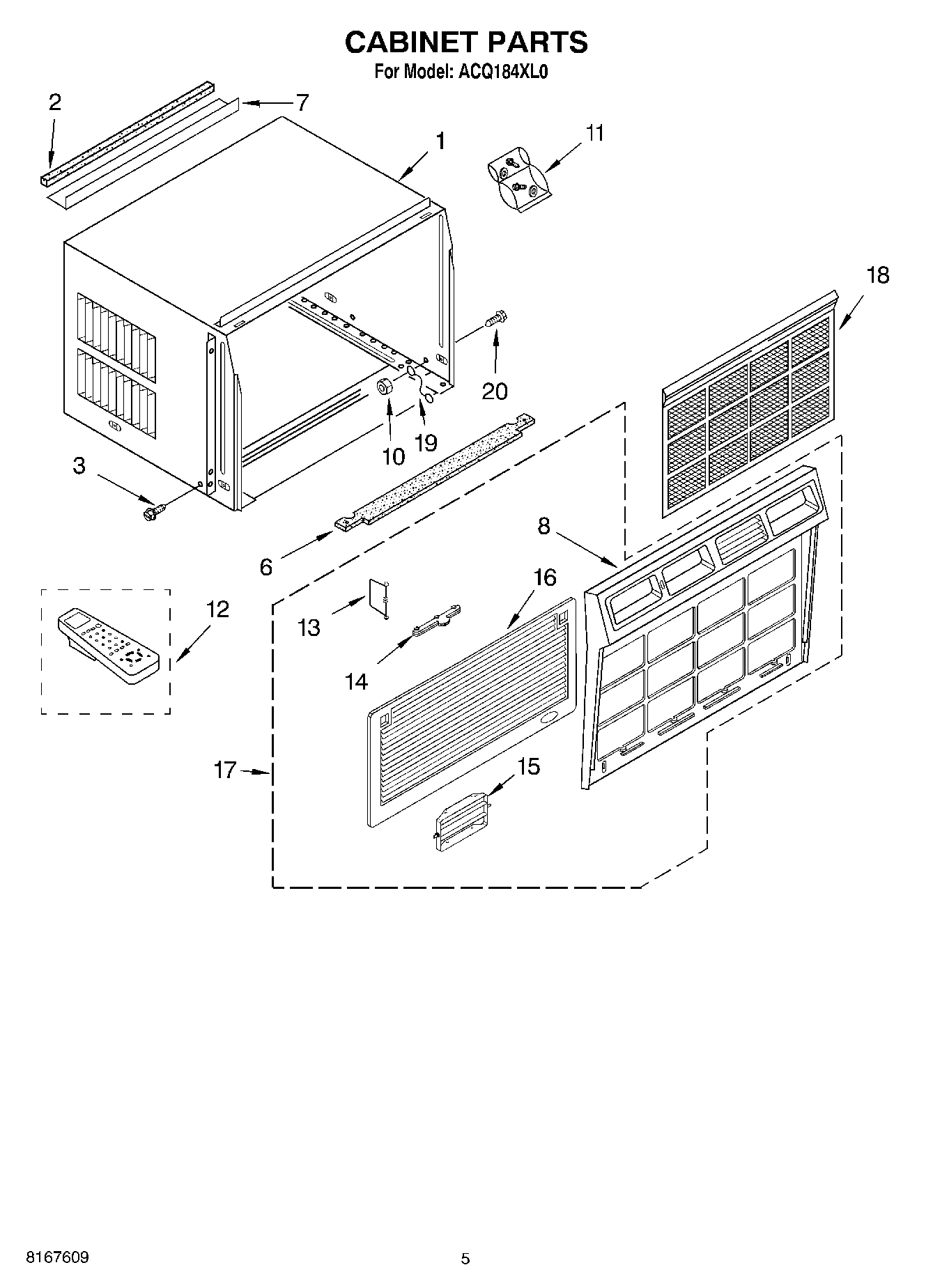

03 - CABINET
01 - UNIT, LITERATURE
05 - INSTALLATION
02 - AIR FLOW AND CONTROL
Common parts from model Whirlpool ACQ184XL0 AIR CONDITIONER
1
Cabinet WPL 1185518 Contact Us For Availability
1
LITERATURE PARTS (Wiring Diagram) WPL LIT1185264 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT1185536 Contact Us For Availability
1
Energy Guide WPL LIT1185538 Contact Us For Availability
1
Shroud, Condenser WPL 1157403 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Gasket, Sash WPL 1166388 Contact Us For Availability
3
Door, Exhaust WPL 1185506 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Screw (2) WPL 1159222 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Seal (Top) WPL 1185513 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
6
Tube, Restrictor (2) WPL 1185687 Contact Us For Availability
6
Support, Cabinet (2) WPL 1185549 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Frame, Front WPL 1185650 Contact Us For Availability
8
Seal, Suction Tube WPL 1165440 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Seal (Side) WPL 1185911 Contact Us For Availability
10
Motor, Fan WPL 1185857 Contact Us For Availability
11
Bag, Accessory WPL 1186155 Contact Us For Availability
11
Support, Retainer (2) WPL 1168474 Contact Us For Availability
11
Cord, Appliance WPL 1185768 Contact Us For Availability
12
Control, Remote WPL 1184822 Contact Us For Availability
12
Board, Filler WPL 1168473 Contact Us For Availability
12
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
13
Louver, Verticle WPL 1185541 Contact Us For Availability
13
Evaporator WPL 1185688 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Capacitor WPL 1184649 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Link, Verticle Louver (2) WPL 8011106 Contact Us For Availability
14
Gasket, Nut WPL 1182120 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 487371 Contact Us For Availability
15
Cartridge WPL 1185540 Contact Us For Availability
15
Tube, Wet Loop Connect WPL 1155596 Contact Us For Availability
16
Angle (Top) WPL 1168490 Contact Us For Availability
16
Door, Filter WPL 1185542 Contact Us For Availability
16
Condenser WPL 1185512 Contact Us For Availability
17
Front, Complete WPL 1185651 Contact Us For Availability
17
Wet, Loop WPL 1185519 Contact Us For Availability
17
Angle (2) WPL 1168472 Contact Us For Availability
17
Support, Unit (2) WPL 1166169 Contact Us For Availability
18
Filter WPL 1185523 Contact Us For Availability
18
Base WPL 1185503 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Seal, Shroud WPL 1158732 Contact Us For Availability
19
Wire, Ground WPL 857022 Contact Us For Availability
19
Screw (Side Angle To Filler Board) WPL 1166265 Contact Us For Availability
19
Dividing Wall WPL 1185524 Contact Us For Availability
20
Harness, Wiring (Compressor) WPL 1185774 Contact Us For Availability
20
Control, Electronic WPL 1186193 Contact Us For Availability
21
Compressor WPL 1184601 Contact Us For Availability
21
Shroud Assembly, Evaporator WPL 1185508 Contact Us For Availability
22
Housing, Air WPL 1185507 Contact Us For Availability
23
Return Bend 3-Way WPL 1156107 Contact Us For Availability
23
Control Box WPL 1185529 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Gasket, Terminal Cover WPL 1182118 Contact Us For Availability
28
Cover, Terminal WPL 1184748 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1158443 Contact Us For Availability
31
Overload WPL 1184654 Contact Us For Availability
32
Manifold, Suction WPL 1185689 Contact Us For Availability
34
Tube, Suction WPL 1185956 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
38
Pan, Drain WPL 1185843 Contact Us For Availability
42
Clip, Thermistor WPL 1185337 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Putty, Sound Dampener WPL 1182480 Contact Us For Availability
47
Tube, Feeder WPL 1186002 Contact Us For Availability
48
Tube, Feeder WPL 1186003 Contact Us For Availability
49
Bolt, Compressor WPL 1165674 Contact Us For Availability
50
Tube, Flow Divider WPL 1159832 Contact Us For Availability
51
Tube, Discharge WPL 1161078 Contact Us For Availability
× ![]()
